Preparation and Performance Evaluation of a High Performance Salt Resistant Emulsion Drag Reducer for Shale Oil Formation Fracturing

doi: 10.12358/j.issn.1001-5620.2026.04.016
  • 1.

    CNPC USA Corporation, Beijing 100028

  • 2.

    CNPC Engineering Technology R&D Company Limited, Beijing 102206

  • 3.

    CNPC Xinjiang Oil Field Company, Research Institute of Petroleum Engineering Technology, Karamay, Xinjiang 834000

  • Received Date: 2026-01-13
  • Accepted Date: 2026-03-15
  • Rev Recd Date: 2026-03-09
  • Publish Date: 2026-07-30
    Abstract

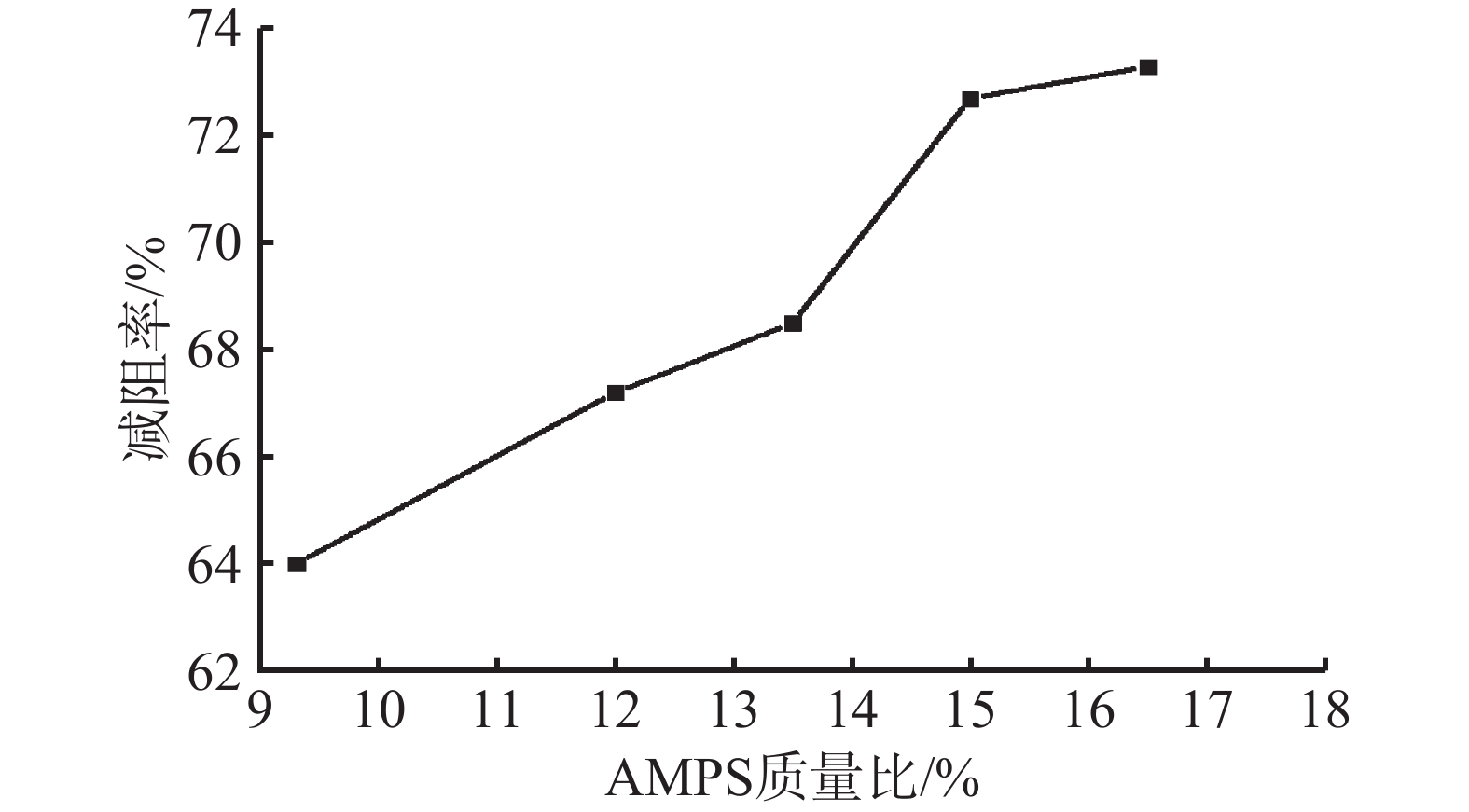

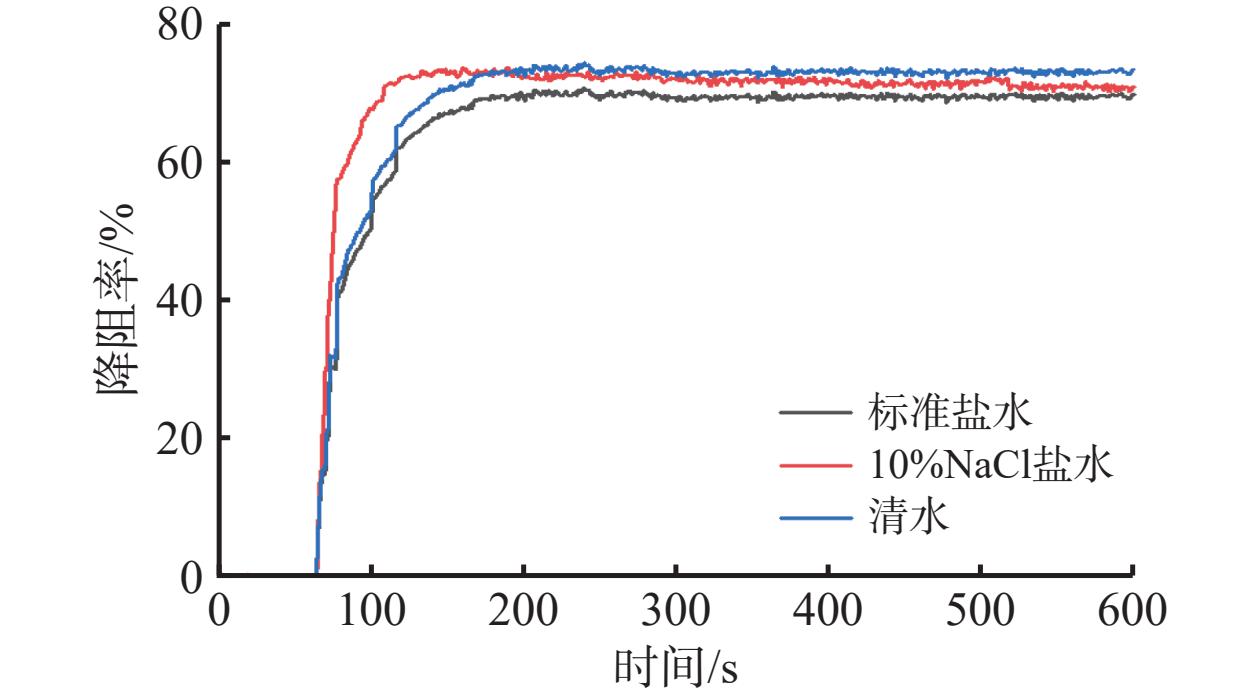

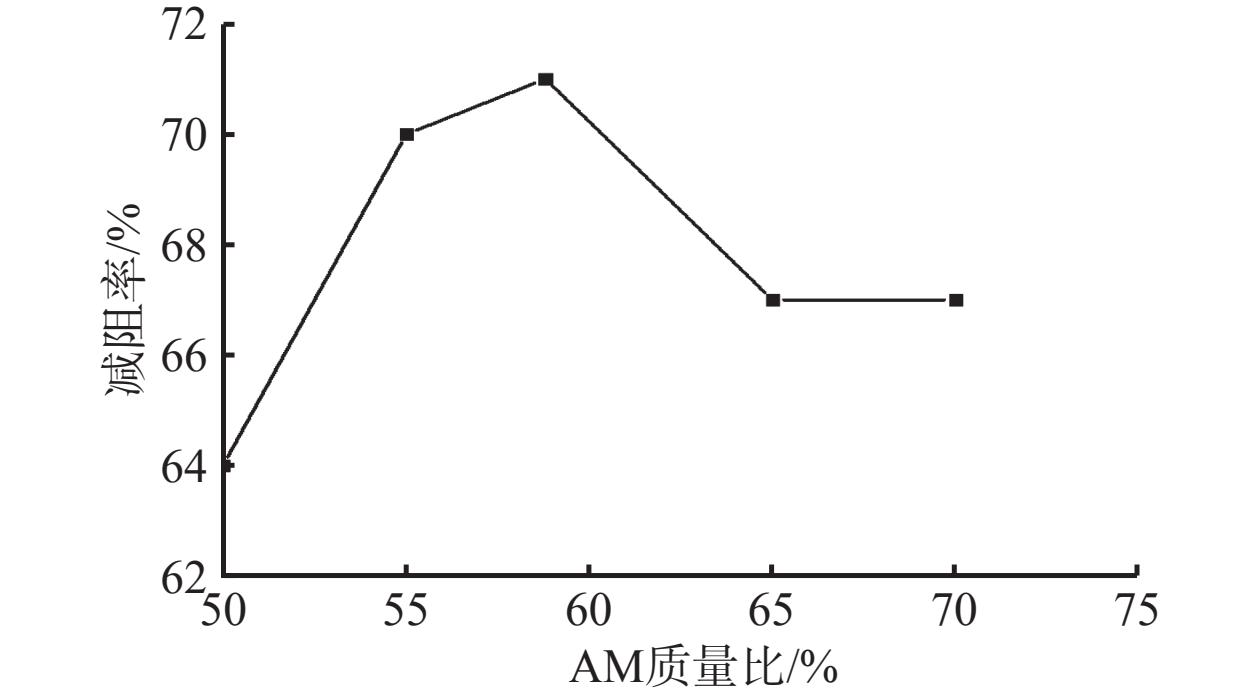

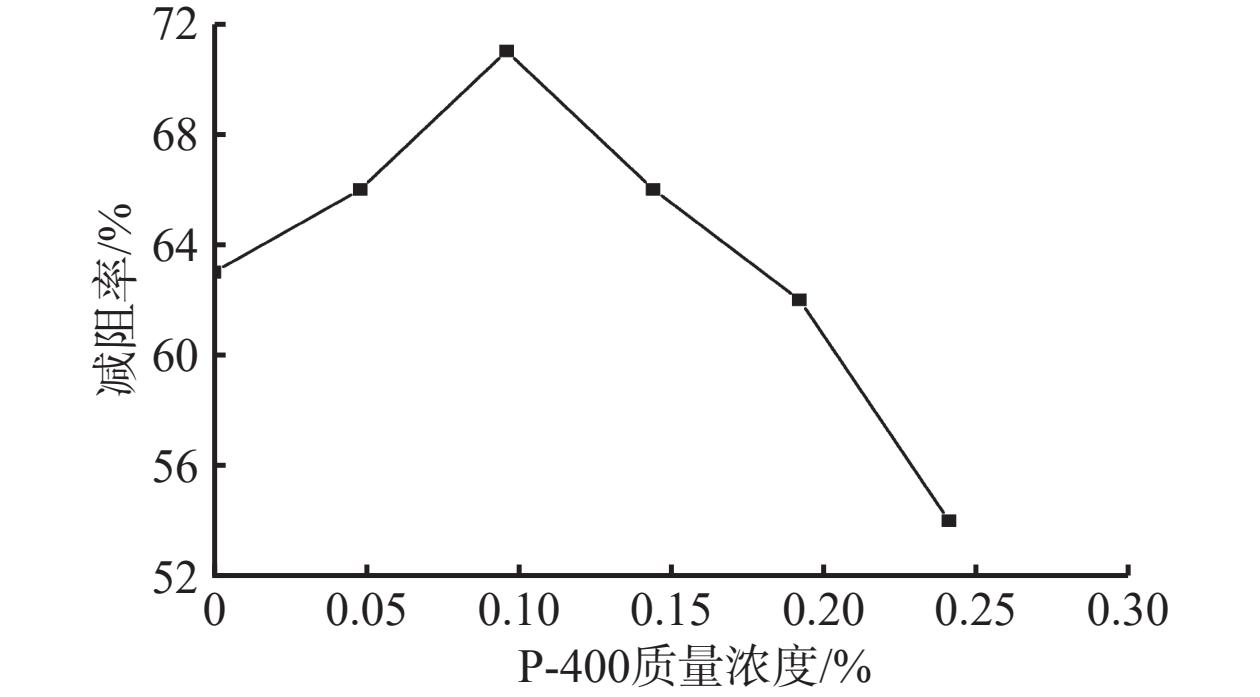

  • Conventional fracturing fluids for shale fracturing are formulated with high-salinity flow-back waters, and the conventional polyacrylamide (PAM) emulsion drag reducer cannot meet the requirements of field operations because of its poor salt tolerance. To address this problem, a high-performance salt-resistant emulsion drag reducer was developed using hydrophobic functional monomer P-400, which has block structure, and copolymer monomers such as acrylamide (AM), acrylic acid (AA) and 2-acrylamido-2-methylpropanesulfonic acid (AMPS) through inverse emulsion polymerization. The solid content, oil/water ratio, concentrations of the monomer P-400 and the polymerization monomers AM and AMPS were optimized to obtain the desired product. The experimental results show that a salt-resistant emulsion drag reducer with the optimal performance can be obtained under these conditions: solid content = 35%, oil/water ratio = 3:7, P-400 concentration = 0.1%, AM concentration = 58.8% and AMPS concentration = 15%. A fresh water containing 0.05% (wt) of the synthesized drag reducer can reduce the friction of the water by 78%. 10% NaCl solution and standard brine treated with 0.05% (wt) of the drag reducer have their friction reduced by 72% and 70%, respectively. Molecular dynamics simulations confirmed at the microscopic scale the synergistic effect of introducing block functional monomers on the drag-reduction and salt-resistance performances, and the mechanism thereof. Moreover, rheological test results show that the drag reducer is a typical pseudo-plastic fluid, having excellent viscoelasticity and shear resistance. This high-performance salt-resistant emulsion drag reducer has the potential of application in shale oil and gas production.



    • FullText(HTML)
  • loading
    • References(19)
  • [1]
    蒋其辉, 杨向同, 于筱溪, 等. 国内外滑溜水减阻剂研究进展[J]. 化学工业与工程, 2022, 39(2): 76-83. doi: 10.13353/j.issn.1004.9533.20210338

    Jiang Qihui, Yang Xiangtong, Yu Xiaoxi, et al. Research progresses of slick-water drag reducer at home and abroad[J]. Chemical Industry and Engineering, 2022, 39(2): 76-83. doi: 10.13353/j.issn.1004.9533.20210338
    [2]
    刘 宽 , 罗平亚 , 丁小惠, 等. 抗盐型滑溜水减阻剂的性能评价[J]. 油田化学, 2017, 34(3): 444-448.

    Liu Kuan,Luo Pingya,Ding Xiaohui,et al. Performance evaluation of slickwater friction reducer with salt tolerance[J]. Oilfield Chemistry, 2017, 34(3): 444-448.
    [3]
    周成裕, 黄强, 萧瑛, 等. 页岩储层压裂用聚合物存在的两个问题及其对策[J]. 化学世界, 2019, 60(12): 924-929.

    Zhou Chengyu, Huang Qiang, Xiao Ying, et al. Two problems and countermeasures of polymer for shale reservoir fracturing[J]. Chemical World, 2019, 60(12): 924-929.
    [4]
    Yang B, Zhao J Z, Mao J C, et al. Review of friction reducers used in slickwater fracturing fluids for shale gas reservoirs[J]. Journal of Natural Gas Science and Engineering, 2019, 62: 302-313. doi: 10.1016/j.jngse.2018.12.016
    [5]
    孟磊, 王力力, 刘晓瑞, 等. 疏水缔合聚丙烯酰胺作为滑溜水压裂液减阻剂的应用性能研究[J]. 应用化工, 2019, 48(4): 789-793, 800. doi: 10.3969/j.issn.1671-3206.2019.04.011

    Meng Lei, Wang Lili, Liu Xiaorui, et al. Research on the application performance of hydrophobic polyacrylamide as a drag reducing agent for slippery hydraulic fracturing fluid[J]. Applied Chemical Industry, 2019, 48(4): 789-793,800. doi: 10.3969/j.issn.1671-3206.2019.04.011
    [6]
    祝仰文, 郭拥军, 徐辉, 等. 耐温抗盐疏水缔合聚合物的制备与性能评价[J]. 油田化学, 2021, 38(2): 317-323. doi: 10.19346/j.cnki.1000-4092.2021.02.022

    Zhu Yangwen, Guo Yongjun, Xu Hui, et al. Preparation and performance evaluation of hydrophobically associating polymer with temperature resistance and salt tolerance[J]. Oilfield Chemistry, 2021, 38(2): 317-323. doi: 10.19346/j.cnki.1000-4092.2021.02.022
    [7]
    穆瑞花, 狄育慧, 赖小娟, 等. P(DMOAB-AM)共聚物的制备及其与表面活性剂的相互作用[J]. 合成化学, 2018, 26(11): 840-844. doi: 11.15952/j.cnki.cjsc.1005-1511.2018.11.17225

    Mu Ruihua, Di Yuhui, Lai Xiaojuan, et al. Preparation of P (DMOAB-AM) copolymer and interaction with surfactants[J]. Chinese Journal of Synthetic Chemistry, 2018, 26(11): 840-844. doi: 11.15952/j.cnki.cjsc.1005-1511.2018.11.17225
    [8]
    邓刚, 华成武, 孟闯, 等. 疏水缔合型阳离子聚丙烯酰胺研究[J]. 当代化工, 2021, 50(5): 1103-1106. doi: 10.3321/j.issn:0253-4320.2007.04.010

    Deng Gang, Hua Chengwu, Meng Chuang, et al. Research on hydrophobic cationic polyacrylamide[J]. Contemporary Chemical Industry, 2021, 50(5): 1103-1106. doi: 10.3321/j.issn:0253-4320.2007.04.010
    [9]
    刘平德, 牛亚斌, 张梅. 疏水缔合耐温抗盐聚丙烯酰胺共聚物的研究现状[J]. 钻井液与完井液, 2002, 19(3): 41-43.

    Liu Pingde, Niu Yabin, Zhang Mei. Current situation of hydrophobically associating polyacrylamide of heat tolerant[J]. Drilling Fluid & Completion Fluid, 2002, 19(3): 41-43.
    [10]
    李亮, 唐友军, 周妮. 疏水缔合型聚丙烯酰胺驱油剂的合成与性能评价[J]. 内蒙古石油化工, 2007, 33(4): 130-133.

    Li Liang, Tang Youjun, Zhou Ni. Dewatering into amides synthetic and polypropylene compounds-performance evaluation[J]. Inner Mongolia Petrochemical Industry, 2007, 33(4): 130-133.
    [11]
    Yang Z T, Zhang Y, Qi J, et al. Integrating hydraulic fracturing and oil displacement with micellar-enhanced supramolecular fluids[J]. Industrial & Engineering Chemistry Research, 2025, 64(22): 10820-10829. doi: 10.1021/acs.iecr.5c00172
    [12]
    邓朝霞, 叶代勇, 陈焕钦. 环氧-聚氨酯复合乳液的合成及表征[J]. 材料导报, 2012, 26(10): 107-109. doi: 10.3969/j.issn.1005-023X.2012.10.030

    Deng Zhaoxia, Ye Daiyong, Chen Huanqin. Synthesis and characterization of epoxy-polyurethane resin hybrid emulsion[J]. Materials Reports, 2012, 26(10): 107-109. doi: 10.3969/j.issn.1005-023X.2012.10.030
    [13]
    李明威, 胡继文. TEM研究苯乙烯微乳液聚合机理[J]. 广州化学, 2003, 28(1): 9-13. doi: 10.3969/j.issn.1009-220X.2003.01.003

    Li Mingwei, Hu Jiwen. Mechanism of microemulsion polymerization of styrene by TEM[J]. Guangzhou Chemistry, 2003, 28(1): 9-13. doi: 10.3969/j.issn.1009-220X.2003.01.003
    [14]
    成育红, 李鑫, 曹朋亮, 等. 深层致密砂岩储层聚合物减阻剂的研究及应用[J]. 钻采工艺, 2022, 45(5): 134-138.

    Cheng Yuhong, Li Xin, Cao Pengliang, et al. Research and application of polymer drag reducer in deep tight sandstone reservoir[J]. Drilling & Production Technology, 2022, 45(5): 134-138
    [15]
    宋兆杰, 韩啸, 王秀坤, 等. 页岩油藏压裂液流动机制及其对生产的影响[J]. 石油钻探技术, 2025, 53(5): 107-118.

    Song Zhaojie, Han Xiao, Wang Xiukun, et al. Flow mechanism of fracturing fluid in shale oil reservoir and its influence on production[J]. Petroleum Drilling Techniques, 2025, 53(5): 107-118
    [16]
    刘晓瑞, 刘利锋, 傅鹏, 等. 抗盐速溶型减阻剂的制备及性能评价[J]. 精细石油化工, 2022, 39(4): 31-35.

    Liu Xiaorui, Liu Lifeng, Fu Peng, et al. Preparation and properties of salt-resistant and instant drag reducer[J]. Speciality Petrochemicals, 2022, 39(4): 31-35.
    [17]
    杨霖, 梁兵. 长链端基疏水缔合减阻剂的制备与性能评价[J]. 油田化学, 2022, 39(3): 498-503. doi: 10.19346/j.cnki.1000-4092.2022.03.020

    Yang Lin, Liang Bing. Preparation and performance evaluation of hydrophobically associating drag reduction with a long-chain end-group[J]. Oilfield Chemistry, 2022, 39(3): 498-503. doi: 10.19346/j.cnki.1000-4092.2022.03.020
    [18]
    李玉敏, 李嘉, 赵伟, 等. 一体化多功能减阻剂的研究与应用[J]. 钻采工艺, 2023, 46(1): 146-152.

    Li Yumin, Li Jia, Zhao Wei, et al. Research and application of integrated multifunctional drag reducer[J]. Drilling and Production Technology, 2023, 46(1): 146-152.
    [19]
    徐荣利, 齐银, 薛小佳, 等. 庆城页岩油藏结构化驱油压裂技术研究与应用[J]. 石油钻探技术, 2025, 53(2): 126-132.

    Xu Rongli, Qi Yin, Xue Xiaojia, et al. Research and application of structured flooding fracturing technology in the Qingcheng shale oil reservoir[J]. Petroleum Drilling Techniques, 2025, 53(2): 126-132
