Wang Liwei, Gao Ying, Shi Yang, et al.Ultra-high temperature CaCl2 weighted fracturing fluid technology for ultra-deep high-pressure reservoir stimulaiton[J]. Drilling Fluid & Completion Fluid，2026, 43（4）：562-568 doi: 10.12358/j.issn.1001-5620.2026.04.015
Citation: Wang Liwei, Gao Ying, Shi Yang, et al.Ultra-high temperature CaCl2 weighted fracturing fluid technology for ultra-deep high-pressure reservoir stimulaiton[J]. Drilling Fluid & Completion Fluid，2026, 43（4）：562-568 doi: 10.12358/j.issn.1001-5620.2026.04.015
shu

Ultra-High Temperature CaCl2 Weighted Fracturing Fluid Technology for Ultra-Deep High-Pressure Reservoir Stimulaiton

doi: 10.12358/j.issn.1001-5620.2026.04.015
  • 1.

    PetroChina Research Institute of Petroleum Exploration & Development, Beijing 100083

  • 2.

    Oil & Gas Technology Research Institute, PetroChina Tarim Oilfield Company, Korla, Xinjiang 841000

  • Received Date: 2026-03-19
  • Accepted Date: 2026-04-14
  • Rev Recd Date: 2026-04-01
  • Publish Date: 2026-07-30
    Abstract

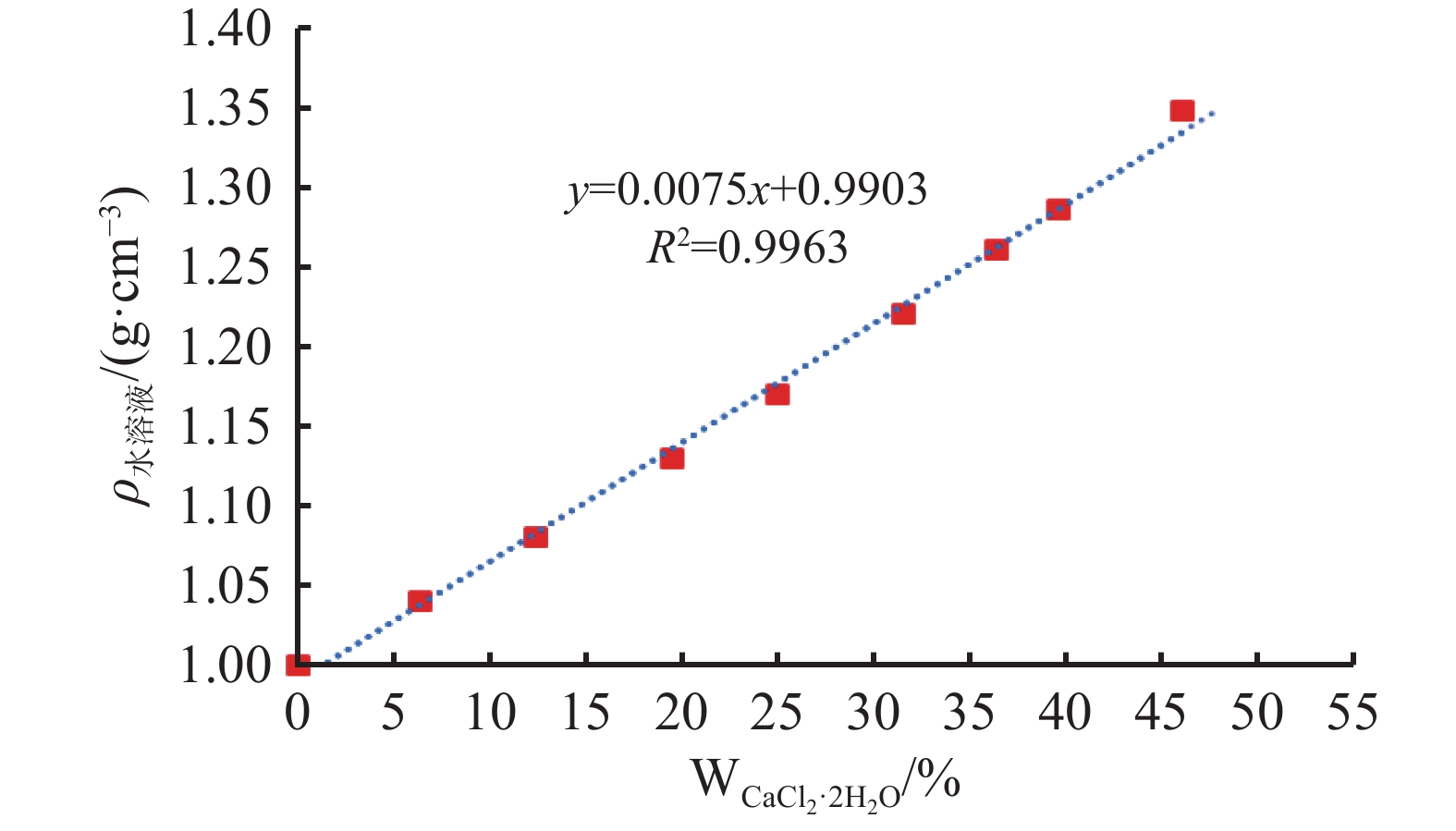

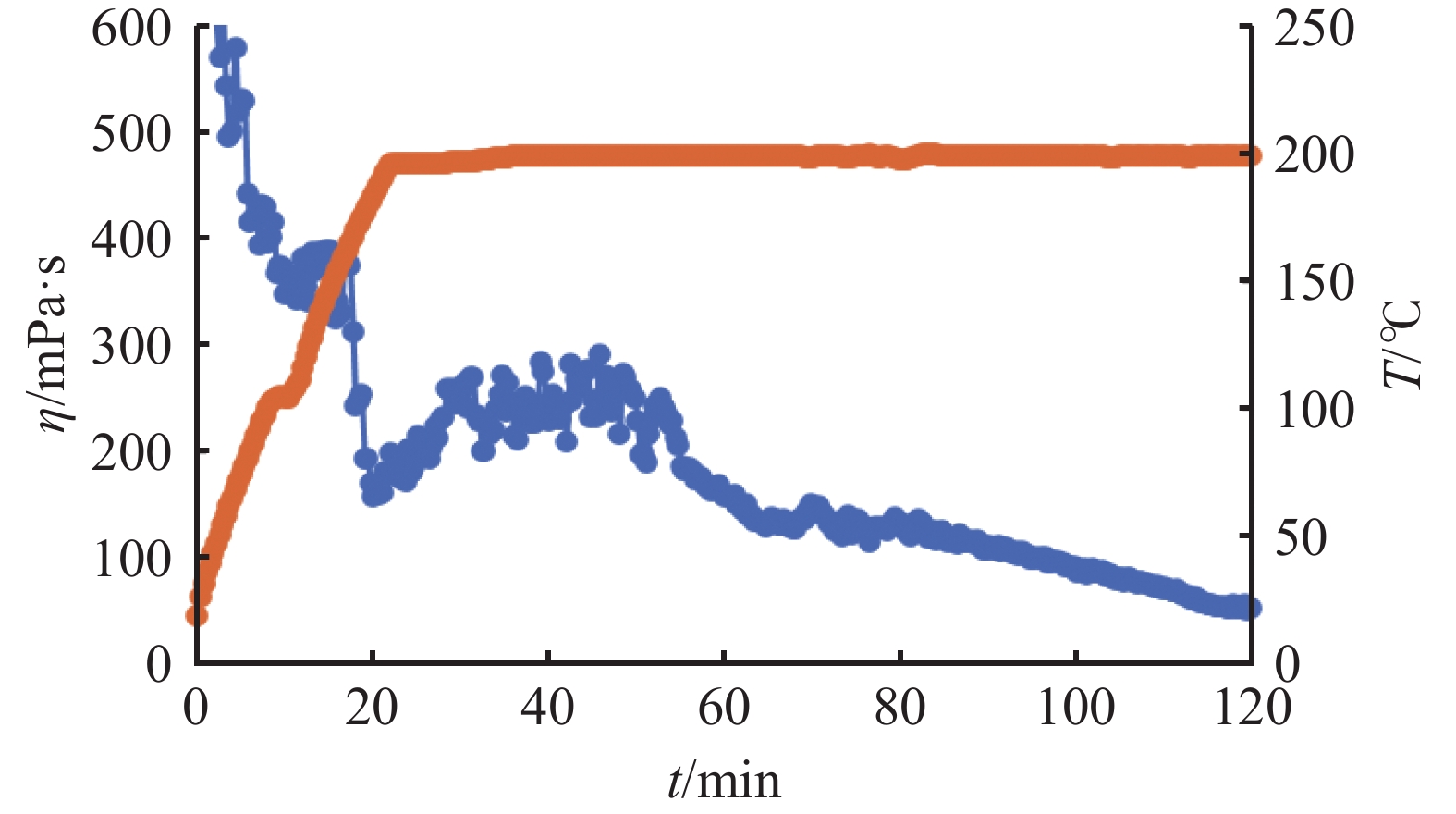

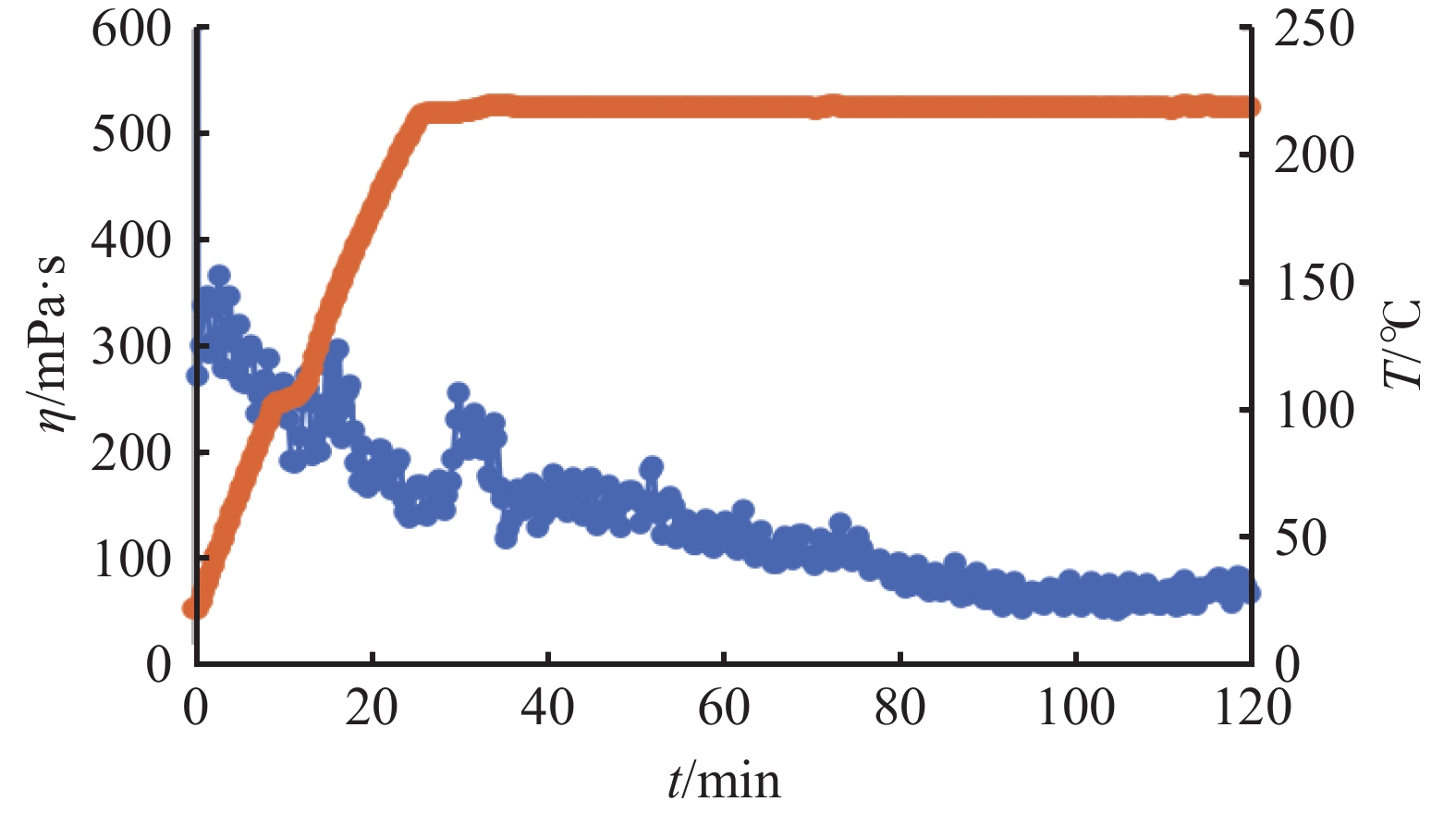

  • The continual breakthrough in exploring deep, ultra-deep and ultra-high pressure reservoirs has raised higher demands on heavy fracturing fluids. Fracturing fluid additives presently in use have various shortages, for example, KCl can raise the density of fracturing fluids to only a low density, bromides can raise the density of fracturing fluids to much higher densities, they are quite expensive though. Weighted guar gum fracturing fluids and weighted clear surfactant fracturing fluids, on the other hand, have poor high-temperature stability. To meet the requirements of stimulating reservoirs that are more than ten-thousand meters in depths, a technical study was conducted on ultra-high temperature weighted calcium chloride (CaCl2) fracturing fluid. By selecting the salts for weighting, synthesizing polymers that are stable at high temperatures and high salinities, and developing delayed/controllable crosslinkers, all of which are key to the formulation of an ideal fracturing fluid, a cost-effective CaCl2-weighted fracturing fluid which is resistant to ultra-high temperatures up to 220 ℃, was developed. The density of the fracturing fluid ranges from 1.15 g/cm3 to 1.35 g/cm3. The results of a comprehensive performance evaluation of the fracturing fluid show that after shearing for 2 hours at 180 – 220 ℃, the fracturing fluid, with varying compositions, has a viscosity that is greater than 50 mPa·s. The crosslinking time of the fracturing fluid is controllable. After standing for 2 hours at 180 ℃, no sand settling occurs. The rate of drag reducing of this fracturing fluid is greater than 50%. This fracturing fluid has been applied many times in the well Take-1, a well with bottomhole temperature of 205 ℃, the properties of the fracturing fluid were stable, and 308 m3 fracturing fluid was successfully used. The successful application of this weighted fracturing fluid technology provides a valuable experience for ultra-deep ultra-high pressure reservoir stimulation.



    • FullText(HTML)
  • loading
    • References(16)
  • [1]
    张宁宁, 王青, 王建君, 等. 近20年世界油气新发现特征与勘探趋势展望[J]. 中国石油勘探, 2018, 23(1): 44-53.

    Zhang Ningning, Wang Qing, Wang Jianjun, et al. Characteristics of oil and gas discoveries in recent 20 years and future exploration in the world[J]. China Petroleum Exploration, 2018, 23(1): 44-53.
    [2]
    雷群, 胥云, 杨战伟, 等. 超深油气储集层改造技术进展与发展方向[J]. 石油勘探与开发, 2021, 48(1): 193-201.

    Lei Qun, Xu Yun, Yang Zhanwei, et al. Progress and development directions of stimulation techniques for ultra-deep oil and gas reservoirs[J]. Petroleum Exploration and Development, 2021, 48(1): 193-201.
    [3]
    杨金华, 张焕芝. 非常规、深层、海洋油气勘探开发技术展望[J]. 世界石油工业, 2020, 27(6): 20-26.

    Yang Jinhua, Zhang Huanzhi. Outlook on the exploration and development technologies of unconventional, deep and offshore oil and gas[J]. World Petroleum Industry, 2020, 27(6): 20-26.
    [4]
    Rivas L F, Navaira G, Bourgeois B C. Development and use of high-density fracturing fluid in deep water gulf of mexico frac and packs[C]//SPE Annual Technical Conference and Exhibition, 2008: 页码范围缺失.
    [5]
    任占春. 甲酸盐加重瓜胶压裂液体系[J]. 钻井液与完井液, 2017, 34(1): 122-126.

    Ren Zhanchun. Guar gum fracturing fluids weighted with formates[J]. Drilling Fluid & Completion Fluid, 2017, 34(1): 122-126.
    [6]
    戴秀兰, 刘通义, 魏俊, 等. 加重压裂液用聚合物稠化剂合成及性能[J]. 钻井液与完井液, 2019, 36(6): 766-770.

    Dai Xiulan, Liu Tongyi, Wei Jun, et al. Synthesis and performance of a polymeric thickening agent for weighted fracturing fluids[J]. Drilling Fluid & Completion Fluid, 2019, 36(6): 766-770.
    [7]
    Bartko K, Arocha C, Mukherjee T S. First application of high density fracturing fluid to stimulate a high-pressure and high temperature tight gas producer sandstone formation of Saudi Arabia[C]//SPE Hydraulic Fracturing Technology Conference, 2009: SPE-118904-MS.
    [8]
    张福祥, 彭建新, 李元斌, 等. 加砂压裂改造技术在野云2井的应用[J]. 油气井测试, 2005, 14(2): 63, 66.

    Zhang Fuxiang, Peng Jianxin, Li Yuanbin, et al. Application of adding sand fracture treatment tech in yeyun2 well[J]. Well Testing, 2005, 14(2): 63, 66.
    [9]
    张宇, 陈维余, 温守国, 等. 耐高温聚合物加重压裂液的开发及性能评价[J]. 精细与专用化学品, 2024, 32(11): 24-28.

    Zhang Yu, Chen Weiyu, Wen Shouguo, et al. Development and performance evaluation of high temperature resistant polymer weighted fracturing fluid[J]. Fine and Specialty Chemicals, 2024, 32(11): 24-28.
    [10]
    孙井泉. 抗高温低摩阻硼交联加重压裂液研究[D]. 成都: 西南石油大学, 2022.

    Sun Jingquan. Research on high temperature and low friction boron crosslinked heavy fracturing fluid[D]. Chengdu: Southwest Petroleum University, 2022.
    [11]
    翁定为, 杨战伟, 彭建新, 等. 万米特深碳酸盐岩储层改造技术研究和试验[J]. 石油学报, 2026, 47(2): 466-481,490.

    Weng Dingwei, Yang Zhanwei, PENG Jianxin,et al. Research and experiment on reservoir stimulation technology for ultra-deep carbonate reservoirs at 10000 meters depth[J]. Acta Petrolei Sinica, 2026, 47(2): 466-481,490.
    [12]
    周建平, 杨战伟, 徐敏杰, 等. 工业氯化钙加重胍胶压裂液体系研究与现场试验[J]. 石油钻探技术, 2021, 49(2): 96-101.

    Zhou Jianping, Yang Zhanwei, Xu Minjie, et al. Research and field tests of weighted fracturing fluids with industrial calcium chloride and guar gum[J]. Petroleum Drilling Techniques, 2021, 49(2): 96-101.
    [13]
    Lites L, Mackay B A, Mirakyan A, et al. Enhanced viscosity of polymer solutions in high salinity brines[Z]. 2016.
    [14]
    Alhad P, Yenny C, Carlos A, et al. System, method, and apparatus for utilizing divalent brines in viscosified well treatment fluids: 8030254[P]. 2011-10-04.
    [15]
    赵莹. 低摩阻高温加重压裂液体系研究及性能评价[J]. 精细石油化工进展, 2020, 21(6): 1-4, 32.

    Zhao Ying. Research on one low friction drag high temperature weighted fracturing fluid system and evaluation on its performance[J]. Advances in Fine Petrochemicals, 2020, 21(6): 1-4,32.
    [16]
    刘通义, 陈江明, 赵众从, 等. BCG-1深井加重清洁压裂液体系[J]. 钻井液与完井液, 2016, 33(2): 122-126. doi: 10.3696/j.issn.1001-5620.2016.02.026

    Liu Tongyi, Chen Jiangming, Zhao Zhongcong, et al. Weighted clean fracturing fluid for deep well stimulation[J]. Drilling Fluid & Completion Fluid, 2016, 33(2): 122-126. doi: 10.3696/j.issn.1001-5620.2016.02.026
