FU Xiongtao, DONG Zhiming, LI Jiajia, et al.Preparation of C-S-H/APC nanoseed and its effect on the early strength of set cement[J]. Drilling Fluid & Completion Fluid，2026, 43（2）：217-222 doi: 10.12358/j.issn.1001-5620.2026.02.010
Citation: FU Xiongtao, DONG Zhiming, LI Jiajia, et al.Preparation of C-S-H/APC nanoseed and its effect on the early strength of set cement[J]. Drilling Fluid & Completion Fluid，2026, 43（2）：217-222 doi: 10.12358/j.issn.1001-5620.2026.02.010
shu

Preparation of C-S-H/APC Nanoseed and Its Effect on the Early Strength of Set Cement

doi: 10.12358/j.issn.1001-5620.2026.02.010
  • 1.

    Changqing cementing company of CNPC Chuanqing Drilling Engineering Co., Ltd, Xi'an, Shaanxi 710018

  • 2.

    Longdong Oil and gas development branch of Changqing Oilfield, Qingyang, Gansu 745100

  • Received Date: 2025-07-14
  • Rev Recd Date: 2025-09-28
  • Publish Date: 2026-04-08
    Abstract

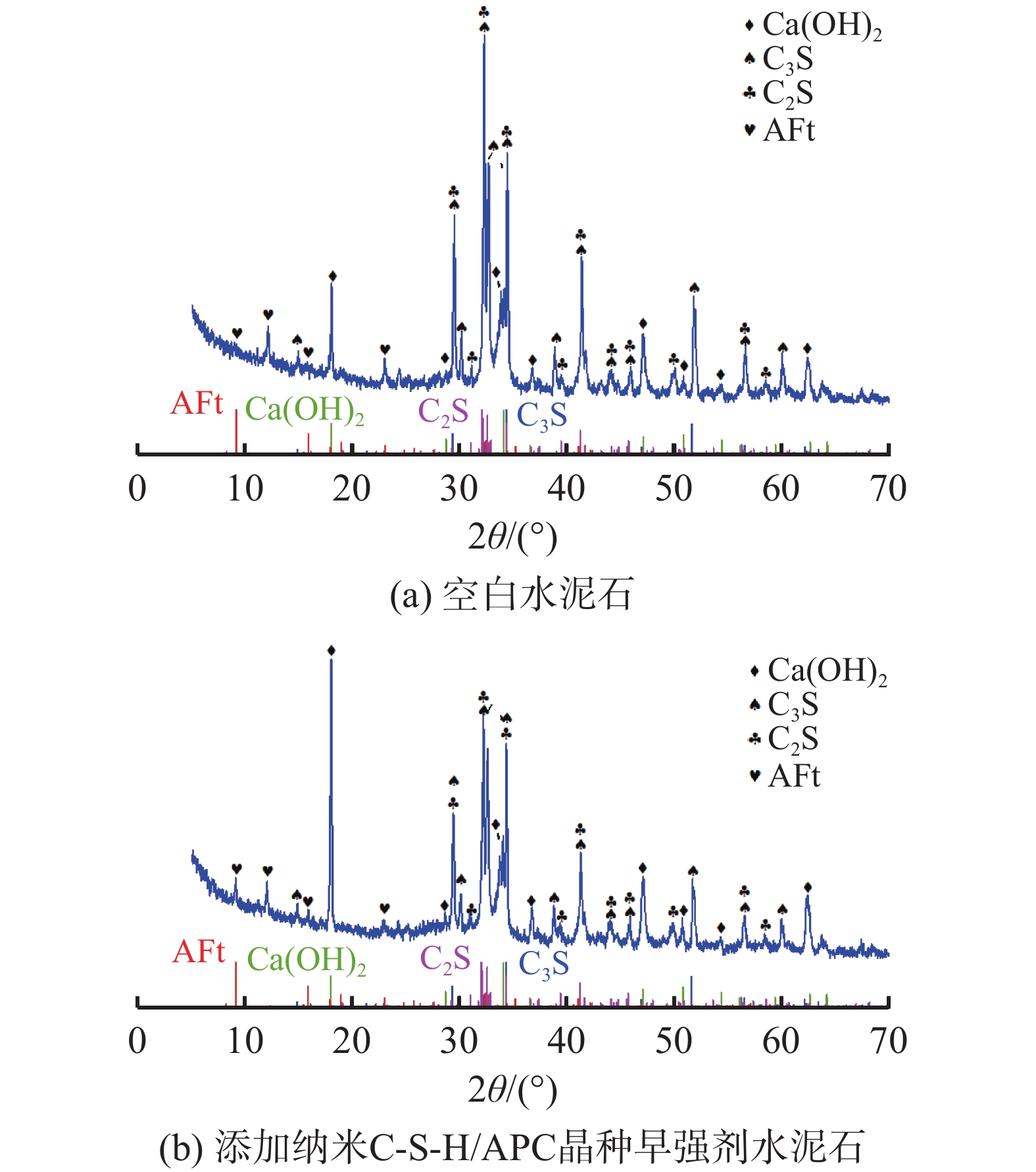

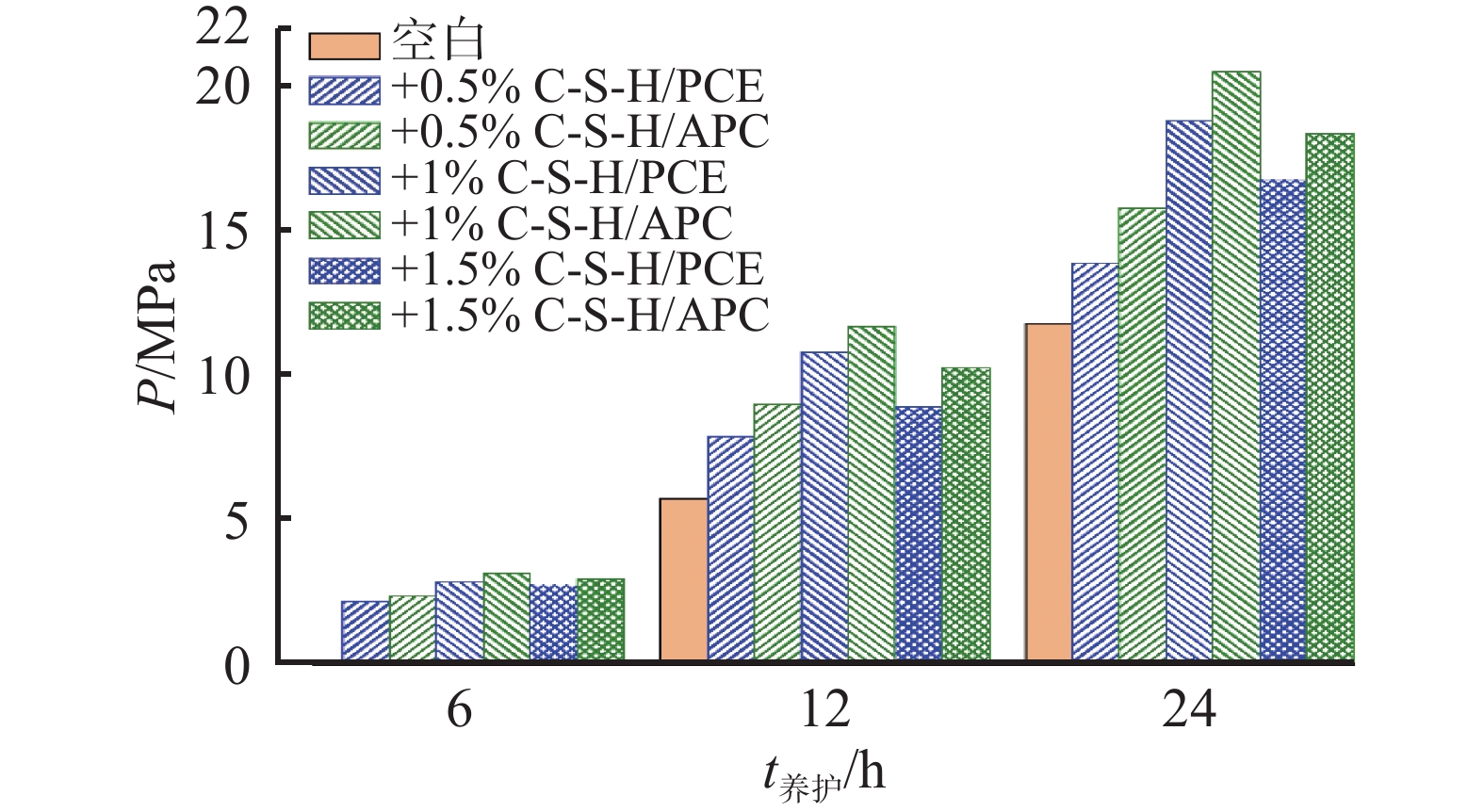

  • Hydrated calcium silicate/polycarboxylic acid nanocrystalline species (C-S-H/PCE) is a kind of nanocomposites with nucleation effect can accelerate the hydration reaction of cement and improve the early strength of cement stone, but the conventional anionic polycarboxylic acid dispersant has strong retarding effect. In this paper, a strongly dispersing and weakly retarding amphoteric polycarboxylic acid dispersant (APC) was firstly synthesized by introducing methacryloyloxyethyltrimethylammonium chloride cationic monomer, and then a hydrated calcium silicate/amphoteric polycarboxylic acid nanocrystalline seed (C-S-H/APC) with high early-strength performance was prepared from the APC, and the structure of the crystal seed was characterized. The compressive strength of C-S-H/APC cementite was 10.8%, 8.2% and 8.9% higher than that of C-S-H/PCE cementite when the addition amount of the crystalline seed was 1%, and the curing time at 20 ℃ was 6 h, 12 h and 24 h. The XRD patterns of C-S-H/APC cementite showed that the Ca(OH)2 diffraction peaks were obviously stronger than that of the blank group, while those of C2S and C3S were lower than that of the blank group, and there were some water-induced and water-soluble peaks in the XRD patterns of the cementite. C2S, C3S, and the diffraction peaks of hydration product AFt were lower than those of the blank group. The SEM image of cement stone shows that the hydration degree of the blank cement stone is very low and the structure is loose, and the structure of the nanometer C-S-H/APC cement stone with the same age of maintenance is denser and the hydration degree of the cement is higher, which indicates that the nanometer C-S-H/APC improves the hydration rate of the cement and accelerates the formation of the spatial network structure of the hydration products, so as to improve the early strength of the cement stone, and the performance of this low-temperature early-strengthening agent slurry system is stable, and it has been used in Changqing Oil Industry. The low-temperature early strength cement slurry performs well and has been successfully applied in the low-temperature wells in the long 6 layers of Ordos Basin of Changqing Oilfield.



    • FullText(HTML)
  • loading
    • References(21)
  • [1]
    卢海川, 朱海金, 王健栋, 等. 新型油井水泥用纳米基促凝早强剂[J]. 钻井液与完井液, 2024, 41(1): 119-124.

    LU Haichuan, ZHU Haijin, WANG Jiandong, et al. A new nanometer accelerating early strengthen agent for oil well cement[J]. Drilling Fluid & Completion Fluid, 2024, 41(1): 119-124.
    [2]
    PEDROSA H C, REALES O M, REIS V D, et al. Hydration of Portland cement accelerated by C-S-H seeds at different temperatures[J]. Cement and Concrete Research, 2020, 129: 105978. doi: 10.1016/j.cemconres.2020.105978
    [3]
    SUN J F, SHI H, QIAN B B, et al. Effects of synthetic C-S-H/PCE nanocomposites on early cement hydration[J]. Construction and Building Materials, 2017, 140: 282-292. doi: 10.1016/j.conbuildmat.2017.02.075
    [4]
    徐鸿志, 宋伟宸, 步玉环, 等. 基于水合物层骨架重构的低温早强胶凝材料[J]. 钻井液与完井液, 2024, 41(3): 357-363.

    XU Hongzhi, SONG Weichen, BU Yuhuan, et al. A low temperature early strength gel material based on reconstruction of hydrate layer frame[J]. Drilling Fluid & Completion Fluid, 2024, 41(3): 357-363.
    [5]
    ZHAI W Z, WANG C Y, YAO X, et al. Characteristics of polycarboxylate-based dispersant suitable for medium and low temperature oil well cementing[J]. Construction and Building Materials, 2021, 290: 123239. doi: 10.1016/j.conbuildmat.2021.123239
    [6]
    王文斌, 万向臣, 唐凯. 固井水泥浆用两性离子型聚羧酸分散剂的合成及性能评价[J]. 合成化学, 2024, 32(10): 896-904.

    WANG Wenbin, WAN Xiangchen, TANG Kai. Synthesis and performance evaluation of zwitterionic polycarboxylate dispersant for cementing slurry[J]. Chinese Journal of Synthetic Chemistry, 2024, 32(10): 896-904.
    [7]
    于斌, 赵琥, 孙超, 等. 一种高性能油气井水泥分散剂及其制备方法: CN201510117902.8[P]. 2015-03-17.

    YU Bin, ZHAO Hu, SUN Chao, et al. A high-performance oil and gas well cement dispersant and its preparation method: CN201510117902.8[P]. 2015-03-17.
    [8]
    WEN P P, FENG Z J, ZHENG B C. Thixotropy of fresh cement pastes in presence of cationic polymer[J]. Construction and Building Materials, 2023, 394: 132302. doi: 10.1016/j.conbuildmat.2023.132302
    [9]
    吕飞, 张薇, 罗菲菲. 聚羧酸分散剂MPEGA-b-AA-b-MPEGA制备及分散性研究[J]. 化工新型材料, 2016, 44(4): 106-108.

    LYU Fei, ZHANG Wei, LUO Feifei. Study on the synthesis and property of polycarboxylate dispersant MPEGA-b-AA-b-MPEGA[J]. New Chemical Materials, 2016, 44(4): 106-108.
    [10]
    TIAN H W, KONG X M, CUI Y, et al. Effects of polycarboxylate superplasticizers on fluidity and early hydration in sulfoaluminate cement system[J]. Construction and Building Materials, 2019, 228: 116711. doi: 10.1016/j.conbuildmat.2019.116711
    [11]
    LI Y J, SUN Z Y, LI Z N, et al. Dimeric and oligomeric interactions between calcium silicate aqua monomers before calcium silicate hydrate nucleation[J]. Cement and Concrete Research, 2023, 173: 107297. doi: 10.1016/j.cemconres.2023.107297
    [12]
    殷素红, 杨幸霖, 冯献, 等. 不同侧链密度PCE制备的C-S-H/PCE结构及其对水泥早期水化的影响[J]. 华南理工大学学报(自然科学版), 2023, 51(1): 76-83, 94.

    YIN Suhong, YANG Xinglin, FENG Xian, et al. Structure of C-S-H/PCE prepared from PCE with different side chain densities and its effects on early hydration properties of cement[J]. Journal of South China University of Technology(Natural Science Edition), 2023, 51(1): 76-83,94.
    [13]
    ZOU F B, ZHANG M, HU C L, et al. Novel C-A-S-H/PCE nanocomposites: Design, characterization and the effect on cement hydration[J]. Chemical Engineering Journal, 2021, 412: 128569. doi: 10.1016/j.cej.2021.128569
    [14]
    DAMIDOT D, LORS C. 水泥水化与水化硅酸钙的结构和化学组成之间的相互作用[J]. 硅酸盐学报, 2015, 43(10): 1324-1330.

    DAMIDOT D, LORS C. Mutual interaction between hydration of Portland cement and structure and stoichiometry of hydrated calsium silicate[J]. Journal of the Chinese Ceramic Society, 2015, 43(10): 1324-1330.
    [15]
    崔素萍, 郭红霞, 王辰, 等. 纳米无定形C-S-H凝胶颗粒及其结构表征[J]. 硅酸盐通报, 2012, 31(3): 531-534.

    CUI Suping, GUO Hongxia, WANG Chen, et al. Synthesis and characterization of amorphous calcium-silieate hydrate (C-S-H) nanoparticles[J]. Bulletin of the Chinese Ceramic Society, 2012, 31(3): 531-534.
    [16]
    YOU Z Y, XU J. Investigation on variables contributing to the synthesis of C-S-H/PCE Nanocomposites by co-precipitation method[J]. Materials, 2021, 14(24): 7673. doi: 10.3390/ma14247673
    [17]
    SHEN H Q, WANG Z M, LIU X, et al. Microstructure and properties of C-S-H/PCE nanocomposites[J]. Materials Science Forum, 2017, 898: 2089-2094. doi: 10.4028/www.scientific.net/MSF.898.2089
    [18]
    逄建军, 魏中原, 潘立滨, 等. C-S-H/PCE凝胶的制备及性能[J]. 混凝土世界, 2020(5): 70-73.

    PANG Jianjun, WEI Zhongyuan, PAN Libin, et al. Preparation and properties of C-S-H/PCE gel[J]. Building Decoration Materials World, 2020(5): 70-73.
    [19]
    ZHU H W, LIAO C, HU C L, et al. A novel approach for high-efficient activation of large-volume slag cement towards a lower-carbon future in cement industry[J]. Construction and Building Materials, 2024, 442: 137638. doi: 10.1016/j.conbuildmat.2024.137638
    [20]
    赵琥, 马春旭, 宋维凯, 等. 空心微珠低密度水泥浆在高温下的水化特性[J]. 钻井液与完井液, 2024, 41(5): 654-660.

    ZHAO Hu, MA Chunxu, SONG Weikai, et al. High temperature hydration of low density cement slurries weighted with hollow microspheres[J]. Drilling Fluid & Completion Fluid, 2024, 41(5): 654-660.
    [21]
    刘涛, 董三宝, 王丹, 等. 负温固井用锂盐-硫铝酸盐水泥浆体系[J]. 钻井液与完井液, 2024, 41(4): 496-505.

    LIU Tao, DONG Sanbao, WANG Dan, et al. Lithium salt-sulfoaluminate slurry system for negative temperature cementing[J]. Drilling Fluid & Completion Fluid, 2024, 41(4): 496-505.
