Article Navigation >  DRILLING FLUID & COMPLETION FLUID  > 2026  >  43(1): 130-135
YANG Qi, LUO Yougang, XI Mingli, et al.Development and performance evaluation of a degradable temporary plugging agent for wellbore reconstruction[J]. Drilling Fluid & Completion Fluid，2026, 43（1）：130-135 doi: 10.12358/j.issn.1001-5620.2026.01.017
Citation: YANG Qi, LUO Yougang, XI Mingli, et al.Development and performance evaluation of a degradable temporary plugging agent for wellbore reconstruction[J]. Drilling Fluid & Completion Fluid，2026, 43（1）：130-135 doi: 10.12358/j.issn.1001-5620.2026.01.017
shu

Development and Performance Evaluation of a Degradable Temporary Plugging Agent for Wellbore Reconstruction

doi: 10.12358/j.issn.1001-5620.2026.01.017
  • 1.

    State Key Laboratory of Oil and Gas Equipment，CNPC Tubular Goods Research Institute，Xi'an, Shaanxi 710077

  • 2.

    Oiland Gas Technology Research Institute of Changqing Oilfield Company, Xi'an, Shaanxi 710021

  • 3.

    Development Division, Changqing Oilfield, Xi'an, Shaanxi 710016

  • Received Date: 2025-09-18
  • Accepted Date: 2025-10-28
  • Rev Recd Date: 2025-10-11
    • Available Online: 2026-02-09
  • Publish Date: 2026-02-09
    Abstract

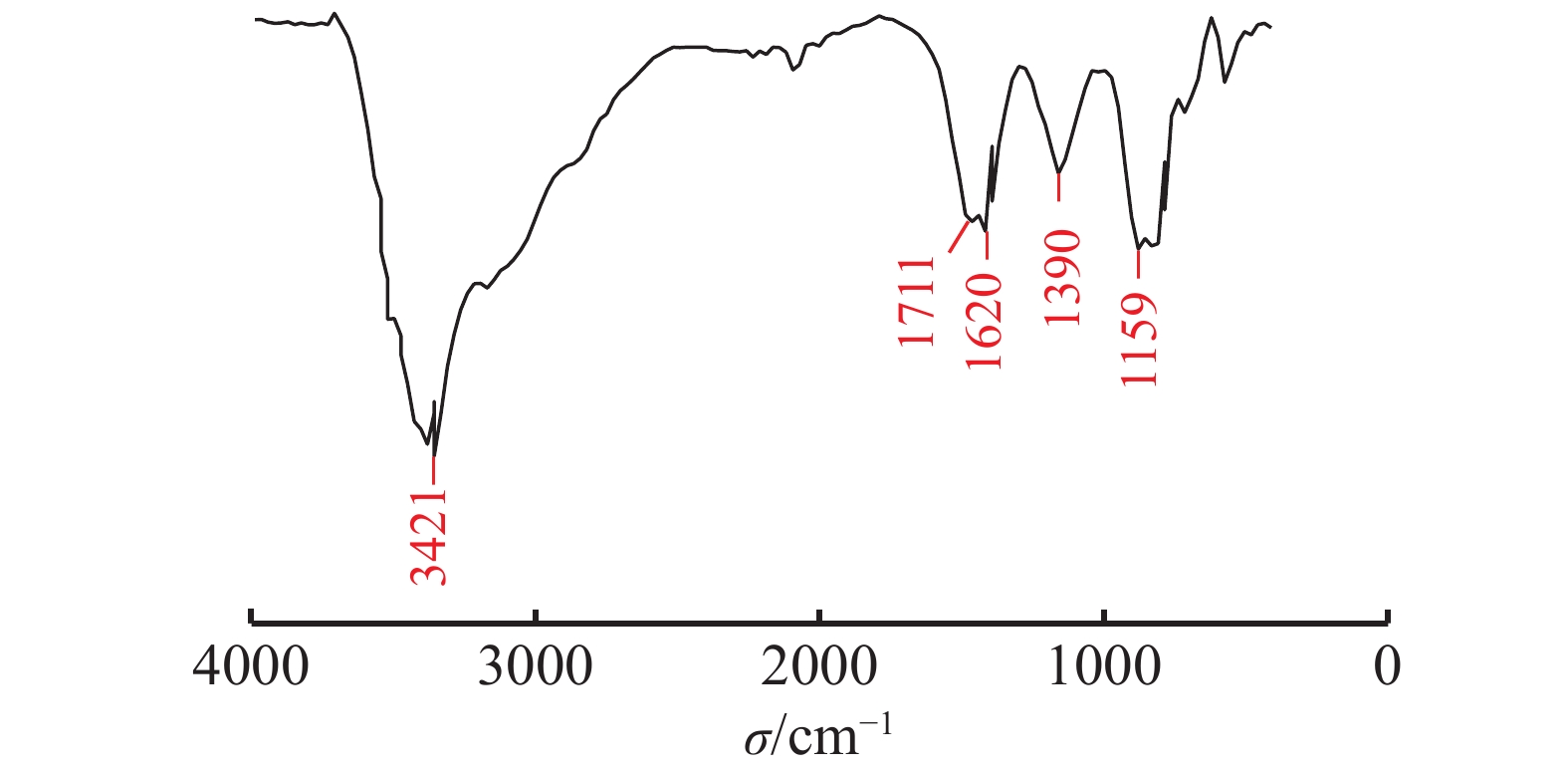

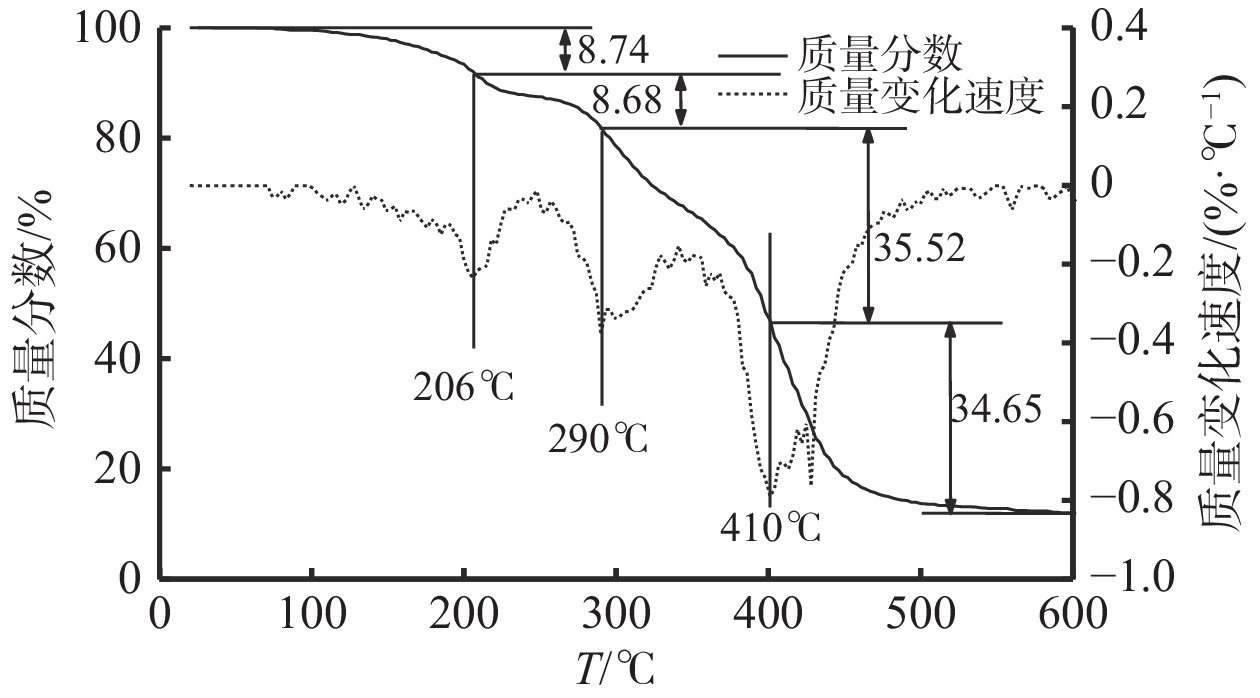

  • In wellbore reconstruction operations such as repairing damaged casings and remedial cementing, oil and/or gas zones need to be temporarily plugged off. To perform this job, a degradable compound core-shell structure gel temporary plugging agent was designed and developed with raw materials AM and PLA. The core-shell structure uses PLA as the core and PAM as the shell. The temporary plugging agent is synthesized through inverse suspension polymerization, with MBA being the crosslinking agent. The temporary plugging agent was molecularly analyzed with FT-IR and TGA, and its performance was compared with polyacrylamide-type temporary plugging agents used in field operations. The results of the experiments show that the degradable temporary plugging agent has good thermal stability, and at temperatures up to 206℃, there is no thermal degradation of the temporary plugging agent taking place. The degradable temporary plugging agent can be used in wellbore reconstruction in these formation conditions: 60℃-90℃, pH≤11 and salinity≤50 g/L. The field operation has proved that the degradable temporary plugging agent is equivalent in performance to polyacrylamide-type temporary plugging agents in plugging formations and removing formation blockage, but has better high temperature stability, causes lower formation damage and is more cost effective, and water injection into wells operated with this degradable temporary plugging agent can be earlier restored.



    • FullText(HTML)
  • loading
    • References(18)
  • [1]
    赵艳红, 姜汉桥, 李洪奇, 等. 基于机器学习的单井套损预测方法[J]. 中国石油大学学报(自然科学版), 2020, 44(4): 57-67.

    ZHAO Yanhong, JIANG Hanqiao, LI Hongqi, et al. Research on predictions of casing damage based on machine learning[J]. Journal of China University of Petroleum (Edition of Natural Science), 2020, 44(4): 57-67.
    [2]
    苟利鹏, 张进科, 杨金峰, 等. 姬塬油田套损井隔水采油技术研究与应用[J]. 西南石油大学学报(自然科学版), 2020, 42(3): 107-114.

    GOU Lipeng, ZHANG Jinke, YANG Jinfeng, et al. Research and application of the water isolation technology for casing damage in Jiyuan oilfield[J]. Journal of Southwest Petroleum University (Science & Technology Edition), 2020, 42(3): 107-114.
    [3]
    蒲春生, 姬志贤, 杨兆平, 等. 油水井套损研究进展综述[J]. 应用化工, 2020, 49(增刊1): 12-15,19.

    PU Chunsheng, JI Zhixian, YANG Zhaoping, et al. A review on the research progress of casing damage in oil and water wells[J]. Applied Chemical Industry, 2020, 49(Sup1): 12-15,19.
    [4]
    黄占盈, 周文军, 欧阳勇, 等. Ф88.9mm小套管钻完井技术在苏里格气田的应用[J]. 石油天然气学报, 2014, 36(2): 96-100.

    HUANG Zhanying, ZHOU Wenjun, OU YANG Yong, et al. Application of Ф88.9mm slim-casing drilling and completion technology in sulige gasfield[J]. Journal of Oil and Gas Technology, 2014, 36(2): 96-100.
    [5]
    杨琦, 王海洲, 陈昌奎, 等. 低渗透油藏套损井非金属大段贴堵技术研究[J]. 石油机械, 2024, 52(11): 36-42.

    YANG Qi, WANG Haizhou, CHEN Changkui, et al. Nonmetallic large section sticking-plugging technology for casing damaged wells in low-permeability reservoirs[J]. China Petroleum Machinery, 2024, 52(11): 36-42.
    [6]
    蒋卫东, 刘合, 晏军, 等. 新型纤维暂堵转向酸压实验研究与应用[J]. 天然气工业, 2015, 35(11): 54-59.

    JIANG Weidong, LIU He, YAN Jun, et al. A novel fiber temporary plugging and diverting acid fracturing technology: an experimental study and field practices[J]. Natural Gas Industry, 2015, 35(11): 54-59.
    [7]
    KONG X W, XU H X, SHEN J W, et al. Study on the velocity of the temporary plugging agent along wellbore in a fracturing operation[J]. Chemistry and Technology of Fuels and Oils, 2022, 58(1): 186-188.
    [8]
    WANG Q Y, ZHOU C H, ZHANG H H. Preparation of low-molecular-weight polyacrylamide as the delayed crosslinking plugging agent for drilling fluid[J]. GELS, 2024, 10(2): 112-134. doi: 10.3390/gels10020112
    [9]
    LIU Z Q, XU J F, PENG W, et al. The development and deployment of degradable temporary plugging material for ultra-deep water wells[J]. Processes, 2023, 11(6): 1685-1699. doi: 10.3390/pr11061685
    [10]
    LUO M L, SI X D, LI M Z, et al. Experimental study on the temporary plugging performance of magnetic responsive hydrogel in hydraulic fracturing of hydrocarbon reservoirs[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2022, 646: 128981. doi: 10.1016/j.colsurfa.2022.128981
    [11]
    LI D Q, LI F, LIU J H, et al. Synthesis and properties of PAM/PLA composite degradable particle temporary plugging agent[J]. Journal of Applied Polymer Science, 2022, 139(48): e53216. doi: 10.1002/app.53216
    [12]
    BASILISSI L, SILVESTRO G D, FARINA H, et al. Synthesis and characterization of PLA nanocomposites containing nanosilica modified with different organosilanes I. Effect of the organosilanes on the properties of nanocomposites: macromolecular, morphological, and rheologic characterization[J]. Journal of Applied Polymer Science, 2012, 128(3): 1575-1582.
    [13]
    董晓强, 金冰垚, 刘雨涵, 等. PGA 可降解材料作为钻完井液暂堵剂实验研究[J]. 钻井液与完井液, 2024, 41(2): 166-171.

    DONG Xiaoqiang, JIN Bingyao, LIU Yuhan, et al. Experimental study on degradable PGA as temporary plugging agent in drillin fluids[J]. Drilling Fluid & Completion Fluid, 2024, 41(2): 166-171
    [14]
    刘文堂, 刘昱彤, 李旭东, 等. 一种聚合物凝胶暂堵剂的研制及其应用[J]. 钻井液与完井液, 2024, 41(4): 551-556.

    LIU Wentang, LIU Yutong, LI Xudong, et al. Development of polymer gel temporary plugging agent and the application [J]. Drilling Fluid & Completion Fluid, 2024, 41(4): 551-556
    [15]
    田智元, 齐舵, 王海波, 等. 钻井液用可降解聚合物暂堵剂的研制[J]. 钻井液与完井液, 2025, 42(1): 74-81.

    TIAN Zhiyuan, QI Duo, WANG Haibo, et al. Development of a biodegradable polymer temporary plugging agent for drillingfluid[J]. Drilling Fluid & Completion Fluid, 2025, 42(1): 74-81
    [16]
    胡穎兰, 冉瑾, 崔鹏, 等. 丙烯酰胺对丙烯酸系高吸水树脂耐盐性的影响[J]. 高分子材料科学与工程, 2024, 40(6): 25-32.

    HU Yinglan, RAN Jin, CUI Peng, et al. Influence of acrylamide on the salt resistance of acrylic superabsorbent resin[J]. Polymer Materials Science & Engineering, 2024, 40(6): 25-32.
    [17]
    陈清, 白田增, 王艺之, 等. 氯化钠暂堵剂的制备与性能评价[J]. 油田化学, 2018, 35(4): 648-653.

    CHEN Qing, BAI Tianzeng, WANG Yizhi, et al. Preparation and performance evaluation of sodium chloride temporary plugging agent[J]. Oilfield Chemistry, 2018, 35(4): 648-653.
    [18]
    尚成新, 伏露瑶, 范旭泽, 等. 聚丙烯酰胺树脂的反相悬浮聚合制备及吸水性能研究[J]. 化学研究与应用, 2024, 36(8): 1861-1867.

    SHANG Chengxin, FU Luyao, FAN Xuze, et al. Preparation and water absorption properties of polyacrylamide resin by inverse suspension polymerization[J]. Chemical Research and Application, 2024, 36(8): 1861-1867.
