The Influence of the Synergistic Effect between Thermo-Responsive Polymers and Bentonite on the Rheology of Water-Based Drilling Fluids

doi: 10.12358/j.issn.1001-5620.2026.01.004
  • 1.

    School of Petroleum Engineering, Yangtze University, Wuhan, Hubei 430100

  • 2.

    Sinopec. Shengli Petroleum Engineering Co., Ltd., Dongying, Shandong 257000

  • 3.

    Research Institute of Oil and Gas Technology, Jilin Oilfield Company, PetroChina, Songyuan, Jilin 138000

  • 4.

    Hubei Key Laboratory of Oil and Gas Drilling and Production Engineering, Wuhan, Hubei 430100

  • Received Date: 2025-07-18
  • Rev Recd Date: 2025-08-25
    • Available Online: 2026-02-09
  • Publish Date: 2026-02-09
    Abstract

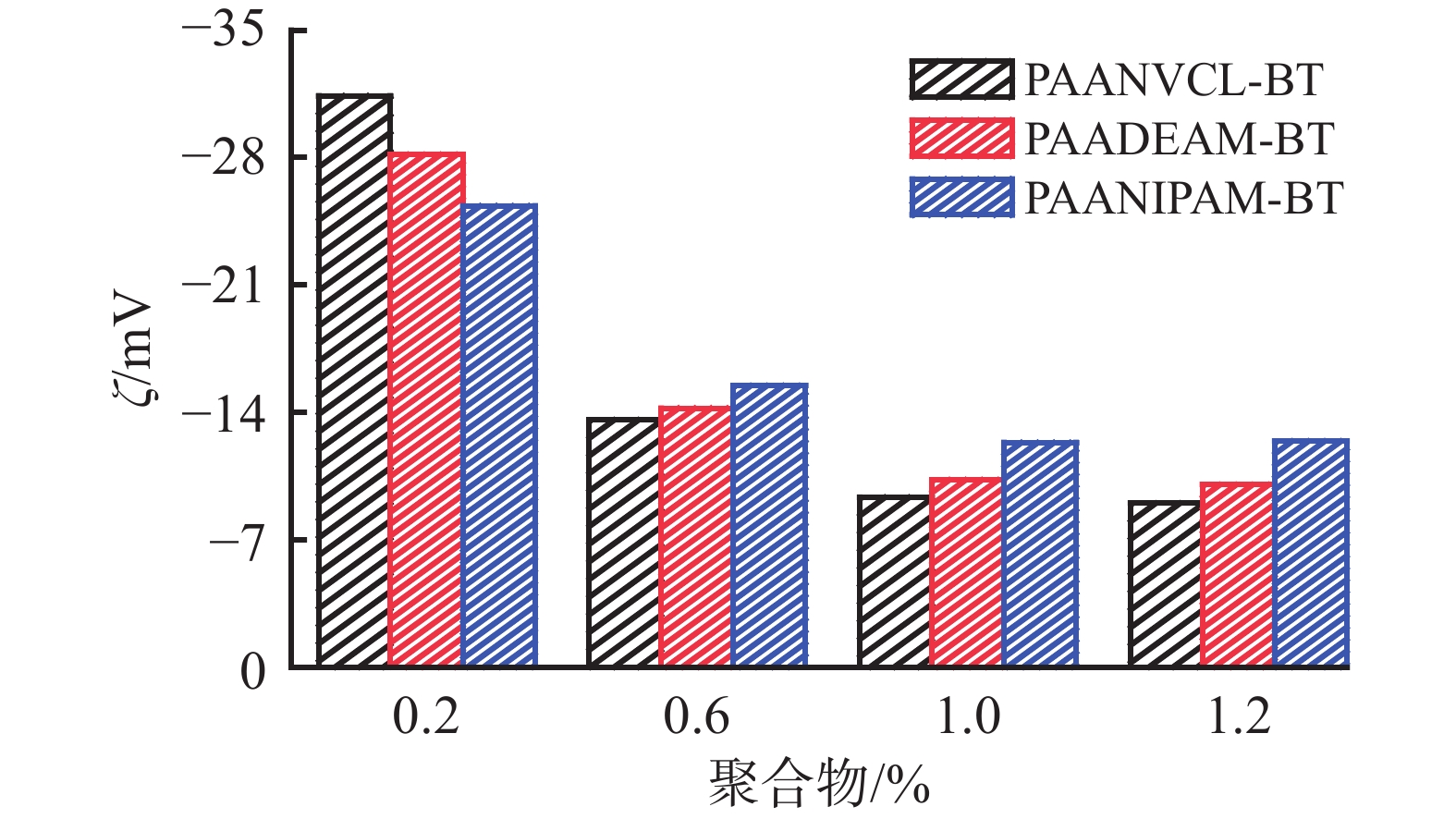

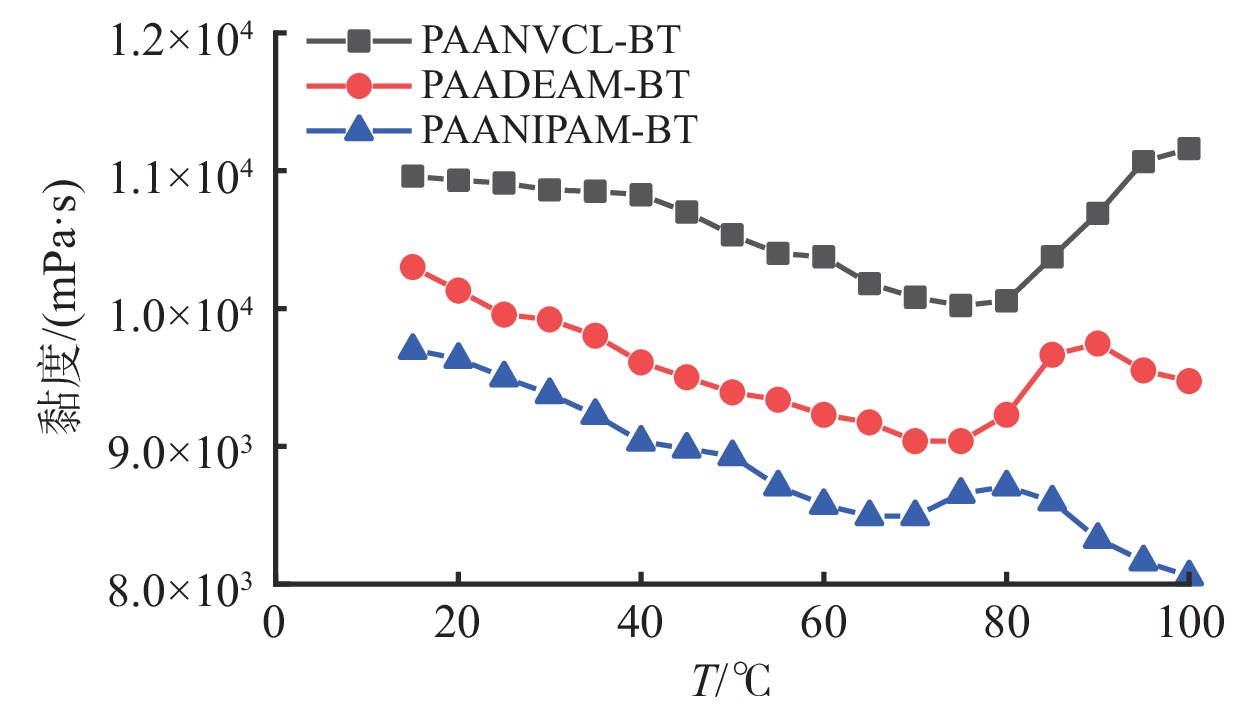

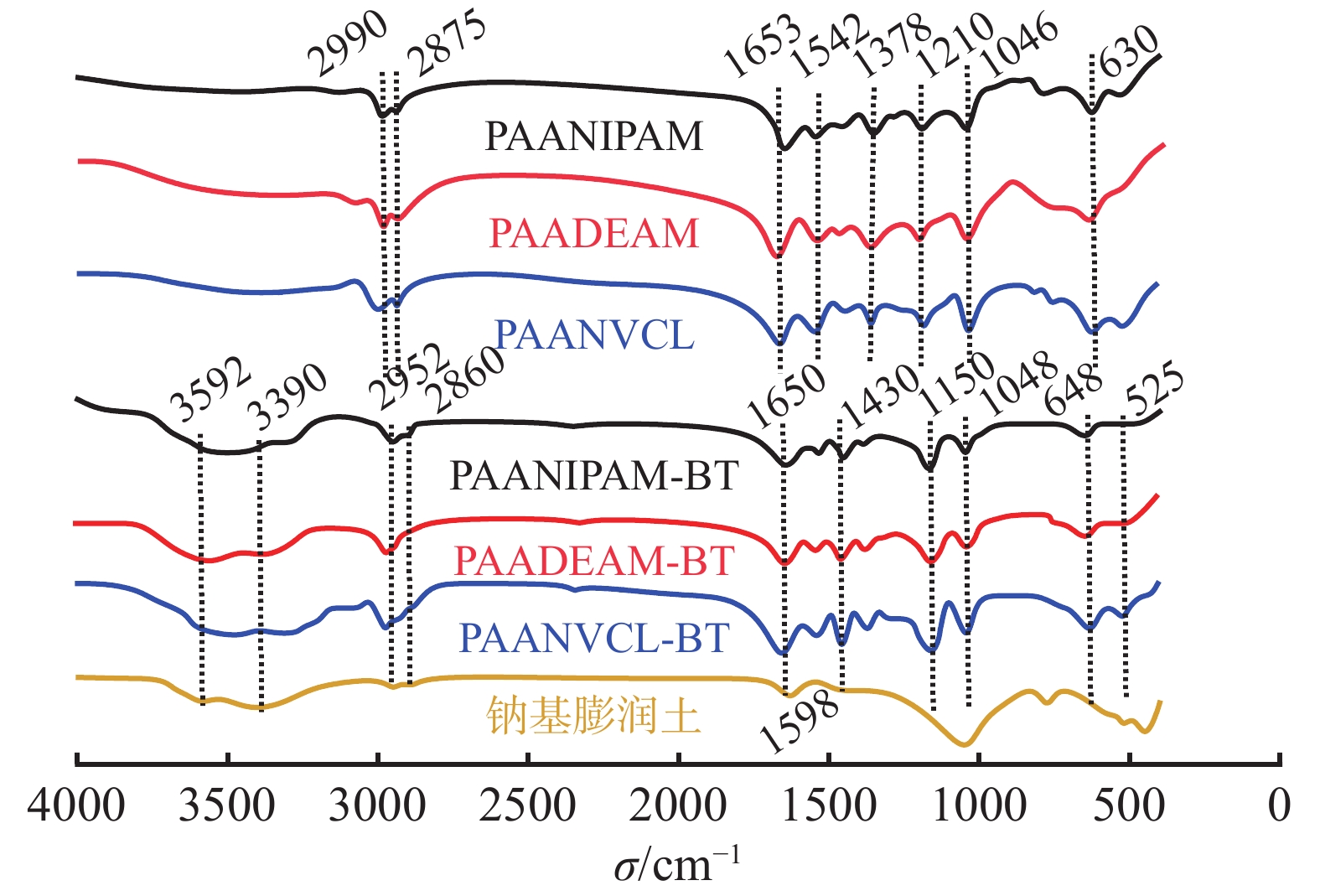

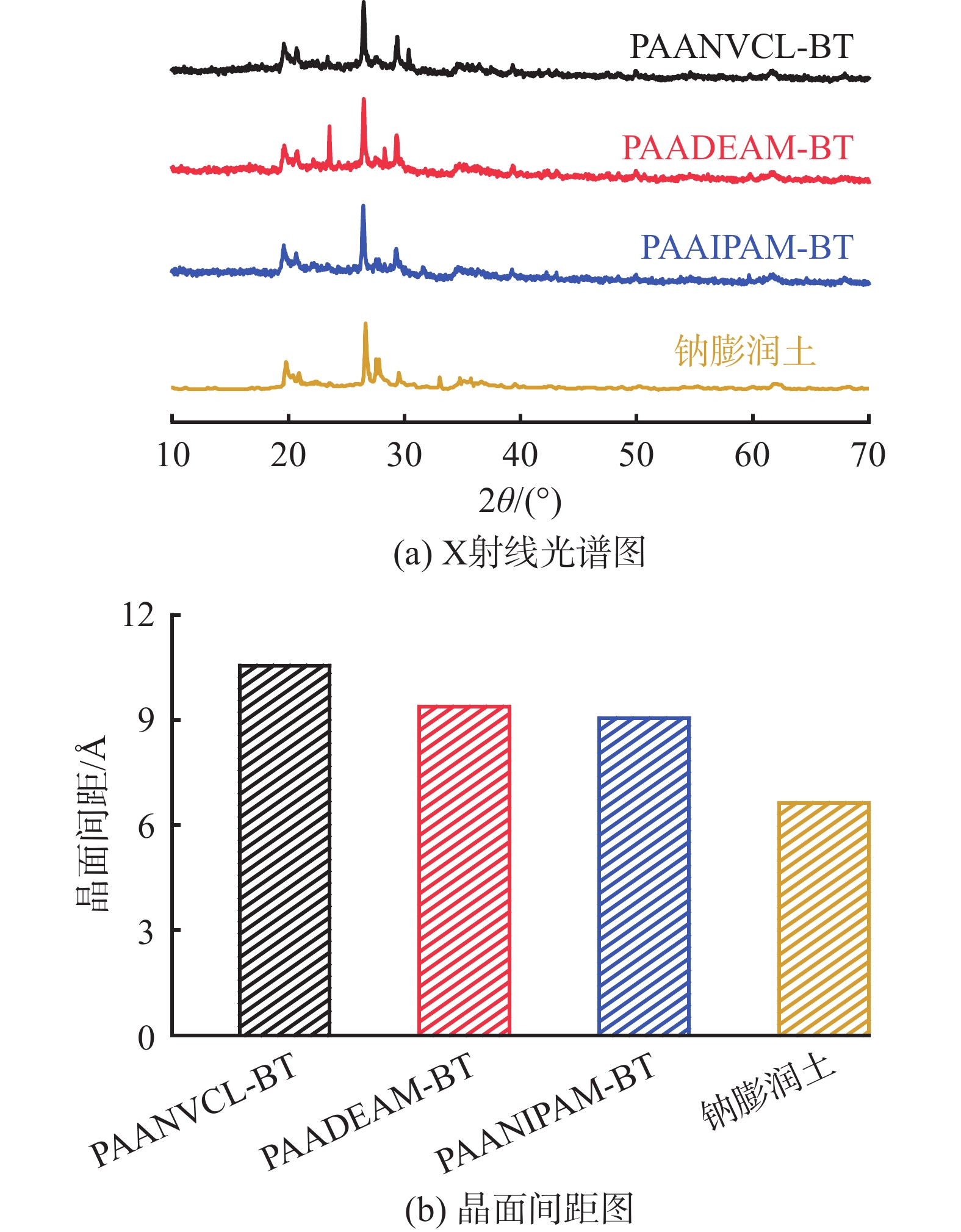

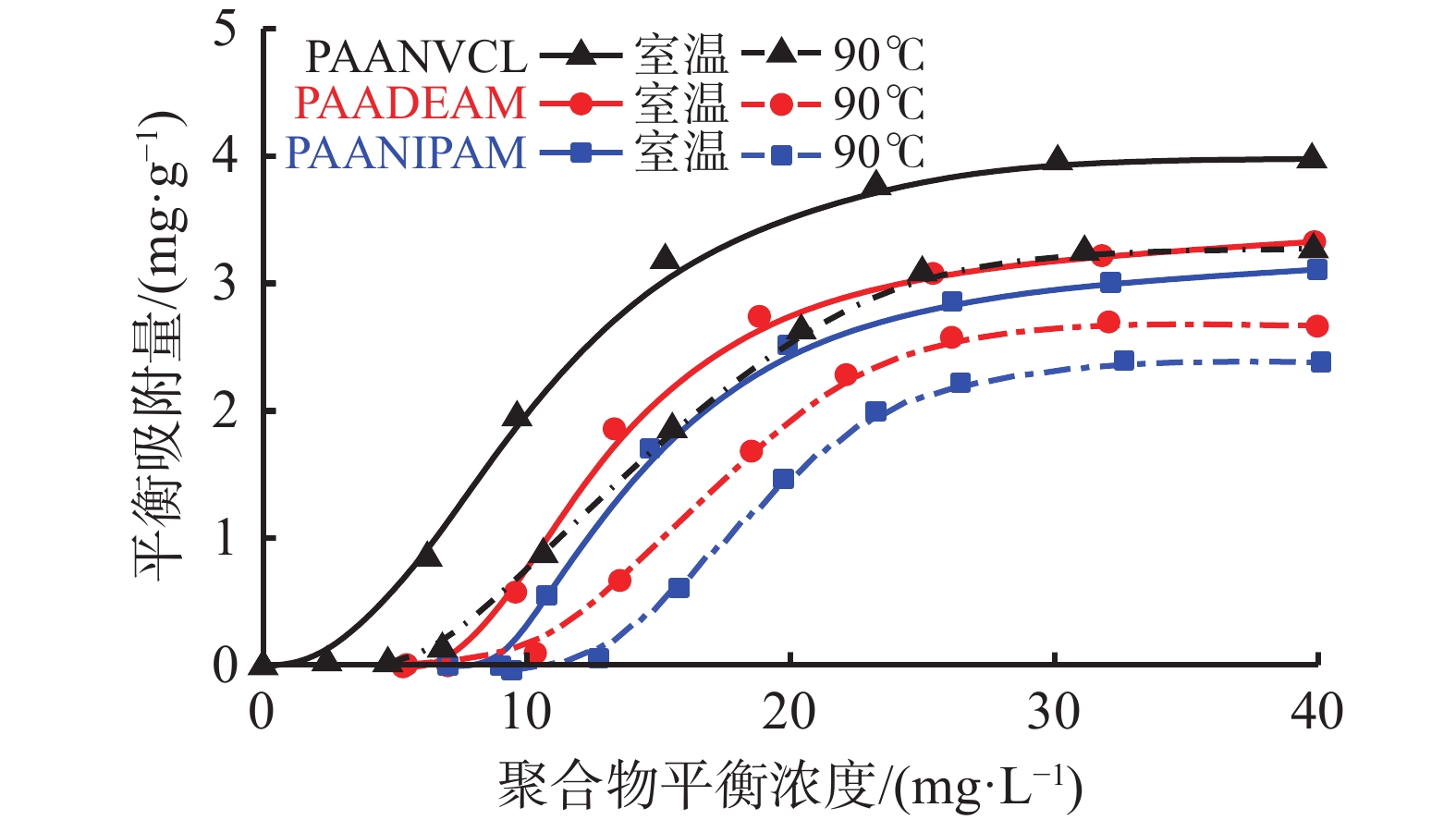

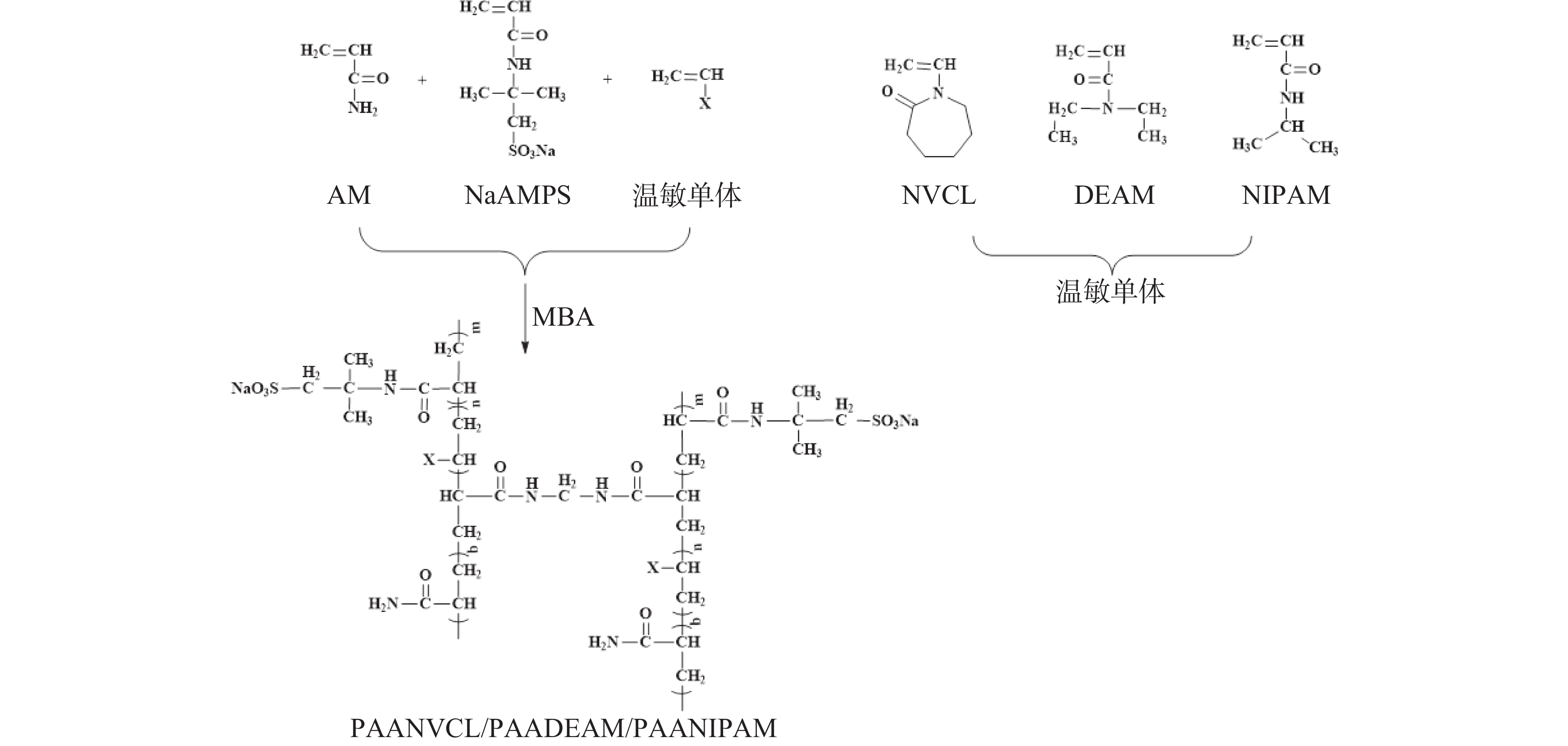

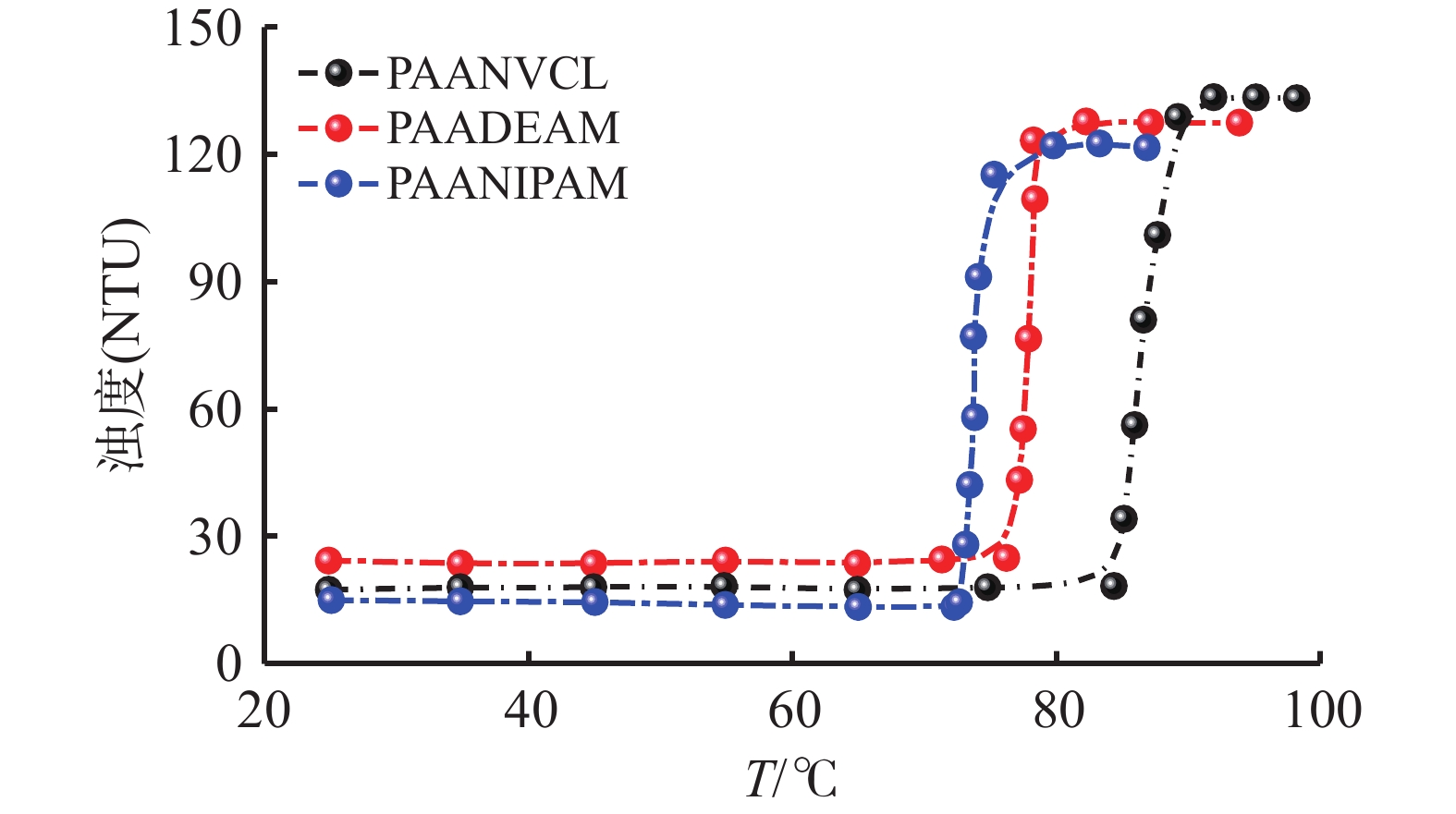

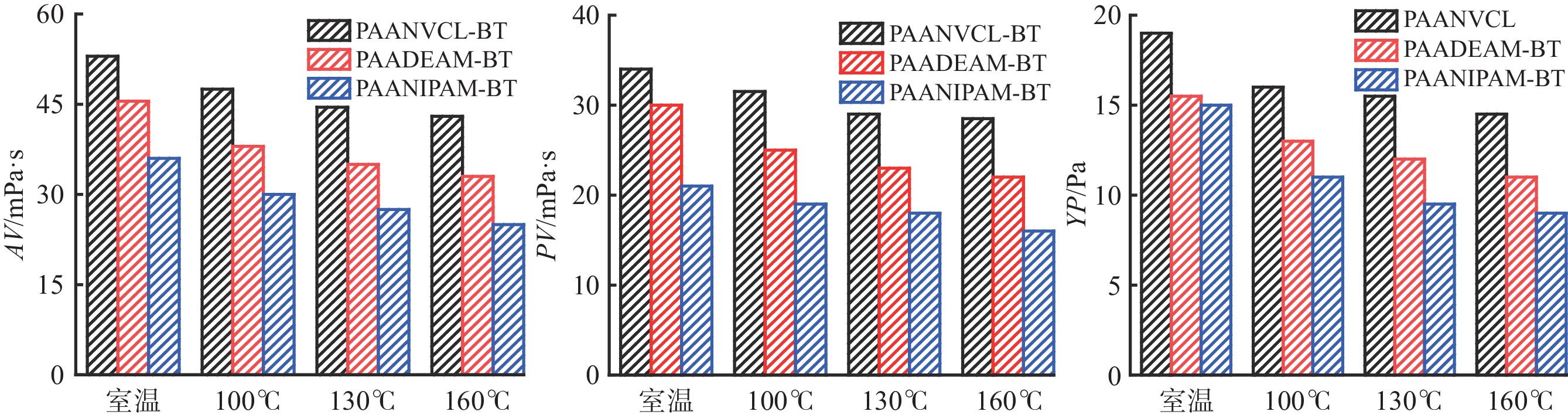

  • To address the challenge of drilling fluid rheology instability resulted from high-temperature degradation of conventional polymers, three polymers PAANVCL, PAADEAM and PAANIPAM, with different thermo-responsive groups, were synthesized via free-radical polymerization using thermo-responsive monomers, including N-vinyl caprolactam (NVCL), N,N-diethylacrylamide (DEAM) and N-isopropylacrylamide (NIPAM), and hydrophilic monomers, including acrylamide (AM) and sodium 2-acrylamido-2-methylpropylsulfonate (NaAMPS). The lower critical solution temperature (LCST) of the polymer solutions was determined by the turbidimetric method, the structural changes of the polymers before and after interaction with bentonite were characterized using Fourier transform infrared spectroscopy (FT-IR), and the interactions between the polymers with different thermo-responsive groups and bentonite were comparatively analyzed via X-ray diffraction (XRD), Zeta potential measurement and isothermal adsorption test. Additionally, the influence of thermo-responsive group types on the high-temperature rheology of the polymers in bentonite-based slurries was investigated. It was found that the LCST of the thermo-responsive polymer PAANVCL is as high as 85℃, and those of the polymers PAADEAM and PAANIPAM are 77℃ and 73℃, respectively. At room temperature and 90℃, PAANVCL exhibits the highest adsorption capacity on bentonite particles, followed by PAADEAM and PAANIPAM. After aging at 160℃ for 16 hours, the retention rate of the apparent viscosity (AV) of the PAANVCL-bentonite water-based drilling fluid is 81.13%, compared with 72.52% for the PAADEAM-bentonite drilling fluid and 69.44% for the PAANIPAM-bentonite drilling fluid. Furthermore, at temperatures between 100℃ and 160℃, the AV, plastic viscosity (PV) and yield point (YP) of the PAANVCL-bentonite drilling fluid fluctuate in ranges of less than 15%, demonstrating good high-temperature rheological stability. The types of the thermo-responsive groups exhibit significant impact on the interaction between polymers and bentonite; PAANVCL, a polymer with cyclic thermo-responsive groups, exhibits superior rheological stability in water-based drilling fluids.



    • FullText(HTML)
  • loading
    • References(15)
  • [1]
    王晓博, 程云, 马诚, 等. 耐盐抗高温水基钻井液增黏剂的合成与性能评价[J]. 应用化工, 2024, 53(9): 2118-2122.

    WANG Xiaobo, CHENG Yun, MA Cheng, et al. Synthesis and performance evaluation of salt and high temperature resistant water-based drilling fluid viscosity enhancers[J]. Applied Chemical Industry, 2024, 53(9): 2118-2122.
    [2]
    马新华, 杨辉, 赵猛, 等. 钻井液用膨润土复配高温材料的制备研究[J]. 非金属矿, 2025, 48(1): 25-27,42.

    MA Xinhua, YANG Hui, ZHAO Meng, et al. Research on the preparation of bentonite composite high temperature material for drilling fluid[J]. Non-Metallic Mines, 2025, 48(1): 25-27,42.
    [3]
    高明星, 王育袭. 聚合物和膨润土协同作用对水基钻井液性能的影响研究[J]. 能源化工, 2023, 44(5): 76-80.

    GAO Mingxing, WANG Yuxi. Study on the effect of synergistic action of polymer and bentonite on performance of water-based drilling fluid[J]. Energy Chemical Industry, 2023, 44(5): 76-80.
    [4]
    孙金声, 黄贤斌, 吕开河, 等. 提高水基钻井液高温稳定性的方法、技术现状与研究进展[J]. 中国石油大学学报(自然科学版), 2019, 43(5): 73-81.

    SUN Jinsheng, HUANG Xianbin, LYU Kaihe, et al. Methods, technical progress and research advance of improving high-temperature stability of water based drilling fluids[J]. Journal of China University of Petroleum (Edition of Natural Science), 2019, 43(5): 73-81.
    [5]
    王中义, 孙金声, 黄贤斌, 等. LCST型温度敏感聚合物的研究及其在钻井液领域的应用进展[J]. 精细化工, 2024, 41(10): 2103-2119.

    WANG Zhongyi, SUN Jinsheng, HUANG Xianbin, et al. Research on LCST-type temperature-sensitive polymers and their application progress in drilling fluids[J]. Fine Chemicals, 2024, 41(10): 2103-2119.
    [6]
    谢彬强, 陶怀志, 张俊, 等. 梳型温敏聚合物对无固相水基钻井液高温流变性的调控[J]. 石油学报, 2024, 45(2): 427-436.

    XIE Binqiang, TAO Huaizhi, ZHANG Jun, et al. Regulation of comb-type thermo-sensitive polymer on high-temperature rheological properties of solid-free water-based drilling fluid[J]. Acta Petrolei Sinica, 2024, 45(2): 427-436.
    [7]
    丁廷稷, 王瑞和, 徐加放, 等. 新型温敏共聚物P(NVCL-co-DMAM)的研制及其对水基钻井液低温流变性调控[J]. 中国石油大学学报(自然科学版), 2021, 45(6): 87-94.

    DING Tingji, WANG Ruihe, XU Jiafang, et al. Synthesis and evaluation of a temperature-sensitive copolymer P( NVCL-co-DMAM) for its application in controlling low-temperature rheology of water-based drilling fluid[J]. Journal of China University of Petroleum (Edition of Natural Science), 2021, 45(6): 87-94.
    [8]
    TCHAMENI A P, XIE B Q, MA J, et al. Thermo-associating copolymer based on cross-Linked 2-acrylamido-methylpropane sulfonic acid, part C: experimental study into the performance of deepwater aqueous drilling fluids[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2021, 612: 125965. doi: 10.1016/j.colsurfa.2020.125965
    [9]
    陈璐鑫, 卓绿燕, TCHAMENI A P, 等. 温敏聚合物/纳米SiO2复合材料的制备与性能评价[J]. 油田化学, 2023, 40(1): 12-18.

    CHEN Luxin, ZHUO Luyan, TCHAMENI A P, et al. Synthesis and solution properties of temperature-sensitive polymer/Nano-SiO2 composite N-AMPA[J]. Oilfield Chemistry, 2023, 40(1): 12-18.
    [10]
    张兴来, 罗健生, 郭磊, 等. 聚胺抑制剂PF-UHIB与膨润土相互作用机理[J]. 油田化学, 2016, 33(2): 195-199.

    ZHANG Xinglai, LUO Jiansheng, GUO Lei, et al. The interaction mechanism between the polyamine inhibitor PF-UHIB and bentonite[J]. Oilfield Chemistry, 2016, 33(2): 195-199.
    [11]
    SOSSO G C, CHEN J, COX S J, et al. Crystal nucleation in liquids: open questions and future challenges in molecular dynamics simulations[J]. Chemical Reviews, 2016, 116(12): 7078-7116. doi: 10.1021/acs.chemrev.5b00744
    [12]
    潘一, 徐明磊, 詹倩茹, 等. N-异丙基丙烯酰胺基智能膨润土的制备及性能[J]. 精细化工, 2021, 38(10): 2057-2063,2071.

    PAN Yi, XU Minglei, ZHAN Qianru, et al. Preparation and properties of N-isopropylacrylamide-based smart bentonite[J]. Fine Chemicals, 2021, 38(10): 2057-2063,2071.
    [13]
    勇志华, 白兵兵, 刘全兴, 等. 阳离子型胺类页岩抑制剂的合成与性能评价[J]. 化学研究与应用, 2025, 37(4): 792-798.

    YONG Zhihua, BAI Bingbing, LIU Quanxing, et al. Synthesis and performance evaluation of cationic amine shale inhibitors[J]. Chemical Research and Application, 2025, 37(4): 792-798.
    [14]
    CLEGG F, BREEN C, Khairuddin. Synergistic and competitive aspects of the adsorption of poly(ethylene glycol) and poly(vinyl alcohol) onto Na-bentonite[J]. The Journal of Physical Chemistry. B, 2014, 118(46): 13268-13278. doi: 10.1021/jp507772t
    [15]
    CUI Y N, VAN D J S. Adsorption of polyetheramines on montmorillonite at high pH[J]. Langmuir, 2010, 26(22): 17210-17217. doi: 10.1021/la103278v
