Comparison of Cuttings Concentration in Annular Spaces of Horizontal Wells Between Water- and Oil-Based Drilling Fluids

doi: 10.12358/j.issn.1001-5620.2025.04.011

  • College of Petroleum Engineering, Northeast Petroleum University, Daqing, Hei Longjiang 163318

  • Received Date: 2025-01-12
  • Rev Recd Date: 2025-02-23
  • Publish Date: 2025-07-31
    Abstract

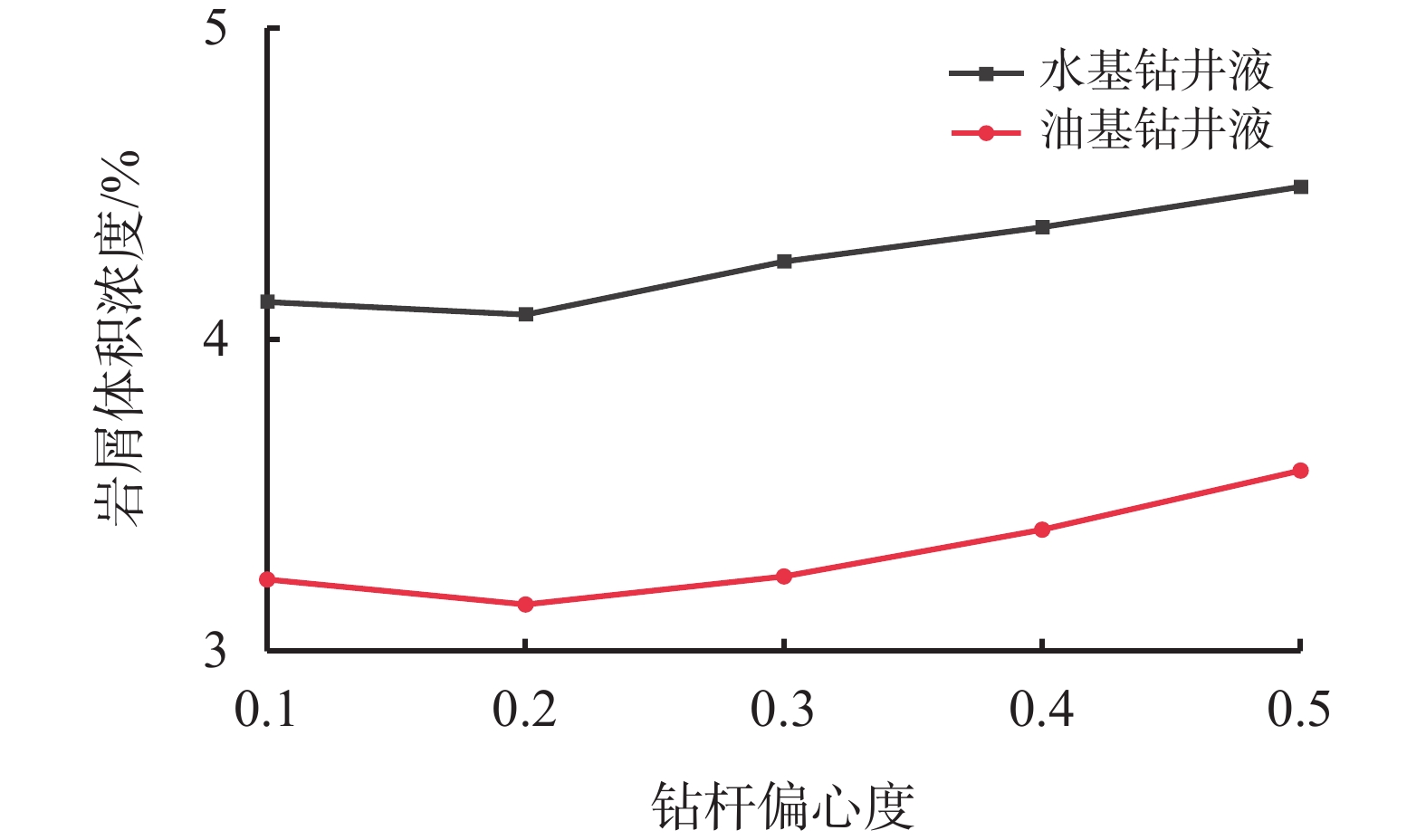

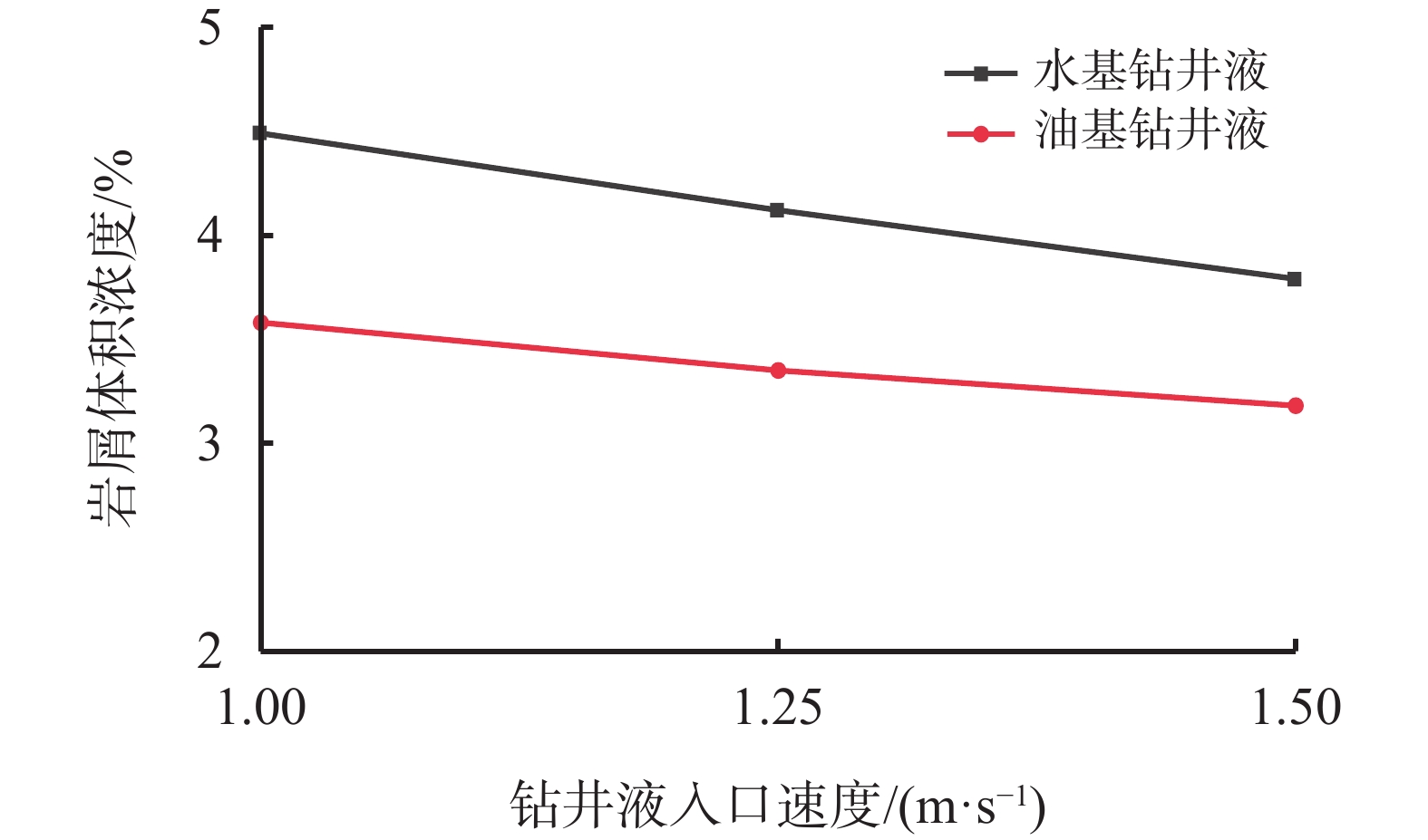

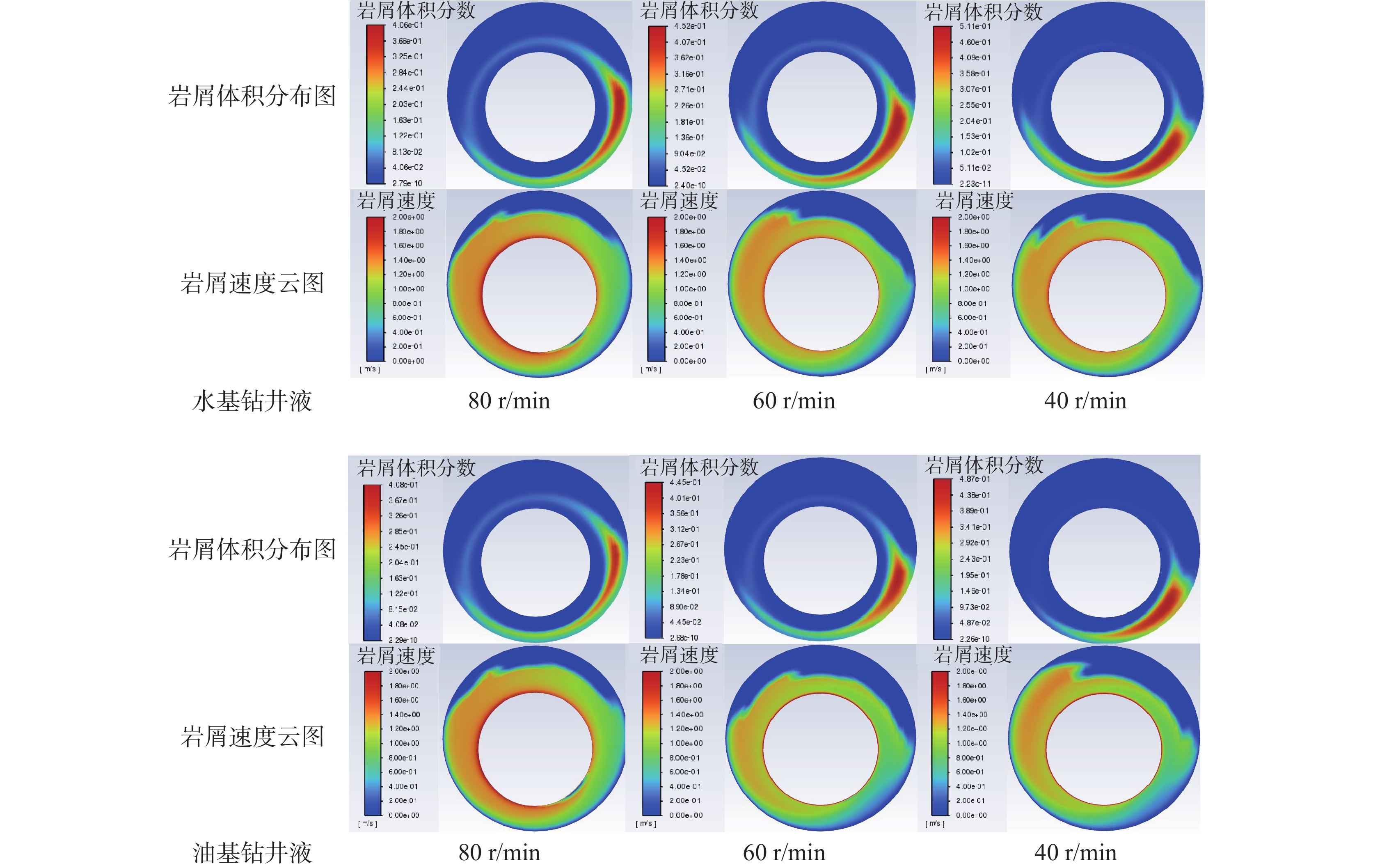

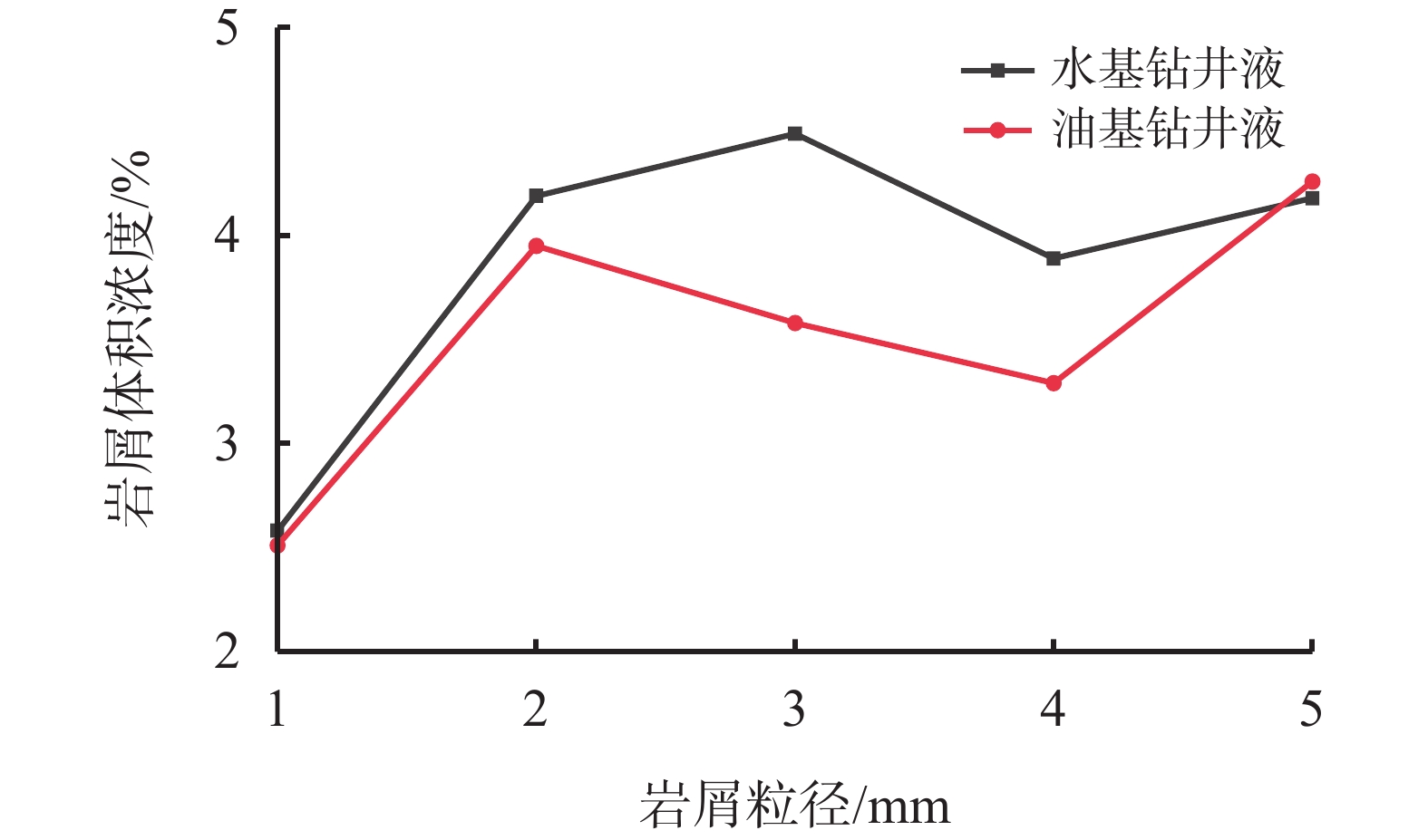

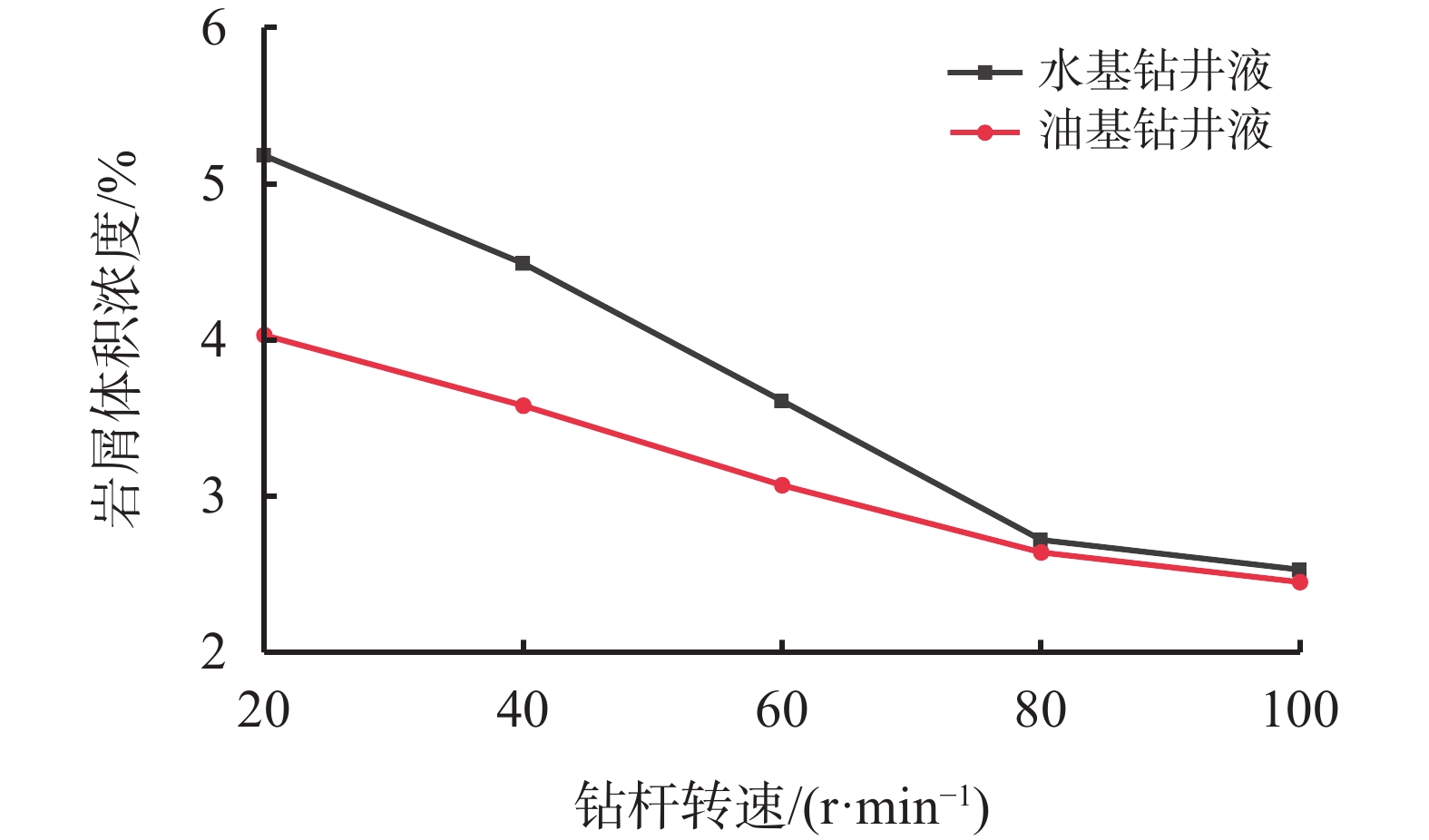

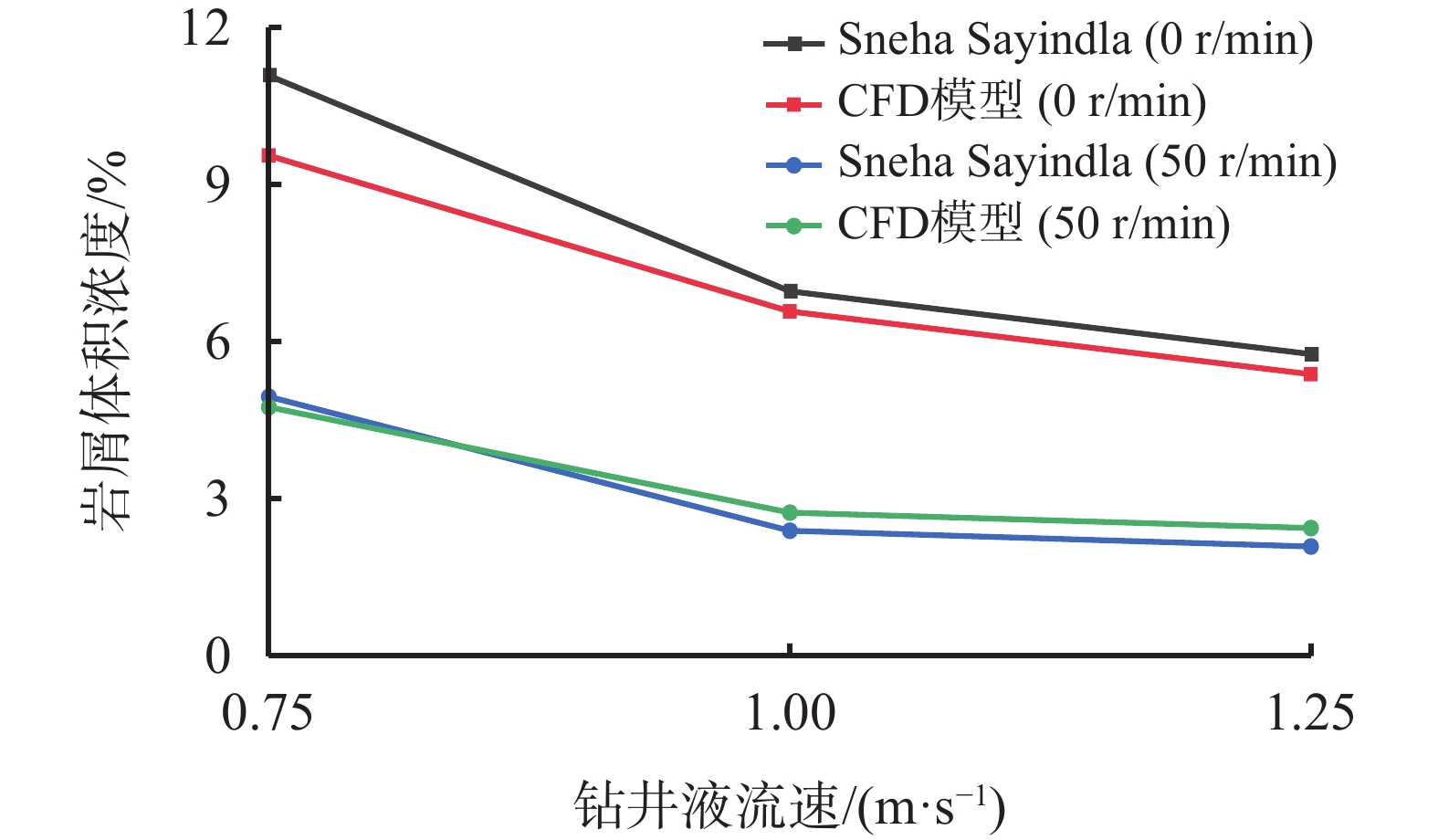

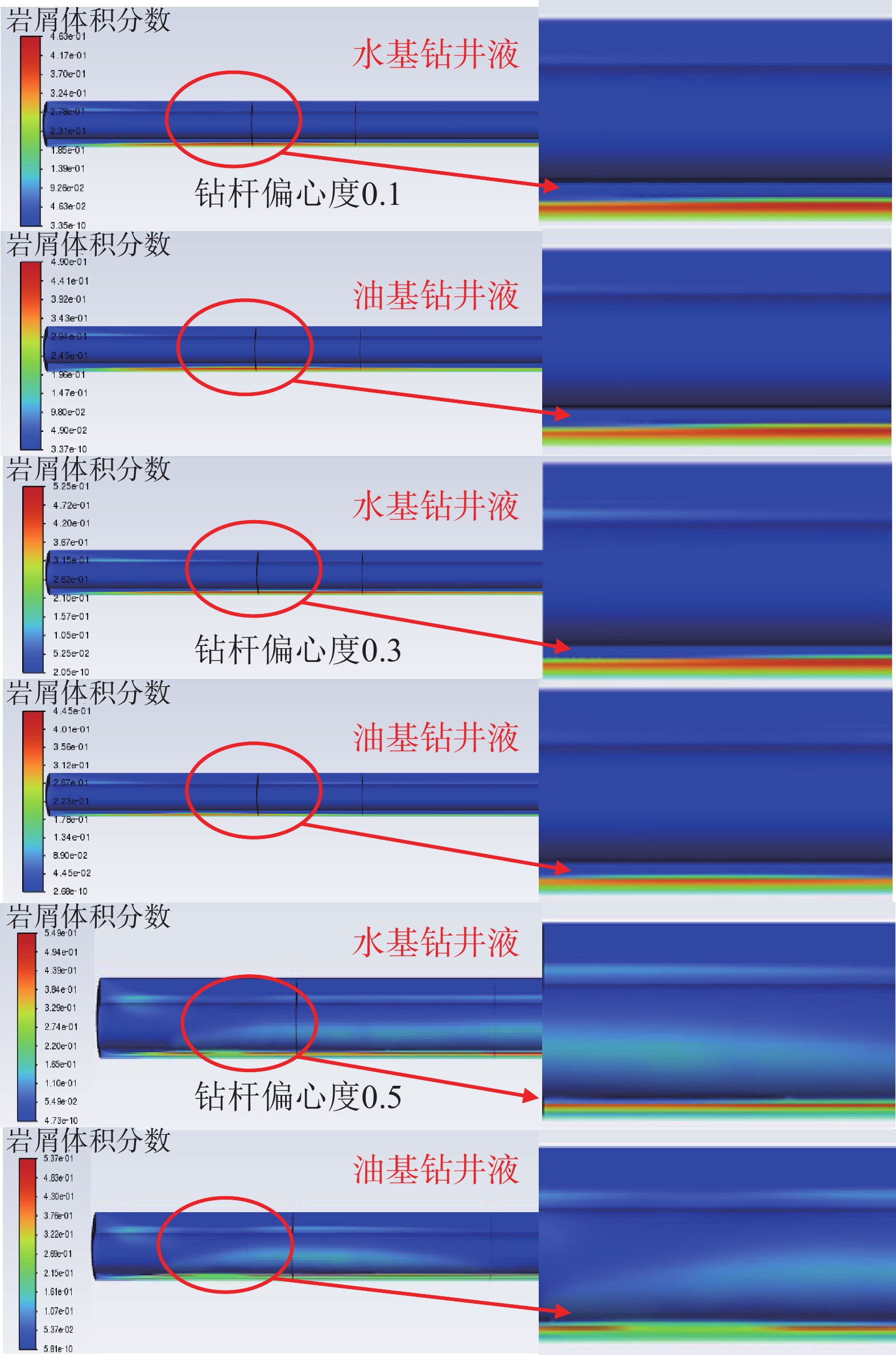

  • Most researchers are presently conducting researches on cuttings transport in water-based drilling fluid. However, with the increasing application of oil-based drilling fluids, it is necessary to explore the differences in cuttings transport between water- and oil-based drilling fluids. A three-dimensional wellbore model was established through CFD (Computational Fluid Dynamics) to investigate the differences in cuttings transport between water- and oil-based drilling fluids, and by comparing with the results of laboratory experiments, the reliability of the established CFD model was verified. Through CFD numerical simulation, it was concluded that under the same drill string eccentricity or drilling fluid inlet velocity, the height of the cuttings bed of the oil-based drilling fluid is lower than that of the water-based drilling fluid; and when the particle sizes of the cuttings are 2-4 mm and the drill pipe rotation speed is less than 80 r/min, the cuttings concentration in the oil-based drilling fluid in the annulus is significantly lower than that of the water-based drilling fluid. Previous studies have shown that the larger the cuttings particles, the more difficult it is to transport them out of the wellbore. However, this study found that the cuttings particles with a size of 2-3 mm are more difficult to transport out of the wellbore than those with a size of 3-4 mm, and it is not that the larger the particle size of the cuttings, the more difficult it is to transport them out of the wellbore. Although previous studies have shown that the greater the eccentricity, the higher the cuttings concentration, this study found that when the eccentricity is lower than 0.3, the cuttings concentration in the annulus of the horizontal well does not change much, but when the eccentricity exceeds 0.3, the cuttings concentration gradually increases. Based on the above research, these results provide a better understanding and guidance for the optimization of drilling parameters of horizontal wells.



    • FullText(HTML)
  • loading
    • References(17)
  • [1]
    邓建清, 黄胜, 倪芃芃, 等. 水平定向钻进中钻屑运移研究综述[J]. 地下空间与工程学报,2022,18(z2):714-728.

    DENG Jianqing, HUANG Sheng, NI Pengpeng, et al. Cuttings transportation in horizontal directional drilling: a review[J]. Chinese Journal of Underground Space and Engineering, 2022, 18(z2):714-728.
    [2]
    SAYINDLA S, LUND B, YTREHUS J D, et al. Hole-cleaning performance comparison of oil-based and water-based drilling fluids[J]. Journal of Petroleum Science and Engineering, 2017, 159:49-57. doi: 10.1016/j.petrol.2017.08.069
    [3]
    MOHAMMADZADEH K, HASHEMABADI S H, AKBARI S. CFD simulation of viscosity modifier effect on cutting transport by oil based drilling fluid in wellbore[J]. Journal of Natural Gas Science and Engineering, 2016, 29:355-364. doi: 10.1016/j.jngse.2015.11.011
    [4]
    ZAKERI A, ALIZADEH BEHJANI M, HASSANPOUR A. Fully coupled CFD–DEM simulation of oil well hole cleaning: effect of mud hydrodynamics on cuttings transport[J]. Processes, 2024, 12(4):784. doi: 10.3390/pr12040784
    [5]
    HUQUE M M, BUTT S, ZENDEHBOUDI S, et al. Systematic sensitivity analysis of cuttings transport in drilling operation using computational fluid dynamics approach[J]. Journal of Natural Gas Science and Engineering, 2020, 81:103386. doi: 10.1016/j.jngse.2020.103386
    [6]
    BUSCH A, JOHANSEN S T. Cuttings transport: on the effect of drill pipe rotation and lateral motion on the cuttings bed[J]. Journal of Petroleum Science and Engineering, 2020, 191:107136. doi: 10.1016/j.petrol.2020.107136
    [7]
    EPELLE E I, OBANDE W, OKOLIE J A. CFD modelling and simulation of drill cuttings transport efficiency in annular bends: effect of particle size polydispersity[J]. Journal of Petroleum Science and Engineering, 2022, 208:109795. doi: 10.1016/j.petrol.2021.109795
    [8]
    OFEI T N. Effect of yield power law fluid rheological properties on cuttings transport in eccentric horizontal narrow annulus[J]. Journal of Fluids, 2016, 2016. DOI: 10.1155/2016/4931426.
    [9]
    GHASEMIKAFRUDI E, HASHEMABADI S H. Numerical study on cuttings transport in vertical wells with eccentric drillpipe[J]. Journal of Petroleum Science and Engineering, 2016, 140:85-96. doi: 10.1016/j.petrol.2015.12.026
    [10]
    胡金帅, 张光伟, 李峻岭, 等. 基于CFD-DEM耦合模型的岩屑运移数值模拟分析[J]. 断块油气田,2022,29(4):561-566.

    HU Jinshuai, ZHANG Guangwei, LI Junling, et al. Numerical simulation of cuttings migration based on CFD-DEM coupling model[J]. Fault-Block Oil and Gas Field, 2022, 29(4):561-566.
    [11]
    张鑫鑫, 毛纯芝, 信伟卫, 等. 基于欧拉双流体模型的微小井眼环空岩屑运移数值模拟研究[J]. 中南大学学报(自然科学版),2023,54(11):4413-4423.

    ZHANG Xinxin, MAO Chunzhi, XIN Weiwei, et al. Numerical simulation research of cuttings transport in microhole annulus based on Eulerian two-fluid model[J]. Journal of Central South University (Science and Technology), 2023, 54(11):4413-4423.
    [12]
    王庆, 张佳伟, 陶亮, 等. 古龙页岩油水平井扩径段岩屑运移数值模拟研究[J]. 石油机械,2023,51(12):44-51.

    WANG Qing, ZHANG Jiawei, TAO Liang, et al. Numerical simulation on cuttings migration in hole enlargement section of horizontal well in Gulong shale oil reservoir[J]. China Petroleum Machinery, 2023, 51(12):44-51.
    [13]
    武治强, 幸雪松, 庞照宇, 等. 超深井长裸眼段岩屑运移规律及特征分析[J]. 科学技术与工程,2023,23(11):4596-4606. doi: 10.12404/j.issn.1671-1815.2023.23.11.04596

    WU Zhiqiang, XING Xuesong, PANG Zhaoyu, et al. Analysis of cuttings transport law and characteristics in long open hole section of ultra-deep well[J]. Science Technology and Engineering, 2023, 23(11):4596-4606. doi: 10.12404/j.issn.1671-1815.2023.23.11.04596
    [14]
    孙晓峰, 姚笛, 孙士慧, 等. 基于漂移流动模型的水平井岩屑床高度瞬态计算新方法[J]. 天然气工业,2022,42(5):85-92. doi: 10.3787/j.issn.1000-0976.2022.05.009

    SUN Xiaofeng, YAO Di, SUN Shihui, et al. A new transient calculation method of cuttings bed thickness based on drift flow model[J]. Natural Gas Industry, 2022, 42(5):85-92. doi: 10.3787/j.issn.1000-0976.2022.05.009
    [15]
    AL-SHARGABI M, DAVOODI S, WOOD D A, et al. Hole-cleaning performance in non-vertical wellbores: a review of influences, models, drilling fluid types, and real-time applications[J]. Geoenergy Science and Engineering, 2024, 233:212551. doi: 10.1016/j.geoen.2023.212551
    [16]
    AL-AZANI K, ELKATATNY S, ABDULRAHEEM A, et al. Prediction of cutting concentration in horizontal and deviated wells using support vector machine[C]//Paper presented at the SPE Kingdom of Saudi Arabia Annual Technical Symposium and Exhibition. Dammam, Saudi Arabia, 2018: SPE-192193-MS.
    [17]
    陈锟, 夏成宇, 冯超, 等. 页岩气水平井岩屑沉降规律仿真[J]. 石油机械,2021,49(11):1-9.

    CHEN Kun, XIA Chengyu, FENG Chao, et al. Simulation of cuttings settling in horizontal shale gas wells[J]. China Petroleum Machinery, 2021, 49(11):1-9.
