An Amphoteric Copolymer Coated Carbon Nanotube Low Viscosity Filter Loss Reducer with High Cationicity
-

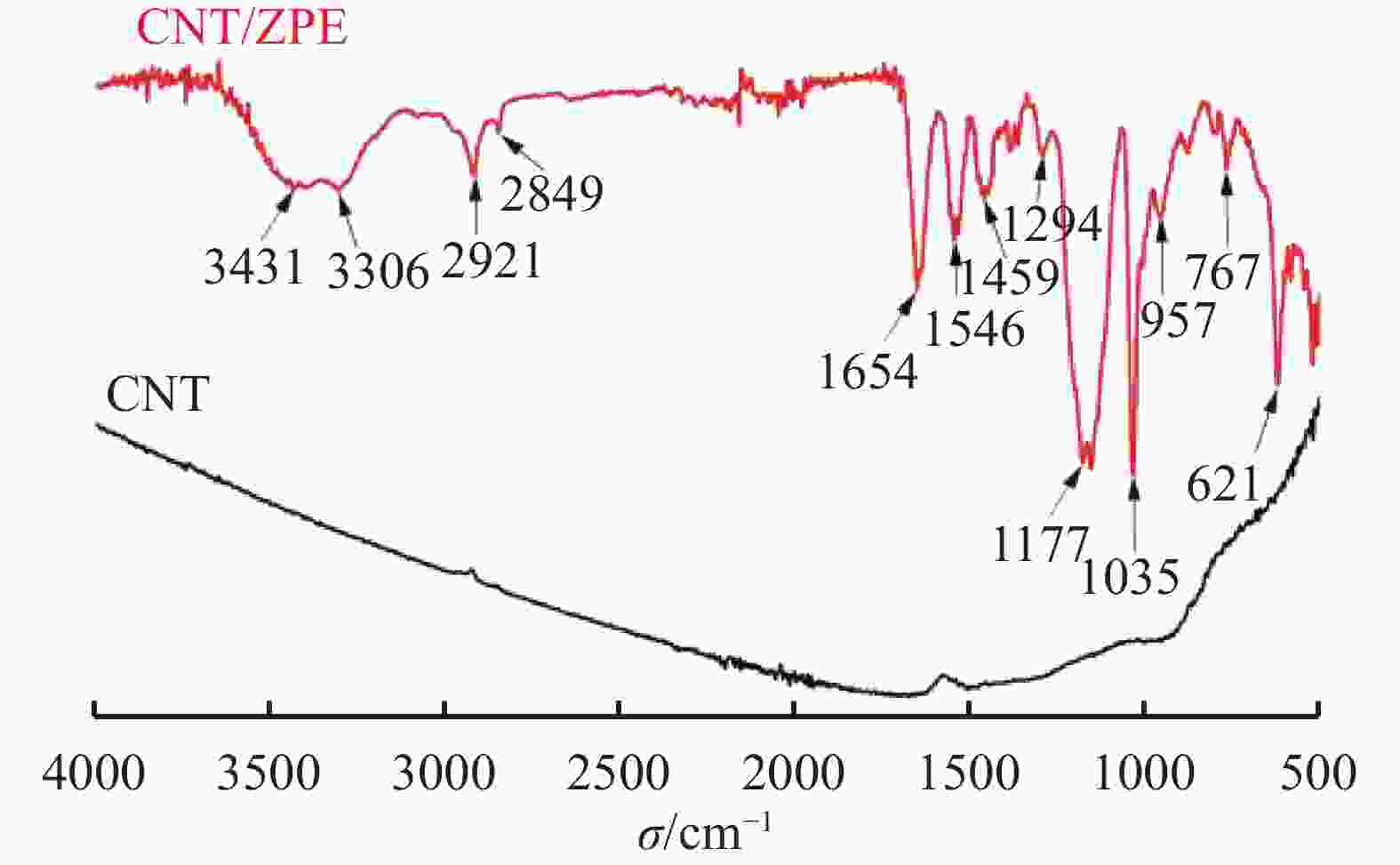

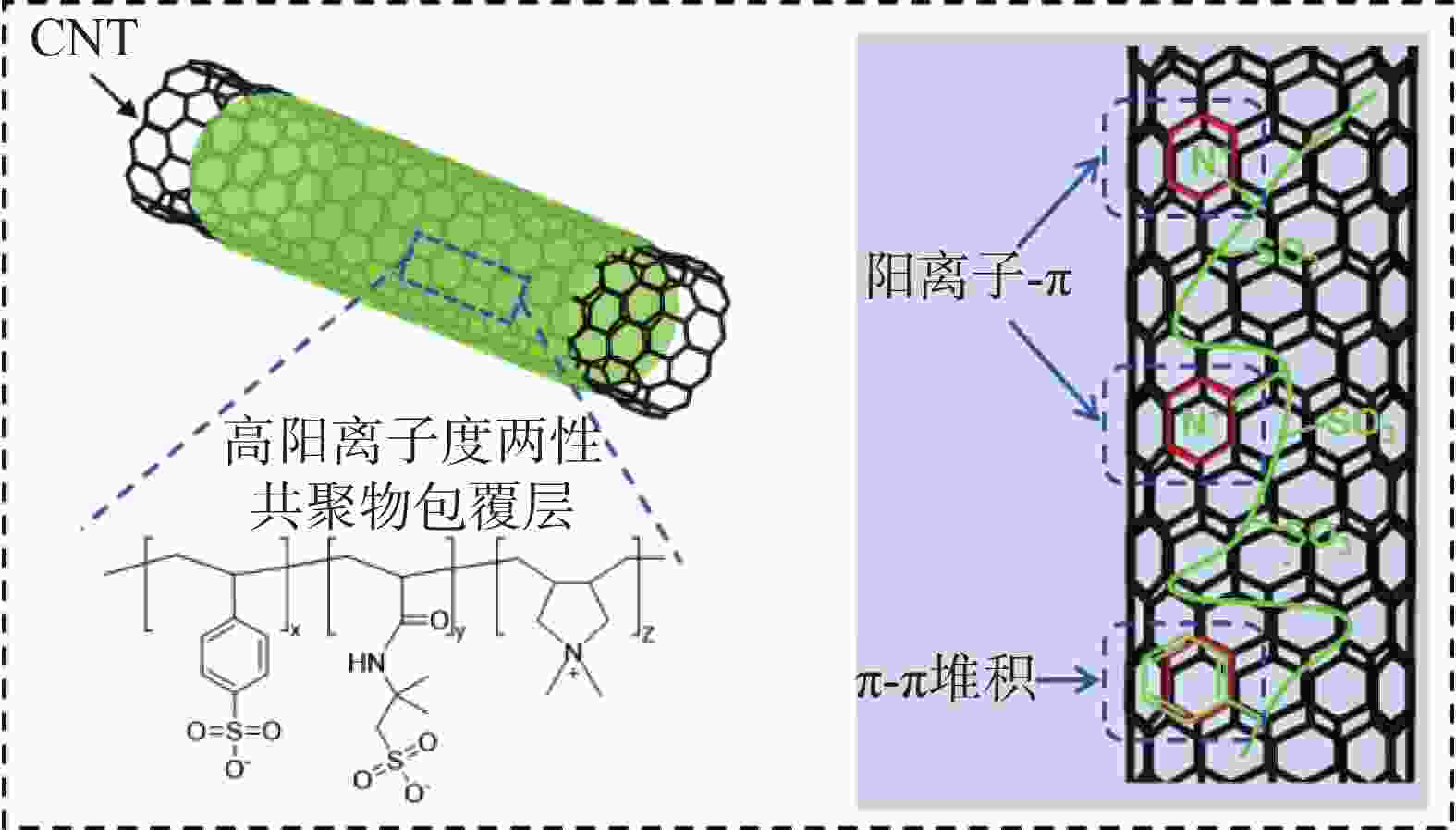

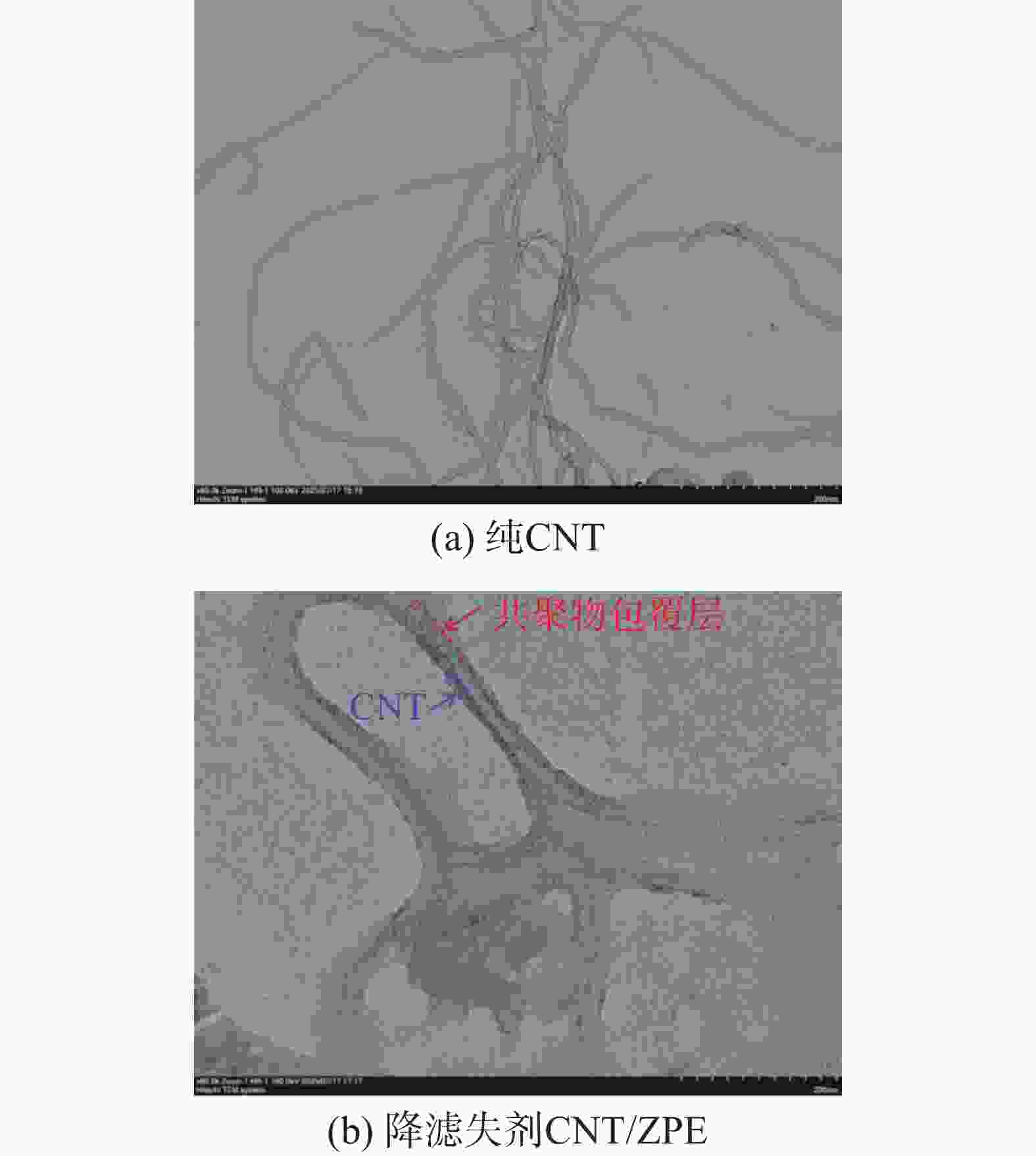

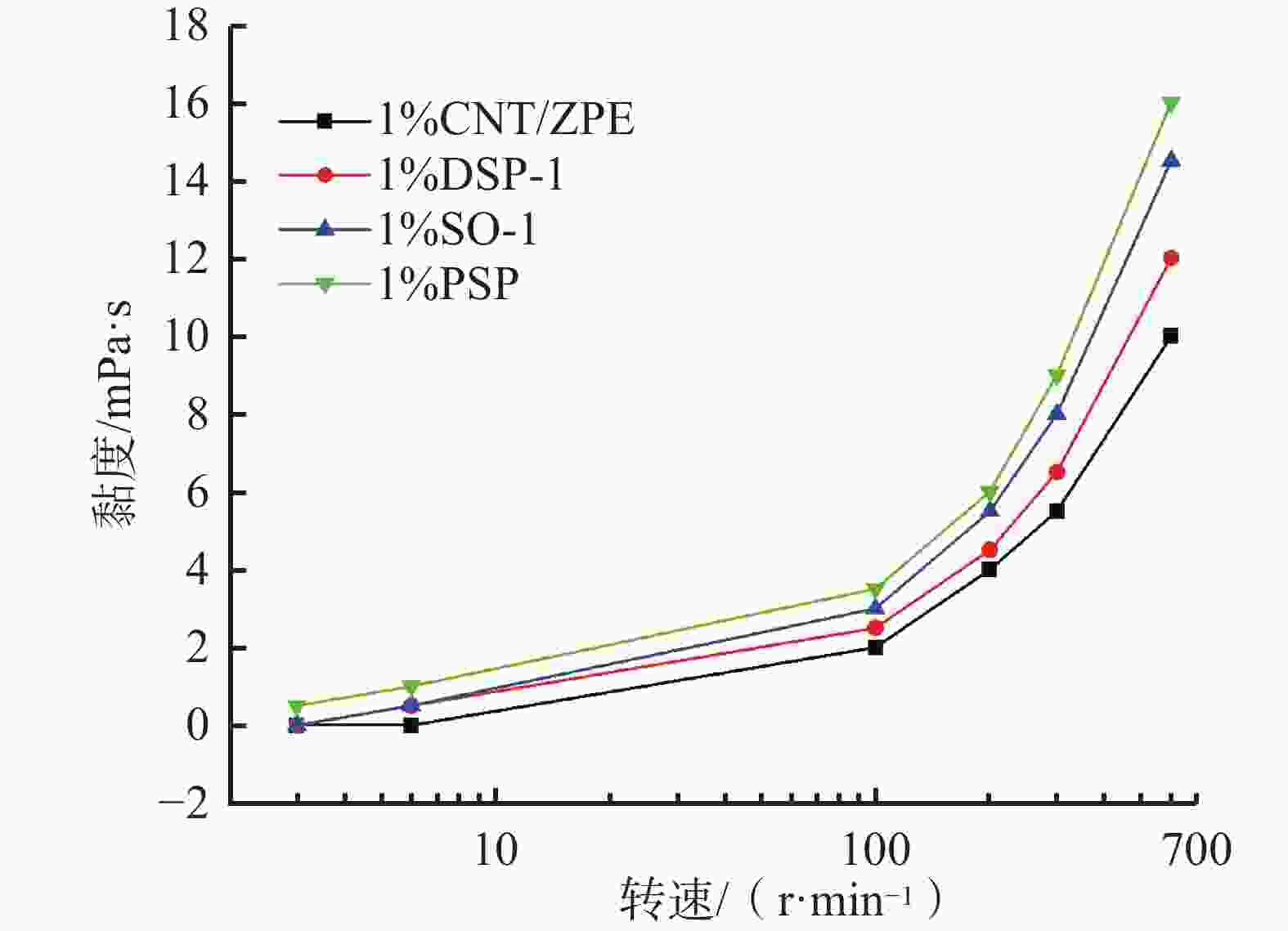

摘要: 针对高密度饱和盐水钻井液在220 ℃超高温条件下流变性、滤失性能及稳定性难调控问题，以碳纳米管（CNT）为刚性载体，基于含氮阳离子和芳香环与CNT之间的阳离子-π与π-π堆积相互作用，研发了一种高阳离子度两性共聚物包覆CNT低黏降滤失剂CNT/ZPE，并以其作为唯一共聚物降滤失剂，配伍现场常用材料，构建出了一套抗温220 ℃高密度饱和盐水钻井液体系。红外光谱与透射电镜分析结果显示，CNT/ZPE分子结构中含有设计的季铵阳离子、苯环以及磺酸基等结构，高阳离子度两性共聚物成功包覆在了CNT表面。在饱和盐基浆（36%NaCl）与含钙基浆（2%CaCl2）中添加3%CNT/ZPE，220 ℃老化后中压滤失量分别仅为5.4 mL与6.0 mL。1%CNT/ZPE水溶液表观黏度仅5 mPa·s，低于DSP-1、PSP、SO-1等高温深井常用低黏共聚物降滤失剂。构建的饱和盐水钻井液体系的密度在2.0～2.3 g/cm3范围内，经过220 ℃老化16 h、48 h后，各项流变参数合理，高温高压滤失量可控，可抗0.7%CaCl2污染，能满足实际钻井工程需求。该研究还为研发钻井液用碳纳米管基聚合物复合材料提供了新策略。Abstract: High density saturated saltwater drilling fluids at 220 ℃ have rheology, filtration rate and stability that are difficult to control. To address this issue, a low-viscosity fluid loss reducer CNT/ZPE was developed. CNT/ZPE uses carbon nanotube (CNT) as the rigid carrier, and is synthesized through the cation-π and π-π stacking interactions between nitrogen cations/aromatic rings and CNTs. In a CNT/ZPE molecule, the CNT is coated with high cationicity amphoteric copolymer ZPE. Using CNT/ZPE as the sole copolymer fluid loss reducer, a high density saturated saltwater drilling fluid that can be used at temperatures up to 220 ℃ was formulated with other conventional drilling fluid additives. The results of Fourier transform infrared spectroscopy and transmission electron microscopy analyses show that the CNT/ZPE molecules contain the designed quaternary ammonium cations, benzene rings and sulfonic acid groups etc., and the surfaces of CNTs are successfully coated with high cationicity amphoteric copolymer molecules. A salt-saturated base mud (containing 36% NaCl) and a calcium base mud (containing 2% CaCl2) treated with 3% CNT/ZPE have API filtration rate of only 5.4 mL and 6.0 mL after aging at 220 ℃, respectively. The apparent viscosity (AV) of 1% CNT/ZPE water solution is only 5mPa·s, lower than the AVs of the water solutions of other regularly used low-viscosity copolymer fluid loss reducers, such as DSP-1, PSP and SO-1 at the same concentration. The formulated saturated saltwater drilling fluid, at densities between 2.0 g/cm3 and 2.3 g/cm3, have reasonable rheological parameters and controllable high-temperature high-pressure fluid loss after aging at 220 ℃ for 16 hours and 48 hours, respectively. It is resistant to the contamination of 0.7%CaCl2, and is able to satisfy the requirements of field drilling operations. This study also provides a new strategy for developing CNT-based polymer compound materials for use in drilling fluids.
-

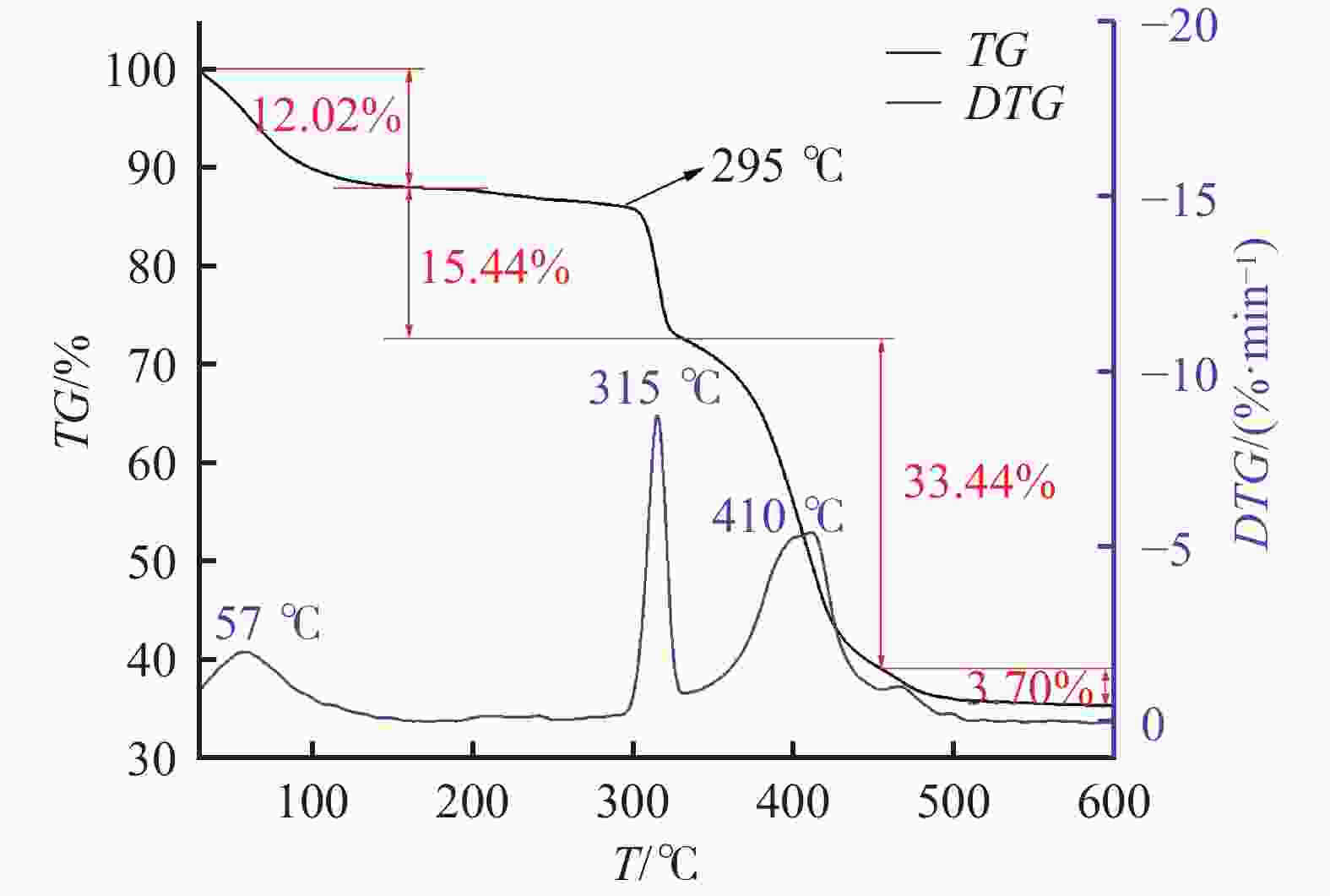

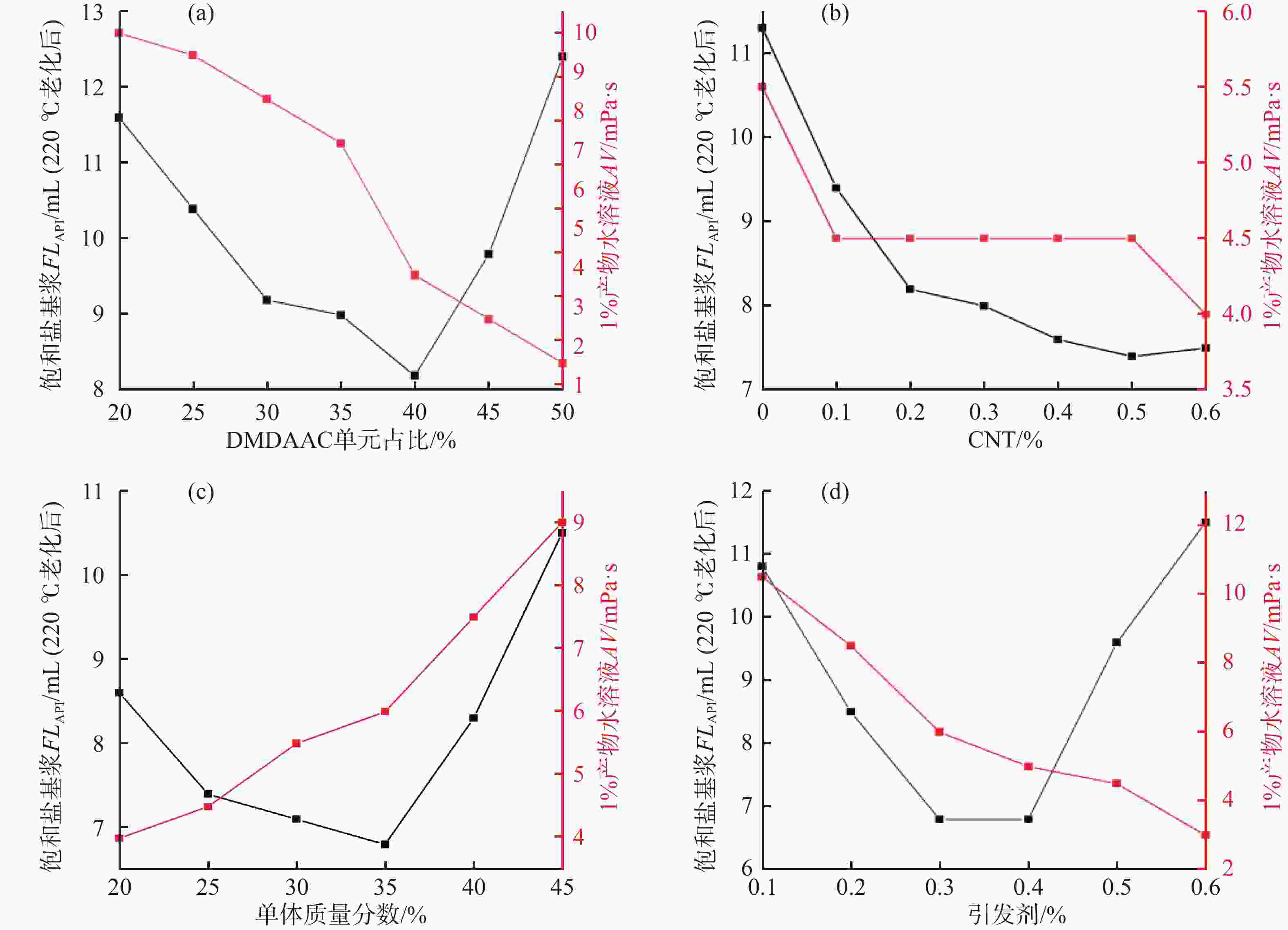

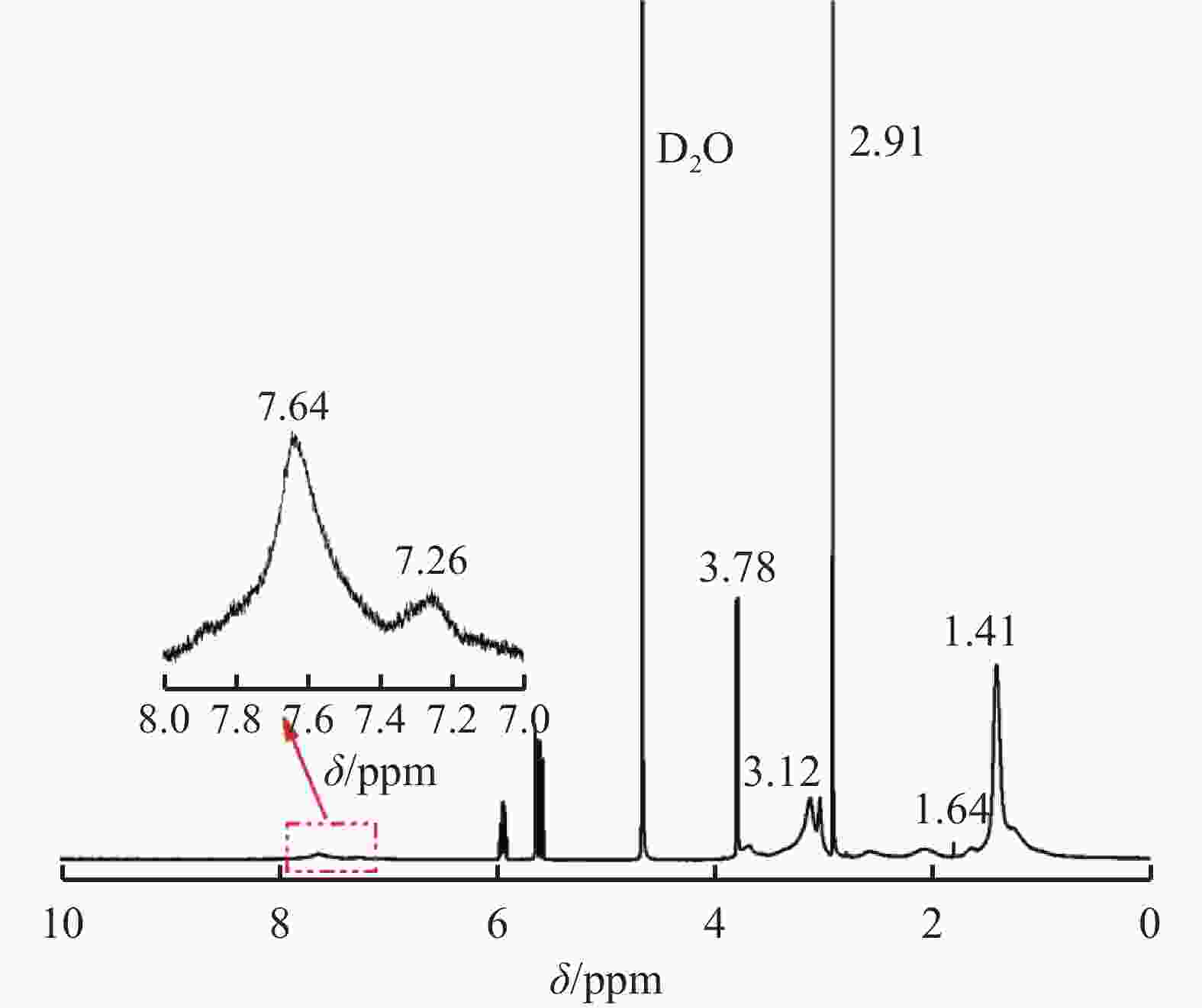

表 1 CNT/ZPE加量对饱和盐基浆流变参数与滤失量的影响
评价浆 老化
条件AV/
mPa·sPV/
mPa·sYP/
PaFLAPI/
mL4%基浆 老化前 6.5 3.0 3.5 26.0 4%基浆 220 ℃、16 h 5.0 4.0 1.0 35.5 饱和盐基浆
（4%基浆+
36%NaCl）220 ℃、16 h 5.5 3.0 2.5 186.0 饱和盐基浆+
1%CNT/ZPE220 ℃、16 h 5.5 5.0 0.5 32.0 饱和盐基浆+
2%CNT/ZPE220 ℃、16 h 9.5 8.0 1.5 6.8 饱和盐基浆+
3%CNT/ZPE220 ℃、16 h 14.5 13.0 1.5 5.4
下载: 导出CSV
表 2 CNT/ZPE加量对含钙基浆流变参数与滤失量的影响
评价浆 老化条件 AV/
mPa·sPV/
mPa·sYP/
PaFLAPI/
mL4%基浆 老化前 6.5 3.0 3.5 26.0 4%基浆 220 ℃、16 h 5.0 4.0 1.0 35.5 含钙基浆
（4%基浆+
2%CaCl2）220 ℃、16 h 3.5 2.0 1.5 216.0 含钙基浆+
1%CNT/ZPE220 ℃、16 h 4.0 4.0 0.0 27.0 含钙基浆+
2%CNT/ZPE220 ℃、16 h 7.5 7.0 0.5 9.8 含钙基浆+
3%CNT/ZPE220 ℃、16 h 16.0 14.0 2.0 6.0
下载: 导出CSV
表 3 不同高密度饱和盐水钻井液的流变与滤失性能
ρ/
g·cm−3老化
条件PV/
mPa·sYP/
PaGel/
Pa/PaFLAPI/
mLFLHTHP/
mL开罐
状态2.0 老化前 58 16.5 2.5/10.5 1.8 220 ℃、16 h 52 10.5 2.5/8.0 2.0 8.6 未沉降 220 ℃、48 h 36 8.0 1.5/6.5 2.1 9.6 未沉降 2.2 老化前 78 18.5 3.5/13.5 1.8 220 ℃、16 h 74 13.5 3.5/9.5 2.2 9.0 未沉降 220 ℃、48 h 55 9.5 2.0/8.0 2.4 11.2 未沉降 2.3 老化前 91 19.5 4.0/15.0 2.0 220 ℃、16 h 87 15.5 3.5/10.5 2.8 11.6 未沉降 220 ℃、48 h 67 10.5 2.5/9.0 3.2 13.5 未沉降 注：流变性测试温度60 ℃，FLHTHP测试温度200 ℃、压差3.5 MPa。
下载: 导出CSV
表 4 高密度饱和盐水钻井液体系的抗钙污染性能
CaCl2/
%老化
条件PV/
mPa·sYP/
PaGel/
Pa/PaFLAPI/
mLFLHTHP/
mL开罐
状态0.5 老化前 53 14.5 1.5/7.5 2.2 220 ℃、16 h 46 13.0 3.5/9.5 2.8 11.8 未沉降 0.7 老化前 50 14.0 1.5/7.0 2.5 220 ℃、16 h 42 15.5 4.0/11.5 3.4 14.5 未沉降 注：流变性测试温度60 ℃，FLHTHP测试温度200 ℃、压差3.5 MPa。
下载: 导出CSV
-
[1] 田惠, 王野, 赵雷, 等. 无土相高密度饱和盐水钻井液用降滤失剂的研究[J]. 钻井液与完井液, 2018, 35(6): 22-26.Tian Hui, Wang Ye, Zhao Lei, et al. Study on filter loss reducer for high density clay-free saturated saltwater drilling fluids[J]. Drilling Fluid & Completion Fluid, 2018, 35(6): 22-26. [2] 祝学飞, 孙俊, 舒义勇, 等. ZQ2井盐膏层高密度欠饱和盐水聚磺钻井液技术[J]. 钻井液与完井液, 2019, 36(6): 716-720. doi: 10.3969/j.issn.1001-5620.2019.06.010Zhu Xuefei, Sun Jun, Shu Yiyong, et al. A high density undersaturated saltwater drilling fluid for salt and gypsum drilling in well ZQ2[J]. Drilling Fluid & Completion Fluid, 2019, 36(6): 716-720. doi: 10.3969/j.issn.1001-5620.2019.06.010 [3] 孙金声, 王韧, 龙一夫. 我国钻井液技术难题、新进展及发展建议[J]. 钻井液与完井液, 2024, 41(1): 1-30. doi: 10.12358/j.issn.1001-5620.2024.01.001Sun Jinsheng, Wang Ren, Long Yifu. Challenges, developments, and suggestions for drilling fluid technology in China[J]. Drilling Fluid & Completion Fluid, 2024, 41(1): 1-30. doi: 10.12358/j.issn.1001-5620.2024.01.001 [4] 罗明望, 张现斌, 王中秋, 等. 超高温低黏聚合物降滤失剂的研制及作用机理[J]. 钻井液与完井液, 2020, 37(5): 585-592. doi: 10.3969/j.issn.1001-5620.2020.05.008Luo Mingwang, Zhang Xianbin, Wang Zhongqiu, et al. Preparation and working mechanisms of an ultra-high temperature low viscosity polymer filtrate reducer[J]. Drilling Fluid & Completion Fluid, 2020, 37(5): 585-592. doi: 10.3969/j.issn.1001-5620.2020.05.008 [5] 侯从聪, 安立宝, 王惠颖. 功能化碳纳米管/聚合物复合材料的研究进展[J]. 高分子通报, 2022(6): 36-45. doi: 10.14028/j.cnki.1003-3726.2022.06.004Hou Congcong, An Libao, Wang Huiying. Research progress of functionalized carbon nanotubes/polymer composites[J].Chinese Polymer Bulletin, 2022(6): 36-45. doi: 10.14028/j.cnki.1003-3726.2022.06.004 [6] Ma P C, Siddiqui N A, Marom G, et al. Dispersion and functionalization of carbon nanotubes for polymer-based nanocomposites: a review[J]. Composites Part A: Applied Science and Manufacturing, 2010, 41(10): 1345-1367. doi: 10.1016/j.compositesa.2010.07.003 [7] 陈点, 吕仕铭, 汪羽翎. 非共价键化学修饰碳纳米管的分散及其机理[J]. 材料导报, 2023, 37(17): 68-85.Chen Dian, Lv Shiming, Wang Yuling. Dispersion and mechanism of non-covalent chemically modified carbon nanotubes[J]. Materials Reports, 2023, 37(17): 68-85. [8] Yang D Q, Rochette J F, Sacher E. Spectroscopic evidence for pi-pi interaction between poly (diallyl dimethylammonium) chloride and multiwalled carbon nanotubes[J]. The Journal of Physical Chemistry. B, 2005, 109(10): 4481-4484. doi: 10.1021/jp044511+ [9] O'connell M J, Boul P, Ericson L M, et al. Reversible water-solubilization of single-walled carbon nanotubes by polymer wrapping[J]. Chemical Physics Letters, 2001, 342(3/4): 265-271. [10] 任烨, 李齐方, 陈广新. 聚离子液体包覆碳纳米管及其复合材料介电性能的研究[C]//2015年全国高分子学术论文报告会论文摘要集——主题L高分子复合体系. 苏州: 中国化学会高分子学科委员会, 2015: 2017-2017.Ren Ye, Li Qifang, Chen Guangxin. Study on the dielectric properties of polyionic liquid-coated carbon nanotubes and their composites[C]//2015 National Polymer Academic Paper Conference Abstract Collection-Theme L Polymer Composite System. Suzhou: Polymer Science Committee of the Chinese Chemical Society, 2015: 2017-2017 [11] Yang J, Lin Y H, Wang J F, et al. Morphology, thermal stability, and dynamic mechanical properties of atactic polypropylene/carbon nanotube composites[J]. Journal of Applied Polymer Science, 2010, 98(3): 1087-1091. doi: 10.1002/app.21206 [12] 陈力力, 郭建华, 谢刚. 碳纳米管封堵剂在水基钻井液中的作用机理[J]. 钻井液与完井液, 2022, 39(1): 29-35.Chen Lili, Guo Jianhua, Xie Gang. Study on mechanisms of carbon nanotube as a nanosized plugging agent in water based drilling fluids[J]. Drilling Fluid & Completion Fluid, 2022, 39(1): 29-35. [13] 马超, 刘怡麟, 唐嘉婧, 等. 基于β-环糊精修饰的抗高温降滤失剂[J]. 油田化学, 2025, 42(1): 1-7. doi: 10.19346/j.cnki.1000-4092.2025.01.001Ma Chao, Liu Yilin, Tang Jiajing, et al. High temperature resistance fluid loss reducer modified by β-cyclodextrin[J]. Oilfield Chemistry, 2025, 42(1): 1-7. doi: 10.19346/j.cnki.1000-4092.2025.01.001 [14] 胡正文, 任庭飞, 邓小刚, 等. 聚合物降滤失剂PAAAA的合成及其性能评价[J]. 石油化工, 2020, 49(4): 378-384.Hu Zhengwen, Ren Tingfei, Deng Xiaogang, et al. Synthesis and property evaluation of polymer fluid loss additive PAAAA[J]. Petrochemical Technology, 2020, 49(4): 378-384. [15] 黄维安, 李国真, 贾江鸿, 等. 环保型改性纳米碳酸钙降滤失剂的合成与性能评价[J]. 中国石油大学学报(自然科学版), 2024, 48(2): 126-134. doi: 10.3969/j.issn.1673-5005.2024.02.014Huang Weian, Li Guozhen, Jia Jianghong, et al. Synthesis and performance evaluation of environment-friendly modified nano-calcium carbonate filtrate reducer[J]. Journal of China University of Petroleum (Edition of Natural Science), 2024, 48(2): 126-134. doi: 10.3969/j.issn.1673-5005.2024.02.014 -
