A High-strength Elastic-tough Cement Slurry System and Its Application in Coalbed Methane Horizontal Well Cementing
-

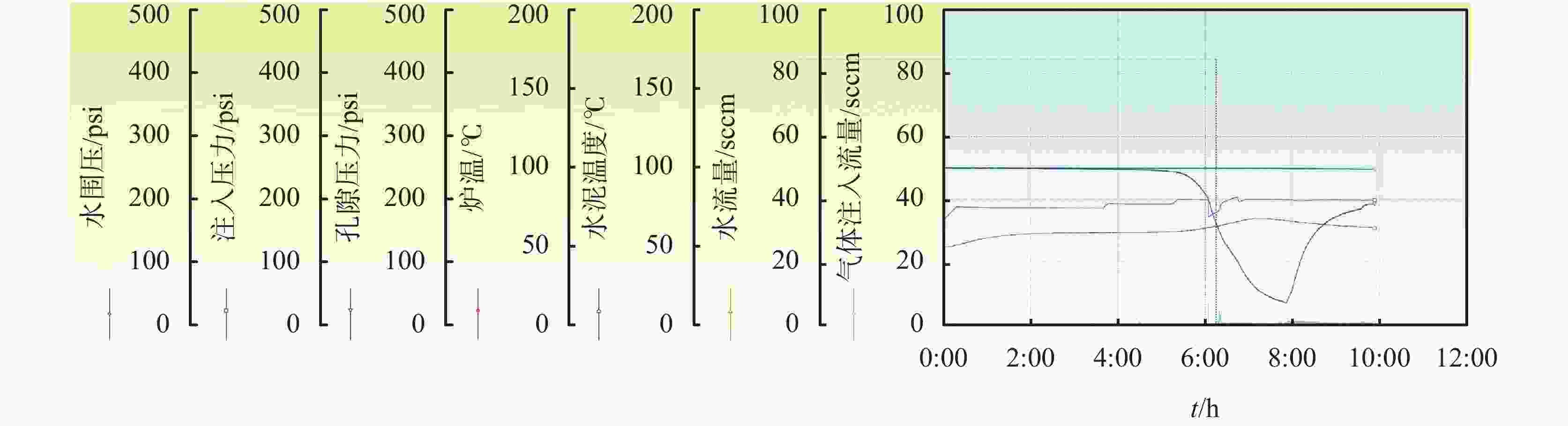

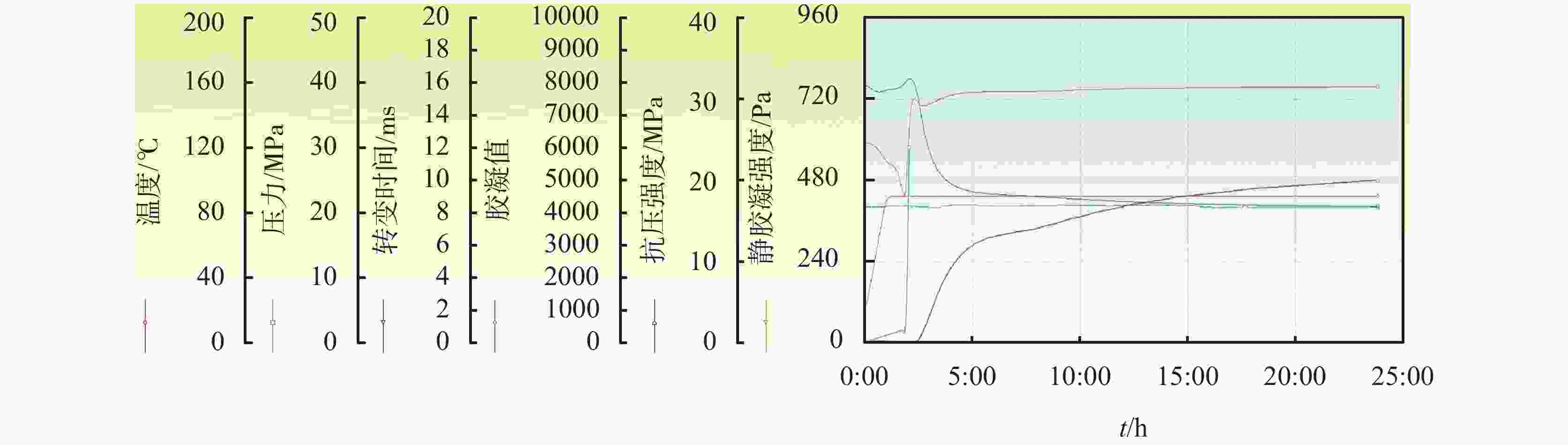

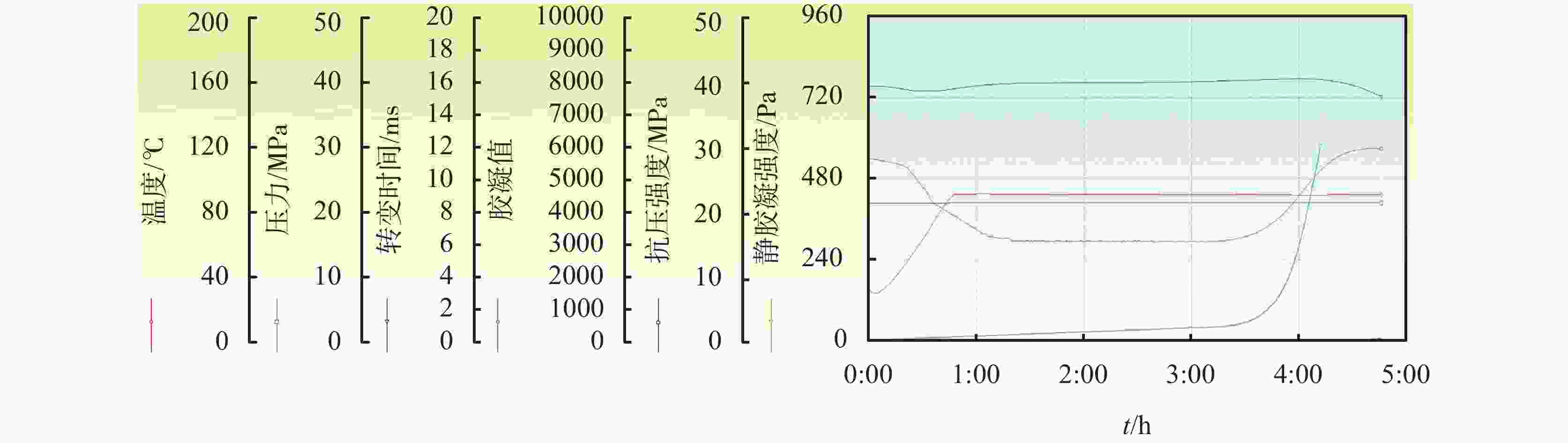

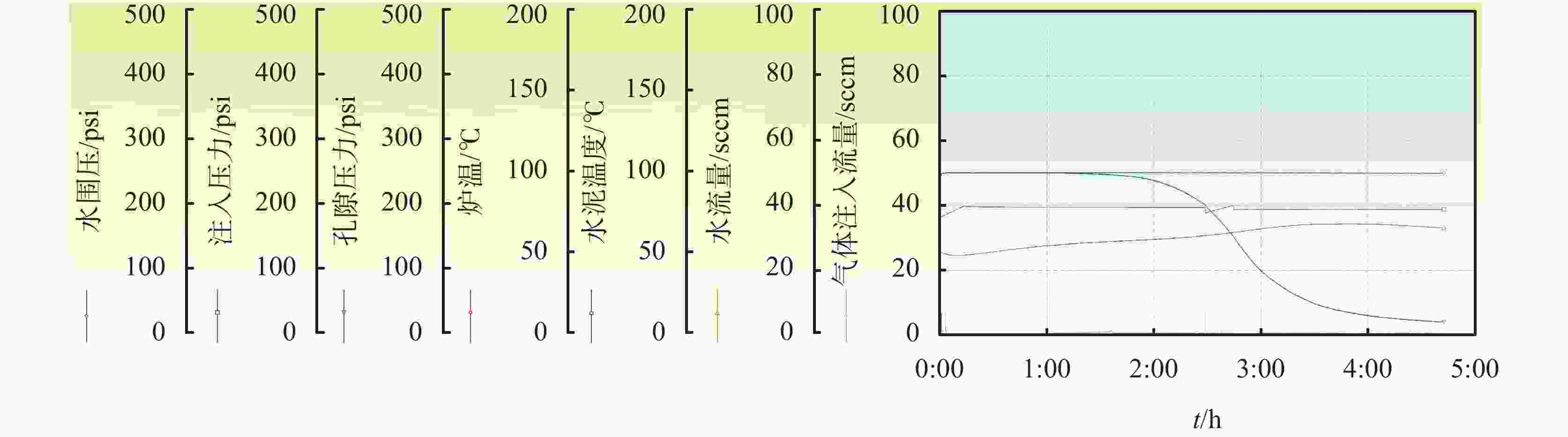

摘要: 煤层气水平井固井对水泥石的强度和弹韧性要求较高。通过合成一种外刚内弹的核壳结构聚合物微球材料TRF作为弹韧性外加剂，研发了一套高强弹韧性水泥浆体系。研究表明，该水泥浆体系48 h抗折强度提高75%，抗压强度下降8.8%，弹性模量降低38%；抗冲击性能对比其他增韧剂体系表现良好，14 d静载抗压强度、动态强度、吸收能分别提高96.12%、115.16%、355.87%；胶结性能好，I界面的胶结强度提升29.4%，Ⅱ界面强度提升43.1%；防窜性能出色，孔隙压力曲线下降平滑，无回弹，静胶凝曲线过渡时间短，只有5.5 min，缩短了82%。该水泥浆体系在拜城煤层气区块的拜Z15-L1井现场成功应用，水平井段固井质量优异，对比邻井的一二界面胶结质量提升明显。该高强弹韧性水泥浆体系能满足煤层气水平井固井要求。Abstract: Coalbed methane horizontal well cementing requires the cement stone to possess not only high strength but also good elasticity and toughness. A high-strength elastic-tough cement slurry system was developed by synthesizing a polymer microsphere material TRF with a core-shell structure, which was rigid outside and elastic inside, as an elastic-tough additive. The research results showed that this cement slurry system had a 75% increase in flexural strength, an 8.8% decrease in compressive strength, and a 38% reduction in elastic modulus after 48 h. It exhibited superior impact resistance performance to other toughening agent systems. After 14 days, the static compressive strength, dynamic strength, and absorption energy were increased by 96.12%, 115.16%, and 355.87%, respectively. The bonding performance was good, with a 29.4% increase in bonding strength at interface I and a 43.1% increase at interface Ⅱ. The anti-channeling performance was excellent. The pore pressure curve decreased smoothly without rebound, and the transition time of the static gel curve was short (only 5.5 min), representing an 82% reduction. This cement slurry system was successfully applied in Well BaiZ15-L1 in the Baicheng coalbed methane block, achieving excellent cementing quality in the horizontal well section, with bonding quality enhanced markedly at interfaces I and Ⅱ in comparison with offset wells. This high-strength elastic-tough cement slurry system met the requirements for coalbed methane horizontal well cementing.
-
Key words:
- Elastic-tough material /
- Core-shell structure /
- Well cementing /
- Cement slurry /
- Coalbed methane /
- Horizontal well
-
表 1 弹韧性水泥浆的基本性能
TRF/
%ρ/
g·cm-3流动度/
cm析水/
mLFLAPI/
mL△ρ/
g·cm-3稠化时间
(85 ℃, 56 MPa,
60 min)/min0 1.85 23 0 48 0 210 5 1.85 22 0 46 0 227 10 1.86 22 0 32 0 223 15 1.87 22 0 30 0.01 230
下载: 导出CSV

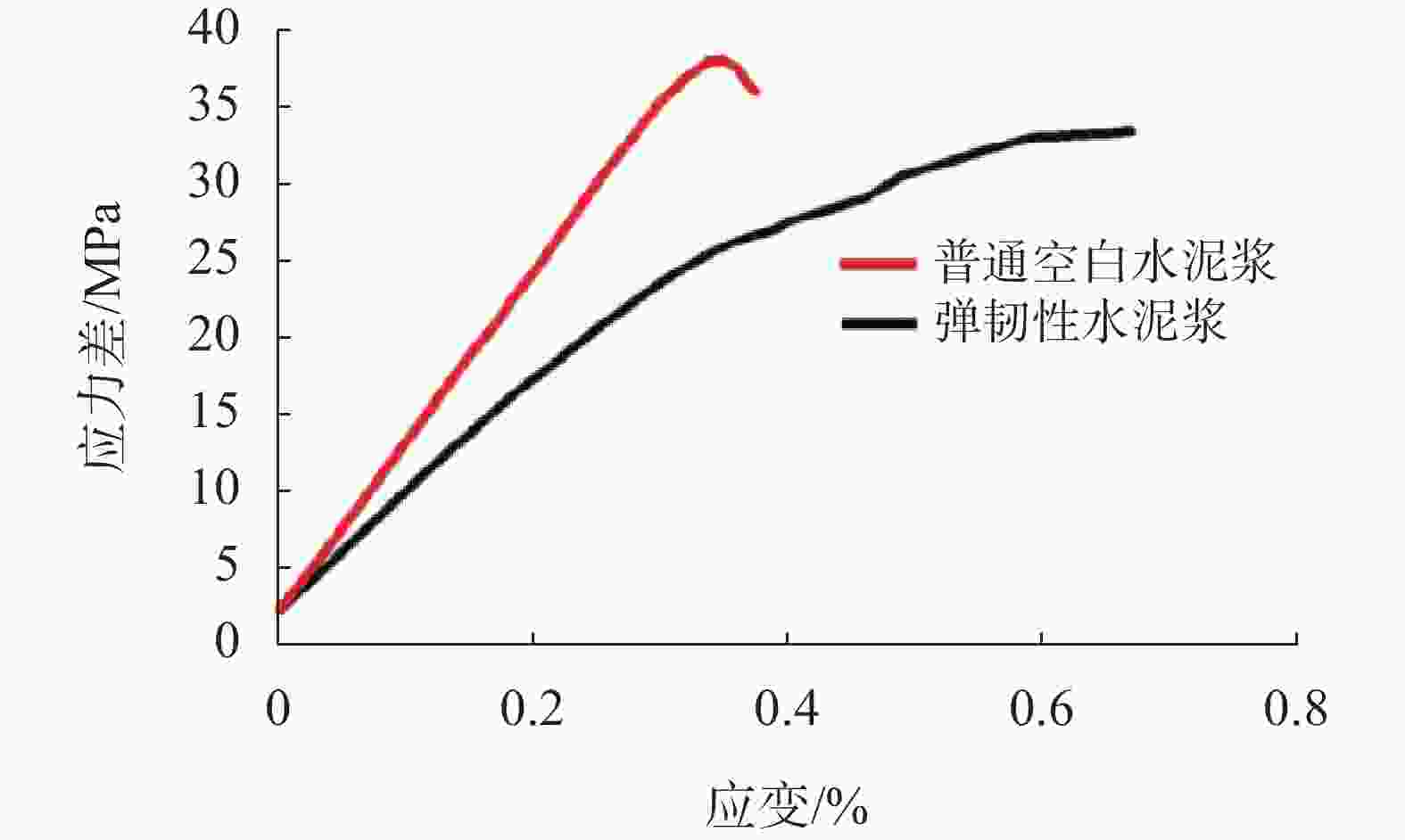

表 2 弹韧性水泥石的力学性能
TRF/
%抗压强度/
MPa抗折强度/
MPa弹性模量/
GPa0 30.6 3.6 9.46 5 27.9 6.3 5.91 10 21.9 5.5 4.71 15 20.2 3.8 3.12
下载: 导出CSV

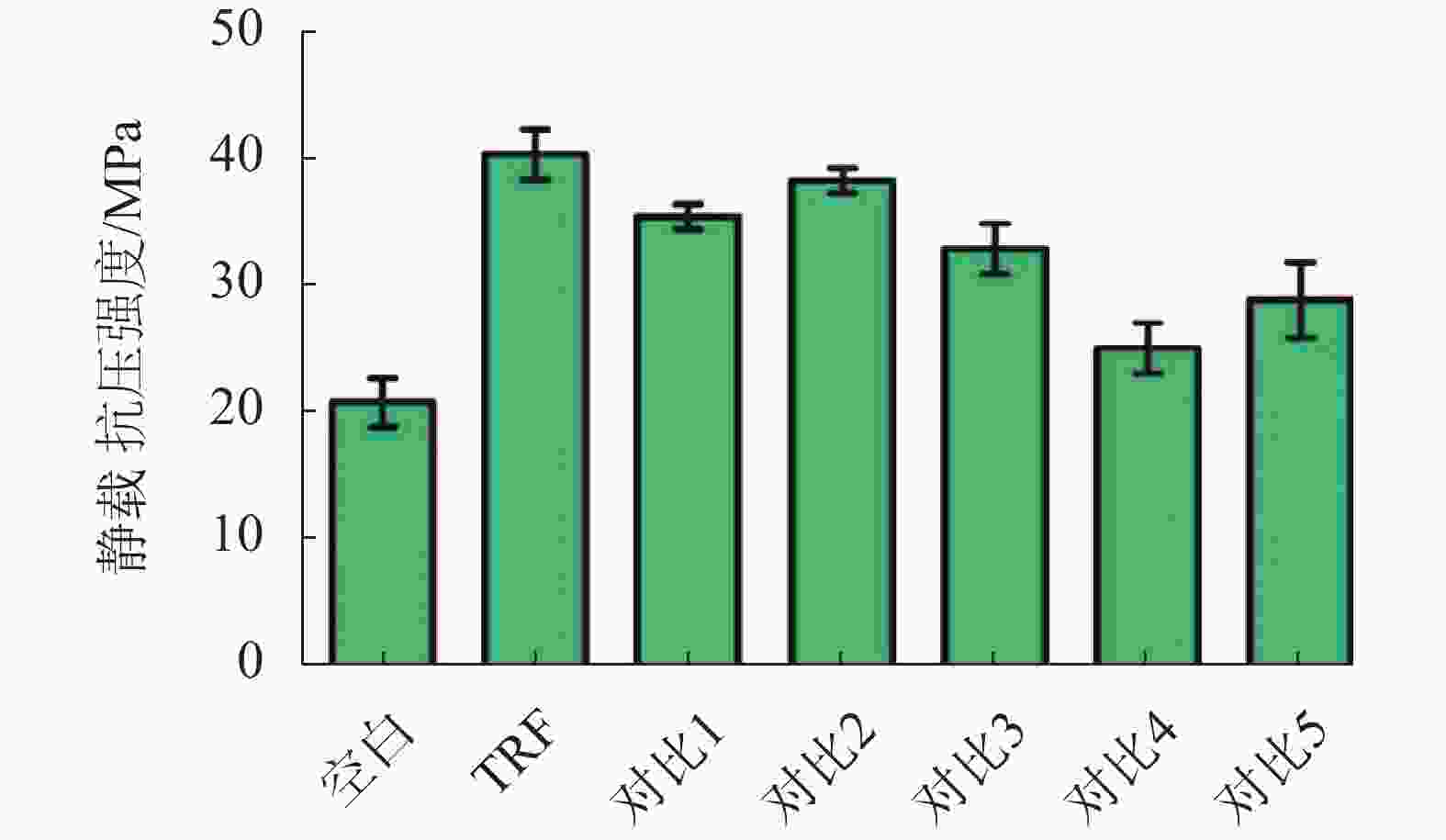

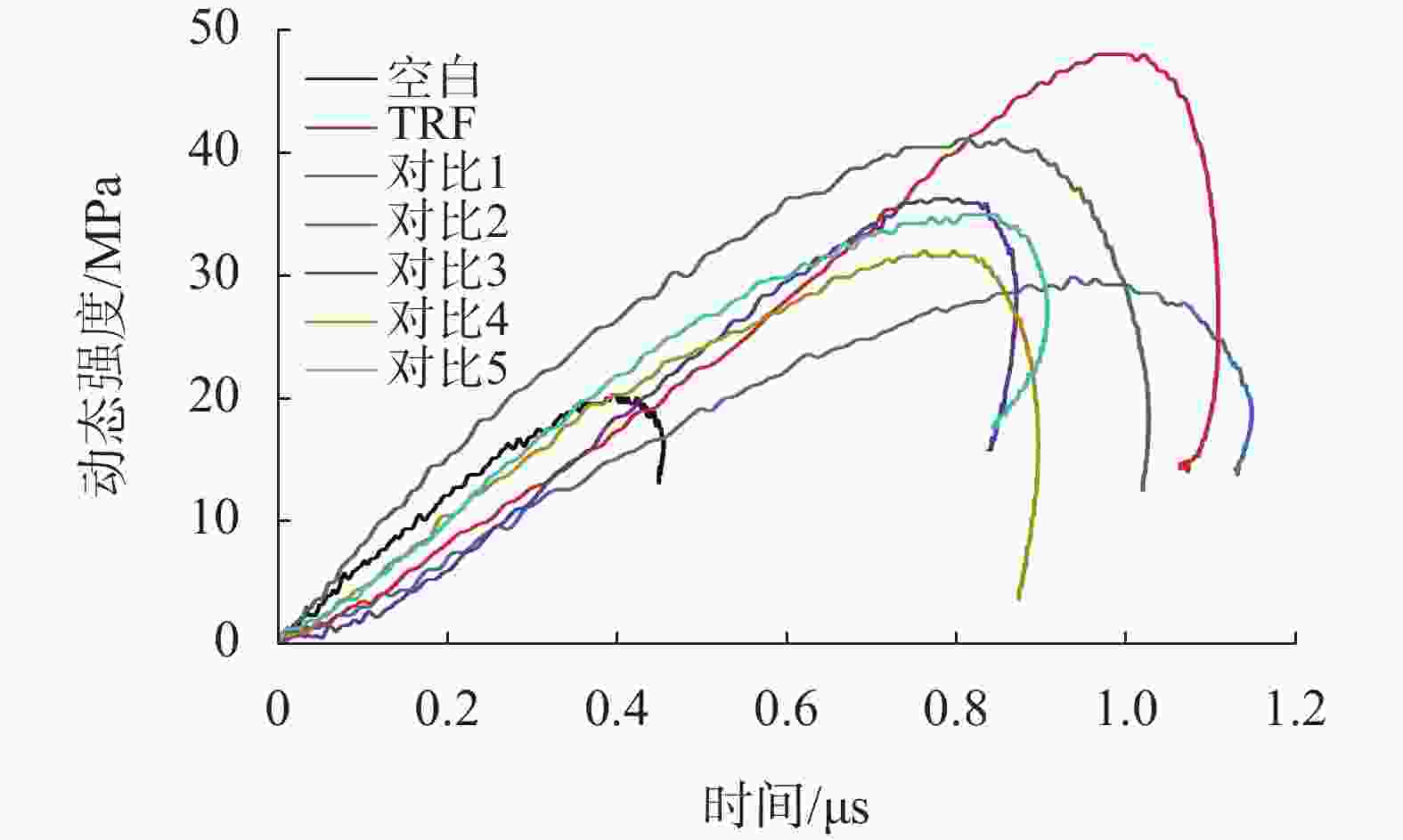

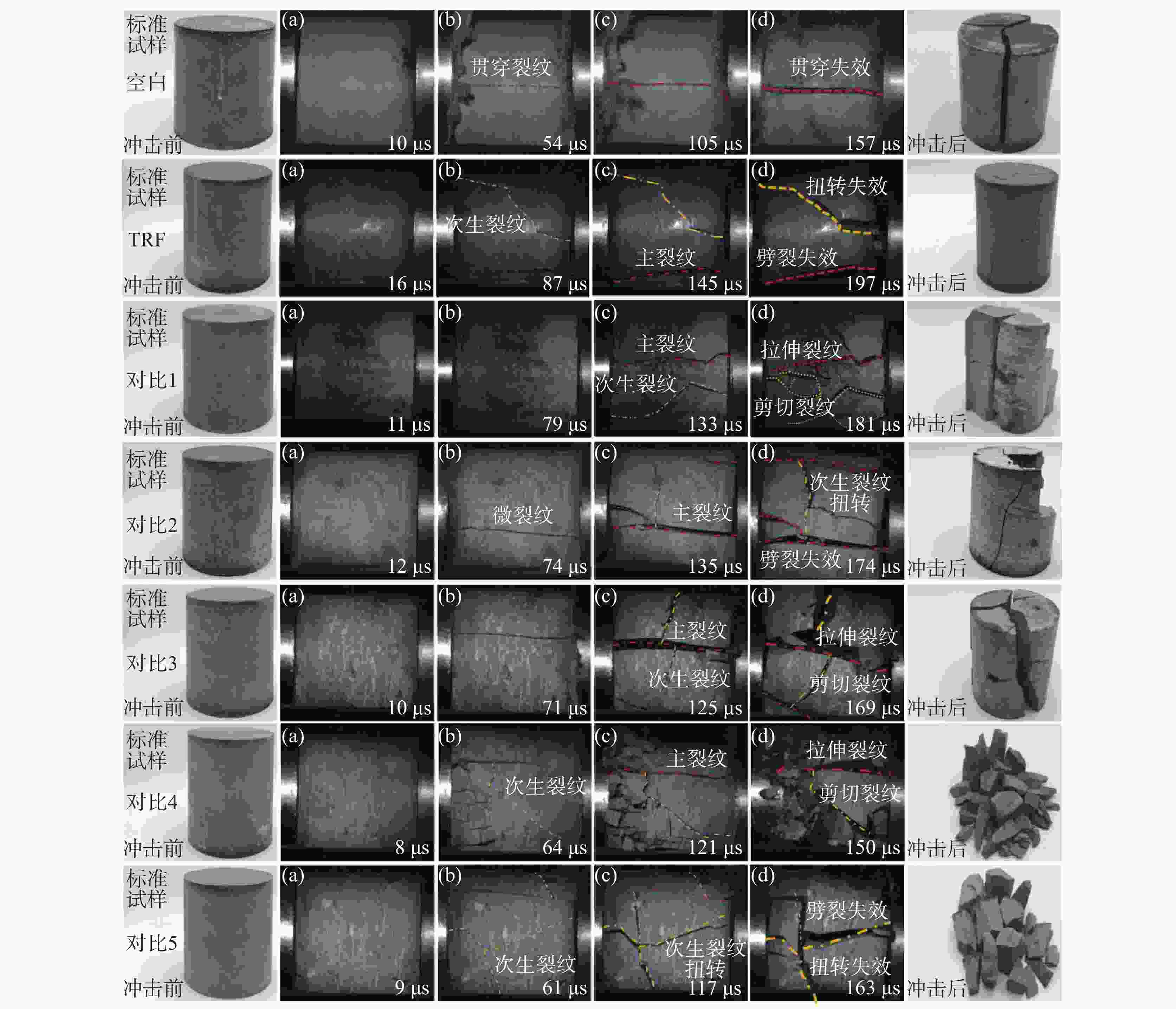

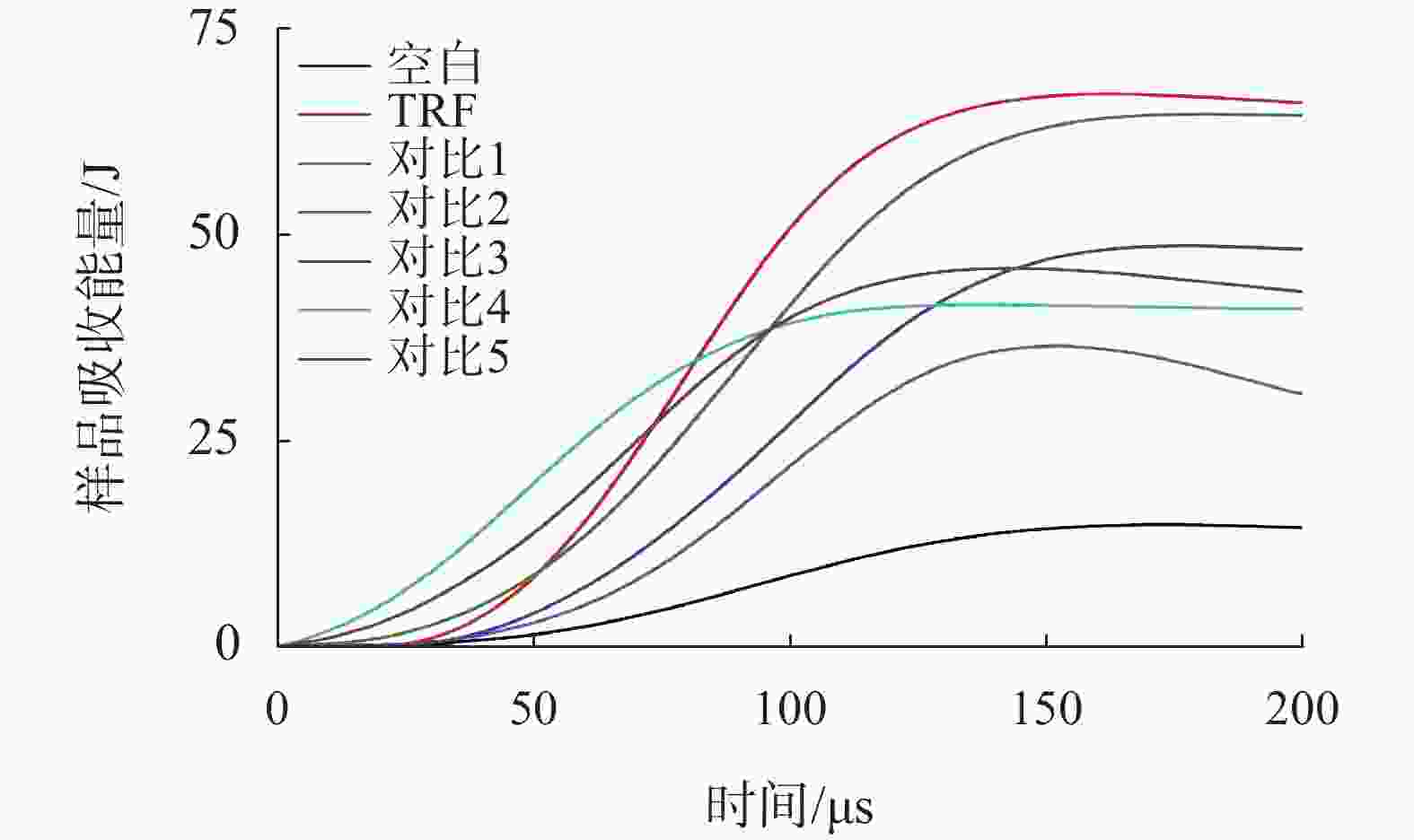

表 3 添加不同增韧剂的水泥石抗压强度及动态力学性能对比
序号 增韧剂 T/
℃静载抗压
强度/MPa动态强度/
MPa吸收能/
J空白 无 60 20.60 22.36 14.73 TRF TRF 60 40.40 48.11 67.15 对比1 丁腈橡胶粉 60 35.42 29.52 36.48 对比2 纤维素纤维 60 38.31 41.26 64.17 对比3 丁苯乳胶 60 32.90 36.36 48.68 对比4 硅橡胶粉 60 25.00 32.35 41.03 对比5 聚酯纤维 60 28.80 35.07 43.10
下载: 导出CSV
-
[1] 谭春勤, 刘伟, 丁士东, 等. SFP弹韧性水泥浆体系在页岩气井中的应用[J]. 石油钻探技术, 2011, 39(3): 53-56.Tan Chunqin, Liu Wei, Ding Shidong, et al. Application of SFP elasto-toughness slurry in shale gas well[J]. Petroleum Drilling Techniques, 2011, 39(3): 53-56. [2] 李立昌, 曹洪昌, 高阳, 等. 华北储气库韧性水泥浆及增韧机理[J]. 钻井液与完井液, 2025, 42(2): 239-246.Li Lichang, Cao Hongchang, Gao Yang, et al. The toughening mechanisms of tough cement slurries for the underground gas storage in North China[J]. Drilling Fluid & Completion Fluid, 2025, 42(2): 239-246. [3] 段永强, 王秀影, 罗玉财, 等. 巴彦油田深层高温高密度韧性水泥浆体系构建[J]. 钻井液与完井液, 2025, 42(3): 368-378. doi: 10.12358/j.issn.1001-5620.2025.03.013Duan Yongqiang, Wang Xiuying, Luo Yucai, et al. Construction of a deep high-temperature high-density resilient cement slurry system for the Bayan oilfield[J]. Drilling Fluid & Completion Fluid, 2025, 42(3): 368-378. doi: 10.12358/j.issn.1001-5620.2025.03.013 [4] 李全. 煤层气水平排采井不固井连续油管压裂工艺适应性探讨: 以新疆拜城煤层气示范区为例[J]. 中国煤层气, 2019, 16(5): 32-34.Li Quan. Discussion on coiled tubing fracturing technology for CBM horizontal well without Cementation: a case study of CBM demonstration Zone of Baicheng in Xinjiang[J]. China Coalbed Methane, 2019, 16(5): 32-34. [5] 张永强, 曲从锋, 卞维坤, 等. 昭通页岩气示范区水平井生产套管固井技术[J]. 钻采工艺, 2019, 42(5): 31-34.Zhang Yongqiang, Qu Congfeng, Bian Weikun, et al. Horizontal well production casing cementing technology in Zhaotong shale gas demonstration area[J]. Drilling & Production Technology, 2019, 42(5): 31-34. [6] 靳建洲, 魏风奇, 艾正青, 等. 超深特深油气井固井关键技术进展[J]. 钻采工艺, 2024, 47(2): 104-112. doi: 10.3969/J.ISSN.1006-768X.2024.02.12Jin Jianzhou, Wei Fengqi, Ai Zhengqing, et al. Key technologies for cementing of deep and ultra-deep oil and gas wells[J]. Drilling & Production Technology, 2024, 47(2): 104-112. doi: 10.3969/J.ISSN.1006-768X.2024.02.12 [7] 赵凌云, 周培明, 吴章利. 贵州省煤层气井固井水泥浆体系的开发研究[J]. 当代化工研究, 2022(17): 174-176. doi: 10.3969/j.issn.1672-8114.2022.17.054Zhao Lingyun, Zhou Peiming, Wu Zhangli. Development and application of cementing slurry system for coalbed gas wells in Guizhou province[J]. Modern Chemical Research, 2022(17): 174-176. doi: 10.3969/j.issn.1672-8114.2022.17.054 [8] 冯义, 任凯, 刘俊田, 等. 深层煤层气水平井安全钻井技术[J]. 钻采工艺, 2024, 47(3): 33-41.Feng Yi, Ren Kai, Liu Juntian, et al. Safe drilling technology for deep CBM horizontal wells[J]. Drilling & Production Technology, 2024, 47(3): 33-41. [9] 车阳, 方明星, 陈春宇, 等. 致密气长水平段水平井钻井技术现状及发展建议[J]. 世界石油工业, 2025, 32(5): 74-82. doi: 10.20114/j.issn.1006-0030.20241104011Che Yang, Fang Mingxing, Chen Chunyu, et al. Current status and development recommendations of drilling technologies for long lateral horizontal wells in tight gas[J]. World Petroleum Industry, 2025, 32(5): 74-82. doi: 10.20114/j.issn.1006-0030.20241104011 [10] 刘志台, 丁宏伟. 固井技术在煤层气钻井中的应用与实践[J]. 石化技术, 2024, 31(9): 70-72. doi: 10.3969/j.issn.1006-0235.2024.09.024Liu Zhitai, Ding Hongwei. Application and practice of cementing technology in coalbed methane D rilling[J]. Petrochemical Industry Technology, 2024, 31(9): 70-72. doi: 10.3969/j.issn.1006-0235.2024.09.024 [11] 范宇, 唐宜家, 夏连彬, 等. 环保性纳米硅酸镁锂/纤维素/明胶复合凝胶的制备及堵漏性能[J]. 钻井液与完井液, 2025, 42(2): 209-216.Fan Yu, Tang Yijia, Xia Lianbin, et al. Preparation of environmentally friendly nano lithium magnesium silicate-cellulose-gelatin composite gel and study on its ability to control mud losses[J]. Drilling Fluid & Completion Fluid, 2025, 42(2): 209-216. [12] 于林, 谭慧静, 任阳, 等. 三高条件对弹韧性水泥浆性能的影响及短期腐蚀机理[J]. 钻井液与完井液, 2023, 40(2): 222-232. doi: 10.12358/j.issn.1001-5620.2023.02.011Yu Lin, Tan Huijing, Ren Yang, et al. Study on the influence of elastic toughness cement slurry performance and short-term corrosion mechanism under HPHTHS conditions[J]. Drilling Fluid & Completion Fluid, 2023, 40(2): 222-232. doi: 10.12358/j.issn.1001-5620.2023.02.011 [13] 李成嵩, 李社坤, 范明涛, 等. 高密度弹韧性水泥浆力学数值模拟[J]. 钻井液与完井液, 2023, 40(2): 233-240. doi: 10.12358/j.issn.1001-5620.2023.02.012Li Chengsong, Li Shekun, Fan Mingtao, et al. Numerical simulation study on mechanics of high density elastic and tough cement slurries[J]. Drilling Fluid & Completion Fluid, 2023, 40(2): 233-240. doi: 10.12358/j.issn.1001-5620.2023.02.012 [14] 孟令峰. 深层煤层气水平井钻完井技术研究[J]. 石油和化工设备, 2025, 28(1): 148-151,161. doi: 10.3969/j.issn.1674-8980.2025.01.037Meng Lingfeng. Research on drilling and completion technology for deep coalbed methane horizontal wells[J]. Petro-Chemical Equipment, 2025, 28(1): 148-151,161. doi: 10.3969/j.issn.1674-8980.2025.01.037 -
