Study and Application of Low Penetration Cement Slurry for Cementing CCUS Wells in Chuanyu Area
-

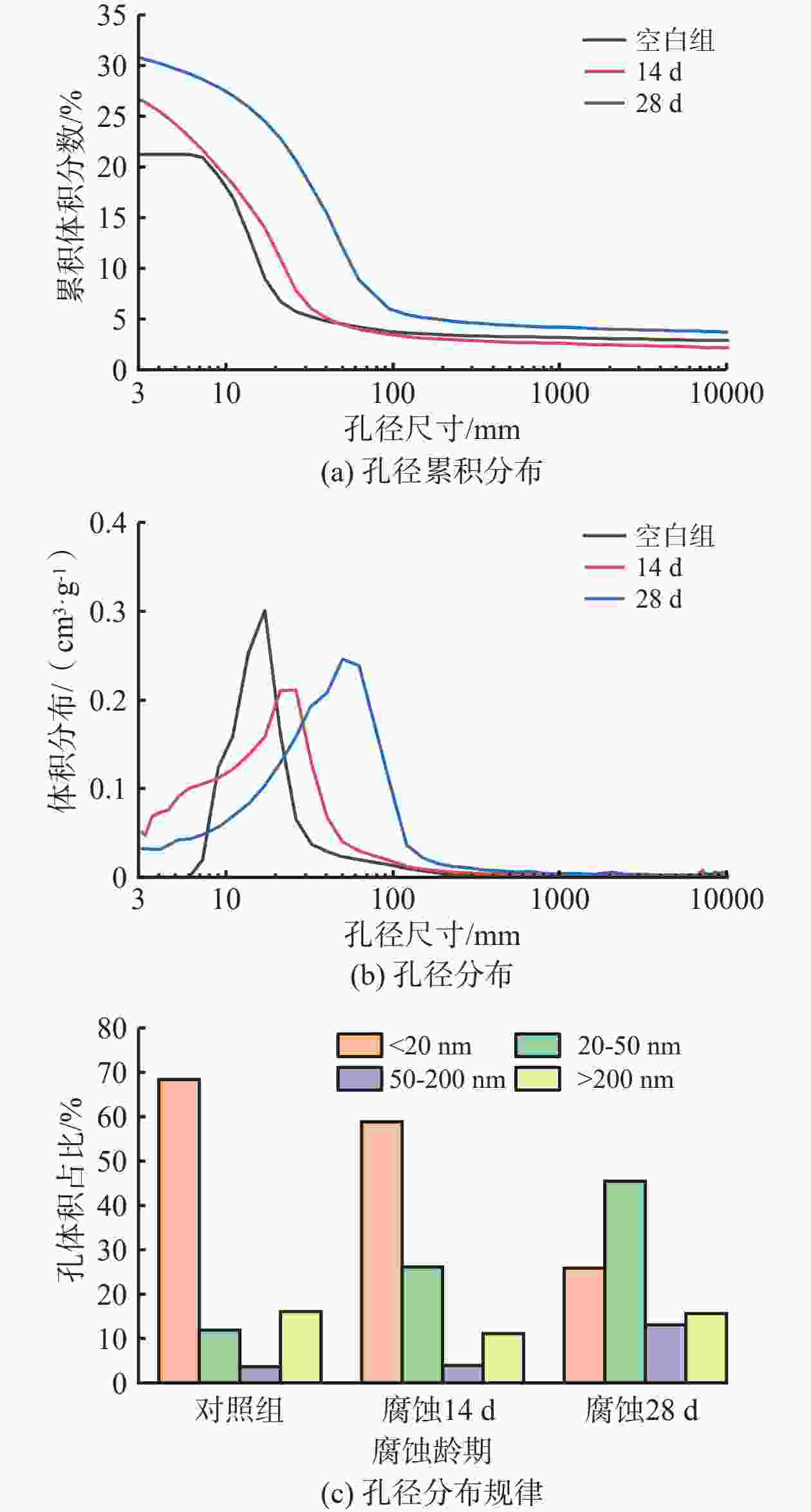

摘要: 针对川渝地区固井水泥环在酸性环境下易发生腐蚀劣化及密封失效等难题，研发了一种兼具成膜吸附与微观结构调控功能的抗腐蚀材料DST，基于此构建了低渗透防腐水泥浆体系。不同于传统防腐材料，DST能够诱导腐蚀水化产物由疏松结构转变为致密的球状碳酸钙堆积，从而阻断腐蚀介质的深层渗透。基于典型井底温压条件（80 ℃/40 MPa），开展室内酸性腐蚀实验与现场应用。结果表明，水泥石在腐蚀28 d后抗压强度较未腐蚀水泥石仅降低5%，渗透率虽有轻微增长，但最终值低于4×10−5 μm2，主要孔径维持在10～90 nm的无害和少害孔范围内，微观形貌未观测到贯通孔隙和松散结构。该体系在川渝地区某CCUS井应用后，一、二界面胶结质量合格率均超94%，在后续超300 d注采作业中，井筒环空未监测到异常带压和CO2泄露现象。该研究开发的防腐关键材料DST和构建的低渗透防腐水泥浆体系，显著提升了CCUS井筒长效密封能力，为CO2埋存奠定了坚实的固井技术支撑。Abstract: Well cementing in the Chuanyu area (Sichuan and Chongqing) is faced with corrosion, deterioration and failure of sealing of cement sheath in acidic condition. To address these issues, a corrosion-resistant material DST with both filming adsorption and microstructure regulation and control functions was developed, and with DST, a low-permeability corrosion-resistant cement slurry was formulated. Different from conventional corrosion-resistant materials, DST can induce corrosive hydration products to transform from a loose structure to a dense spherical calcium carbonate packing, thereby blocking the deep penetration of the corrosive media. Based on the typical bottomhole temperature and pressure conditions (80 ℃/40 MPa), laboratory acid corrosion experiment and field application were conducted. The results show that after being corroded for 28 days, the compressive strength of the set cement is only reduced by 5%. The permeability of the set cement, although slightly increased, is finally lower than 4 × 10−5 μm2. The diameters of the main pores are kept at 10 – 90 nm, which are harmless or only slightly harmful, and no connected pores and loose structures are observed in the micromorphology of the set cement. This cement slurry has been applied in cementing a CCUS well in the Chuanyu area, and the first and the second bonding interfaces of the cement sheath are qualified at a rate exceeding 94%. In subsequent 300-day injection and production operations, no abnormal sustained pressure and CO2 leaking were monitored. The key corrosion-resistant material DST developed in this research and the low-permeability corrosion-resistant cement slurry significantly improve the long-term sealing of the CCUS wellbore and lay a solid foundation for cementing CO2 storage wells.
-
Key words:
- CCUS /
- CO2 corrosion /
- Well cementing /
- Cement slurry /
- Low-permeability /
- Pore size distribution /
- Sealing integrity
-
[1] 胡永乐, 郝明强, 陈国利, 等. 中国CO2驱油与埋存技术及实践[J]. 石油勘探与开发, 2019, 46(4): 716-727.Hu Yongle, Hao Mingqiang, Chen Guoli, et al. Technologies and practice of CO2 flooding and sequestration in China[J]. Petroleum Exploration and Development, 2019, 46(4): 716-727. [2] 邹才能, 李士祥, 熊波, 等. 碳中和"超级能源系统"内涵、路径及意义: 以鄂尔多斯盆地为例[J]. 石油勘探与开发, 2024, 51(4): 924-936.Zou Caineng, Li Shixiang, Xiong Bo, et al. Connotation, pathway and significance of carbon neutrality "super energy system": a case study of the Ordos Basin, NW China[J]. Petroleum Exploration and Development, 2024, 51(4): 924-936. [3] 王国锋, 吕伟峰, 崔凯, 等. 全球二氧化碳捕集、利用与封存产业集群技术进展及应用展望[J]. 石油勘探与开发, 2025, 52(2): 478-487.Wang Guofeng, Lyu Weifeng, Cui Kai, et al. Technical progress and application of global carbon dioxide capture, utilization and storage cluster[J]. Petroleum Exploration and Development, 2025, 52(2): 478-487. [4] 孙龙德, 张鹏程, 江航, 等. 油气安全与能源转型的新趋势[J]. 世界石油工业, 2024, 31(1): 6-15.Sun Longde, Zhang Pengcheng, Jiang Hang, et al. New trends in oil and gas security and energy transition[J]. World Petroleum Industry, 2024, 31(1): 6-15. [5] 贺凯. CO2地质封存系统完整性演化及其泄漏研究[D]. 大庆: 东北石油大学, 2019.He Kai. Research on integrity evolution and leakage of CO2 geological storage system[D]. Daqing: Northeast Petroleum University, 2019. [6] Zhang Z, Zhao Y J, Cai N, et al. Research status and development prospect of wellbore integrity in China[J]. SPE Journal, 2024, 29(1): 35-54. doi: 10.2118/217454-PA [7] 廖加栋. CO2驱注入井筒完整性评价研究[D]. 荆州: 长江大学, 2020.Liao Jiadong. Research on integrity evolution and leakage of CO2 geological storage system[D]. Jingzhou: Yangtze University, 2020. [8] 郭少坤, 李军, 连威, 等. CCUS地质封存井筒完整性研究进展及发展建议[J]. 石油钻探技术, 2025, 53(1): 144-154.Guo Shaokun, Li Jun, Lian Wei, et al. Research progress and development suggestions on wellbore integrity for CCUS geological storage[J]. Petroleum Drilling Techniques, 2025, 53(1): 144-154. [9] 黄倩, 田鸣, 赛亚尔·库西马克, 等. 碳埋存环境下油井水泥耐CO2腐蚀研究[J]. 天然气勘探与开发, 2024, 47(5): 103-110.Huang Qian, Tian Ming, Saiyaer Kuximake, et al. Resistance of cement to CO2 corrosion in oil producers under carbon storage[J]. Natural Gas Exploration and Development, 2024, 47(5): 103-110. [10] 王纯全, 严海兵, 邓天安, 等. 一种添加自交联环氧树脂乳液的防腐韧性水泥浆[J]. 钻井液与完井液, 2024, 41(4): 522-530.Wang Chunquan, Yan Haibing, Deng Tianan, et al. An anti-corrosion tough cement slurry treated with self-crosslinking epoxy resin emulsion[J]. Drilling Fluid & Completion Fluid, 2024, 41(4): 522-530. [11] 武治强, 武广瑷, 幸雪松. CO2腐蚀-应力耦合下固井水泥环密封完整性[J]. 钻井液与完井液, 2024, 41(2): 220-230.Wu Zhiqiang, Wu Guangai, Xing Xuesong. Sealing integrity of cement sheath under the condition of CO2 corrosion-stress coupling[J]. Drilling Fluid & Completion Fluid, 2024, 41(2): 220-230. [12] 李雪岗, 张健, 杨建永. 页岩油二氧化碳注气提采环境下固井水泥环完整性保障技术研究[J]. 钻采工艺, 2024, 47(6): 93-101.Li Xuegang, Zhang Jian, Yang Jianyong. Research on the integrity guarantee technology of cement ring under the environment of shale oil carbon dioxide injection for EOR[J]. Drilling & Production Technology, 2024, 47(6): 93-101. [13] Santra A, Reddy B R, Liang F, et al. Reaction of CO2 with Portland cement at downhole conditions and the role of pozzolanic supplements[C]//SPE International Symposium on Oilfield Chemistry. The Woodlands, Texas: SPE, 2009: SPE-121103-MS. [14] Nazari A, Riahi S. Retraction note: TiO2 nanoparticles' effects on properties of concrete using ground granulated blast furnace slag as binder[J]. Science China Technological Sciences, 2021, 64(9): 2066-2066. doi: 10.1007/s11431-021-1870-7 [15] Nguyen V, Olayiwola O, Guo B, et al. Well cement degradation and wellbore integrity in geological CO2 storages: a literature review[DB/OL]. arXiv. 2023: 02357. [2025-10-16] https://arxiv.org/pdf/2301.02357v2. [16] 郑怡杰, 龚鹏, 邓卓然, 等. 镁橄榄石对油井水泥抗CO2腐蚀性能的影响[J]. 中国粉体技术, 2024, 30(2): 151-163.Zheng Yijie, Gong Peng, Deng Zhuoran, et al. Effect of magnesium olivine on CO2[J]. China Powder Science and Technology, 2024, 30(2): 151-163. [17] Mohammed A, Sanjayan J G, Nazari A, et al. The role of graphene oxide in limited long-term carbonation of cement-based matrix[J]. Construction and Building Materials, 2018, 168: 858-866. [18] Gong P, Zhang C M, Wu Z Q, et al. Study on the effect of CaCO3 whiskers on carbonized self-healing cracks of cement paste: application in CCUS cementing[J]. Construction and Building Materials, 2022, 321: 126368. [19] Lian J H, Yue J P, Xing X S, et al. Design and evaluation of the elastic and anti-corrosion cement slurry for carbon dioxide storage[J]. Energies, 2022, 16(1): 435. [20] 宋茂林, 张朝阳, 张尚枫, 等. 超临界CO2环境下磷酸盐改性铝酸盐水泥性能变化[J]. 材料导报, 2024, 38(24): 132-135.Song Maolin, Zhang Chaoyang, Zhang Shangfeng, et al. Change in performance of calcium aluminate phosphate cement under supercritical CO2[J]. Materials Reports, 2024, 38(24): 132-135. [21] Gong P, Fu H C, He D, et al. Novel material to enhance the integrity of CCUS cement sheath: exploration and application of calcium aluminate cement[J]. Gas Science and Engineering, 2024, 124: 205247. [22] Yuan B, Zhang X Y, Yang S, et al. Study on carbonation corrosion mechanism and hydration of phosphoaluminate cement for CCUS wells[J]. Geoenergy Science and Engineering, 2025, 251: 213880. [23] 岳家平, 彭云帆, 武广瑷, 等. 遇CO2自修复防腐固井水泥浆体系研究及应用[J]. 石油化工应用, 2024, 43(4): 67-71.Yue Jiaping, Peng Yunfan, Wu Guangai, et al. Research and application of CO2[J]. Petrochemical Industry Application, 2024, 43(4): 67-71. [24] Phillips A J, Troyer E, Hiebert R, et al. Enhancing wellbore cement integrity with microbially induced calcite precipitation (MICP): a field scale demonstration[J]. Journal of Petroleum Science and Engineering, 2018, 171: 1141-1148. [25] Yang Y G, Yuan B, Wang Y Q, et al. Carbonation resistance cement for CO2 storage and injection wells[J]. Journal of Petroleum Science and Engineering, 2016, 146: 883-889. [26] Xu B H, Yuan B, Wang Y Q, et al. Nanosilica-latex reduction carbonation-induced degradation in cement of CO2 geological storage wells[J]. Journal of Natural Gas Science and Engineering, 2019, 65: 237-247. [27] Li J L, Liu H W, Ai K M, et al. An NMR-based experimental study on the pore structure of the hydration process of mine filling slurry[J]. Advances in Civil Engineering, 2018, 2018(1): 4720356. [28] Wu Z T, Song J J, Xu M B, et al. Effect of weighting materials on carbonation of oil well cement-based composites under high temperature and CO2-rich environment[J]. Arabian Journal of Chemistry, 2023, 16(5): 104670. -
