Design, Preparation and Property Study of Hydrocarbon-Triggered Self-Healing Materials
-

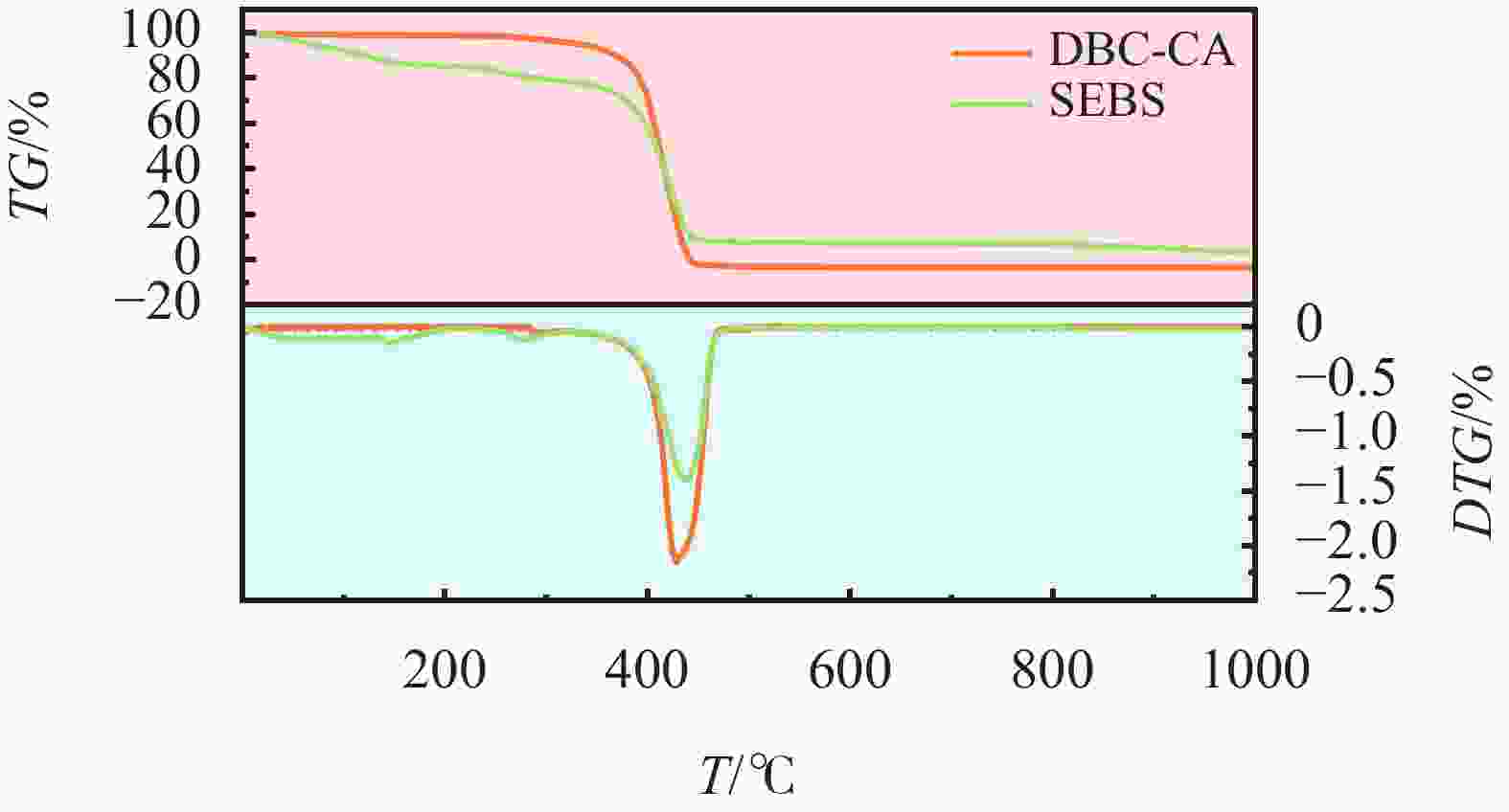

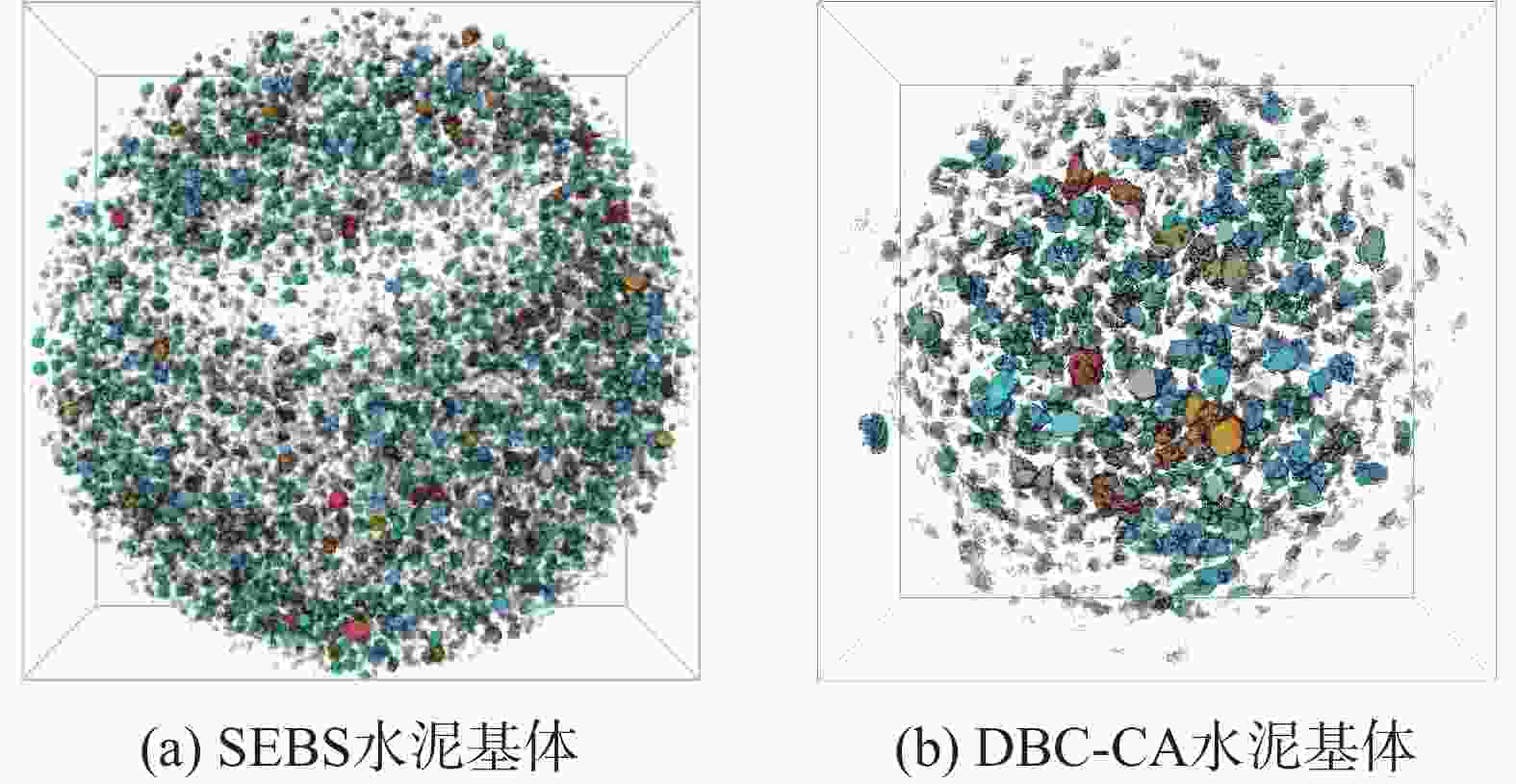

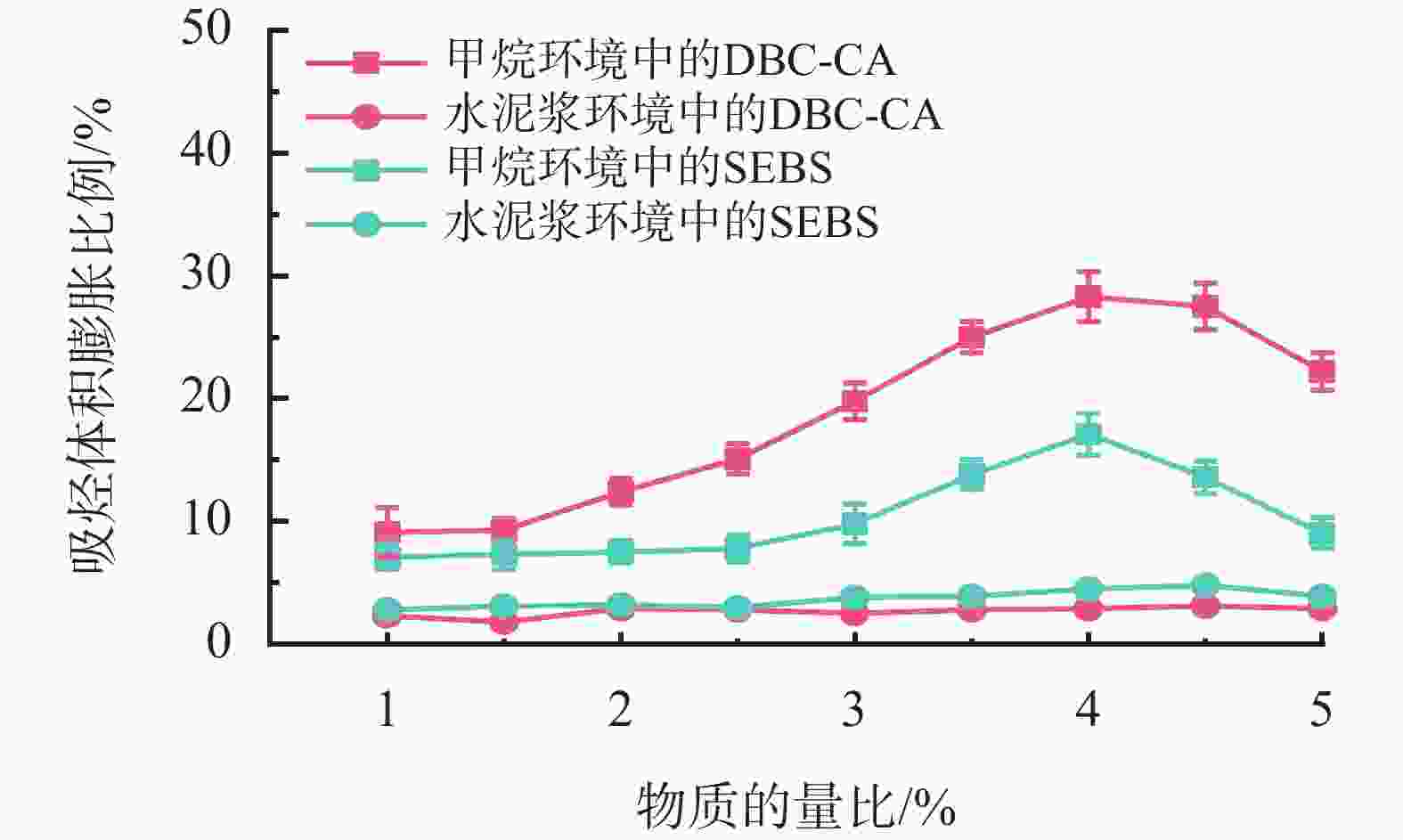

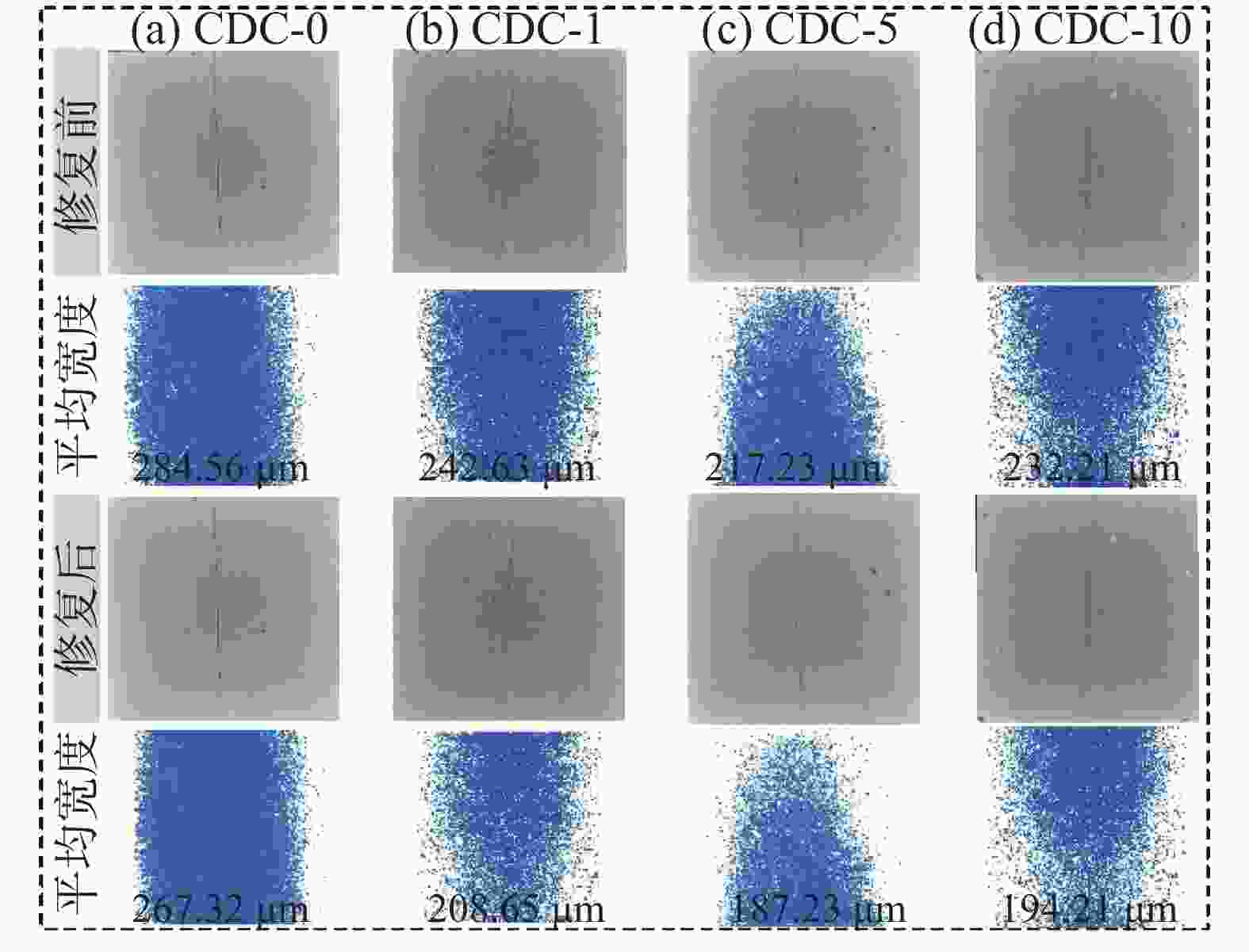

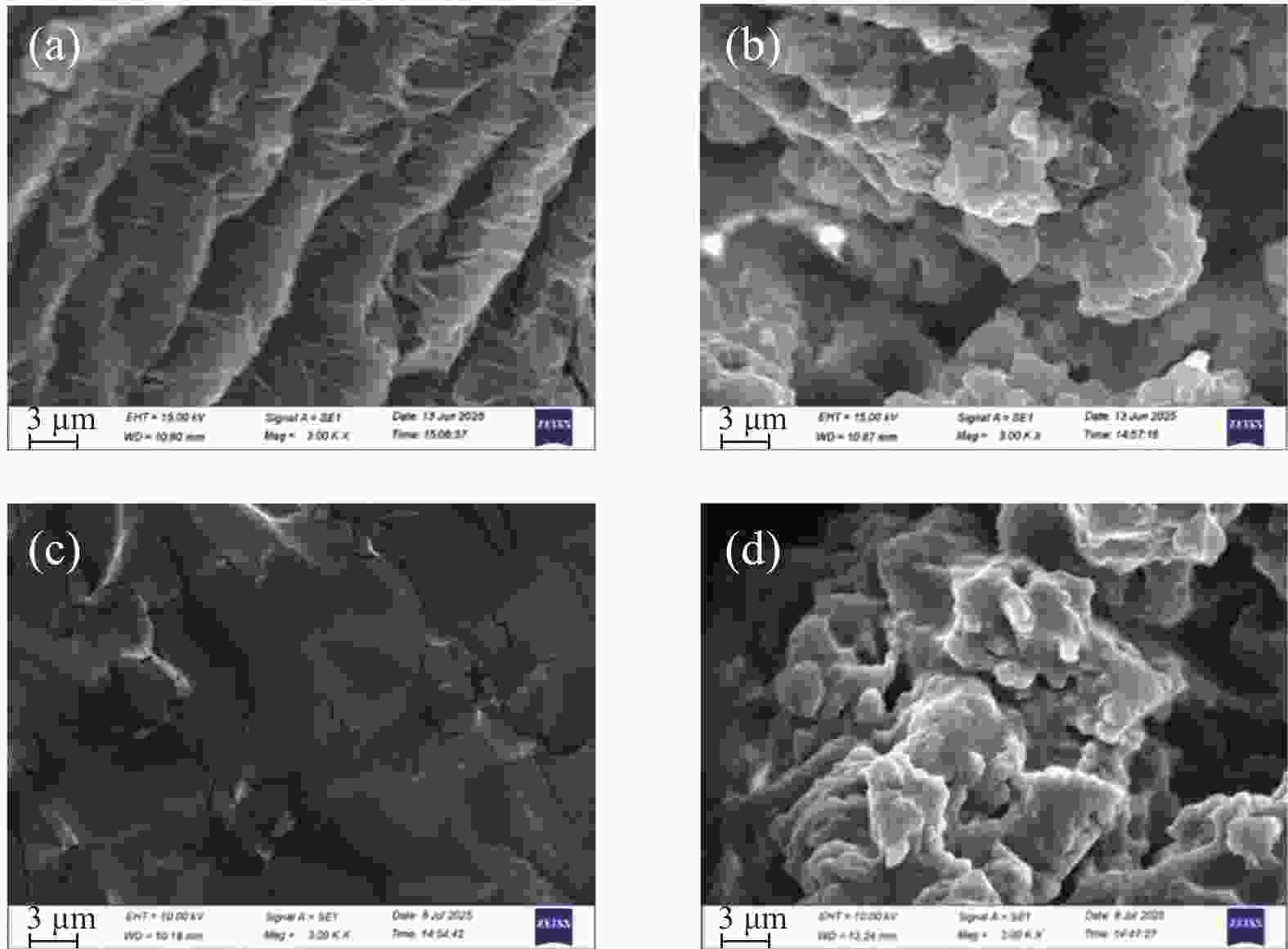

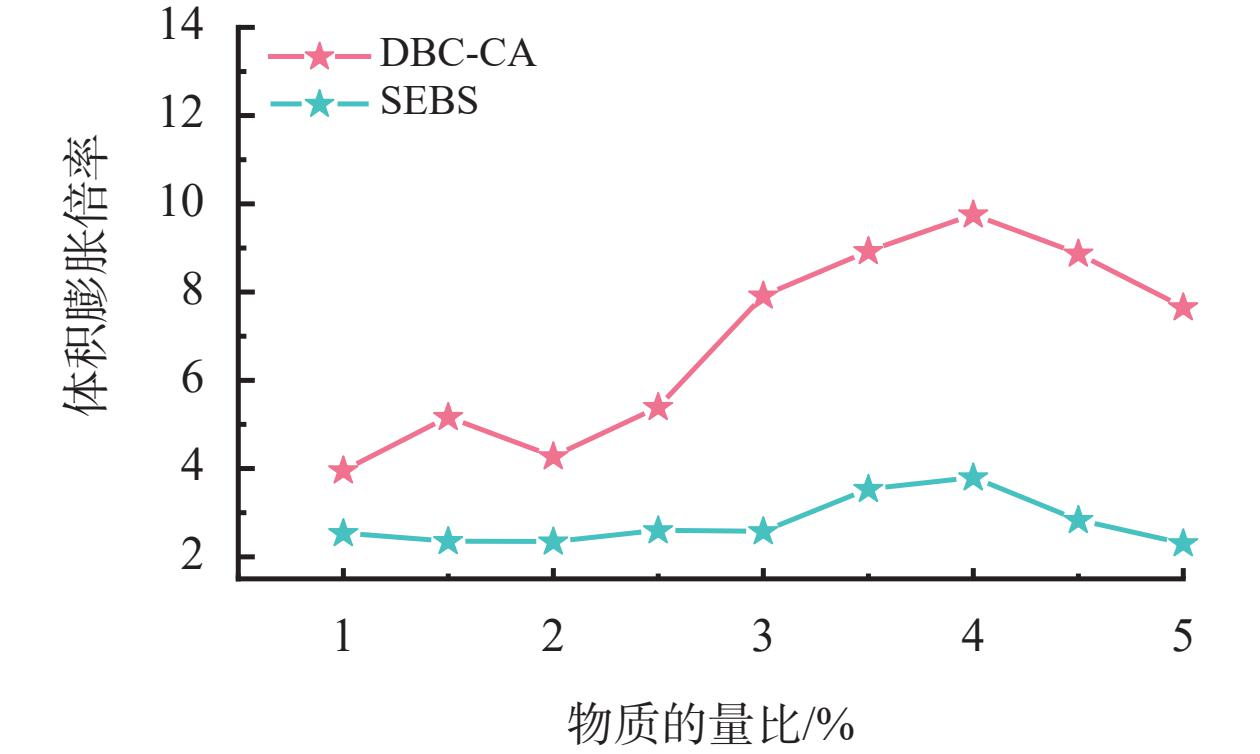

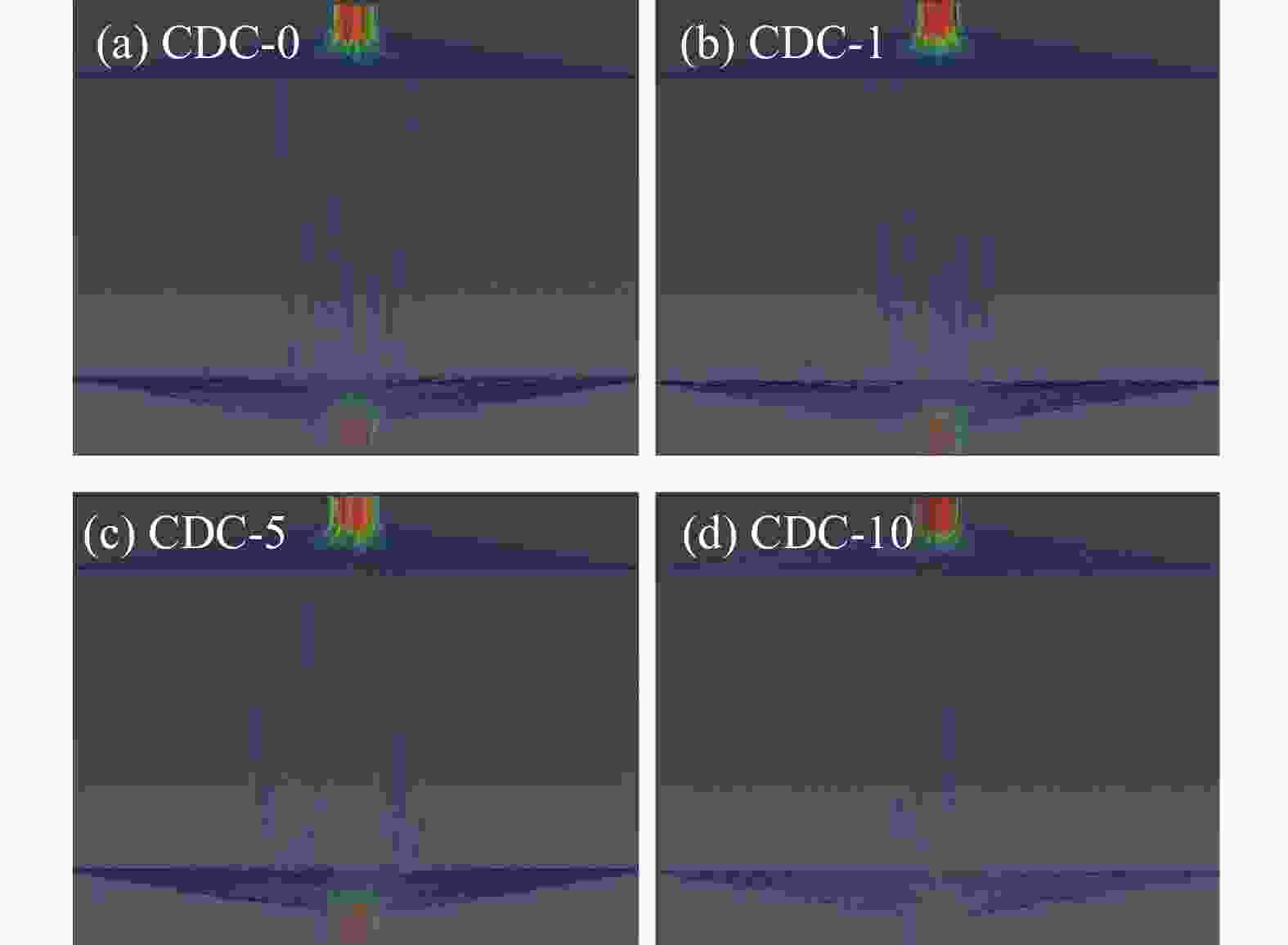

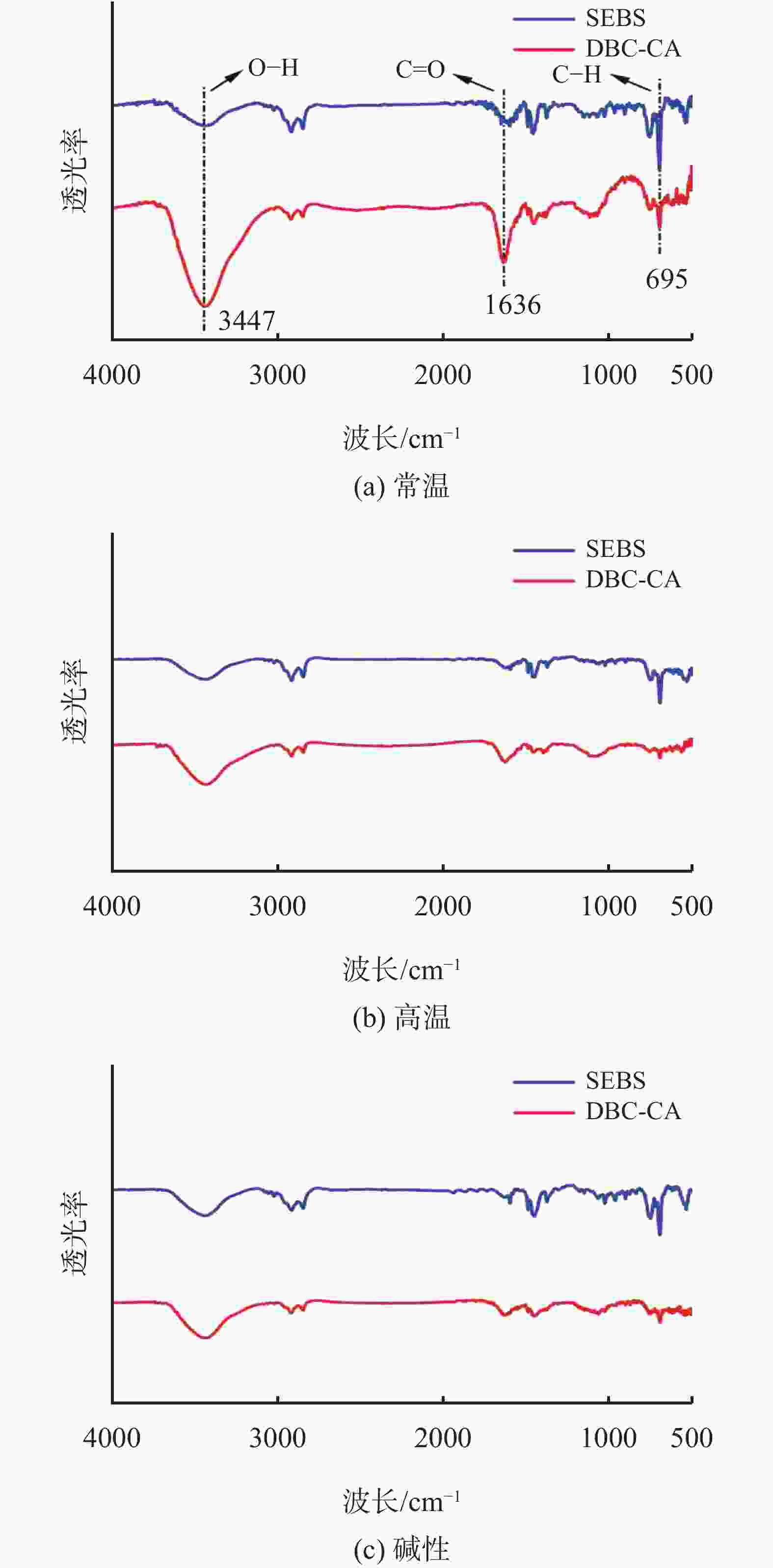

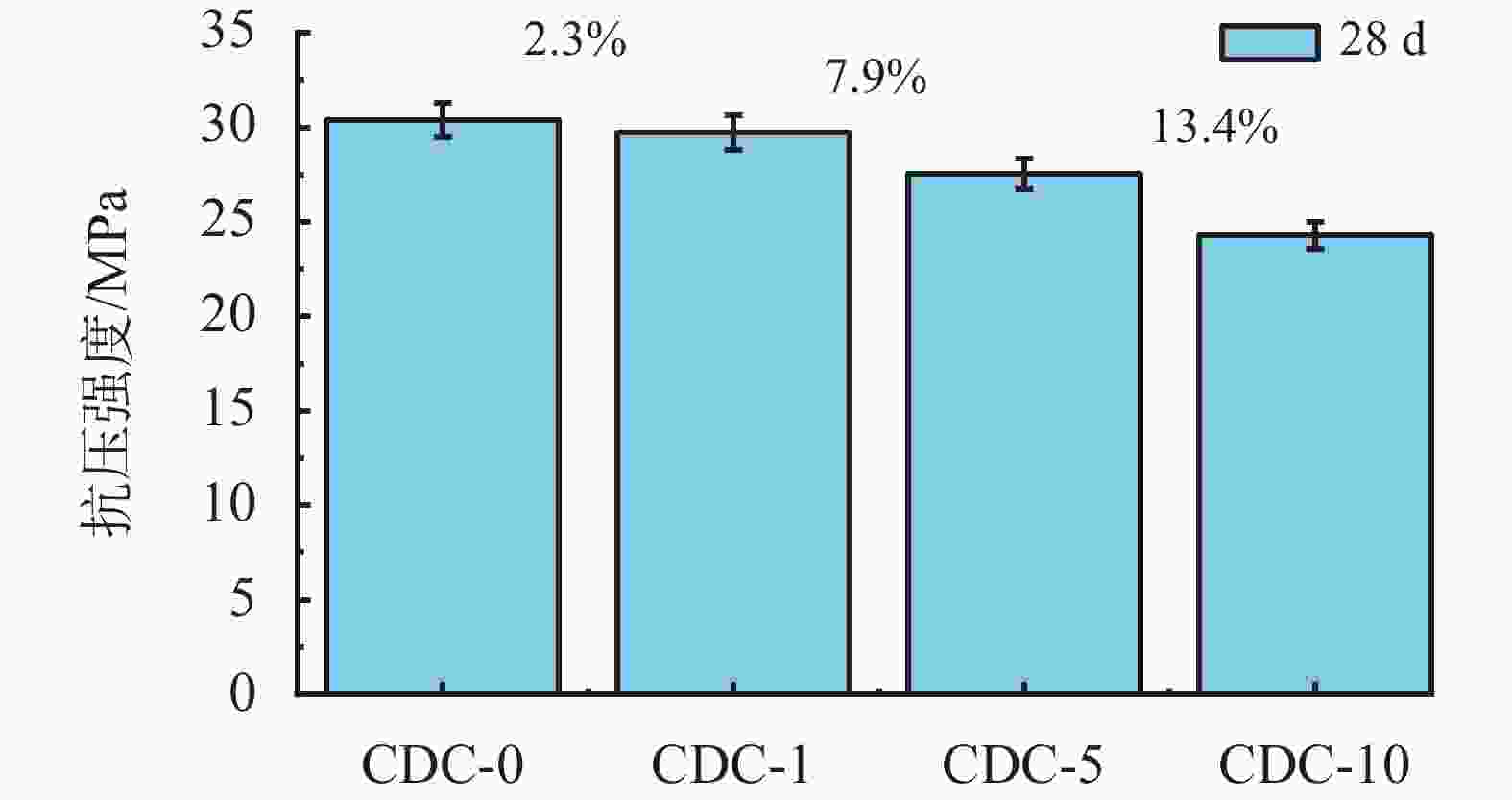

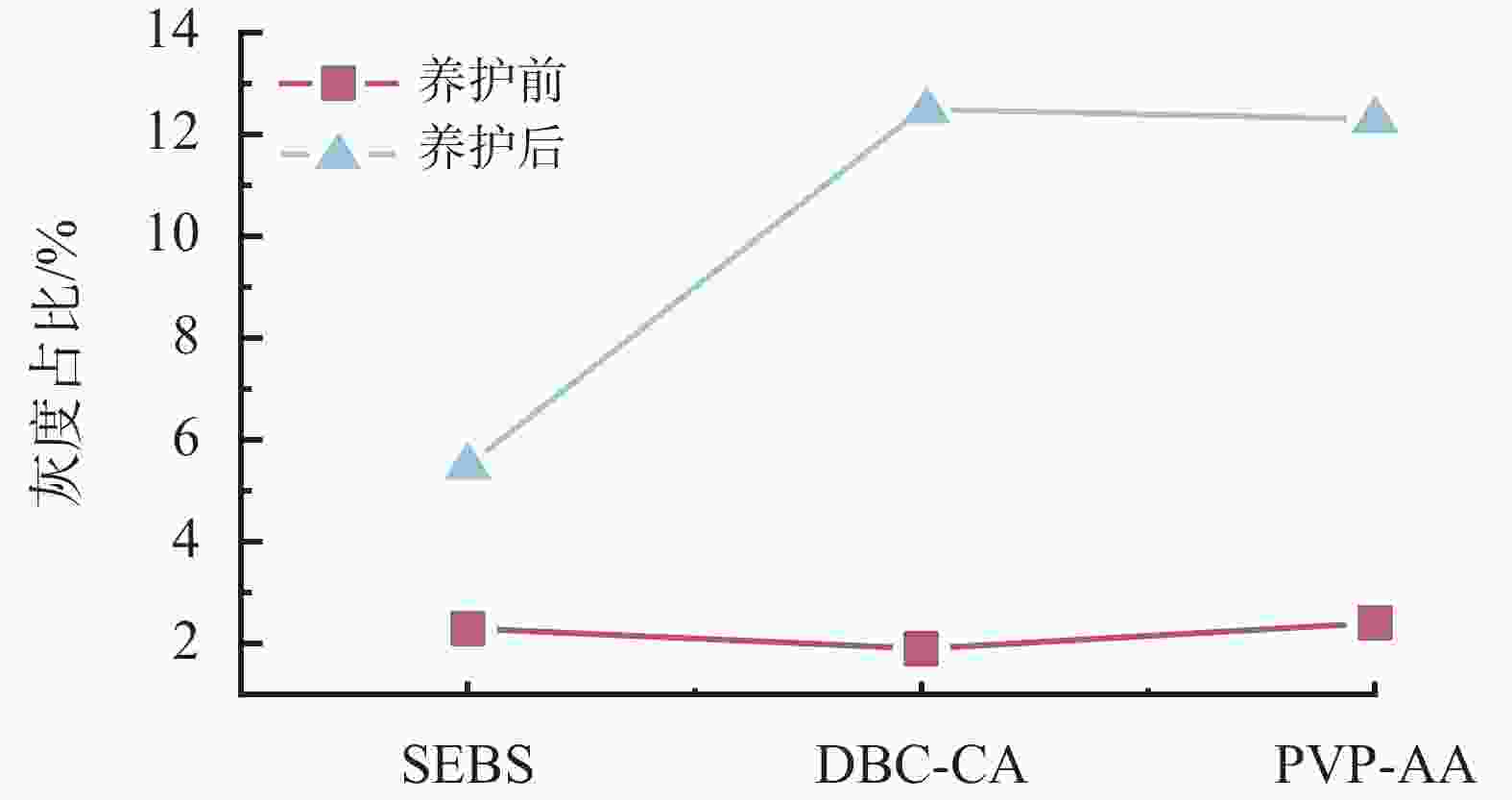

摘要: 油井水泥环在长期服役过程中，受地层应力变化及井下复杂化学环境的影响，易产生微环隙与微裂缝，导致环空带压与层间封隔失效。使用遇烃自愈合材料解决这一问题是领域内的有效途径。在水泥浆环境与甲烷环境下，对自主开发的遇烃自愈合材料硼酸酯交联环糊精-丙烯酸酯复合树脂（DBC-CA）与氢化苯乙烯-丁二烯嵌段共聚物（SEBS）的吸烃膨胀比例进行了比较。通过三维断层扫描（CT）、电子显微镜（SEM）及傅里叶红外光谱（FTIR）和热重分析（TG），对2种遇烃自愈合材料的膨胀机理及热稳定性进行了探究。研究结果表明，DBC-CA在不同环境中的综合膨胀表现优于SEBS，并具有良好的热稳定性。DBC-CA在甲烷环境中最高膨胀比例达37%，且对环境响应灵敏，在水泥浆环境中的最大膨胀比例小于8%。DBC-CA掺量为10%的水泥基体在减少裂缝宽度和消除连通渗流通道方面表现最优。形貌分析表明，DBC-CA的弹性耗散特性通过刚性骨架-动态键重组-纳米空腔三重防护机制实现。DBC-CA会小幅度降低水泥石28 d抗压强度。为深部油气田井下自愈合密封材料的设计提供了新的思路。Abstract: In the long-time service life of a cement sheath, micro-annuli and microfractures are easy to be generated therein due to the formation stress variations and the complex chemical environment, resulting in sustained casing pressure and loss of interlayer isolation. The use of hydrocarbon-triggered self-healing materials is an effective means of addressing this problem. Under an environment with both cement slurry and methane, a comparison was made of the expansion ratios by hydrocarbon absorption of a self-developed hydrocarbon-triggered self-healing material DBC-CA, namely, borate-crosslinked cyclodextrin-acrylate compounded resin, and a hydrogenated styrene-butadiene block copolymer (SEBS). The expansion mechanisms and thermal stability of these two hydrocarbon-triggered self-healing materials were investigated through 3D computed tomography (CT), scanning electron microscopy (SEM), Fourier transform infrared spectroscopy (FT-IR) and thermogravimetric analysis (TGA). The results of the research show that the expansion performance of DBC-CA in different environments is superior to that of SEBS, and DBC-CA also shows good thermal stability. In a methane environment, the highest expansion rate of DBC-CA is 37%, and DBC-CA is quite responsive to the environment, with its maximum expansion ratio in a cement slurry being less than 8%. A cement slurry containing 10% DBC-CA shows the best performance in minimizing the widths of the microfractures and in eliminating connected seepage channels. Morphological analysis demonstrates that the elastic energy dissipation characteristics of DBC-CA results from a triple protection mechanism involving rigid framework, dynamic bond rearrangement and nanocavities. DBC-CA can slightly reduce the 28-day compressive strength of a set cement. The achievements of this research provide a new idea for the design of downhole self-healing sealing materials for deep gas well application.
-
Key words:
- Self-expansion /
- Self-healing /
- Hydrocarbon absorption /
- Cement sheath /
- Resin
-
[1] 苏义脑, 路保平, 刘岩生, 等. 中国陆上深井超深井钻完井技术现状及攻关建议[J]. 石油钻采工艺, 2020, 42(5): 527-542.Su Yinao, Lu Baoping, Liu Yansheng, et al. Status and research suggestions on the drilling and completion technologies for onshore deep and ultra deep wells in China[J]. Oil Drilling & Production Technology, 2020, 42(5): 527-542. [2] 张超鹏, 陈立超, 张典坤, 等. 深层非常规油气固井材料发展现状及趋势浅析[J]. 世界石油工业, 2023, 30(6): 96-105. doi: 10.20114/j.issn.1006-0030.20231024001Zhang Chaopeng, Chen Lichao, Zhang Diankun, et al. Analysis on development status and trend of new cementing materials for deep unconventional oil and gas[J]. World Petroleum Industry, 2023, 30(6): 96-105. doi: 10.20114/j.issn.1006-0030.20231024001 [3] 席岩, 李方园, 王松, 等. 利用预应力固井方法预防水泥环微环隙研究[J]. 特种油气藏, 2021, 28(6): 144-150. doi: 10.3969/j.issn.1006-6535.2021.06.019Xi Yan, Li Fangyuan, Wang Song, et al. Study on prevention of micro-annulus in cement sheath by prestressed cementing method[J]. Special Oil & Gas Reservoirs, 2021, 28(6): 144-150. doi: 10.3969/j.issn.1006-6535.2021.06.019 [4] 杨桂. 温压耦合作用下固井水泥石力学特征与微观结构演变机理研究[D]. 北京: 中国石油大学(北京), 2023.Yang Gui. Study on mechanical characteristics and microstructure evolution mechanism of cemented rock under temperature and pressure coupling[D]. Beijing: China University of Petroleum (Beijing), 2023. [5] 余春阳. 油井水泥石微裂缝遇水自修复材料研究[D]. 成都: 西南石油大学, 2020.Yu Chunyang. Research on self-healing materials for micro fractures in oil well cement stones upon water exposure[D]. Chengdu: South West Petroleum University, 2020. [6] 杜静, 曾雪玲, 张洋勇, 等. 固井自愈合水泥技术的研究现状与发展趋势[J]. 石油化工应用, 2023, 42(1): 12-17.Du Jing, Zeng Xueling, Zhang Yangyong, et al. Research status and development trend of the cementing self-healing cement technology[J]. Petrochemical Industry Application, 2023, 42(1): 12-17. [7] 李斌. 硅烷偶联剂改性橡胶粉对固井水泥浆性能的影响[J]. 当代化工, 2019, 48(3): 538-542. doi: 10.3969/j.issn.1671-0460.2019.03.028Li Bin. Effect of rubber powder modified by silane coupling agent on the performance of cement slurry[J]. Contemporary Chemical Industry, 2019, 48(3): 538-542. doi: 10.3969/j.issn.1671-0460.2019.03.028 [8] 许夏斌, 郑勇, 杜磊, 等. 渗透结晶型自修复剂及油井水泥浆体性能试验[J]. 硅酸盐通报, 2018, 37(3): 1047-1052,1058.Xu Xiabin, Zheng Yong, Du Lei, et al. Capillary crystalline agent for Self-Repairing and performance test of Oil-Well cement slurries[J]. Bulletin of the Chinese Ceramic Society, 2018, 37(3): 1047-1052,1058. [9] 王静. 水泥自修复技术在固井中应用研究进展[J]. 石油化工应用, 2024, 43(10): 1-3,22. doi: 10.3969/j.issn.1673-5285.2024.10.001Wang Jing. Research progress on the application of cement self-healing technology in cementing[J]. Petrochemical Industry Application, 2024, 43(10): 1-3,22. doi: 10.3969/j.issn.1673-5285.2024.10.001 [10] 赵胜绪, 项先忠, 王有伟. 一种油气响应型固井自修复材料的研究及应用[J]. 石油化工应用, 2023, 42(10): 68-71.Zhao Shengxu, Xiang Xianzhong, Wang Youwei. Research and application of an oil-gas responsive cementing self-healing material[J]. Petrochemical Industry Application, 2023, 42(10): 68-71. [11] 师树青, 毛倩瑾, 陈佳艺, 等. 吸水性微胶囊/水泥基材料的多尺度界面表征及其自修复效果[J]. 复合材料学报, 2025, 42(3): 1578-1587. doi: 10.13801/j.cnki.fhclxb.20240626.003Shi Shuqing, Mao Qianjin, Chen Jiayi, et al. Multiscale interfacial characterization and self-healing effect of water-absorbing microcapsules/cement-based materials[J]. Acta Materiae Compositae Sinica, 2025, 42(3): 1578-1587. doi: 10.13801/j.cnki.fhclxb.20240626.003 [12] 付洪琼. 天然气井水泥环后期气窜防治措施研究[D]. 成都: 西南石油大学, 2022.Fu Hongqiong. Research on prevention measures of cement gas channeling in late stage of natural gas well[D]. Chengdu: South West Petroleum University, 2022. [13] 邢立江, 张书会, 王旭, 等. 遇气自修复水泥浆用SEBS新品种的制备与应用[J]. 弹性体, 2025, 35(2): 67-71. doi: 10.3969/j.issn.1005-3174.2025.02.013Xing Lijiang, Zhang Shuhui, Wang Xu, et al. Preparation and application research for a novel SEBS applied in gas self-healing cement slurry[J]. China Elastomerics, 2025, 35(2): 67-71. doi: 10.3969/j.issn.1005-3174.2025.02.013 [14] 赵宝辉, 石凌龙, 邹建龙, 等. 自愈合防窜水泥技术在G103井φ177.8mm尾管固井中的应用[C]//2015年度钻井技术研讨会暨第十五届石油钻井院(所)长会议. 北京: 中国石油学会, 2015: 265-269.Zhao Baohui, Shi Linglong, Zou Jianlong, et al. Application of self-healing anti channeling cement technology in the cementing of G103 well with a diameter of 177.8mm tail pipe[C]//2015 Drilling Technology Seminar and 15th Petroleum Drilling Institute (Institute) Directors' Meeting. Beijing: Chinese Petroleum Society, 2015: 265-269 [15] 杨炳祥, 刘浩亚, 魏浩光, 等. 自愈合水泥浆体系在四川地区的应用[J]. 钻井液与完井液, 2022, 39(1): 65-70. doi: 10.12358/j.issn.1001-5620.2022.01.011Yang Bingxiang, Liu Haoya, Wei Haoguang, et al. Application of autonomous healing cement slurry system in Sichuan[J]. Drilling Fluid & Completion Fluid, 2022, 39(1): 65-70. doi: 10.12358/j.issn.1001-5620.2022.01.011 [16] 万一, 李祥春, 薛倩, 等. 氢键侧链修饰共轭聚合物骨架的自愈合发光弹性体的设计合成与性能研究[J]. 高分子学报, 2024, 55(6): 688-697.Wan Yi, Li Xiangchun, Xue Qian, et al. Design, synthesis and properties of self-healing luminescent elastomers with hydrogen-bonded side-chain-modified conjugated polymer backbones[J]. Acta Polymerica Sinica, 2024, 55(6): 688-697. [17] Huang X N, Wang Y C, Wang X G, et al. High-strength amphoteric hydrogel that can realize self-repairing of cement microcracks triggered by CO2 gas[J]. Reactive and Functional Polymers, 2022, 179: 105380. doi: 10.1016/j.reactfunctpolym.2022.105380 [18] 郑友志, 佘朝毅, 付洪琼, 等. 一种溶黏型仿生自愈合水泥浆体系[J]. 天然气工业, 2023, 43(5): 63-70.Zheng Youzhi, She Zhaoyi, Fu Hongqiong, et al. A viscosity-soluble type biomimetic self-healing cement slurry system[J]. Natural Gas Industry, 2023, 43(5): 63-70. [19] 侯国辉. 新材料在油气井固井水泥中的应用研究[J]. 西部探矿工程, 2025, 37(1): 62-64,68. doi: 10.3969/j.issn.1004-5716.2025.01.017Hou Guohui. Research on the application of new materials in cementing cements for oil and gas wells[J]. West-China Exploration Engineering, 2025, 37(1): 62-64,68. doi: 10.3969/j.issn.1004-5716.2025.01.017 [20] 王少会, 温博, 谈勇. 微胶囊的制备及其在水泥微裂纹自愈合中的应用研究[J]. 江西公路科技, 2019(4): 2-5,23.Wang Shaohui, Wen Bo, Tan Yong. Preparation of microcapsules and their application in the self-healing of microcracks in cement[J]. Jiangxi Highway Technology, 2019(4): 2-5,23. [21] 杨振杰, 齐斌, 刘阿妮, 等. 水泥基材料微裂缝自修复机理研究进展[J]. 石油钻探技术, 2009, 37(3): 124-128. doi: 10.3969/j.issn.1001-0890.2009.03.031Yang Zhenjie, Qi Bin, Liu Ani, et al. Research on mechanisms of crack self-healing in cement matrix[J]. Drilling Petroleum Techniques, 2009, 37(3): 124-128. doi: 10.3969/j.issn.1001-0890.2009.03.031 [22] 李小江, 王越洋, 肖京男, 等. 600 ℃超高温干热环境下铝酸盐水泥石性能评价[J]. 钻井液与完井液, 2025, 42(4): 531-536. doi: 10.12358/j.issn.1001-5620.2025.04.013Li Xiaojiang, Wang Yueyang, Xiao Jingnan, et al. Properties of set aluminate cement in 600 ℃ ultra-high temperature xerothermic environment[J]. Drilling Fluid & Completion Fluid, 2025, 42(4): 531-536. doi: 10.12358/j.issn.1001-5620.2025.04.013 [23] 焦少卿, 何龙, 郭小阳, 等. 高温多功能防气窜水泥浆体系在四川盆地海相超深井中的成功应用[J]. 钻井液与完井液, 2020, 37(4): 512-520. doi: 10.3969/j.issn.1001-5620.2020.04.018Jiao Shaoqing, He Long, Guo Xiaoyang, et al. Successful application of high temperature multi-functional gas channeling preventing cement slurry in marine ultra deep wells in Sichuan basin[J]. Drilling Fluid & Completion Fluid, 2020, 37(4): 512-520. doi: 10.3969/j.issn.1001-5620.2020.04.018 [24] 陈振华. β-环糊精溶液对甲烷和氯乙烯气体吸收特性的研究[D]. 扬州: 扬州大学, 2021.Chen Zhenhua. Study on the absorption of methane and vinyl chloride by β-cyclodextrin solution[D]. Yangzhou: Yangzhou University, 2021. [25] 黄娟, 周玉青, 韩萍芳, 等. 二苯基甲烷二异氰酸酯改性β-环糊精吸附性能[J]. 化学工程, 2011, 39(9): 6-10. doi: 10.3969/j.issn.1005-9954.2011.09.002Huang Juan, Zhou Yuqing, Han Pingfang, et al. Adsorption behavior of β-cyclodextrin modified with diphenyl methane diisocyanate[J]. Chemical Engineering, 2011, 39(9): 6-10. doi: 10.3969/j.issn.1005-9954.2011.09.002 [26] 刘强. 基于动态硼酸酯键交联的自修复聚氨酯的制备及应用[D]. 成都: 四川大学, 2023.Liu Qiang. Adsorption behavior of β-cyclodextrin modified with diphenyl methane diisocyanate[D]. Chengdu: Chemical Engineering (China), 2023. [27] 纪飞. 基于硼酸酯键的自修复聚合物材料的制备及性能研究[D]. 北京: 中国石油大学(北京), 2020.Ji Fei. Preparation and properties of self-healing polymer materials based on borate ester bonds[D]. Beijing: China University of Petroleum (Beijing), 2020. [28] 蓝文坚, 李丽, 崔崇, 等. 甲氧基聚乙二醇甲基丙烯酸酯大单体的制备[J]. 烟台大学学报(自然科学与工程版), 2010, 23(2): 148-153.Lan Wenjian, Li Li, Cui Chong, et al. Preparation of functional macromer MPEGMA for polycarboxylate superplasticizer[J]. Journal of Yantai University(Natural Science and Engineering Edition), 2010, 23(2): 148-153. -
