High-performance Brine-based Drilling Fluid System for Extended-reach Horizontal Wells
-

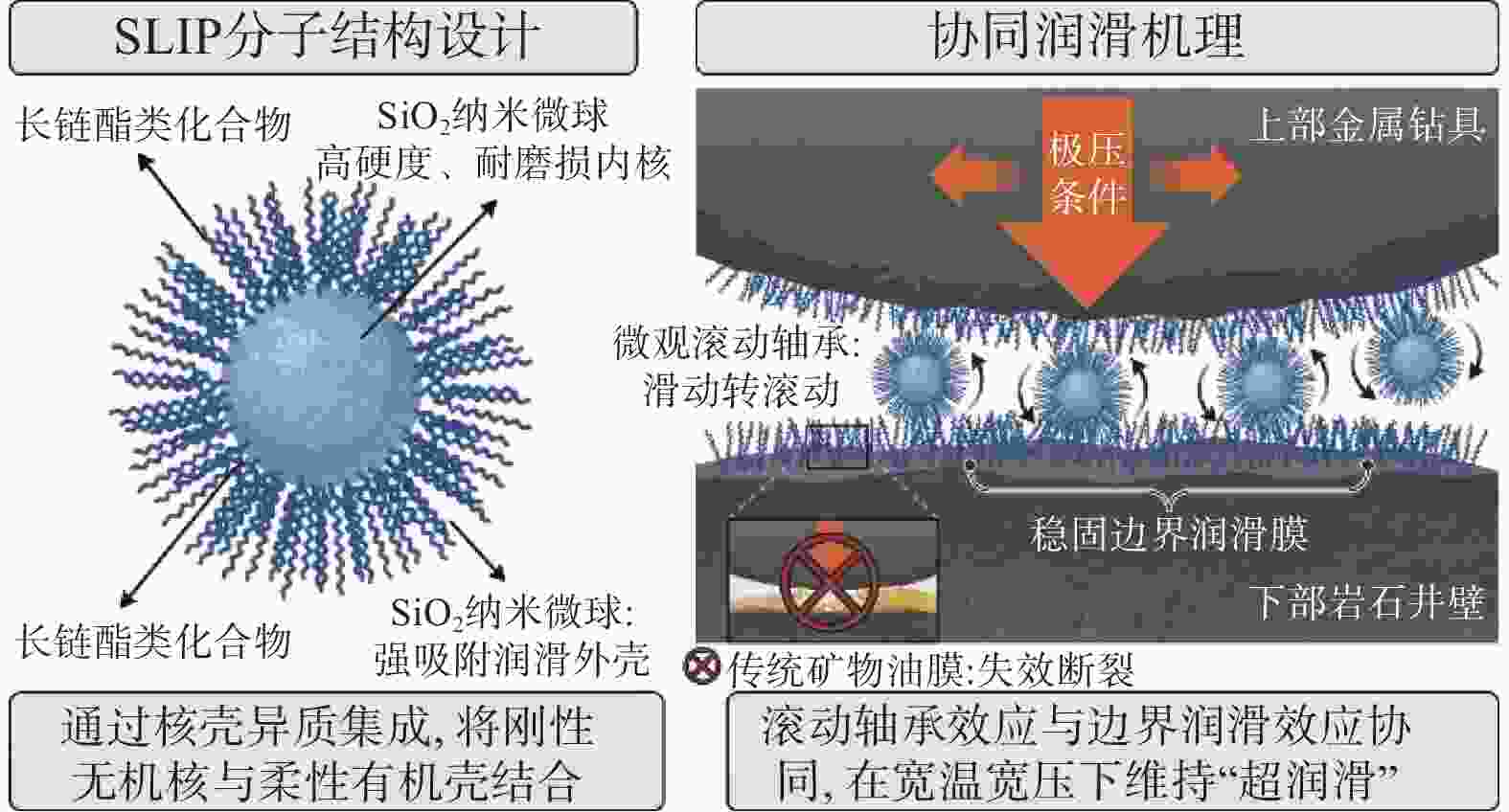

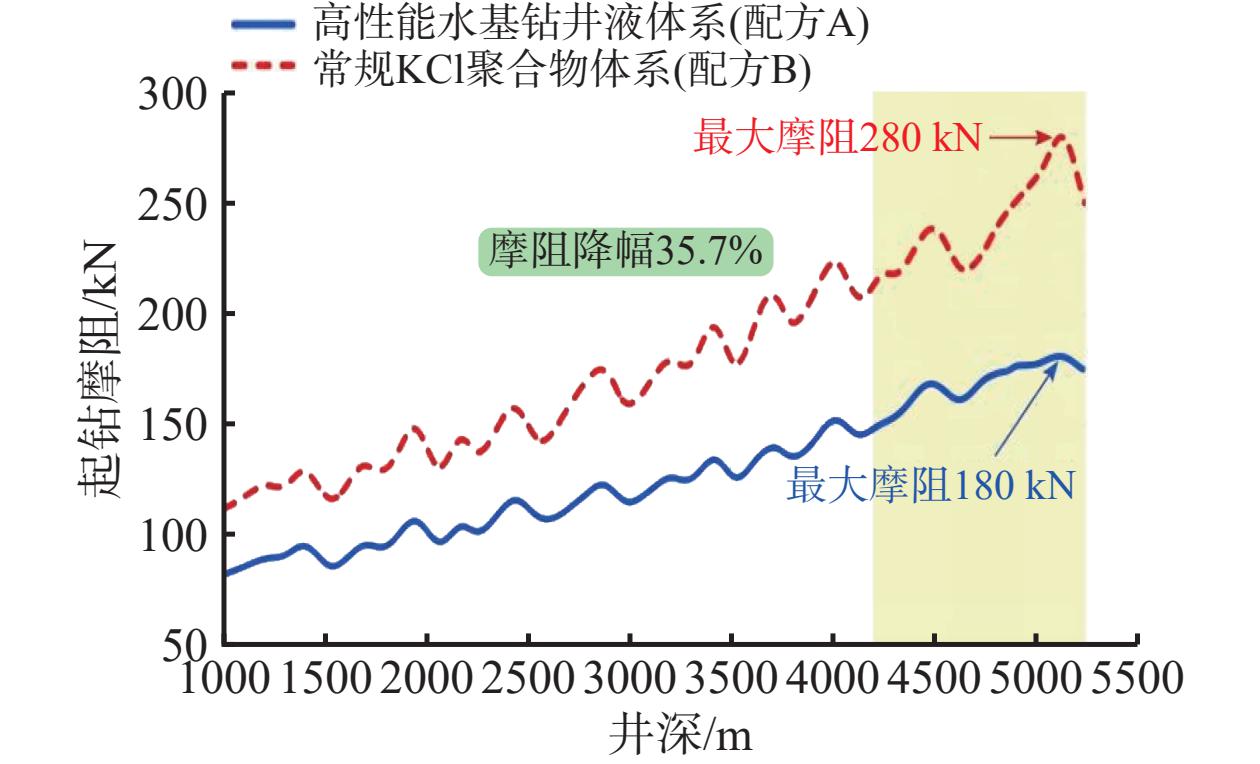

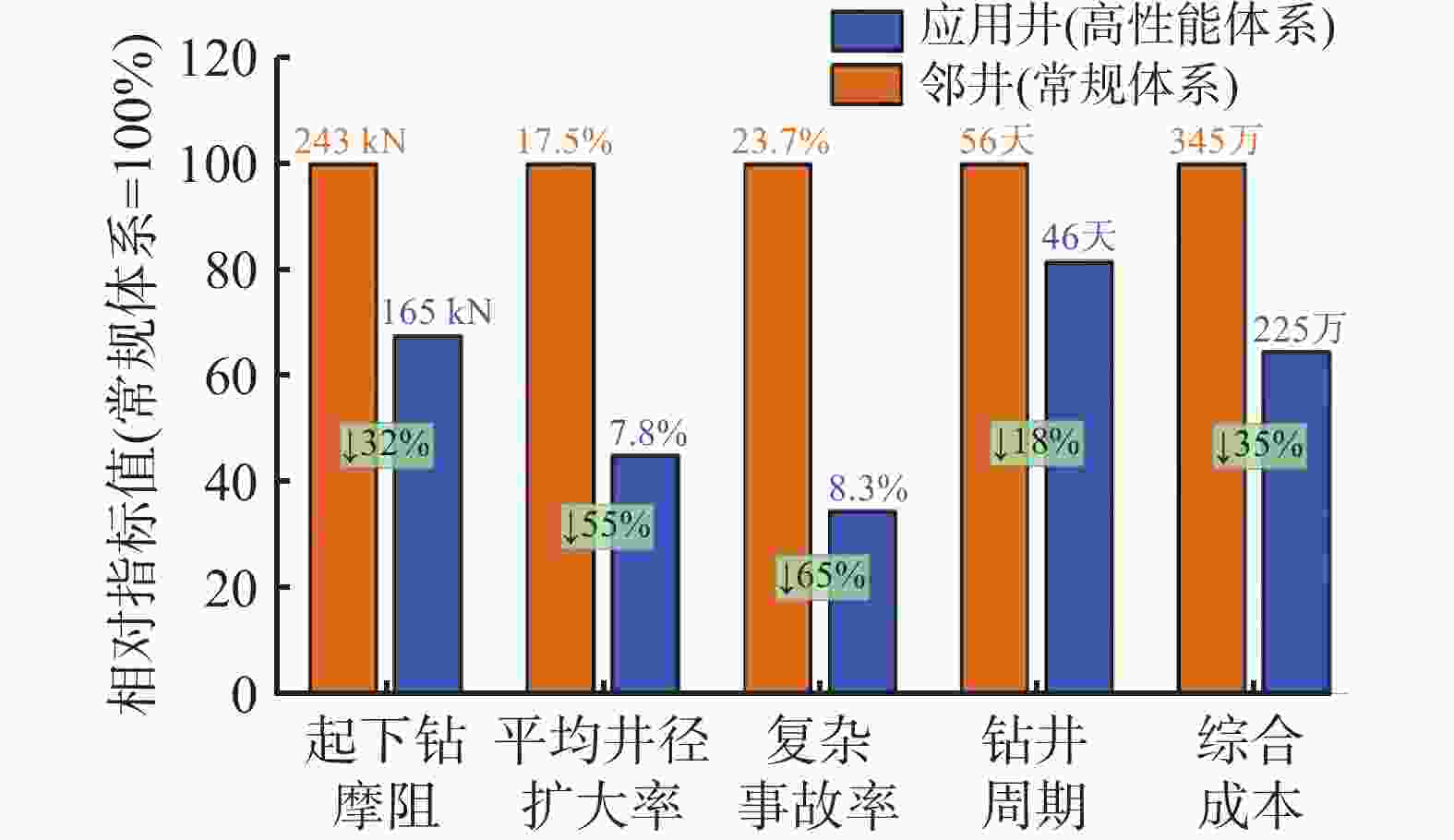

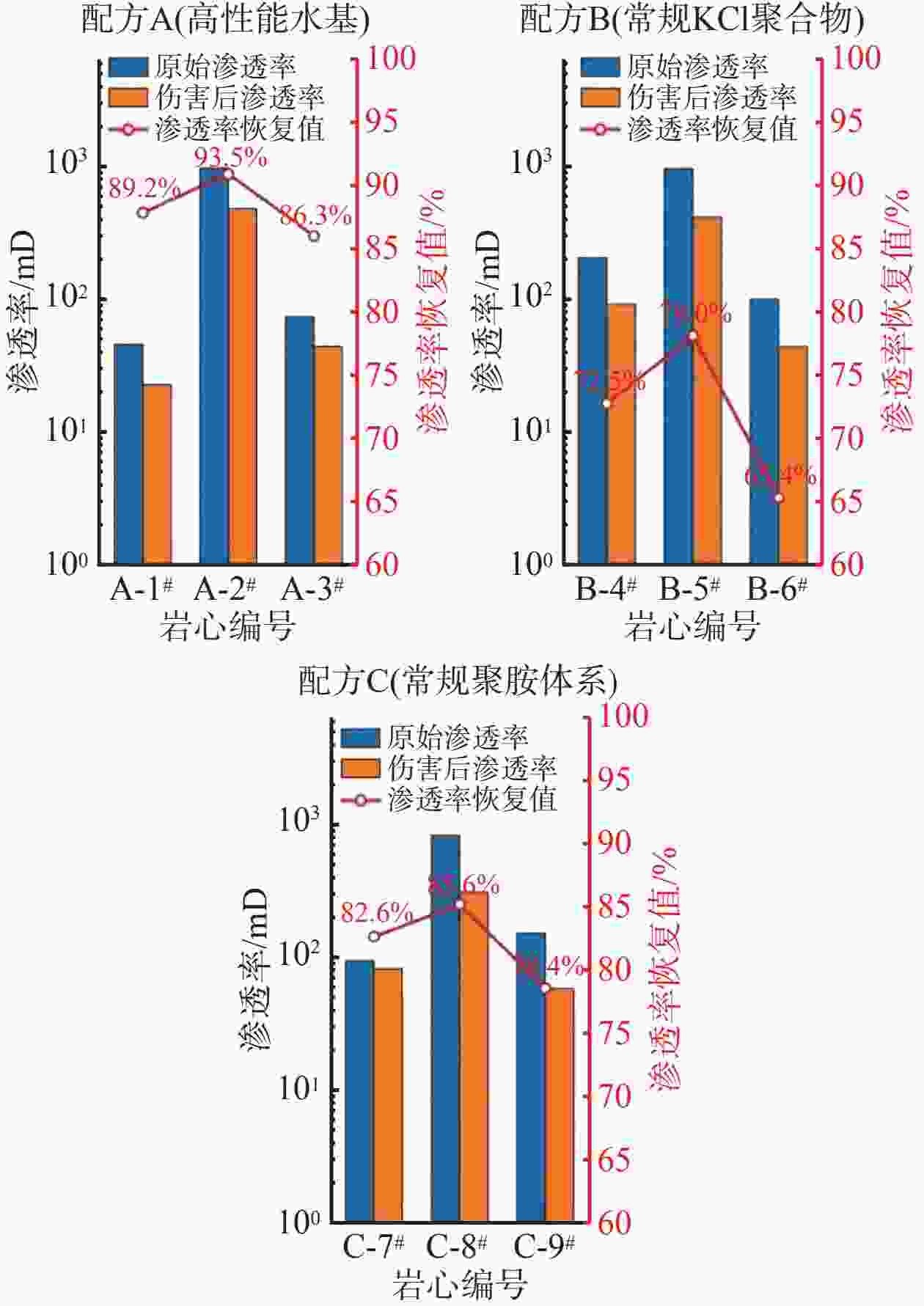

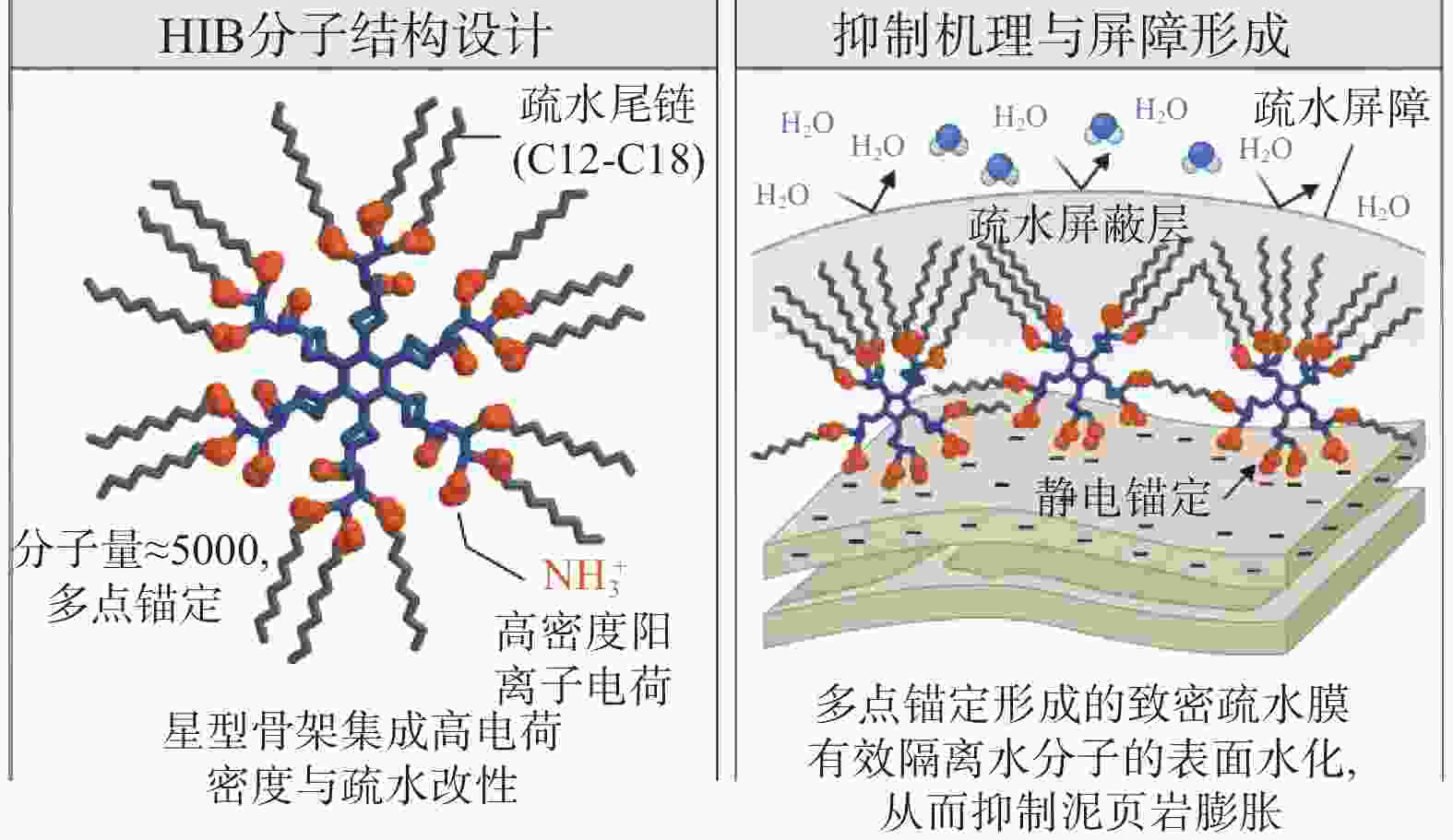

摘要: 针对大位移井钻井过程中水基钻井液井眼清洁困难、摩阻扭矩高、井壁稳定性差的技术瓶颈，研制了一套高性能卤水基钻井液体系。该体系基于氯化钾-甲酸盐复合卤水，通过引入自主研发的星型聚胺抑制剂HIB和纳米复合减阻剂SLIP，并优化流型调节与多级封堵技术，实现了抑制、润滑、携岩及稳定性能的协同提升。与常规KCl聚合物体系及商业聚胺体系、润滑剂的全面对比表明：HIB通过“吸附-包覆-疏水”机制，其抑制性（岩屑滚动回收率为93.6%，16 h线性膨胀率为1.0%）显著优于常规聚胺抑制剂；SLIP通过“微球滚动-吸附成膜”机制，极压润滑系数（0.064）及抗磨承载能力（10 kg）优于现有润滑剂。室内评价表明，该体系经150 ℃高温老化后动塑比不小于0.5 Pa/mPa·s，API滤失量小于4 mL，砂床承压大于 MPa，抗污染能力强，岩心渗透率恢复大于86.3%。在国内多个海域区块12口大位移井的应用表明，起下钻摩阻降低30%以上，复杂事故率下降65%，为大位移井安全高效钻井提供了可靠的技术选择。Abstract: To address the technical bottlenecks of difficult hole cleaning, high friction and torque, and poor wellbore stability in water-based drilling fluids during extended-reach well drilling, a high-performance brine-based drilling fluid system was developed. Based on a potassium chloride-formate composite brine, the system incorporated the self-developed star-shaped polyamine inhibitor HIB and nano-composite friction reducer SLIP, and optimized flow-pattern regulation and multi-stage plugging technologies, achieving synergistic improvements in inhibition, lubrication, cuttings-carrying capacity, and stability performance. Comprehensive comparisons with conventional KCl polymer systems, commercial polyamine systems, and lubricants showed that HIB exhibited significantly better inhibition than conventional polyamine inhibitors via an “adsorption–coating–hydrophobicity” mechanism, with a cuttings rolling recovery rate of 93.6% and a 16 h linear swelling rate of 1.0%. SLIP outperformed existing lubricants through a “microsphere rolling–adsorption film-forming” mechanism, with an extreme-pressure lubrication coefficient of 0.064 and an anti-wear load-bearing capacity of 10 kg. Laboratory evaluations showed that, after high-temperature aging at 150 ℃, the system maintained a yield point/plastic viscosity ratio of ≥0.5, an API filtration loss of <4 mL, a sand-bed pressure-bearing capacity of >7 MPa, strong contamination resistance, and a core permeability recovery value of >86.3%. Field applications in 12 extended-reach wells in several offshore blocks in China demonstrated that tripping friction was reduced by more than 30% and the rate of complex incidents decreased by 65%, providing a reliable technical option for the safe and efficient drilling of extended-reach wells.
-

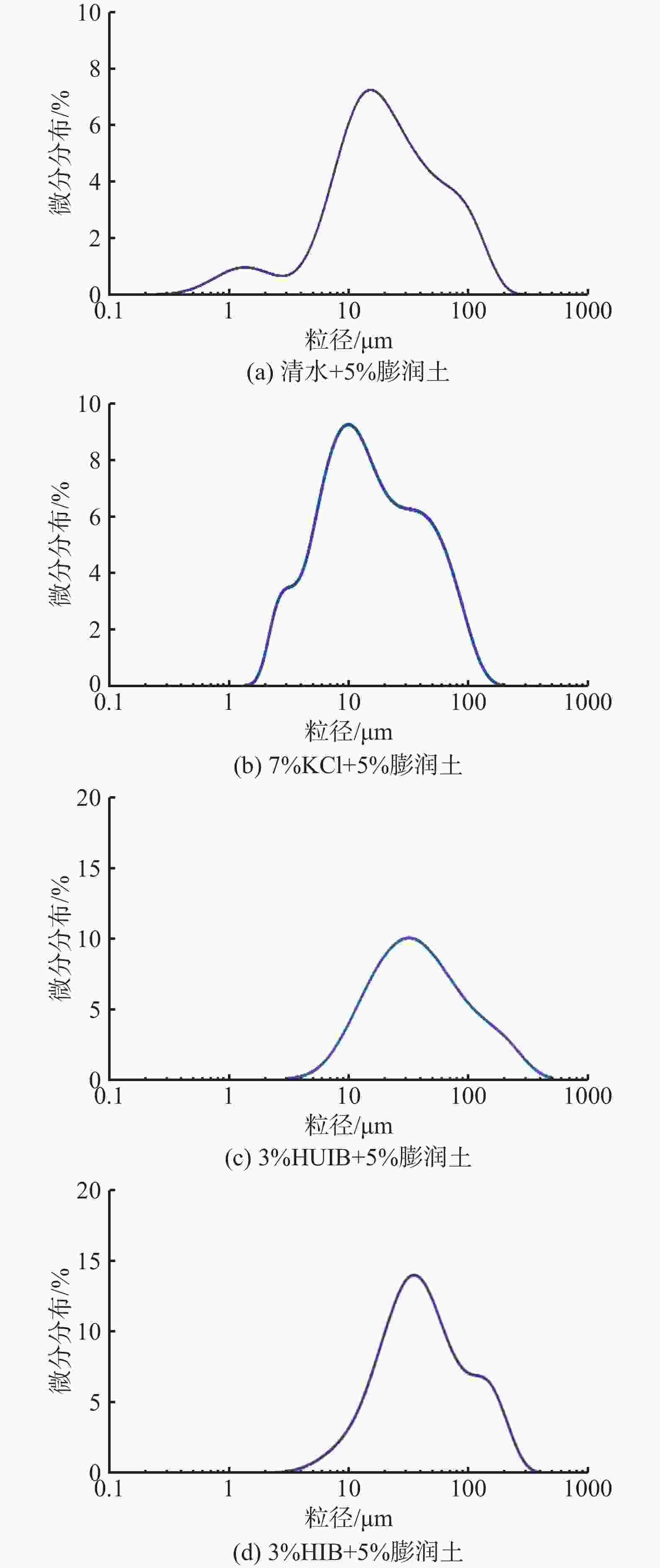

表 1 不同体系处理后的Zeta电位与接触角
处理条件 ζ/mV 接触角/（°） 空白（去离子水） −32.4 18 7% KCl溶液 −18.7 25 3%HUIB(市售) −5.2 43 1.5%HIB(自制) +8.1 72
下载: 导出CSV

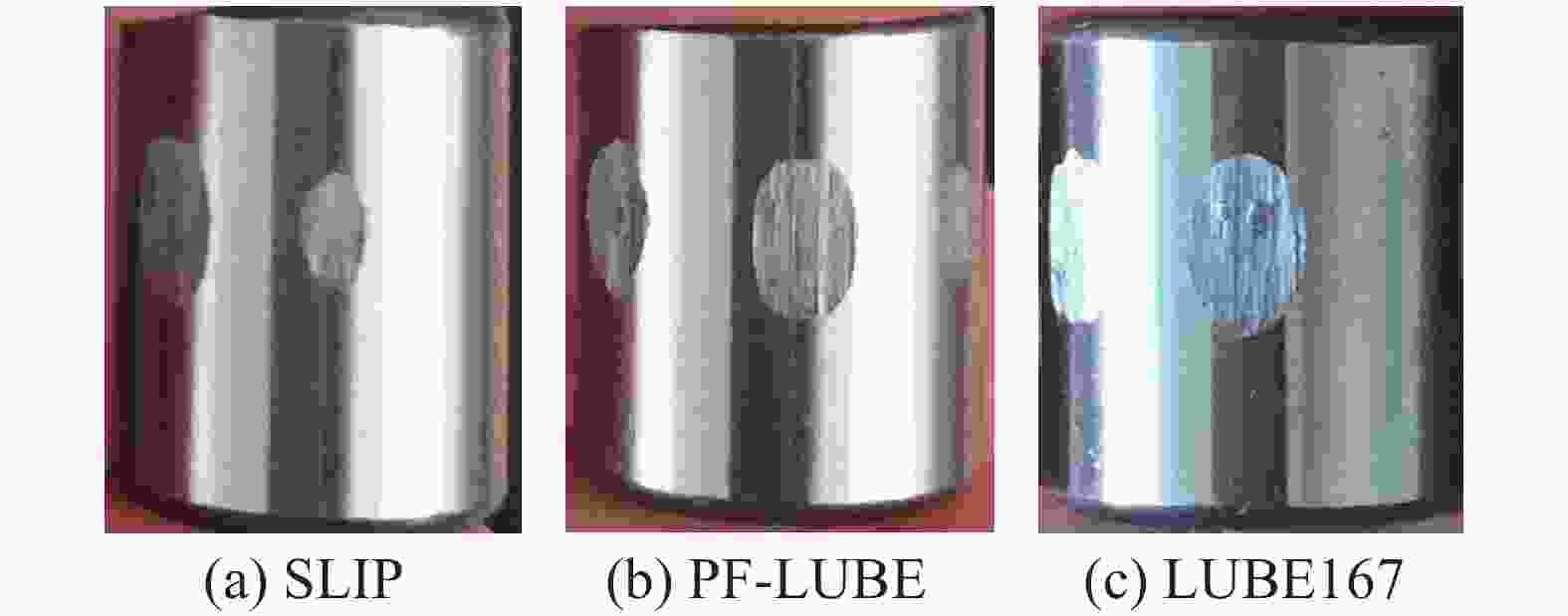

表 2 不同润滑剂纯剂的润滑性能对比（150 ℃老化后）
润滑剂 极压润滑系数 抗磨承载/kg 钢球磨痕大小/mm 去离子水 0.320 0 0.85 PF-LUBE 0.032 6 0.62 LUBE-167 0.011 4 0.58 SLIP 0.005 16 0.32
下载: 导出CSV
表 3 不同体系高温高压流变性能对比（150 ℃、3.5 MPa）
配方 老化
条件模拟环空的
中等剪切速率
φ100读数模拟沉沙池的
低剪切速率
φ3读数低剪切黏度
保持率/%A 老化前 15.5 4.2 − 150 ℃、16 h 14.5 3.9 92.9 B 老化前 12.0 2.5 − 150 ℃、16 h 11.0 1.8 72.0 C 老化前 13.8 3.2 − 150 ℃、16 h 13.0 2.6 81.3
下载: 导出CSV
表 4 不同体系裂缝封堵承压能力对比
配方 裂缝宽度/
mm承压能力/
MPa封堵层厚度/
mm滤液侵入深度/
mmA 0.5 >8.0 1.5 2.0 1.0 7.8 2.0 3.5 1.5 7.7 2.5 5.0 2.0 7.6 3.0 6.5 B 0.5 6.5 0.8 8.0 1.0 5.8 1.0 12.0 1.5 4.2 − 突破 2.0 − − 突破 C 0.5 7.2 1.2 4.0 1.0 6.8 1.5 6.0 1.5 6.5 2.0 8.5 2.0 5.5 2.2 15.0 注：① 采用裂缝封堵仪测试，裂缝宽度0.5～2.0 mm，测试压差逐级升高，直至发生突破或达到仪器量程上限（8.0 MPa）；② 封堵层厚度为稳定承压后裂缝内形成的封堵带厚度；③ 滤液侵入深度为封堵完成后裂缝壁面滤液渗透距离；④ “突破”表示在该裂缝宽度下体系无法形成有效封堵，承压能力低于起始测试压力（2.0 MPa）；⑤ “—”表示未测试或无法形成有效封堵层。
下载: 导出CSV
表 5 不同钻井液体系流变与热稳定性能
配方 条件 PV/
mPa·sYP/
PaYP/PV/
Pa/mPa·sFLAPI/
mLA 滚前 27.0 11.5 0.43 3.6 150 ℃、16 h 24.0 12.0 0.50 3.2 B 滚前 20.0 8.0 0.40 4.4 150 ℃、16 h 21.0 7.0 0.35 5.0 C 滚前 24.0 11.0 0.46 3.8 150 ℃、16 h 22.0 10.0 0.45 4.2
下载: 导出CSV
表 6 不同抑制剂对页岩的抑制性能对比
配方 抑制剂/% 滚动回收率/% 16 h线性膨胀率/% 空白(清水) − 70.6 8.5 A 1.5 93.6 1.0 B 3.0 91.1 2.0 C 7.0 88.2 3.5
下载: 导出CSV

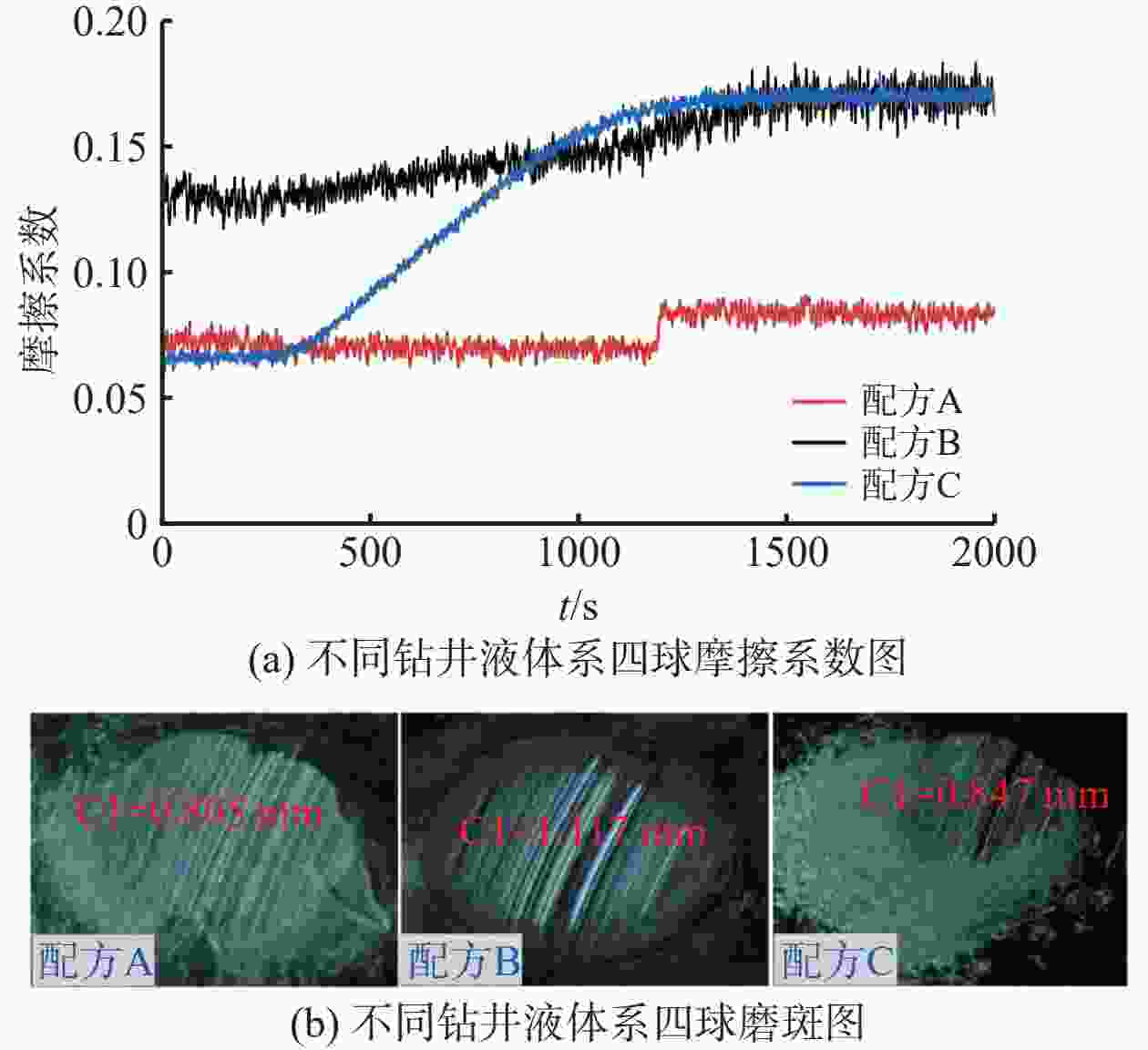

表 7 不同钻井液体系润滑性能对比（150 ℃老化后）
配方 极压润滑系数 抗磨承载/kg 四球磨斑直径/mm A 0.064 10 0.805 B 0.115 5 0.847 C 0.088 7 1.117
下载: 导出CSV
表 8 不同钻井液体系抗污染性能对比（150 ℃老化后）
配方 污染物 AV/
mPa·sYP/PV/
Pa/mPa·sFLAPI/
mL极压润滑
系数A 无 36.0 0.50 3.2 0.064 20%水 33.0 0.48 3.5 0.072 10%NaCl 36.0 0.45 3.6 0.078 1%CaCl2 34.0 0.42 3.8 0.082 20%劣质土 54.0 0.43 4.2 0.096 B 无 28.0 0.33 5.0 0.115 20%劣质土 58.0 0.25 8.5 0.180 C 无 32.0 0.45 4.2 0.088 20%劣质土 60.0 0.30 6.8 0.145
下载: 导出CSV
-
[1] 张海山. 中国海洋石油大位移井钻井技术现状及展望[J]. 石油钻采工艺, 2023, 45(1): 1-11.Zhang Haishan. Status and prospect of CNOOC's extended reach well drilling technologies[J]. Oil Drilling & Production Technology, 2023, 45(1): 1-11. [2] 陈士奎, 解赤栋, 姜政华, 等. 武隆浅层页岩气大位移水平井钻井关键技术[J]. 钻探工程, 2025, 52(5): 106-112. doi: 10.12143/j.ztgc.2025.05.014Chen Shikui, Xie Chidong, Jiang Zhenghua, et al. Key drilling technologies for large-displacement horizontal wells in shallow shale gas reservoirs of Wulong[J]. Drilling Engineering, 2025, 52(5): 106-112. doi: 10.12143/j.ztgc.2025.05.014 [3] 史配铭, 倪华峰, 石崇东, 等. 苏里格致密气藏超长水平段水平井钻井完井关键技术[J]. 石油钻探技术, 2022, 50(1): 13-21. doi: 10.11911/syztjs.2021056Shi Peiming, Ni Huafeng, Shi Chongdong, et al. Key technologies for drilling and completing horizontal wells with Ultra-Long horizontal sections in the Sulige tight gas reservoirs[J]. Petroleum Drilling Techniques, 2022, 50(1): 13-21. doi: 10.11911/syztjs.2021056 [4] 宋兆辉. 高性能水基钻井液处理剂研究进展及发展趋势[J]. 化学通报, 2024, 87(7): 831-837. doi: 10.14159/j.cnki.0441-3776.20240527.001Song Zhaohui. Research progress and trend in high-performance water-based drilling fluid additives[J]. Chemistry, 2024, 87(7): 831-837. doi: 10.14159/j.cnki.0441-3776.20240527.001 [5] 李小瑞, 张宇, 李宝军, 等. 大位移井高效携岩水基钻井液实验研究[J]. 陕西科技大学学报, 2018, 36(4): 87-91, 101. doi: 10.19481/j.cnki.issn2096-398x.2018.04.016Li Xiaorui, Zhang Yu, Li Baojun, et al. Experimental study of water-based drilling fluid with high cuttings-carrying capacity for extended reach well[J]. Journal of Shaanxi University of Science & Technology, 2018, 36(4): 87-91,101. doi: 10.19481/j.cnki.issn2096-398x.2018.04.016 [6] 管申, 侯珊珊, 王佳, 等. 大位移井抗高温低摩阻钻井液室内研究[J]. 长江大学学报(自然科学版), 2019, 16(8): 49-52, 7. doi: 10.3969/j.issn.1673-1409.2019.08.011Guan Shen, Hou Shanshan, Wang Jia, et al. Laboratory study on high temperature and low friction drilling fuid for extended reach well drillings[J]. Journal of Yangtze University (Natural Science Edition), 2019, 16(8): 49-52,7. doi: 10.3969/j.issn.1673-1409.2019.08.011 [7] 郭磊, 李模刚, 邓楚娈, 等. 纳米改性材料在水基钻井液中的减阻性能[J]. 钻井液与完井液, 2025, 42(3): 308-317. doi: 10.12358/j.issn.1001-5620.2025.03.005Guo Lei, Li Mogang, Deng Chuluan, et al. Drag reducing performance of a nanomodified material in water based drilling fluids[J]. Drilling Fluid & Completion Fluid, 2025, 42(3): 308-317. doi: 10.12358/j.issn.1001-5620.2025.03.005 [8] 王广财, 刘万成, 任运, 等. 一种强抑制低活度卤水基钻井液体系[J]. 钻井液与完井液, 2025, 42(4): 503-508. doi: 10.12358/j.issn.1001-5620.2025.04.009Wang Guangcai, Liu Wancheng, Ren Yun, et al. A highly inhibitive low activity brine-based drilling fluid[J]. Drilling Fluid & Completion Fluid, 2025, 42(4): 503-508. doi: 10.12358/j.issn.1001-5620.2025.04.009 [9] 陈斌, 周姗姗, 赵远远, 等. 适用于大位移井新型水基钻井液室内研究[J]. 钻井液与完井液, 2021, 38(1): 42-46.Chen Bin, Zhou Shanshan, Zhao Yuanyuan, et al. Laboratory study on new water base drilling fluid for extended reach wells[J]. Drilling Fluid & Completion Fluid, 2021, 38(1): 42-46. [10] 雷志永, 郭磊, 耿铁, 等. 环保型可循环利用BIODRILL A水基钻井液评价与应用[J]. 中国海上油气, 2022, 34(3): 139-145. doi: 10.11935/j.issn.1673-1506.2022.03.018Lei Zhiyong, Guo Lei, Geng Tie, et al. Evaluation and application of environmentally friendly and recyclable BIODRILL A water-based drilling fluid[J]. China Offshore Oil and Gas, 2022, 34(3): 139-145. doi: 10.11935/j.issn.1673-1506.2022.03.018 [11] Liu F, Yao H L, Liu Q X, et al. Nano-silica/polymer composite as filtrate reducer in water-based drilling fluids[J]. Colloids and Surfaces A-Physicochemical and Engineering Aspects, 2021, 627: 127168. doi: 10.1016/j.colsurfa.2021.127168 [12] 张海山, 崔应中, 王荐, 等. 东海高温深井钻井液技术[J]. 中国海上油气, 2023, 35(4): 122-126.Zhang Haishan, Cui Yingzhong, Wang Jian, et al. High-temperature deep well drilling fluid technology in the East China Sea[J]. China Offshore Oil and Gas, 2023, 35(4): 122-126. [13] 王宗轮, 孙金声, 刘敬平, 等. 耐高温高盐钻井液润滑剂的研制与性能评价[J]. 钻井液与完井液, 2022, 39(5): 538-544.Wang Zonglun, Sun Jinsheng, Liu Jingping, et al. Development and performance evaluation of high temperature salt resistant drilling lubricant[J]. Drilling Fluid & Completion Fluid, 2022, 39(5): 538-544 [14] 孔勇. 地层环境响应封堵材料研究与应用[J]. 钻井液与完井液, 2022, 39(6): 677-684.Kong Yong. Study and application of formation environment responsive plugging material[J]. Drilling Fluid & Completion Fluid, 2022, 39(6): 677-684 [15] 孙欢, 陈华, 贾彦强. 环保水基钻井液用聚合物M-TSP的合成与性能评价[J]. 油田化学, 2021, 38(1): 14-18.Sun Huan, Chen Hua, Jia Yanqiang. Synthesis and performance evaluation of polymer M-TSP for environment-friendly water-based drilling fluids[J]. Oilfield Chemistry, 2021, 38(1): 14-18 [16] 吴若宁, 刘 云, 余海棠, 等. 超浅层大位移水平井“三低”钻井液技术[J]. 非常规油气, 2024, 11(1): 119-127.Wu Ruoning, Liu Yun, Yu Haitang, et al. “Three-low” drilling fluid technology for ultra-shallow horizontal well with extended reach[J]. Unconventional Oil & Gas, 2024, 11(1): 119-127 [17] 马积贺, 耿铁, 宋晓伟, 等. 南海东部恩平21-4油田超深大位移井钻井液技术[J]. 石油钻探技术, 2025, 53(2): 21-29.Ma Jihe, Geng Tie, Song Xiaowei, et al. Drilling fluid technology for ultra-deep extended reach wells in Enping 21-4 Oilfield, Eastern South China Sea[J]. Petroleum Drilling Techniques, 2025, 53(2): 21-29 -
