A New Borehole Wall Stabilizer for Deep Horizontal Drilling of CBM
-

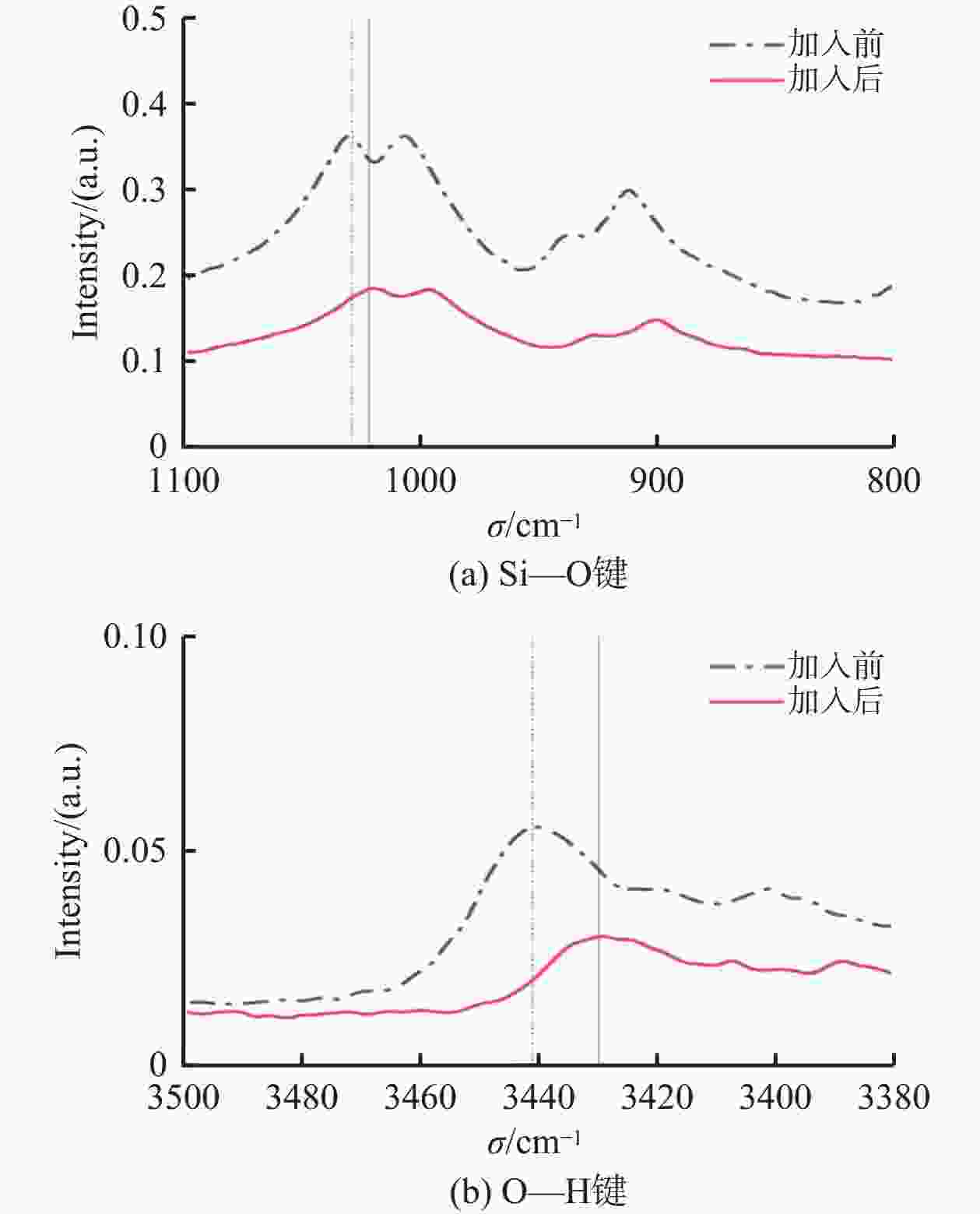

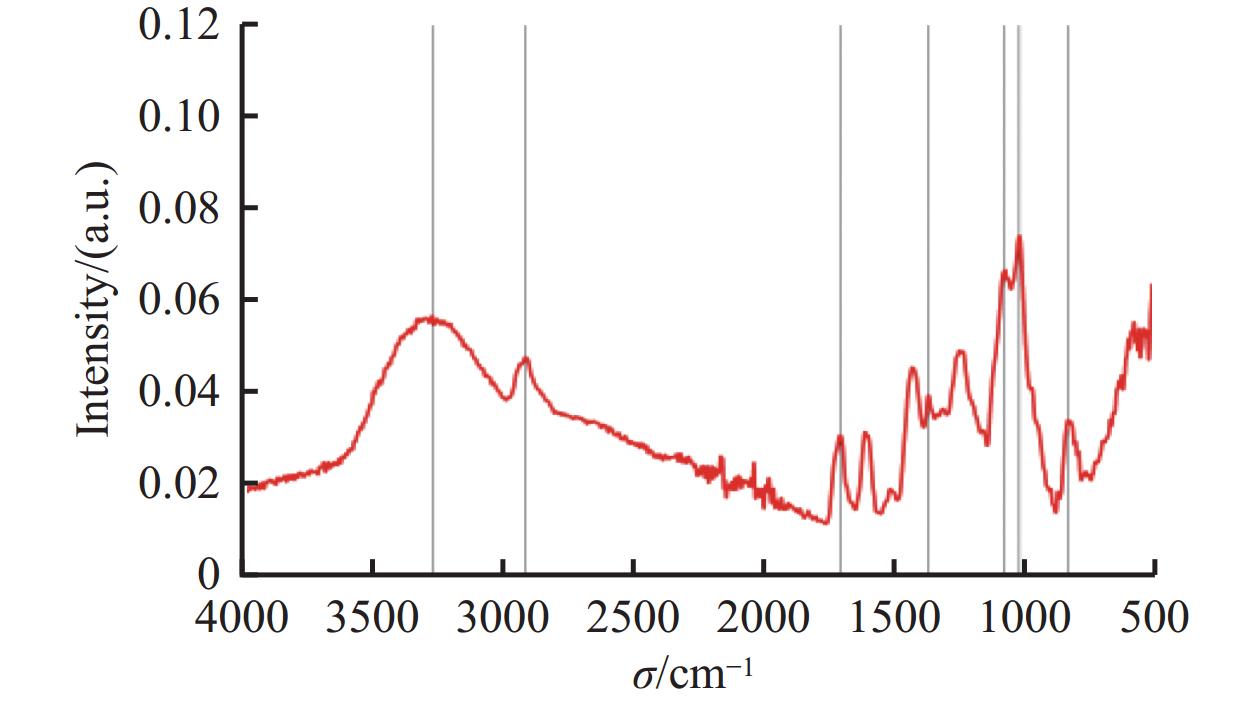

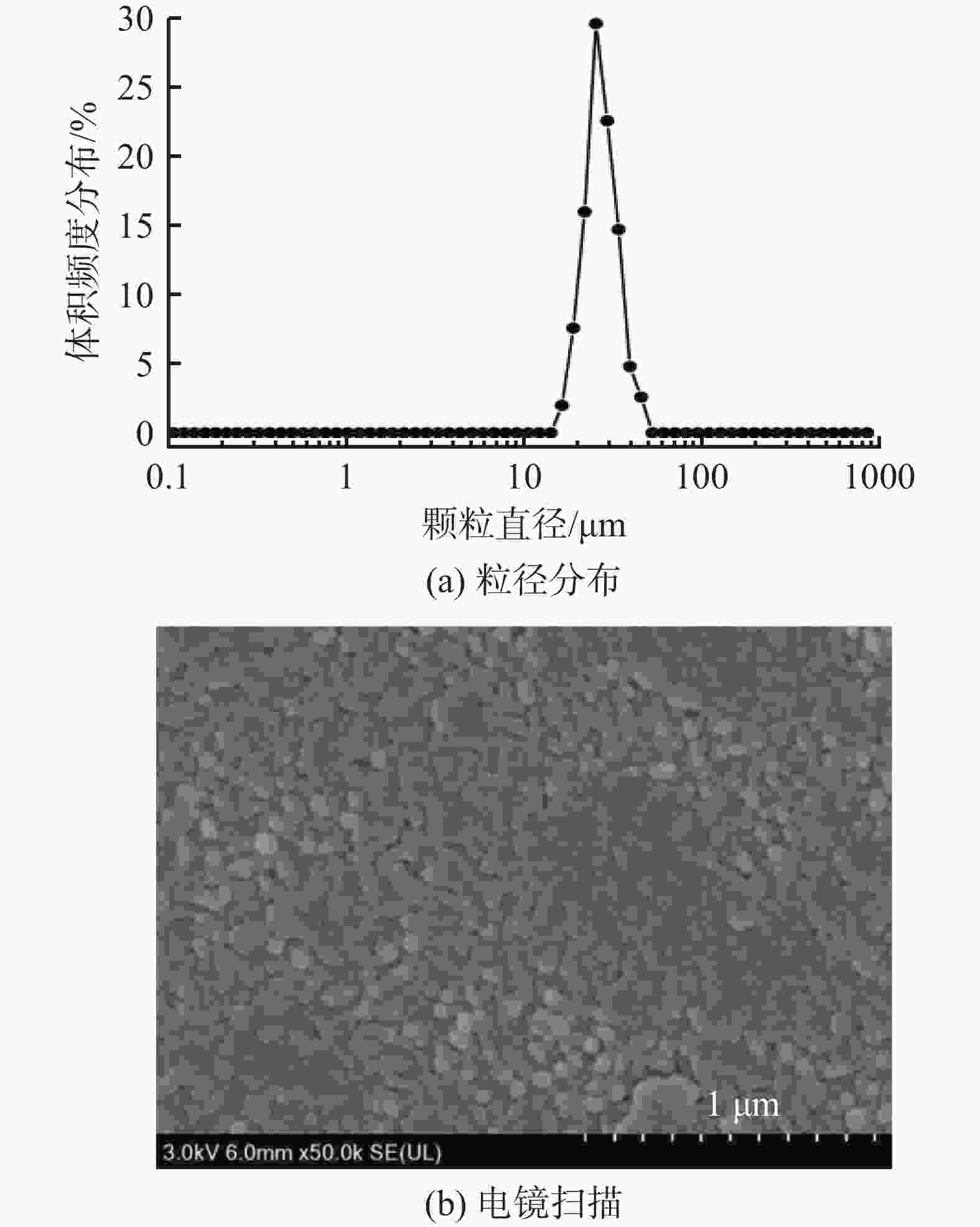

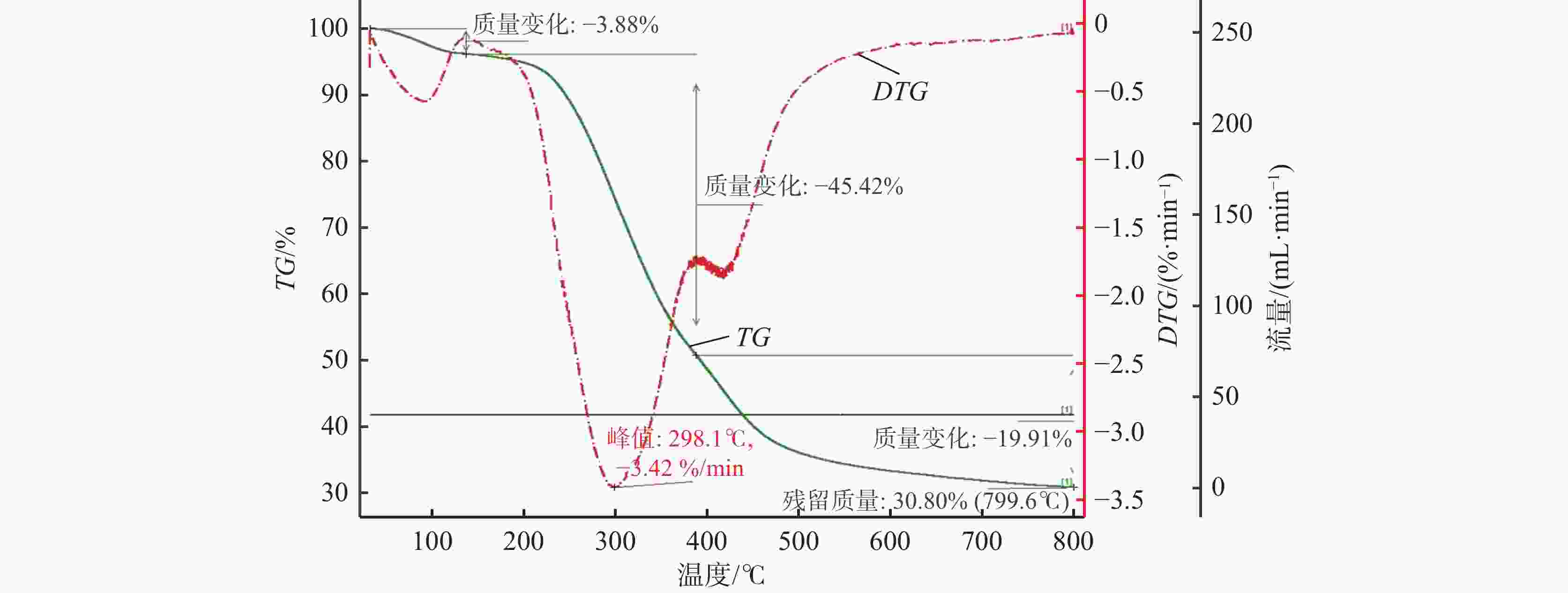

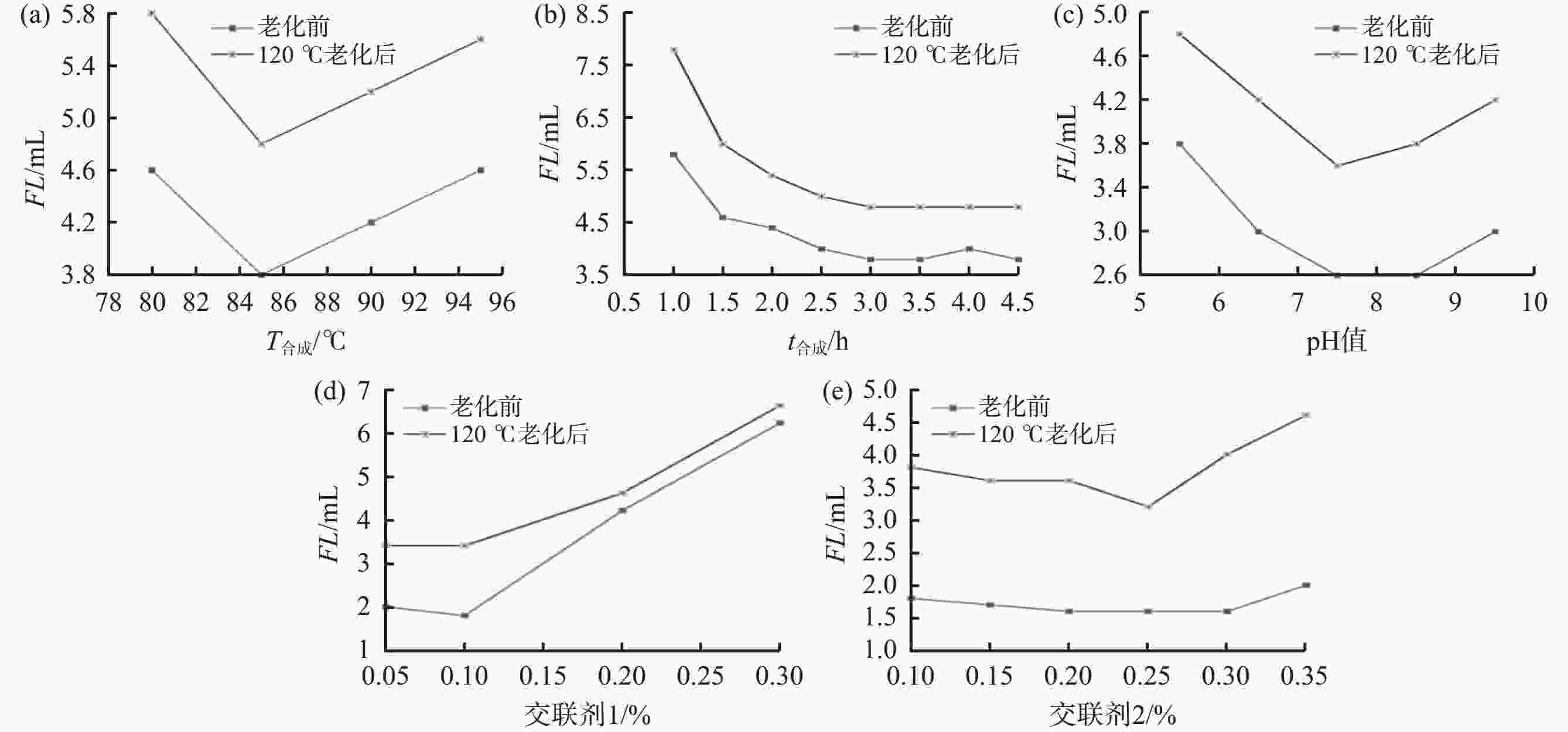

摘要: 为解决深层煤岩气水平井中煤岩与煤矸石界面因性质差异导致的失稳掉块问题，以聚乙烯醇（PVA）、单宁酸（TA）为功能单体，硼砂与氯化铁（FeCl3）为双交联剂，通过优化单体配比（PVA∶TA=1∶1）、合成温度（85 ℃）、反应时间（3 h）、体系pH值（7.5）及交联剂加量（0.1%硼砂、0.25%FeCl3），采用水溶液聚合法制备井壁稳定剂WDJ-1。结合傅里叶变换红外光谱（FT-IR）、扫描电子显微镜（SEM）、热重分析（TGA）等手段对其结构进行表征，并通过流变性、封堵性、胶结性及抑制性实验评价其性能。结果表明，FT-IR证实WDJ-1中存在O—H、C=O、B—O及Fe—O配位键，单体与交联剂反应充分；SEM显示WDJ-1呈蜂窝状结构，可增加钻井液泥饼致密程度；当WDJ-1加量为2%时，基浆API滤失量从22.4 mL降至3 mL，煤岩-煤矸界面抗剪切强度达0.16 MPa，2 mm缝板封堵压力提升54.5%，泥球48 h吸水率降低10.5%；TGA表明WDJ-1在240 ℃以下热稳定性良好。WDJ-1通过“抑制-封堵-胶结-抗高温”四重协同机理实现井壁稳定，可为深层煤岩气水平井安全高效钻进提供技术支撑。Abstract: A borehole wall stabilizer WDJ-1 was developed to address the problem of borehole wall instability and sloughing caused by property differences at the interface of coal-rock and coal-gangue in horizontal wells for deep coalbed methane (CBM). WDJ-1 was synthesized via aqueous solution polymerization using polyvinyl alcohol (PVA) and tannic acid (TA) as functional monomers, and borax and ferric chloride (FeCl3) as dual crosslinking agents. The synthesis was optimized with a monomer ratio of PVA∶TA = 1∶1, a reaction temperature of 85 ℃, a reaction time of 3 h, a system pH of 7.5, and the concentrations of the crosslinking agents (0.1% borax and 0.25% FeCl3). The structure of WDJ-1 was characterized by Fourier-transform infrared (FT-IR) spectroscopy, scanning electron microscopy (SEM), and thermogravimetric analysis (TGA), and its performance was evaluated through rheology, plugging capacity, cementation property, and inhibition property experiments. FT-IR confirms the presence of O—H, C=O, B—O, and Fe—O coordination bonds in the molecules of WDJ-1, indicating sufficient reaction between the monomers and the crosslinking agents. SEM reveals that WDJ-1 exhibits a honeycomb structure, which can improve the compactness of the mud cake. A base fluid treated with 2% WDJ-1 has its API fluid loss reduced from 22.4 mL to 3 mL, the shear strength of the coal rock-coal gangue interface reaches 0.16 MPa, the plugging pressure for a 2 mm slot plate increases by 54.5%, and the 48-hour water absorption rate of mud balls is reduced by 10.5%. TGA measurement proves that WDJ-1 exhibits excellent thermal stability below 240 ℃. WDJ-1 stabilizes wellbore through the four-fold synergistic mechanism of “inhibition-plugging-bonding-high temperature resistance”, and the use of which can provide technical support for the safe and efficient drilling of horizontal wells in deep CBM reservoirs.
-
表 1 合成单体对生成物API滤失量的影响
PVA∶TA FLAPI/mL PVA∶TA FLAPI/mL 室温 120 ℃老化后 室温 120 ℃老化后 5∶1 6.8 8.4 1∶2 6.8 7.2 4∶1 6.4 8.0 1∶3 7.2 7.8 3∶1 6.4 7.8 1∶4 7.6 8.2 2∶1 6.0 7.4 1∶5 7.8 8.6 1∶1 5.6 6.4
下载: 导出CSV
表 2 WDJ-1加量对基浆流变性和滤失量的影响
WDJ-1/
%AV/
mPa·sPV/
mPa·sYP/
PaYP/PV
Pa/mPa·sFLAPI/
mL0 3.5 2 1.5 0.75 22.4 0.5 3.5 2 2.0 0.75 12.4 1.0 3.5 2 2.0 0.75 10.0 1.5 4.0 2 2.0 1.00 6.0 2.0 4.5 3 1.5 0.50 3.0 2.5 4.5 3 1.5 0.50 2.8
下载: 导出CSV
-
[1] 邹才能, 赵群, 刘翰林, 等. 中国煤岩气突破及意义[J]. 天然气工业, 2025, 45(4): 1-18. doi: 10.3787/j.issn.1000-0976.2025.04.001ZOU Caineng, ZHAO Qun, LIU Hanlin, et al. China's breakthrough in coal-rock gas and its significance[J]. Natural Gas Industry, 2025, 45(4): 1-18. doi: 10.3787/j.issn.1000-0976.2025.04.001 [2] 郭绪杰, 支东明, 毛新军, 等. 准噶尔盆地煤岩气的勘探发现及意义[J]. 中国石油勘探, 2021, 26(6): 38-49. doi: 10.3969/j.issn.1672-7703.2021.06.003GUO Xujie, ZHI Dongming, MAO Xinjun, et al. Discovery and significance of coal measure gas in Junggar basin[J]. China Petroleum Exploration, 2021, 26(6): 38-49. doi: 10.3969/j.issn.1672-7703.2021.06.003 [3] 赵喆, 徐旺林, 赵振宇, 等. 鄂尔多斯盆地石炭系本溪组煤岩气地质特征与勘探突破[J]. 石油勘探与开发, 2024, 51(2): 234-247,259. doi: 10.11698/PED.20230679ZHAO Zhe, XU Wanglin, ZHAO Zhenyu, et al. Geological characteristics and exploration breakthroughs of coal rock gas in carboniferous Benxi formation, Ordos basin, NW China[J]. Petroleum Exploration and Development, 2024, 51(2): 234-247,259. doi: 10.11698/PED.20230679 [4] 周立宏, 李曙光, 王渊, 等. 深层煤岩气效益开发关键技术与实践——以鄂尔多斯盆地大宁—吉县区块为例[J]. 石油学报, 2025, 46(8): 1536-1549. doi: 10.7623/syxb202508007ZHOU Lihong, LI Shuguang, WANG Yuan, et al. Key technologies and practices for cost-effective development of deep coal-rock gas: a case study of the Daning-Jixian block in Ordos basin[J]. Acta Petrolei Sinica, 2025, 46(8): 1536-1549. doi: 10.7623/syxb202508007 [5] 李国欣, 张水昌, 何海清, 等. 煤岩气: 概念、内涵与分类标准[J]. 石油勘探与开发, 2024, 51(4): 783-795.LI Guoxin, ZHANG Shuichang, HE Haiqing, et al. Coal-rock gas: concept, connotation and classification criteria[J]. Petroleum Exploration and Development, 2024, 51(4): 783-795. [6] 张君峰, 李国欣, 贾承造, 等. 煤系全油气系统中天然气类型与煤岩气分类研究[J]. 石油勘探与开发, 2025, 52(4): 792-803.ZHANG Junfeng, LI Guoxin, JIA Chengzao, et al. Natural gas types and coal rock gas classification in the whole petroleum system of coal measures[J]. Petroleum Exploration and Development, 2025, 52(4): 792-803. [7] 汪海阁, 夏焱, 丁吉平, 等. 中石油深层煤岩气钻完井工程技术现状及展望[J]. 石油学报, 2025, 46(8): 1576-1588. doi: 10.7623/syxb202508010WANG Haige, XIA Yan, DING Jiping, et al. Current status and prospect of CNPC's deep coal-rock gas drilling and completion engineering technologies[J]. Acta Petrolei Sinica, 2025, 46(8): 1576-1588. doi: 10.7623/syxb202508010 [8] 阎荣辉, 王京光, 何旺, 等. 鄂尔多斯盆地深层煤岩气井储层坍塌及伤害主控因素研究[J]. 钻采工艺, 2023, 46(6): 8-13. doi: 10.3969/J.ISSN.1006-768X.2023.06.02YAN Ronghui, WANG Jingguang, HE Wang, et al. Study on the main controlling factors of reservoir collapse and damage in deep coal gas wells in ordos basin[J]. Drilling & Production Technology, 2023, 46(6): 8-13. doi: 10.3969/J.ISSN.1006-768X.2023.06.02 [9] 徐建根. 页岩气地层水基钻井液稳定井壁技术研究[D]. 青岛: 中国石油大学(华东), 2019.XU Jiangen. Research on water-based drilling fluid technology for wellbore stability in shale gas formations[D]. Qingdao: China University of Petroleum (East China), 2019. [10] 艾贵成, 吕晓平, 梁明喆, 等. 有机硅醇井壁稳定剂在鸭儿峡油田的应用[J]. 西部探矿工程, 2013, 25(3): 26-28.AI Guicheng, LYU Xiaoping, LIANG Mingzhe, et al. Application of organosilicon alcohol wellbore stabilizer in Ya'erxia oilfield[J]. West-China Exploration Engineering, 2013, 25(3): 26-28. [11] 景岷嘉, 袁志平, 王星媛, 等. 两性离子聚合物/多元醇复合井壁强化剂的研制与作用机理[J]. 钻井液与完井液, 2022, 39(4): 430-434. doi: 10.3969/j.issn.1001-5620.2015.04.005JING Minjia, YUAN Zhiping, WANG Xingyuan, et al. The development and function mechanisms of an zwitterionic polymer/polyol borehole wall strengthening additive[J]. Drilling Fluid & Completion Fluid, 2022, 39(4): 430-434. doi: 10.3969/j.issn.1001-5620.2015.04.005 [12] 朱庆帅, 项羽, 张代维, 等. 纳米二氧化硅及其复合材料用作页岩稳定剂的研究进展[J]. 辽宁化工, 2023, 52(12): 1822-1825,1829. doi: 10.3969/j.issn.1004-0935.2023.12.026ZHU Qingshuai, XIANG Yu, ZHANG Daiwei, et al. Research progress in Nano silica and its composite materials as shale stabilizer[J]. Liaoning Chemical Industry, 2023, 52(12): 1822-1825,1829. doi: 10.3969/j.issn.1004-0935.2023.12.026 [13] ZHANG S F, QIU Z H, HUANG W A, et al. Study on high performance aluminum-polyamine based blocking anti-sloughing drilling fluid[J]. Journal of Southwest Petroleum University, 2013, 35(4): 159-164. [14] BALTOIU L V, WARREN B K, NATRAS T A. State-of-the-art in coalbed methane drilling fluids[J]. SPE Drilling & Completion, 2008, 23(3): 250-257. doi: 10.2118/101231-PA [15] 赵立新, 张希成, 温守云, 等. 铝胺聚醇封堵防塌钻井液体系在英2井的应用[J]. 西部探矿工程, 2013, 25(12): 37-39.ZHAO Lixin, ZHANG Xicheng, WEN Shouyun, et al. Application of aluminum-amine polyol blocking anti-sloughing drilling fluid system in well Ying 2[J]. West-China Exploration Engineering, 2013, 25(12): 37-39. [16] 胡星琪, 李晓敏, 杨彦东, 等. 小分子聚胺粘土稳定剂EM的合成及评价[J]. 化学与生物工程, 2010, 27(12): 25-27,48. doi: 10.3969/j.issn.1672-5425.2010.12.009HU Xingqi, LI Xiaomin, YANG Yandong, et al. Synthesis and evaluation of low molecular mass polyamine clay stabilizer EM[J]. Chemistry & Bioengineering, 2010, 27(12): 25-27,48. doi: 10.3969/j.issn.1672-5425.2010.12.009 [17] 樊玉峰, 肖晓春, 丁鑫, 等. 岩煤接触面力学性质对组合煤岩力学行为影响机制[J]. 煤炭学报, 2023, 48(4): 1487-1501. doi: 10.13225/j.cnki.jccs.2022.0540FAN Yufeng, XIAO Xiaochun, DING Xin, et al. Influence mechanism of contact surface mechanical properties on mechanical behavior of coal rock combination[J]. Journal of China Coal Society, 2023, 48(4): 1487-1501. doi: 10.13225/j.cnki.jccs.2022.0540 -
点击查看大图
图(5) / 表(2)
