Molecular Simulation on Fluid-to-Solid Phase Transition of Pressure-Activated Sealants
-

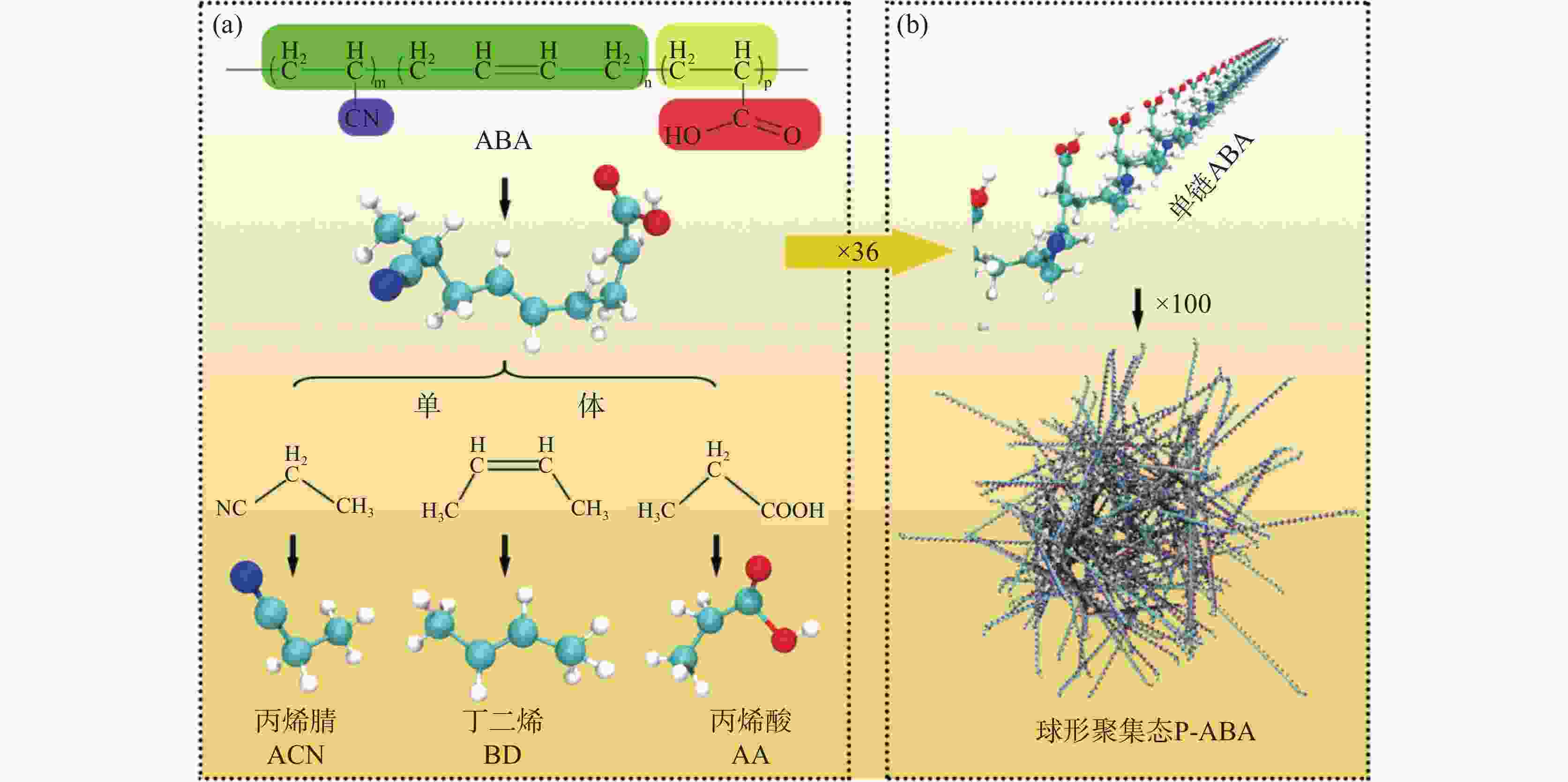

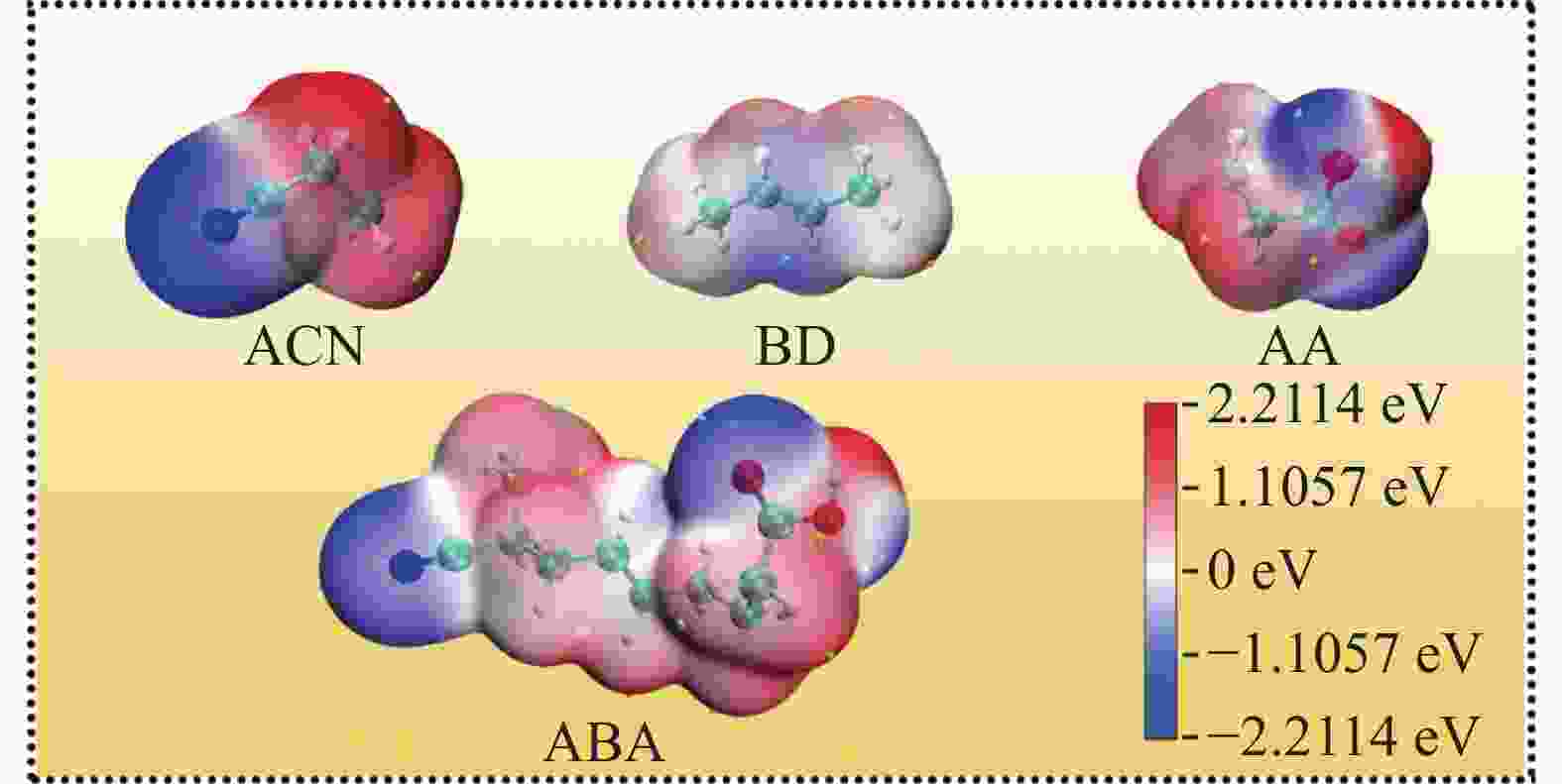

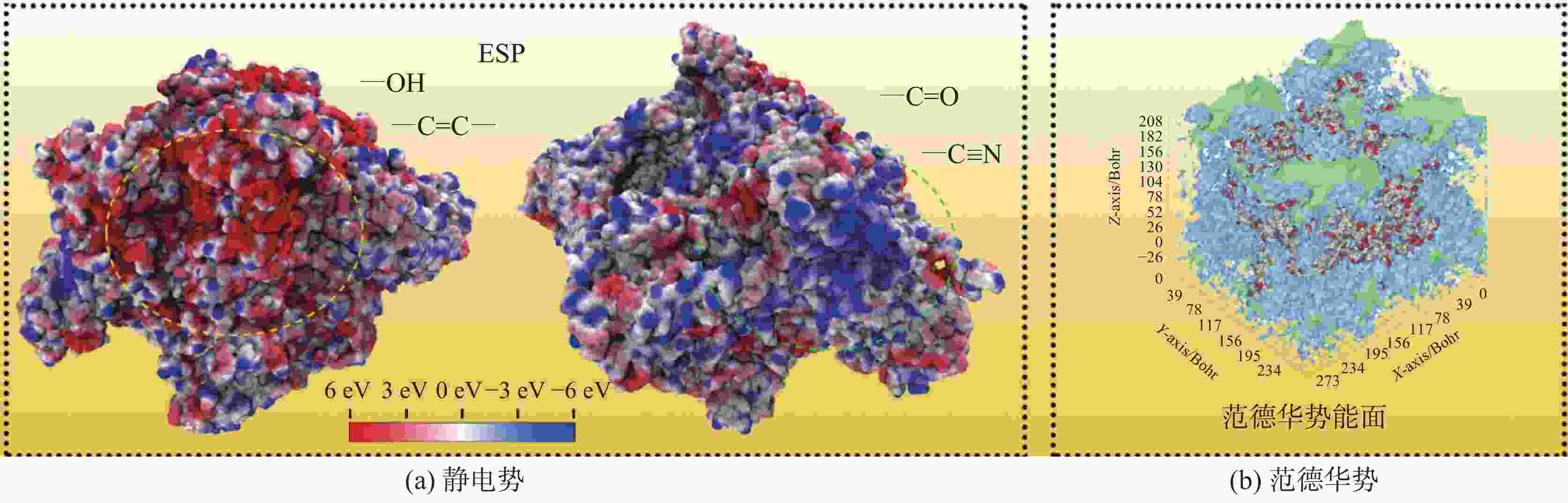

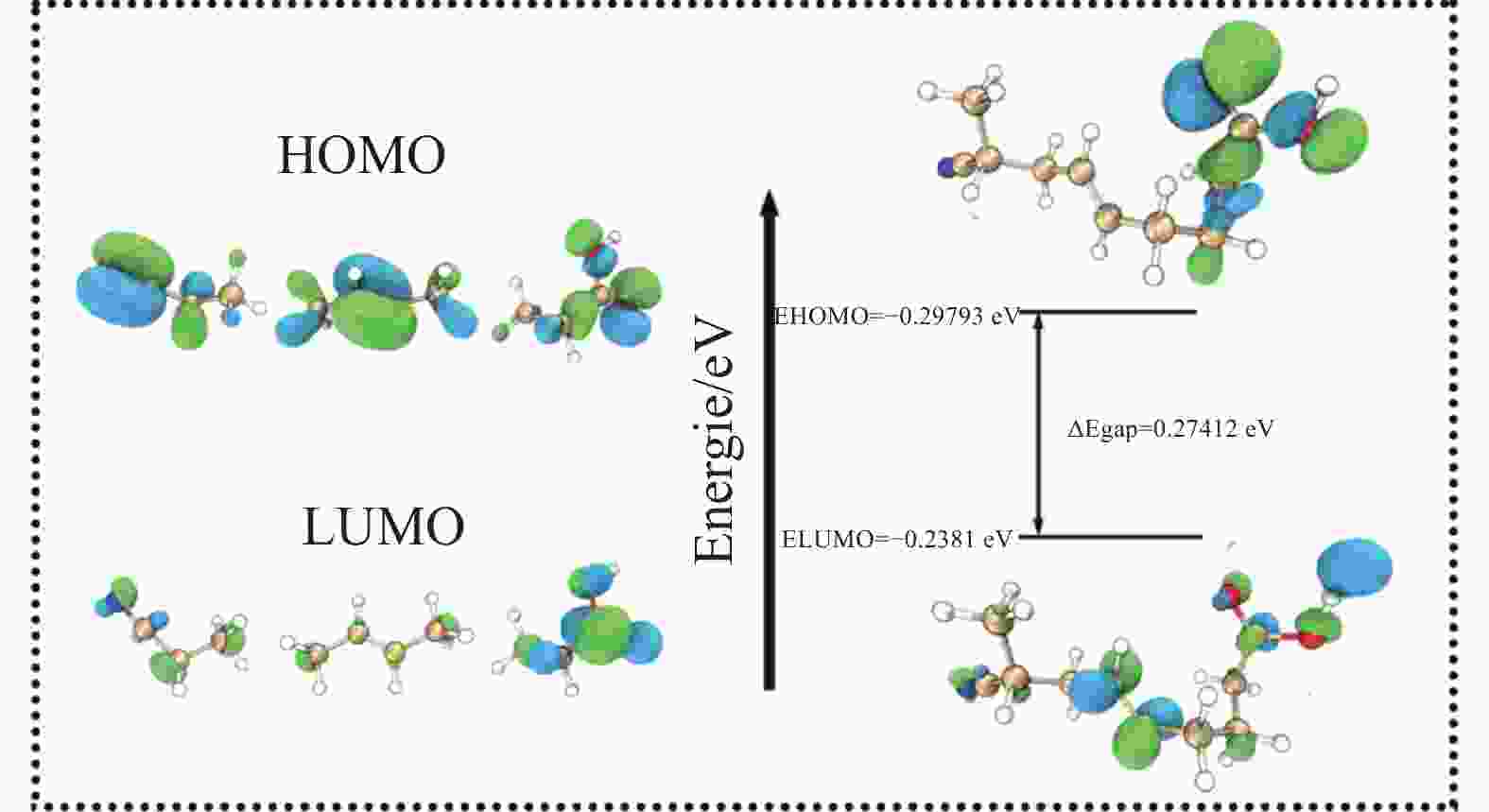

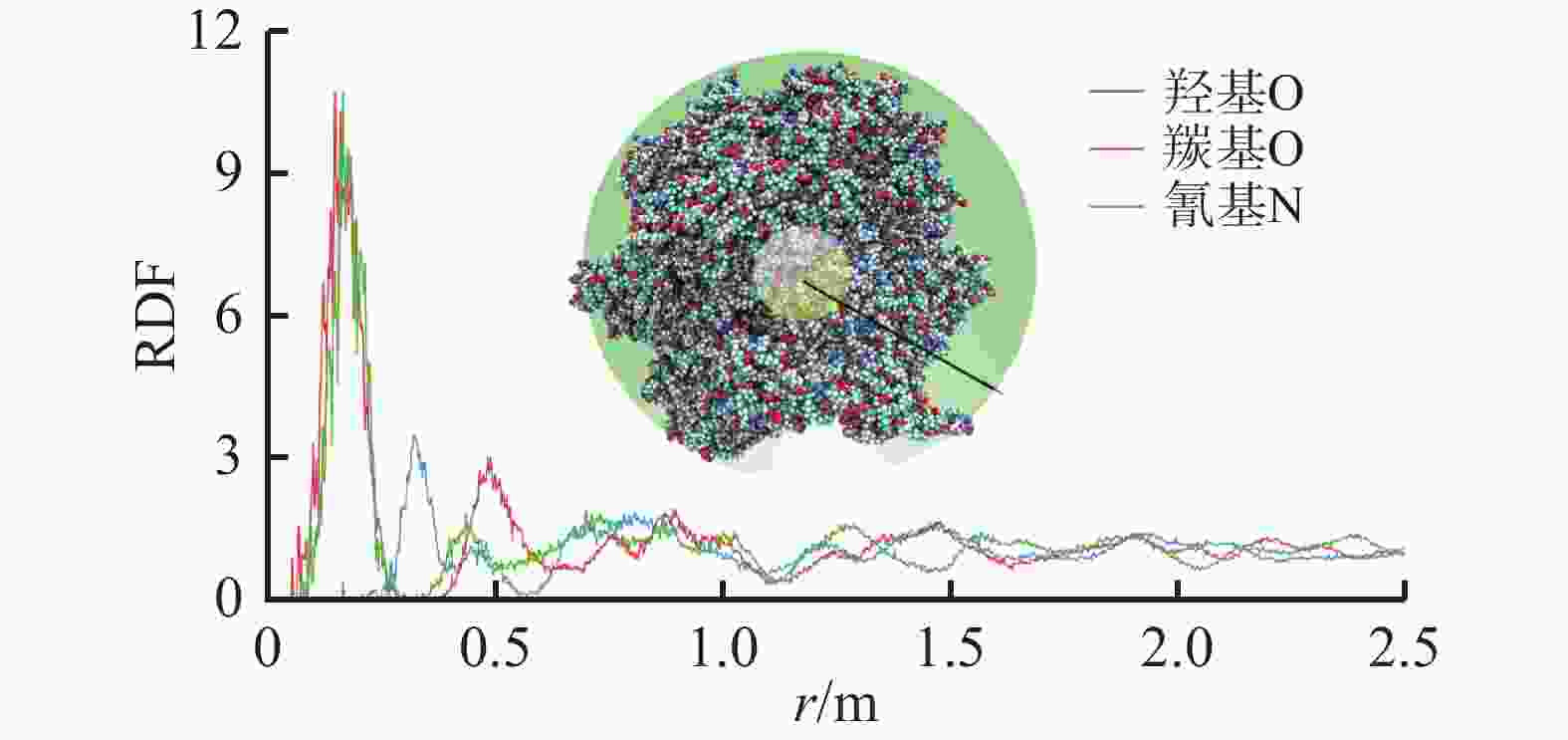

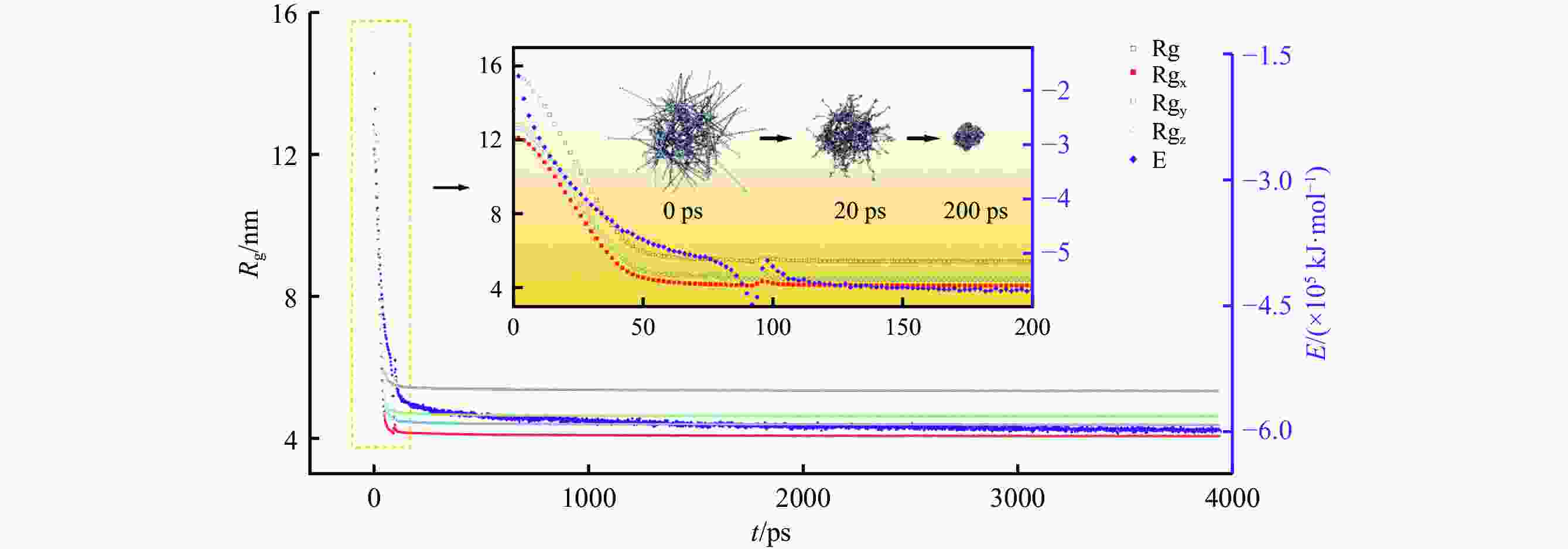

摘要: 压差激活密封剂是一种含有复合液滴的多分散相流体。复合液滴水化膜在漏点压差作用下变形破碎，其内核在界面活性基团的吸附作用下聚集生长，最终充填微泄漏孔隙，完成密封损伤的原位修复。前期研究探索了复合液滴结构与压差激活的构效关系，为进一步揭示活性内核的聚结衍化规律，基于水化橡胶粒子的结构参数，构建了分散相内核聚集态分子模型，并采用量子化学与分子动力学相结合的方法，分析了聚集态单体与重复片段的静电势、Fukui函数与前线轨道、聚集态空间构型的回转半径与径向分布函数，研究了分散相聚结生长的动力学过程。结果显示：①分子片段中富电子羧基O、氰基N与缺电子共轭碳链共同组成了高分子聚集态的活性位点，其中羧基O与氰基N原子展示了最强局域亲核能力，而共轭碳链则具有最强局域亲电能力；②高分子聚集态具有核-壳空间构型，羧基O、氰基N作为壳层围绕内核展现层级分布，且聚集态亲电与亲核区域呈“锁-钥”构造，有利于分散相的空间识别与稳定缔合；③分散相生长经历了外层分子链收敛、体积塌缩、初始接触与内层分子链扩散4个阶段。研究结果从原子与分子层面揭示了复合液滴分散相的聚结衍化行为，有利于进一步完善力学-化学耦合作用下密封材料的微缺陷自适应修复机理。Abstract: Pressure Activated Sealant(PAS) is a type of polydisperse-phase fluid composed of rubber microparticle composite droplets. The liquid membrane of these composite droplets in PAS undergoes deformation and fragmentation under the impact of pressure differentials, exposing the interface of the rubber particles. The active functional groups at the interface promote microscopic phase coalescence and growth through chemical bonding, ultimately filling micro-leakage pores in situ and completing the mechanically-chemical coupled sealing process. Previous research explored the mechanical deformation behavior of composite droplets under pressure-differential impacts. To further investigate the chemical behavior of coalescence derivation, this work integrates the microstructural parameters of rubber microparticle composite droplets with quantum chemistry and molecular dynamics methods. A molecular model of the aggregated core state within the dispersed phase was constructed, and the following analyses were conducted, including Electrostatic Potential (ESP), Fukui simplified functions and frontier molecular orbitals (FMO), and aggregated spatial configuration (the radius of gyration and radial distribution function). The results showed that: ①Electron-rich carboxyl oxygen (O) and cyano nitrogen (N) atoms, along with electron-deficient conjugated carbon chains, constituted the active sites of the polymeric aggregation, wherein carboxyl O and cyano N atoms exhibited strong nucleophilic capabilities, while conjugated carbon chains demonstrated the strongest electrophilic tendencies; ② The aggregation state displayed a core-shell configuration, with the active carboxyl O and cyano N atoms forming the shell layers surrounding the core, showing unique hierarchical distribution. The nucleophilic and electrophilic regions of the aggregation formed a interesting "lock-and-key" structure, which is conducive to spatial recognition and enhancing the stability of aggregated adsorption and association; ③ The coalescence and fusion of the dispersed phase cores underwent four stages: outer molecular chain convergence, molecular volume collapse, initial contact, and inner molecular chain diffusion, ultimately leading to spontaneous growth into larger aggregated molecules. These findings reveal the chemical driving forces of coalescence within the dispersed phase at the atomic and molecular levels, which can not only improve the dynamic-chemical coupling model of the pressure difference-induced solidification in multiphase dispersed fluid, but also provide methodological insights for exploring the structure-property relationship of functional additives from a "molecular engineering" perspective.
-
[1] UGARTE E R, SALEHI S. An uncertainty risk evaluation Tool for wellbore leakage prediction for plug and abandonment[C]//the SPE Western Regional Meeting. Anchorage, Alaska, USA: SPE, 2023: SPE-212957-MS. [2] RAHMAN S A A, PANG A L, ARSAD A, et al. The chemistry insight: epoxy sealant as an alternative remedial operation for well integrity[J]. Reviews in Chemical Engineering, 2022, 39(5): 857-873. [3] AL-HOUTI N, AL-OTHMAN M, AL-QASSAR K, et al. An alternative method for cement squeeze in North Kuwait: case study[C]//the SPE/ICoTA Coiled Tubing and Well Intervention Conference and Exhibition. Houston, Texas, USA: SPE, 2017: SPE-184802-MS. [4] 蒋孟晨, 许林, 程现华, 等. 压差激活密封剂的制备与应用[J]. 油田化学, 2021, 38(2): 216-222.JIANG Mengchen, XU Lin, CHENG Xianhua, et al. Preparation and application of pressure activated sealant[J]. Oilfield Chemistry, 2021, 38(2): 216-222. [5] 幸雪松, 许林, 冯桓榰, 等. 压差激活密封剂的制备、密封性能及机理研究[J]. 钻井液与完井液, 2019, 36(6): 789-794.XING Xuesong, XU Lin, FENG Huanzhi, et al. A differential pressure activated sealant: preparation, sealing performance and working mechanisms[J]. Drilling Fluid & Completion Fluid, 2019, 36(6): 789-794. [6] 许林, 蒋孟晨, 许洁, 等. 复合压差激活密封剂的设计及其封堵性能[J]. 天然气工业, 2020, 40(3): 107-114.XU Lin, JIANG Mengchen, XU Jie, et al. Design and plugging property of composite pressure activated sealant[J]. Natural Gas Industry, 2020, 40(3): 107-114. [7] 许林, 刘书杰, 许明标, 等. 压差激活密封剂的微缺陷自适应修复行为及机理[J]. 石油学报, 2021, 42(5): 686-694.XU Lin, LIU Shujie, XU Mingbiao, et al. Self-adaptive repair behavior and mechanism of micro-defects of differential pressure activated sealant[J]. Acta Petrolei Sinica, 2021, 42(5): 686-694. [8] XU L, WU S Q, XU M B, et al. Insights into unique in-situ self-adaptive sealing property of pressure-activated sealant in leaks: experimental and numerical investigations on mechanism of liquid-to-solid transformation triggered by differential pressure[J]. Geoenergy Science and Engineering, 2024, 234: 212655. doi: 10.1016/j.geoen.2024.212655 [9] XIAO F, WANG Z G, SUN M B, et al. Simulation of drop deformation and breakup in supersonic flow[J]. Proceedings of the Combustion Institute, 2017, 36(2): 2417-2424. doi: 10.1016/j.proci.2016.09.016 [10] HUANG J K, ZHAO X Z, JIANG H. Numerical simulation of the atomization of liquid transverse jet in supersonic airflow[J]. Physics of Fluids, 2021, 33(5): 052114. doi: 10.1063/5.0050520 [11] LUO Z Y, WANG S Q, HE L, et al. Inertia-dependent dynamics of three-dimensional vesicles and red blood cells in shear flow[J]. Soft Matter, 2013, 9(40): 9651-9660. doi: 10.1039/c3sm51823j [12] WOLSKI P, PANCZYK T. Conformational properties of PAMAM dendrimers adsorbed on the gold surface studied by molecular dynamics simulation[J]. The Journal of Physical Chemistry C, 2019, 123(36): 22603-22613. doi: 10.1021/acs.jpcc.9b05752 [13] TIAN W D, MA Y Q. Theoretical and computational studies of dendrimers as delivery vectors[J]. Chemical Society Reviews, 2013, 42(2): 705-727. doi: 10.1039/C2CS35306G [14] KANIA D, YUNUS R, OMAR R, et al. Lubricity performance of non-ionic surfactants in high-solid drilling fluids: A perspective from quantum chemical calculations and filtration properties[J]. Journal of Petroleum Science and Engineering, 2021, 207: 109162. doi: 10.1016/j.petrol.2021.109162 [15] OKRUGIN B, ILYASH M, MARKELOV D, et al. Lysine dendrigraft nanocontainers. Influence of topology on their size and internal structure[J]. Pharmaceutics, 2018, 10(3): 129. doi: 10.3390/pharmaceutics10030129 [16] 陈素玲, 潘明强, 田文得. PAMAM树枝形分子与KALP肽相互作用的计算机模拟研究[J]. 高分子学报, 2014(8): 1062-1069.CHEN Suling, PAN Mingqiang, TIAN Wende. Computational study of the interaction between PAMAM dendrimer and KALP peptide[J]. Acta Polymerica Sinica, 2014(8): 1062-1069. [17] REN H, ZHANG Z, CHENG X, et al. Injectable, self-healing hydrogel adhesives with firm tissue adhesion and on-demand biodegradation for sutureless wound closure[J]. Science Advances, 2023, 9(33): 4327. doi: 10.1126/sciadv.adh4327 [18] 许林, 许力, 吴舒琪, 等. 微球聚合物强化水基钻井液流变稳定性及其分子模拟研究[J]. 钻井液与完井液, 2023, 40(6): 693-702.XU Lin, XU Li, WU Shuqi, et al. Study on polymer microspheres for their action in enhancing rheology stability of drilling fluids through molecular simulation[J]. Drilling Fluid & Completion Fluid, 2023, 40(6): 693-702. [19] CAMARADA M B. DFT investigation of the interaction of gold nanoclusters with poly (amidoamine) PAMAM G0 dendrimer[J]. Chemical Physics Letters, 2016, 654: 29-36. doi: 10.1016/j.cplett.2016.05.007 [20] 许林, 王晓棠, 王晓亮, 等. 超支化高分子水基钻井液仿生润滑机理[J]. 天然气工业, 2024, 44(7): 120-131.XU Lin, WANG Xiaotang, WANG Xiaoliang, et al. Bionic lubricating mechanism of water-based drilling fluid with hyperbranched polymer[J]. Natural Gas Industry, 2024, 44(7): 120-131. [21] HERSCHLAG D, PINNEY M M. Hydrogen bonds: simple after all?[J]. Biochemistry, 2018, 57(24): 3338-3352. doi: 10.1021/acs.biochem.8b00217 [22] LU T. A comprehensive electron wavefunction analysis toolbox for chemists, multiwfn[J]. The Journal of Chemical Physics, 2024, 161(8): 082503. doi: 10.1063/5.0216272 [23] RONG C Y, LU T, LIU S B. Dissecting molecular descriptors into atomic contributions in density functional reactivity theory[J]. The Journal of Chemical Physics, 2014, 140(2): 024109. doi: 10.1063/1.4860969 -
