Preparation of Composite Nano-Silica and Polymer Gel and Its Function as Lost Circulation Material
-

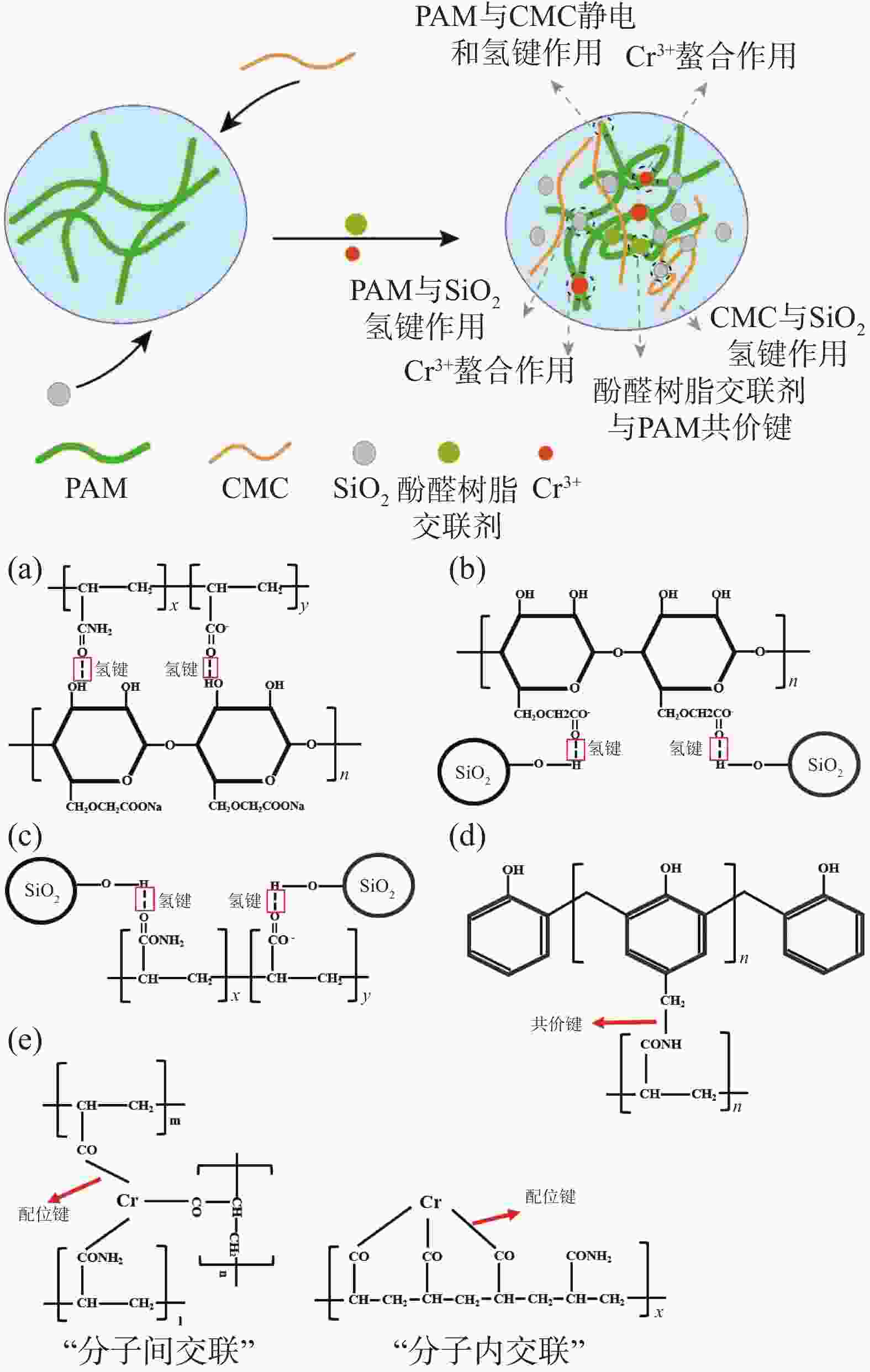

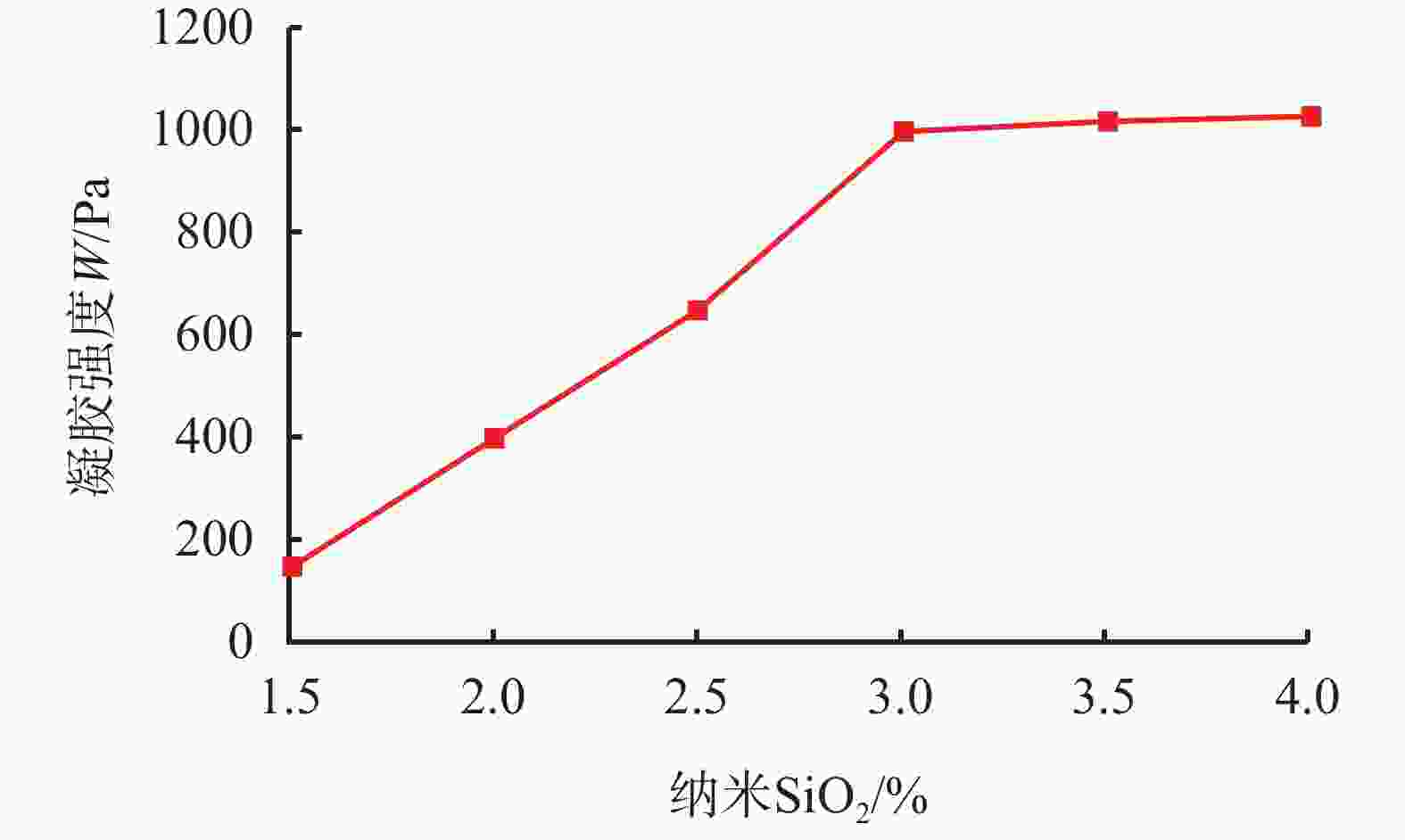

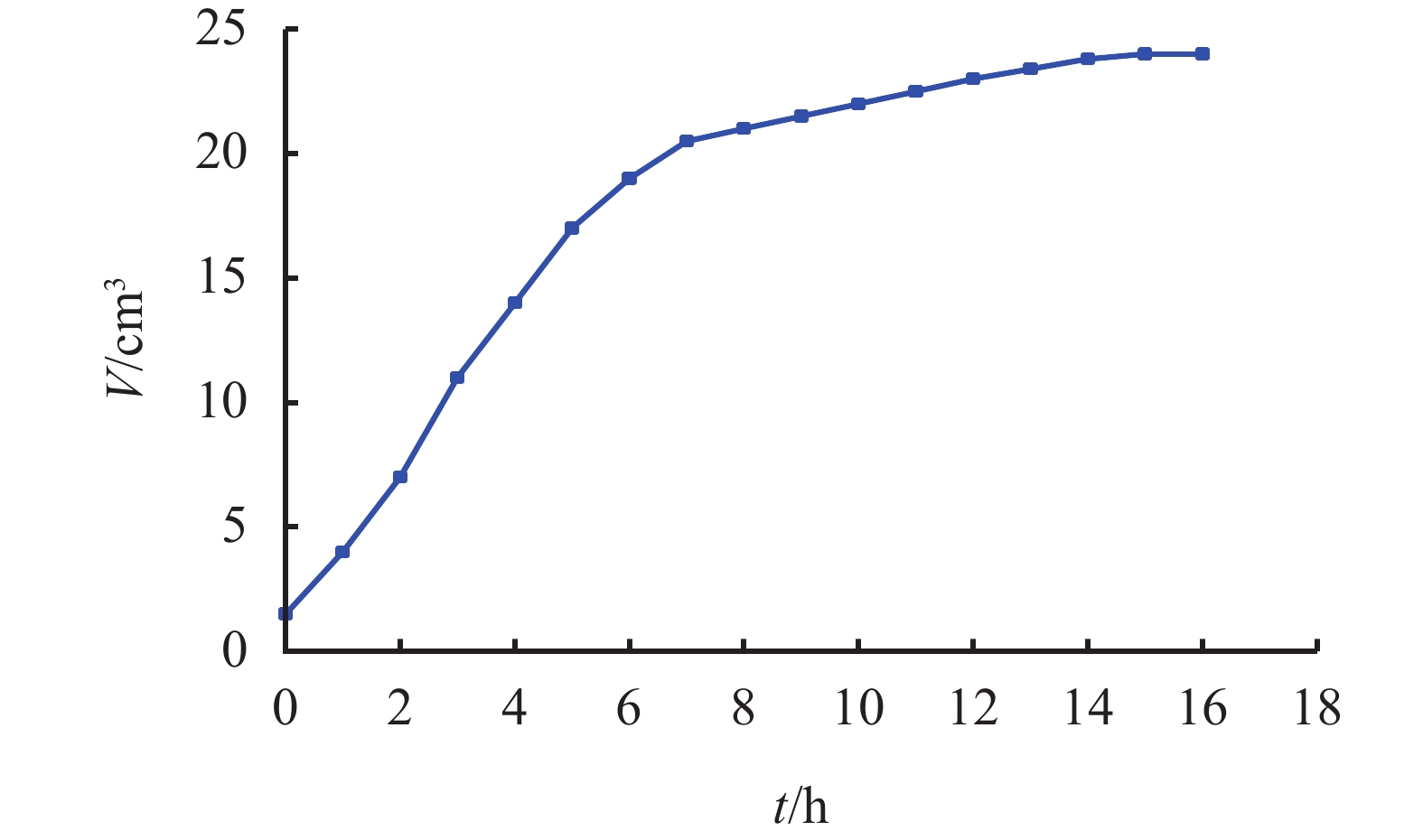

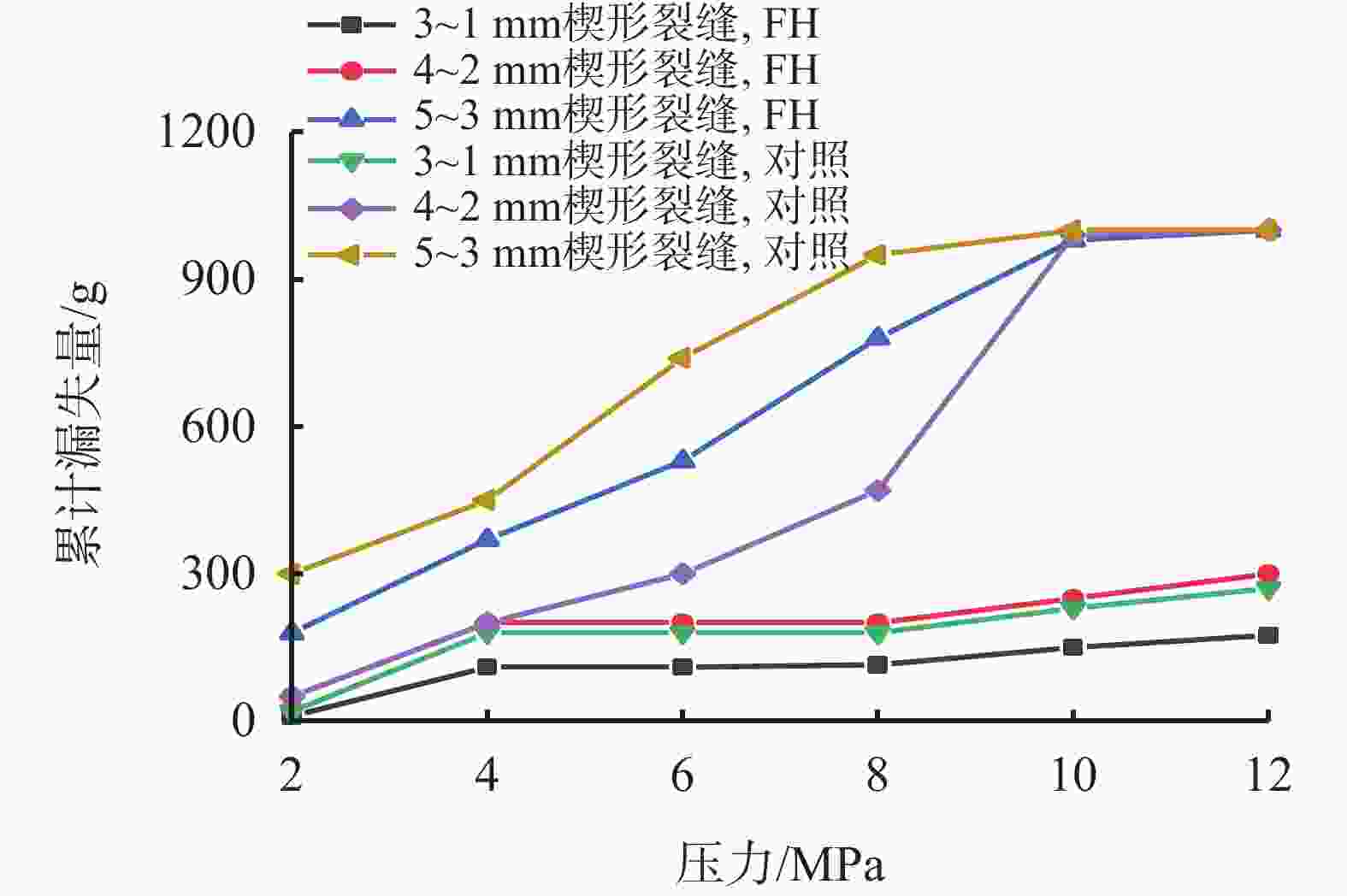

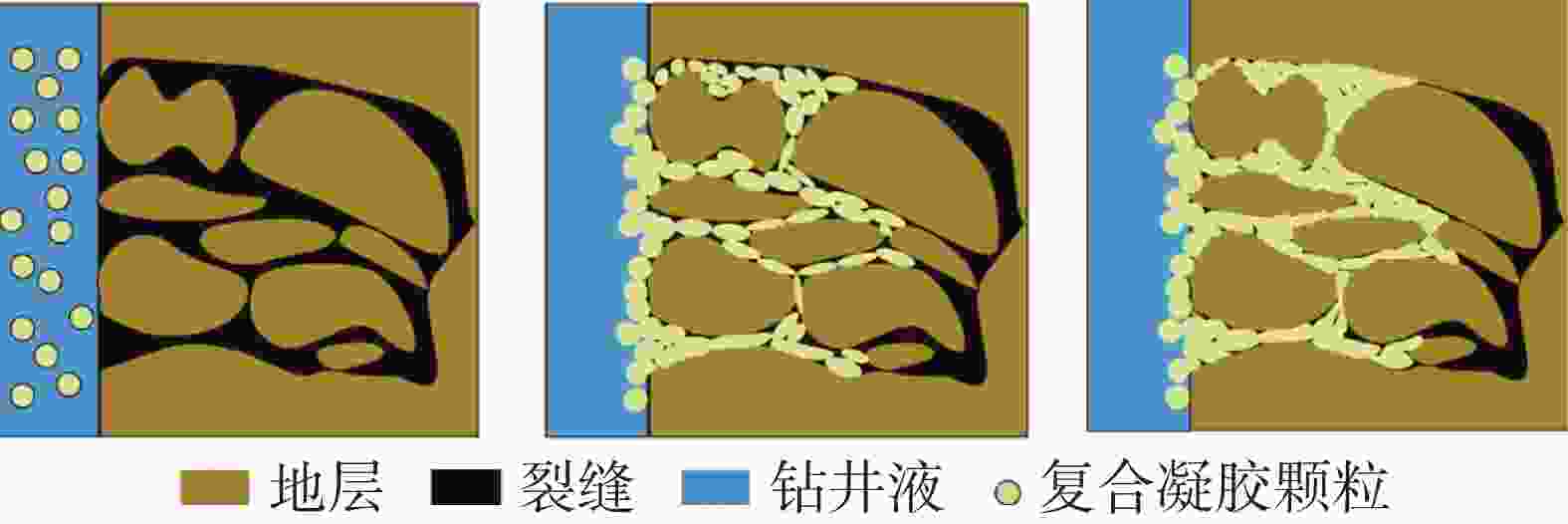

摘要: 针对目前凝胶堵漏材料强度低、韧性较差和成胶时间不可控等问题，以聚丙烯酰胺（PAM）为凝胶主剂、纳米二氧化硅为增强材料、羧甲基纤维素钠（CMC）为增黏材料、酚醛树脂为交联剂，通过物理化学交联反应研发了一种成胶强度高的纳米材料复合聚合物凝胶堵漏剂。通过室内实验得到了复合凝胶堵漏剂的最优制备条件，评价了凝胶堵漏剂的成胶性、膨胀性和裂缝堵漏性能，并分析了凝胶堵漏剂交联机理及裂缝堵漏机理。结果表明，当加入1.5%聚丙烯酰胺、3%纳米二氧化硅、0.6%羧甲基纤维素钠、1.5%交联剂，交联温度为150℃，制备的复合凝胶堵漏剂性能最优，其对应复合凝胶强度为1000 Pa，成胶黏度达6×105 mPa·s，成胶时间2 h。该凝胶堵漏剂具有良好的膨胀性能，可适应不同尺寸的裂缝通道，复合凝胶与惰性材料所形成的复合堵漏配方对1～4 mm裂缝漏层承压能力高达12 MPa（150℃、老化48 h），具有良好的堵漏效果。所研制的复合凝胶堵漏剂制备方便、价格低廉，有望解决大孔隙、大裂缝等复杂高温漏失地层恶性漏失问题。Abstract: Gel lost circulation materials (LCMs) presently in use have several shortcomings such as low strength, poor toughness and uncontrollable gelling time etc. A high gel strength composite nanomaterial and polymer gel LCM has been developed to overcome these shortcomings. The composite nanomaterial and polymer gel LCM is synthesized through physical-chemical crosslinking reaction with raw materials such as polyacrylamide (PAM) as the main gelling agents, nano silica as the strengthening agent, sodium carboxymethylcellulose (Na-CMC) as the viscosifier and phenolic resin as the crosslinking agent. In laboratory experiment, the optimum conditions for preparing the composite gel LCM were determined and the gelling performance, swelling capacity and fracture plugging capability of the composite gel LCM evaluated. The crosslinking mechanisms and fracture plugging mechanisms of the composite gel LCM were also analyzed. It was found through the experiment that the best composite gel LCM can be obtained in the following reaction conditions: 1.5%PAM, 3% nano silica, 0.6%Na-CMC, 1.5%crosslinking agent and temperature for the crosslinking is 150℃. The composite gel LCM obtained in these conditions has gel strength of 1,000 Pa, gel viscosity of 6×105 mPa∙s and gelling time of 2 hours. This composite gel LCM has good swelling performance and can be used to plug fractures of different sizes. An LCM slurry formulated with the composite gel LCM and an inert material, after being used to plug fractures of 1-4 mm in width, formed an LCM barrier across the fractures with pressure bearing capacity of 12 MPa (measured at 150℃ and after aging 48 hours). The composite gel LCM is easy to manufacture and cost effective, and can hopefully be used to solve severe mud loss problem encountered in drilling highly porous and fractured formations.
-
Key words:
- Nanomaterial /
- Polymer /
- Gel /
- Lost circulation material /
- Fracture /
- Mud loss control
-
表 1 不同因素对凝胶成胶性能结果分析
实验组别 因素 成胶时间/
h成胶强度 T/℃ 交联剂/% 1 70 0.5 5.0 F 2 90 0.5 5.0 F 3 110 0.5 4.5 G 4 130 0.5 4.5 G 5 150 0.5 4.0 H 6 170 0.5 4.0 G 7 150 0.7 4.0 G 8 150 0.9 4.0 G 9 150 1.1 3.5 H 10 150 1.3 3.5 H 11 150 1.5 2.0 I 12 150 1.7 2.0 I
下载: 导出CSV
-
[1] 席江军, 侯冠中, 和鹏飞, 等. 防漏堵漏技术及循环堵漏短节在渤海潜山的应用[J]. 石油工业技术监督,2017,33(1):1-4.XI Jiangjun, HOU Guanzhong, HE Pengfei, et al. Application of circulation loss preventing and plugging technology and bypass tool in buried hill formation in Bohai[J]. Technology Supervision in Petroleum Industry, 2017, 33(1):1-4. [2] GUO X Y, DENG Z Z, LI Z Y, et al. The effect of different activators on the performance of an inorganic solidifiable gel plugging fluid[J]. Journal of Natural Gas Science and Engineering, 2016, 34:253-264. doi: 10.1016/j.jngse.2016.05.045 [3] 王明波, 郭亚亮, 方明君, 等. 裂缝性地层钻井液漏失动力学模拟及规律[J]. 石油学报,2017,38(5):597-606.WANG Mingbo, GUO Yaliang, FANG Mingjun, et al. Dynamics simulation and laws of drilling fluid loss in fractured formations[J]. Acta Petrolei Sinica, 2017, 38(5):597-606. [4] 康毅力, 王凯成, 许成元, 等. 深井超深井钻井堵漏材料高温老化性能评价[J]. 石油学报,2019,40(2):215-223.KANG Yili, WANG Kaicheng, XU Chengyuan, et al. High-temperature aging property evaluation of lost circulation materials in deep and ultra-deep well drilling[J]. Acta Petrolei Sinica, 2019, 40(2):215-223. [5] 暴丹, 邱正松, 邱维清, 等. 高温地层钻井堵漏材料特性实验[J]. 石油学报,2019,40(7):846-857.BAO Dan, QIU Zhengsong, QIU Weiqing, et al. Experiment on properties of lost circulation materials in high temperature formation[J]. Acta Petrolei Sinica, 2019, 40(7):846-857. [6] 何绍群, 柏永青, 于田田, 等. 纳米硅藻土增强聚丙烯酰胺凝胶堵剂强度及耐温性[J]. 科学技术与工程,2018,18(29):65-71.HE Shaoqun, BAI Yongqing, YU Tiantian, et al. Strength and temperature tolerance improvement by diatomite doped polyacrylamide gel for water shut-off[J]. Science Technology and Engineering, 2018, 18(29):65-71. [7] 杨瑞杰, 郭继香, 张世岭, 等. 纳米二氧化硅对复合凝胶体系性能影响[J]. 应用化工,2020,49(10):2417-2420, 2436.YANG Ruijie, GUO Jixiang, ZHANG Shiling, et al. Effect of nano-silica on properties of composite gel system[J]. Applied Chemical Industry, 2020, 49(10):2417-2420, 2436. [8] 李子甲, 王敏健, 王美玉, 等. 黄原胶增粘地下交联暂堵剂体系的研究[J]. 应用化工,2018,47(11):2360-2363, 2368.LI Zijia, WANG Minjian, WANG Meiyu, et al. Study on the xanthan gum thickening plugging agent crosslinked underground[J]. Applied Chemical Industry, 2018, 47(11):2360-2363, 2368. [9] 李倍任. 复合离子型聚合物凝胶堵漏剂的研制[D]. 大庆: 东北石油大学, 2015.LI Beiren. Research of composite ionic polymer gel plugging agent[D]. Daqing: Northeast Petroleum University, 2015. [10] 罗明望. 抗高温可控凝胶堵漏技术研究[D]. 荆州: 长江大学, 2021.LUO Mingwang. Study on high-temperature resistance controllable gel plugging technology[D]. Wuhan: Changjiang University, 2021. [11] 于澄. 聚合物凝胶堵漏技术研究[D]. 北京: 中国地质大学(北京), 2016.YU Cheng. Polymer gel plugging technology research[D]. Beijing: China University of Geosciences(Beijing), 2016. [12] 孙金声, 赵震, 白英睿, 等. 智能自愈合凝胶研究进展及在钻井液领域的应用前景[J]. 石油学报,2020,41(12):1706-1718.SUN Jinsheng, ZHAO Zhen, BAI Yingrui, et al. Progress in research of intelligent self-healing gel and its application prospects in the field of drilling fluid[J]. Acta Petrolei Sinica, 2020, 41(12):1706-1718. [13] 张洪利, 郭艳, 王志龙. 国内钻井堵漏材料现状[J]. 特种油气藏,2004,11(2):1-2, 10.ZHANG Hongli, GUO Yan, WANG Zhilong. Lost circulation materials in China[J]. Special Oil & Gas Reservoirs, 2004, 11(2):1-2, 10. [14] 徐盼. 纳米二氧化硅复合水凝胶的制备及其增强机理研究[D]. 北京: 北京科技大学, 2024.XU Pan. Research on the preparation and strengthening mechanism of silica nanocomposite hydrogels[D]. Beijing: University of Science and Technology Beijing, 2024. [15] 颜帮川, 蒋官澄, 胡文军, 等. 高温延迟交联聚丙烯酰胺凝胶堵漏剂的研究[J]. 钻井液与完井液,2019,36(6):679-682.YAN Bangchuan, JIANG Guancheng, HU Wenjun, et al. Study on high temperature delayed crosslinking PAM gel LCM[J]. Drilling Fluid & Completion Fluid, 2019, 36(6):679-682. [16] 杨超, 吴爽, 平善海, 等. 抗高温承压复合堵漏凝胶室内研制及评价[J]. 辽宁化工,2021,50(12):1785-1788, 1792.YANG Chao, WU Shuang, PING Shanhai, et al. Research and evaluation of high temperature and high pressure resistant composite plugging gel[J]. Liaoning Chemical Industry, 2021, 50(12):1785-1788, 1792. [17] TANG X C, YANG H B, GAO Y B, et al. Preparation of a micron-size silica-reinforced polymer microsphere and evaluation of its properties as a plugging agent[J]. Colloids and Surfaces A-Physicochemical and Engineering Aspects, 2018, 547:8-18. [18] ESMAEILNEZHAD E, CHOI H J, SCHAFFIE M, et al. Polymer coated magnetite-based magnetorheological fluid and its potential clean procedure applications to oil production[J]. Journal of Cleaner Production, 2018, 171:45-56. doi: 10.1016/j.jclepro.2017.10.004 [19] TONGWA P, NYGAARD R, BAI B J. Evaluation of a nanocomposite hydrogel for water shut-off in enhanced oil recovery applications: design, synthesis, and characterization[J]. Journal of Applied Polymer Science, 2013, 128(1):787-794. doi: 10.1002/app.38258 [20] 唐孝芬, 李红艳, 刘玉章, 等. 交联聚合物冻胶调堵剂性能评价指标及方法[J]. 石油钻采工艺,2004,26(2):49-53.TANG Xiaofen, LI Hongyan, LIU Yuzhang, et al. Performance evaluation indexes and measures of cross-linked polymer gel for water shutoff and profile control[J]. Oil Drilling & Production Technology, 2004, 26(2):49-53. [21] 赵赛, 葛际江, 朱杰, 等. 油井堵水用高强度PEI冻胶研究[J]. 油田化学,2021,38(3):434-439.ZHAO Sai, GE Jijiang, ZHU Jie, et al. Research on high-strength PEI gel used for oil well water plugging[J]. Oilfield Chemistry, 2021, 38(3):434-439. [22] 孙金声, 雷少飞, 白英睿, 等. 智能材料在钻井液堵漏领域研究进展和应用展望[J]. 中国石油大学学报(自然科学版),2020,44(4):100-110.SUN Jinsheng, LEI Shaofei, BAI Yingrui, et al. Research progress and application prospects of smart materials in lost circulation control of drilling fluids[J]. Journal of China University of Petroleum(Edition of Natural Science), 2020, 44(4):100-110. [23] 贾丽莉, 田陆飞, 刘振, 等. 堵漏材料研究的进展[J]. 材料研究与应用,2011,5(1):14-16, 38.JIA Lili, TIAN Lufei, LIU Zhen, et al. Research progress of lost circulation materials[J]. Materials Research and Application, 2011, 5(1):14-16, 38. -
点击查看大图
图(14) / 表(1)
