Preparation of Environmentally Friendly Nano Lithium Magnesium Silicate-Cellulose-Gelatin Composite Gel and Study on its Ability to Control Mud Losses
-

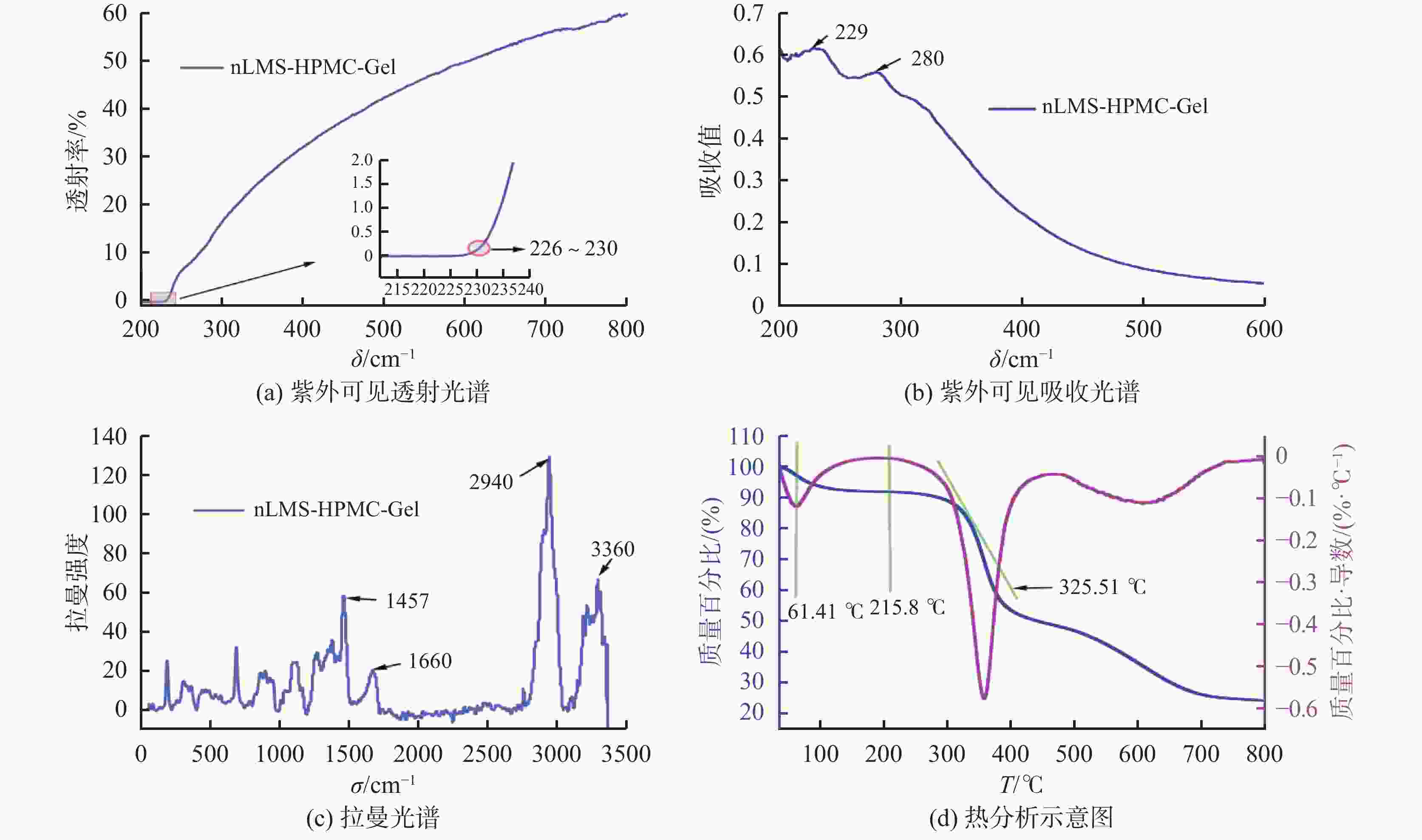

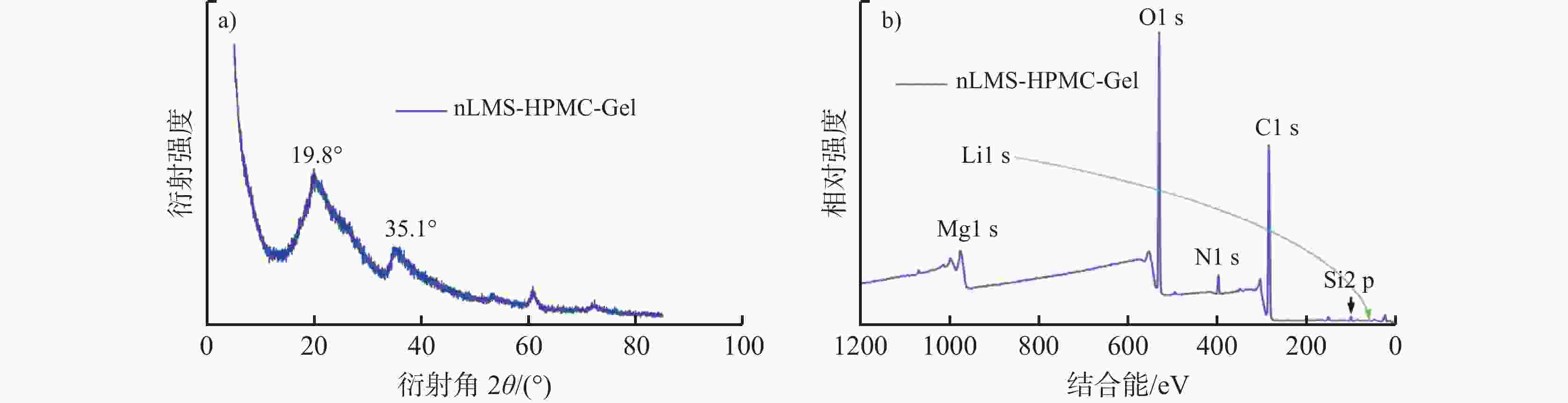

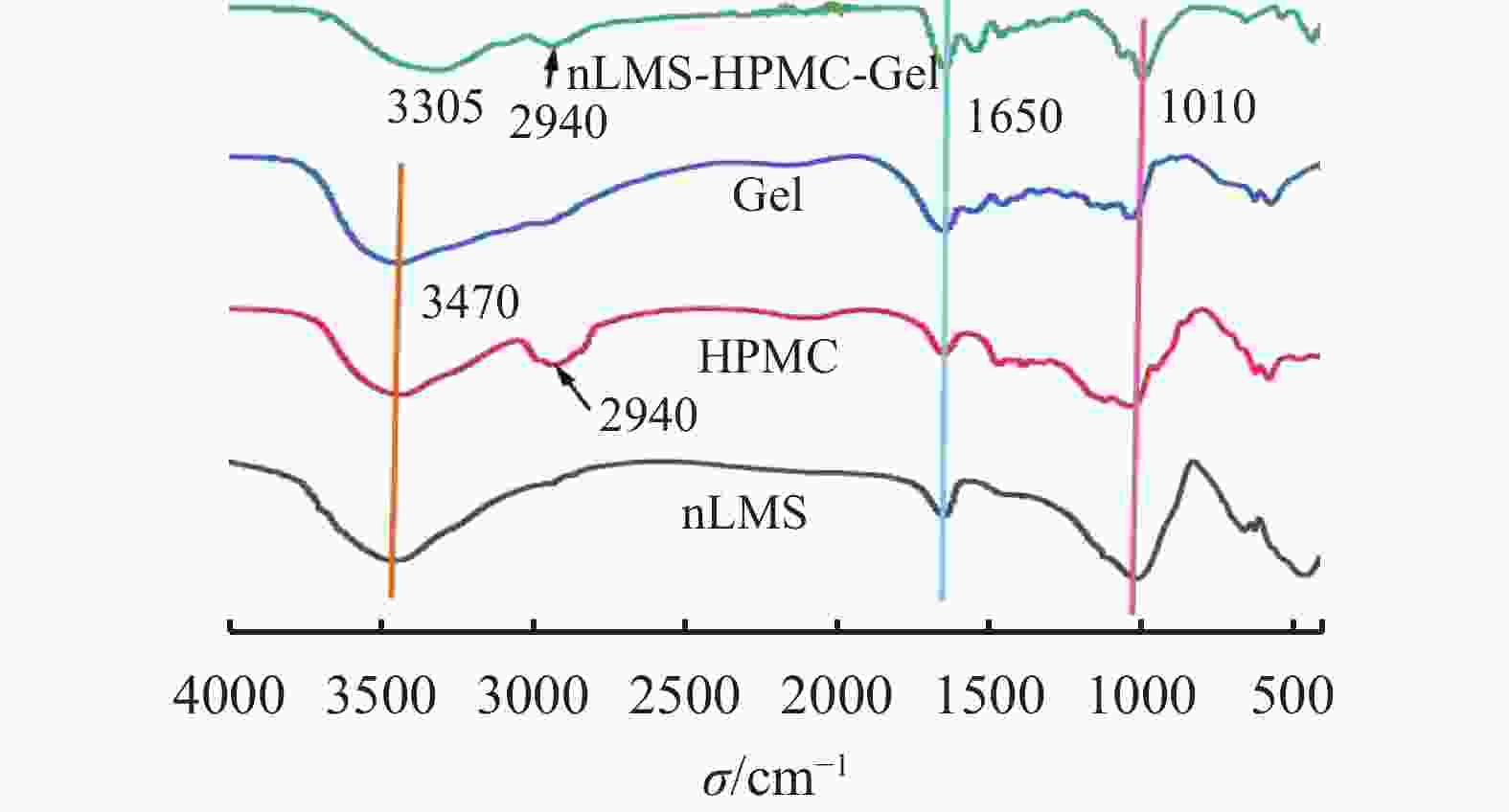

摘要: 在全球石油勘探开发都在严格推行环境保护法规的背景下，研制出一款环保且性能优秀的堵漏剂无疑是应对钻井漏层的高效解决方案。通过溶胶-凝胶法将纳米硅酸镁锂(nLMS)\羟丙基甲基纤维素(HPMC)\明胶(Gel)以固定的质量比例进行高温共混，nLMS粒子在高温下更均匀地分散在混合体系中，其高表面积促进了与Gel\HPMC基质地强黏附性，三者通过氢键与物理纠缠相互作用。利用nLMS和HPMC、Gel之间的物理化学作用，制备了具有高度交联网络结构的水凝胶，最后利用真空冷冻干燥技术，制备了纳米硅酸镁锂/纤维素/明胶复合凝胶(nLMS-HPMC-Gel)颗粒。通过红外分析，紫外分析，热重分析，X射线衍射，高端流变仪等手段对复合凝胶(nLMS-HPMC-Gel)进行表征，同时，对复合凝胶在水基钻井液中的流变性能，封堵性能，承压性能进行了测试。结果表明：nLMS-HPMC-Gel该种凝胶具有良好的降滤失性，堵漏性，承压性，互配性。Abstract: In the context of the global oil exploration and development in the strict implementation of environmental protection regulations, the development of an environmentally friendly and excellent performance of the plugging agent is undoubtedly a highly effective solution to deal with the leakage of drilling wellsIn sol-gel reactions, nano-lithium magnesium silicate (nLMS), hydroxypropyl methyl cellulose (HPMC) and gelatin (Gel) are blended together in a fixed mass ratio. nLMS particles at high temperatures can disperse more evenly in the blend system, and their high specific area promotes their strong adhesion on the surfaces of the Gel\HPMC substrate, these three substances interact with each other through hydrogen bonds and physical entanglement. Through physical-chemical interaction between nLMS and HPMC as well as nLMS and Gel, a hydrogel with highly crosslinked network structure was developed. The hydrogel was then processed by vacuum freeze drying method to produce nLMS-Cellulose-Gelatin particles which were characterized by IR analysis, UV analysis, thermogravimetric analysis, XRD analysis and rheometer measurement. The nLMS-Cellulose-Gelatin particles were measured for their rheological property, plugging performance and pressure bearing capacity in drilling fluids. The results show that nLMS-Cellulose-Gelatin particles have good filtration control property, mud loss control capability, pressure bearing capacity and compatibility with other drilling fluid additives.
-
[1] GAHARWAR A K, CROSS L M, PEAK C W, et al. 2D nanoclay for biomedical applications: regenerative medicine, therapeutic delivery, and additive manufacturing[J]. Advanced Materials (Deerfield Beach, Fla. ), 2019, 31(23):e1900332. doi: 10.1002/adma.201900332 [2] 田园, 谢利, 田卫东. 硅酸镁锂复合材料在再生医学领域的应用[J]. 口腔生物医学,2020,11(1):59-62.TIAN Yuan, XIE Li, TIAN Weidong. Xie Li and Tian weidong, application of Lithium Magnesium silicate composites in regenerative medicine[J]. Oral Biomedicine, 2020, 11(1):59-62. [3] 王明霞, 刘志辉. 硅酸镁锂在生物医学领域的研究进展及应用[J]. 口腔医学研究,2021,37(4):292-295.WANG Mingxia, LIU Zhihui. Research progress and application of Lithium Magnesium silicate in biomedicine[J]. Research in Dental Medicine, 2021, 37(4):292-295. [4] DAVIS R JR, URBANOWSKI R A JR, GAHARWAR A K. 2D layered nanomaterials for therapeutics delivery[J]. Current Opinion in Biomedical Engineering, 2021, 20:100319. doi: 10.1016/j.cobme.2021.100319 [5] 王明霞, 刘志辉, 朱镇, 等. 纳米硅酸镁锂-壳聚糖-海藻酸钠复合支架材料的制备与性能[J]. 高等学校化学学报,2021,42(10):3240-3246.WANG Mingxia, LIU Zhihui, ZHU Zhen, et al. Preparation and properties of Nano Lithium Magnesium silicate-chitosan-sodium alginate composite scaffold materials[J]. Chemical Journal of Chinese Universities, 2021, 42(10):3240-3246. [6] DÁVILA J L, D'ÁVILA M A. Laponite as a rheology modifier of alginate solutions: Physical gelation and aging evolution[J]. Carbohydrate Polymers, 2017, 157:1-8. doi: 10.1016/j.carbpol.2016.09.057 [7] 梁馨予, 石佳博, 陈文川, 等. 硅酸镁锂在骨组织工程中的研究进展[J]. 国际口腔医学杂志,2018,45(3):340-345. doi: 10.7518/gjkq.2018.03.018LIANG Xinyu, SHI Jiabo, CHEN Wenchuan, et al. Research progress on synthetic nanosilicates in bone tissue engineering[J]. International Journal of Stomatology, 2018, 45(3):340-345. doi: 10.7518/gjkq.2018.03.018 [8] 黄赟, 魏书静, 陈思远, 等. 聚乙烯醇/合成硅酸镁锂纳米复合膜的制备研究[J]. 化工新型材料,2018,46(3):138-141,146.HUANG Yun, WEI Shujing, CHEN Siyuan, et al. Study on preparation of poly (vinyl alcohol)/laponite nanocomposite membrane[J]. New Chemical Materials, 2018, 46(3):138-141,146. [9] 郭川川, 陈宁, 王茹. HPMC对PC-CSA复合浆体流变性能的影响及机理分析[J]. 建筑材料学报. (2024-06-06)[2024-11-12].GUO Chuanchuan,CHEN Ning, WANG Ru. Effect and mechanism of HPMC on rheological properties of PC-CSA composite paste[J]. Journal of Building Materials. (2024-06-06)[2024-11-12] . [10] 周慕妍, 李凯, 谢征芸, 等. 新型多糖基二元流变改性剂在香精油微胶囊悬浮中的应用与性能评价[J]. 化工进展. (2024-08-05)[2024-11-12]. doi: 10.16085/j.issn.1000-6613.2024-1067ZHOU Muyan, LI Kai, XIE Zhengyun. et al. Application and performance evaluation of a new polysaccharide-based binary rheological modifier in the suspension of essential oil microcapsules[J]. Advances in Chemical Engineering. (2024-08-05)[2024-11-12]. doi: 10.16085/j.issn.1000-6613.2024-1067 [11] 金文刚, 王勇, 尚美君, 等. 单宁和芦丁氧化前、后对河鲀鱼皮明胶特性的影响[J]. 中国食品学报,2024,24(9):205-215.JIN Wengang, WANG Yong, SHANG Meijun, et al. The effect of tannin and rutin on the properties of gelatin from the skin of the river pike before and after oxidation[J]. Chinese Journal of Food Science, 2024, 24(9):205-215. [12] 王斐昊, 许波, 王平, 等. 纤维素/海藻酸钠/明胶复合水凝胶的制备与性能[J]. 高分子材料科学与工程,2024,40(3):133-142.WANG Feihao, XU Bo, WANG Ping, et al. Preparation and properties of cellulose/Sodium alginate/gelatin composite hydrogel[J]. Polymer Materials Science & Engineering, 2024, 40(3):133-142. [13] 欧阳澜澜, 邓娜, 尹世鲜, 等. 聚乙烯醇—鱼明胶—龙葵花青素复合膜的制备、结构表征及性能分析[J]. 食品与机械,2024,40(4):90-99.OU YANG Lanlan, DENG Na, YIN Shixian, et al. Preparation, structural characterization, and performance analysis of polyvinyl alcohol/fish gelatin/solanum nigrum anthocyanin composite film[J]. Food & Machinery, 2024, 40(4):90-99. [14] 孔德金, 廖旭, 李南希, 等. 壳聚糖/聚乙烯醇/明胶复合薄膜的阻隔和阻燃性能研究[J]. 中国塑料,2024,38(5):28-32.KONG Dejin, LIAO Xu, LI Nanxi, et al. Study on barrier and flame-retardant performance of chitosan/poly (vinyl alcohol)/gelatin composite films[J]. China Plastics, 2024, 38(5):28-32. [15] 姜海洋, 李响, 杨宇, 等. 明胶/羟丙基-β-环糊精/甘油-水复合凝胶的合成及其载药抗菌性能[J]. 济宁医学院学报,2024,47(3):206-210. doi: 10.3969/j.issn.1000-9760.2024.03.008JIANG Haiyang, LI Xiang, YANG Yu, et al. Synthesis of gelatin/hydroxypropyl β-cyclodextrin/glycerol water composite gel and its bacteriostatic performance as drug delivery system[J]. Journal of Jining Medical University, 2024, 47(3):206-210. doi: 10.3969/j.issn.1000-9760.2024.03.008 [16] 白英睿, 张启涛, 孙金声, 等. 杂化交联复合凝胶堵漏剂的制备及其性能评价[J]. 中国石油大学学报(自然科学版),2021,45(4):176-184.BAI Yingrui, ZHANG Qitao, SUN Jinsheng, et al. Synthesis and performance evaluation of a hybrid cross-linked plugging agent[J]. Journal of China University of Petroleum(Edition of Natural Science), 2021, 45(4):176-184. [17] 熊正强, 陶士先, 周风山, 等. 聚合物交联凝胶堵漏性能评价方法研究进展[J]. 西安石油大学学报(自然科学版),2023,38(1):85-94,126.XIONG Zhengqiang, TAO Shixian, ZHOU Fengshan, et al. Progress in plugging PerformanceEvaluation methods of polymer crosslinked gel[J]. Journal of Xi'an Shiyou University(Natural Science), 2023, 38(1):85-94,126. [18] 彭力, 计磊, 邱正松, 等. 新型抗高温凝胶堵漏剂的制备与评价[J]. 能源化工,2023,44(5):64-69.PENG Li, JI Lei, QIU Zhengsong, et al. Preparation and performance evaluation of high temperature resistant composite gel plugging agent[J]. Energy Sources Part A-Recovery Utilization and Environmental Effects, 2023, 44(5):64-69. -
