Castor Oil-Based Environmentally Friendly Waterborne Polyurethane Filming Agent CWPU
-

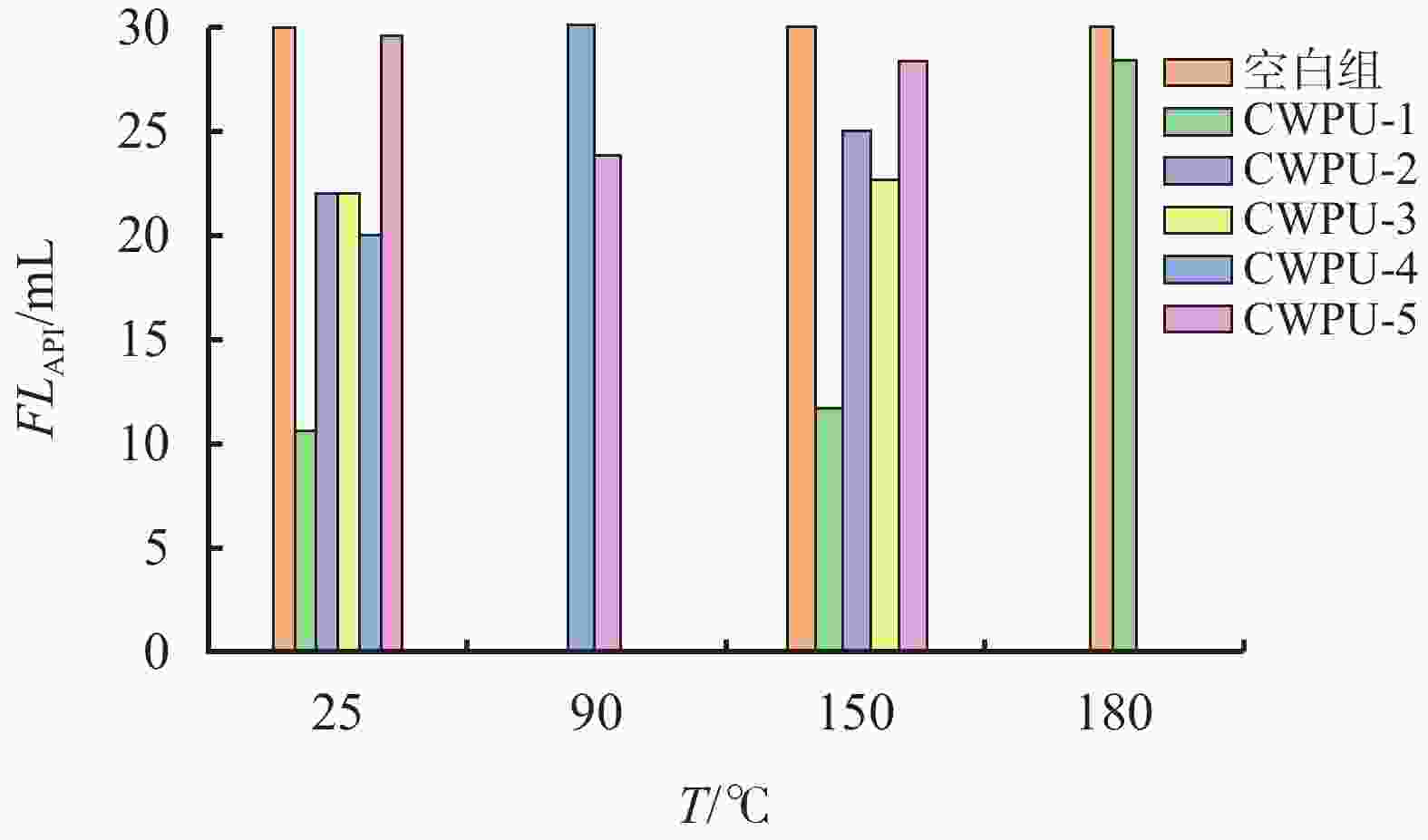

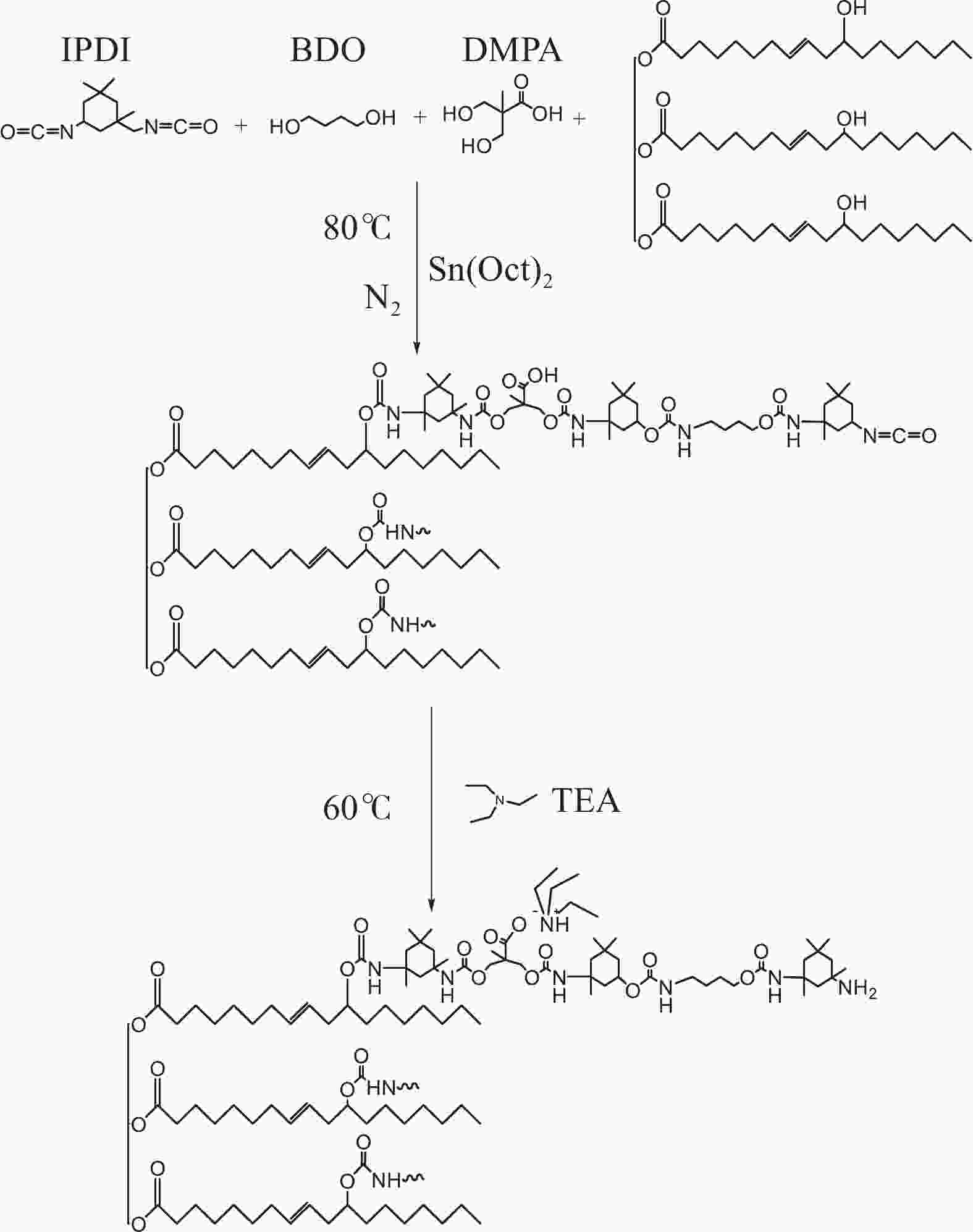

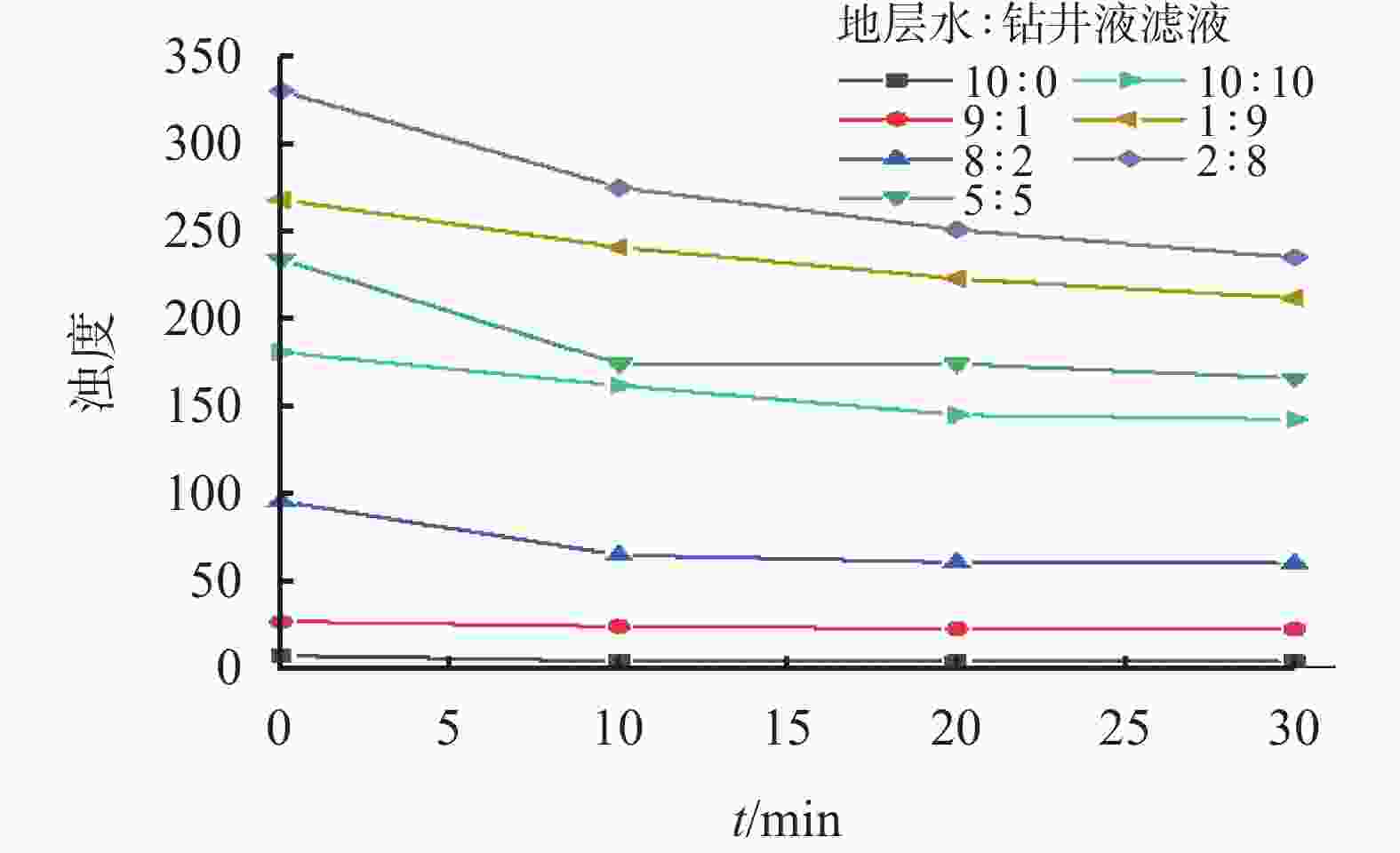

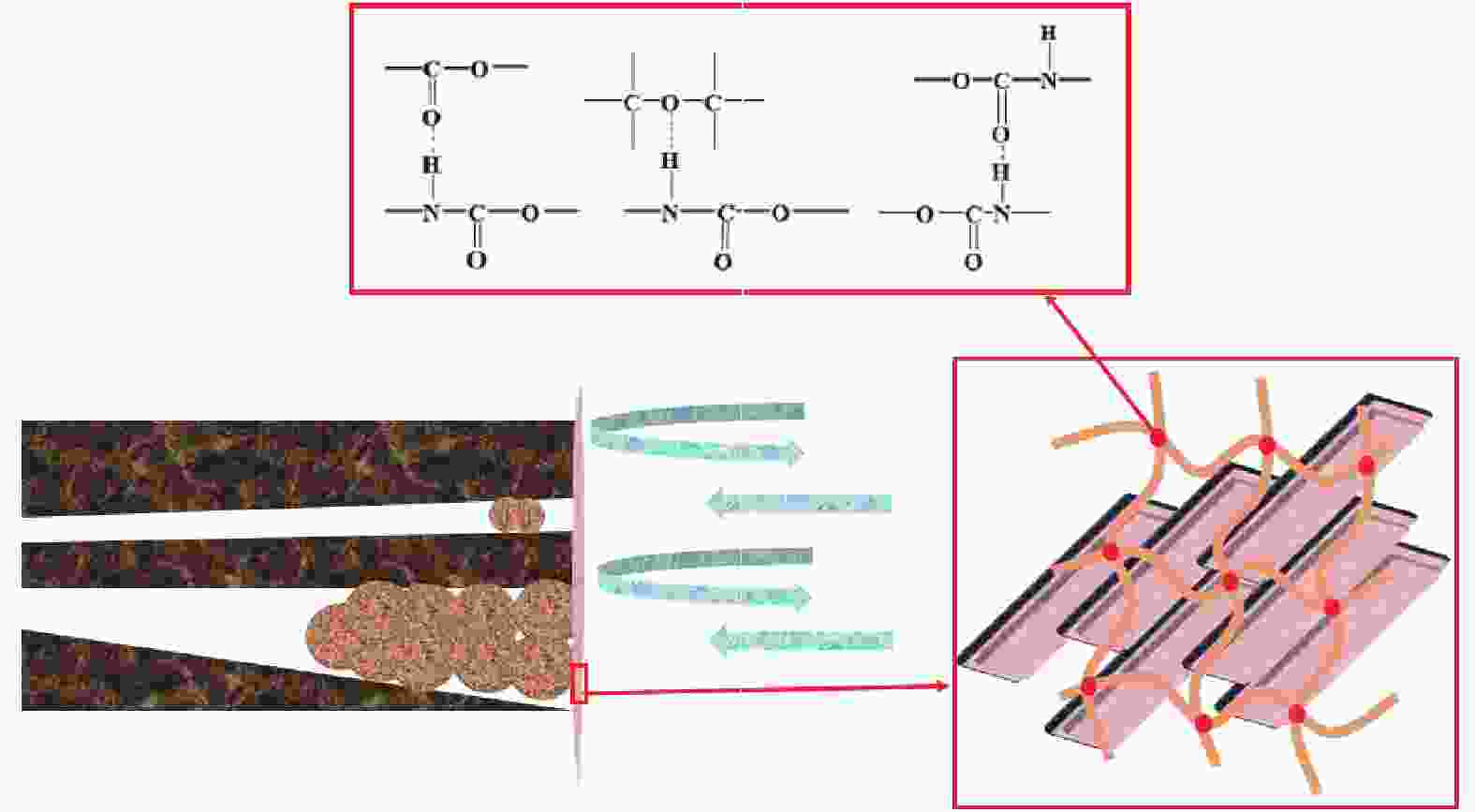

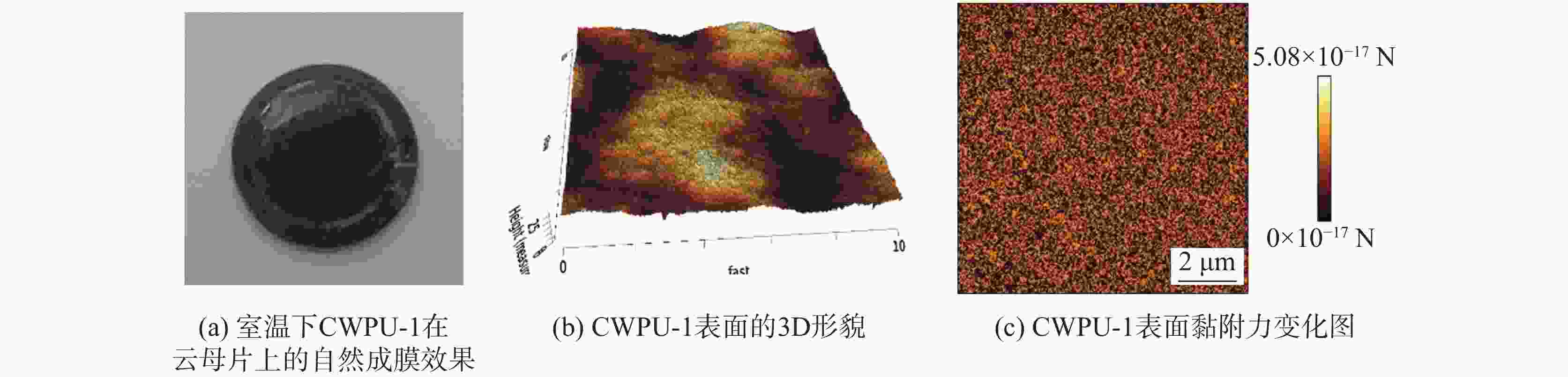

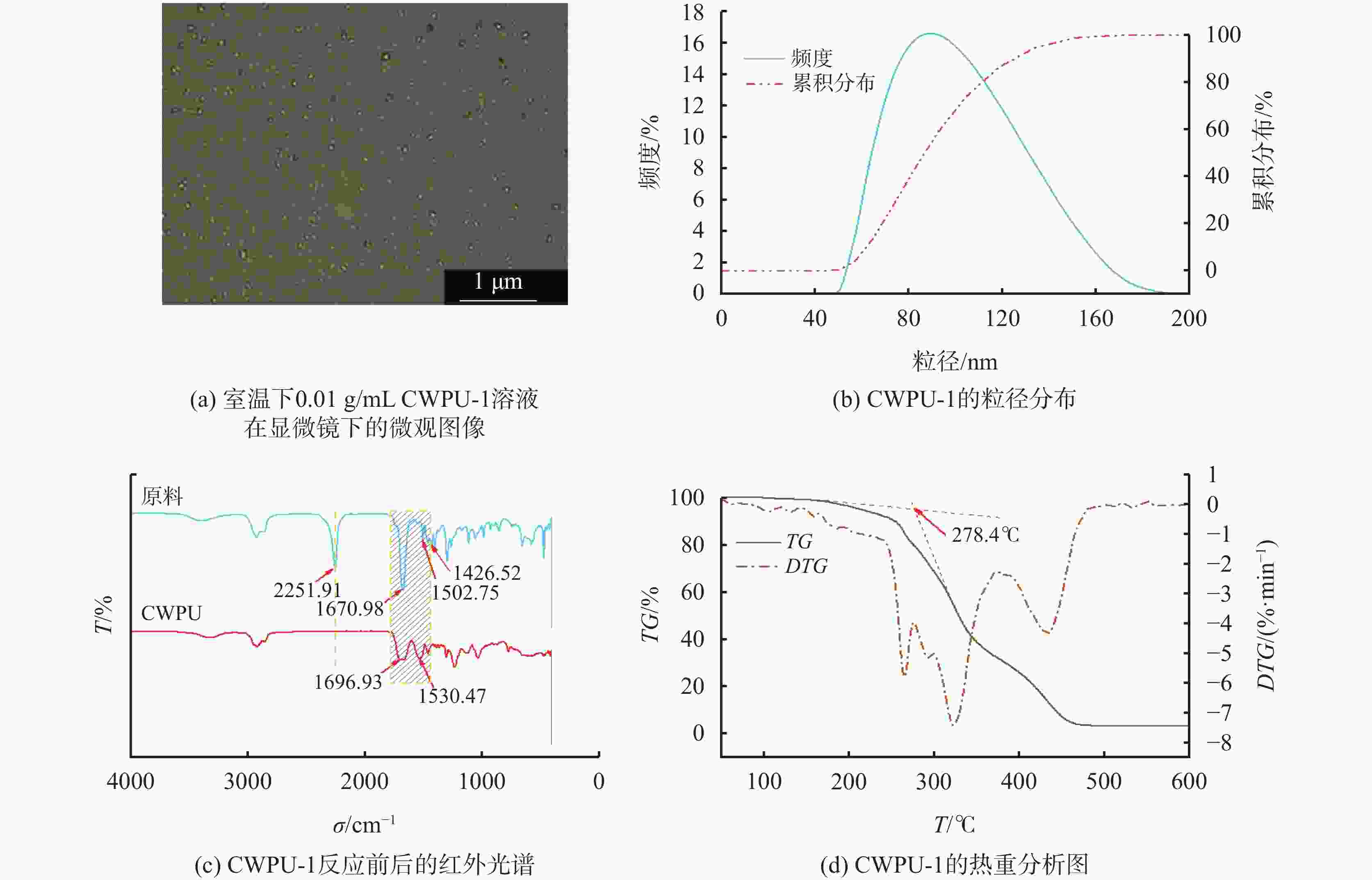

摘要: 随着油气勘探的进行，低渗透油气层易受损害，且难恢复的问题愈加严重，成膜剂的研发有助于解决这一难题。然而，目前成膜剂合成的原料为石油类产品，对环境保护不利。蓖麻油作为一种价廉易得的生物质资源，是自然界中存在的不需要改性就具有羟基的植物油，还含有多种活性化学键，可用于制备各种高效的处理剂。在蓖麻油分子上，引入异佛尔酮和扩链剂，制备了一种环保水性聚氨酯成膜剂CWPU-1。该改性产物粒径主要分布在40～200 nm之间，能够覆盖在微纳米孔隙及裂隙上。通过AFM观察，其微观表面是连续、平滑的，表明聚氨酯成膜剂可通过吸附、疏水缔合和电中和作用形成一层薄膜。这种薄膜使泥饼更加紧致，降低钻井液的滤失量，在常温与150℃老化16 h后的滤失量降低率分别可达64.7%和61.1%。通过黏土小球对抑制性进行评价，结果表明，在添加CWPU-1的钻井液中浸泡6 h后，黏土小球的质量降低率可达46%，可降低小球的吸水膨胀。经使用某地区地层水进行测试，CWPU-1不易发生结垢损害。因此，CWPU-1具有良好的防止钻井液侵入和对储层的保护效果。Abstract: In the exploration of oil and gas resources, low-permeability oil and gas reservoirs are easily damaged and are difficult to recover. This problem has become more and more serious. The development of filming agents can help solve this problem, however, the raw materials currently used for the synthesis of filming agents are generally petroleum products, which is harmful to environmental protection. As an inexpensive and easily available biomass resource, castor oil is a vegetable oil that exists in nature, with hydroxyl groups in its molecular structure that do not need modification. It also contains a variety of active chemical bonds and can be used to prepare various high-efficiency additives. Isophorone and a chain extender were introduced onto the castor oil molecules to prepare an environmentally friendly waterborne polyurethane filming agent CWPU-1. The particle sizes of this modified product are distributed mainly between 40 nm and 200 nm, and the particles can cover the micro-nano pores and fractures. Observation with AFM shows that the microscopic surfaces of the CWPU-1 particles are continuous and smooth, indicating that CWPU-1 can form a film through adsorption, hydrophobic association and electro-neutralization. This film makes the mud cake more compact and reduces the filtration rate of the drilling fluid. The reduction rates of the filtration at room temperature and after aging at 150℃ for 16 hours can reach 64.7% and 61.1% respectively. The inhibitive property was evaluated with small clay balls. The results show that after being soaked in the drilling fluid treated with CWPU-1 for 6 hours, the mass reduction rate of the clay balls can reach 46%, meaning that the water absorption swelling of the clay balls is inhibited. After being tested with the formation water in a certain area, CWPU-1 does not produce scale. It is thus concluded that CWPU-1 has a good effect on preventing the invasion of drilling fluids and protecting reservoirs from being damaged.
-
Key words:
- Castor oil /
- Polyurethane /
- Filming agentt
-
表 1 成膜剂优选参数及加量
原料 TEA/ mol Na2S2O8/ mol R值（—NCO∶—OH） CWPU-1 0.016 0 1.8∶1 CWPU-2 0.080 0 1.8∶1 CWPU-3 0.016 0 1.6∶1 CWPU-4 0.016 0 2.0∶1 CWPU-5 0.016 0.0408 1.8∶1
下载: 导出CSV
表 2 不同成膜剂（加量2%）对蒙脱土浆流变性能的影响
成膜剂 T老化/
℃AV/
mPa·sPV/
mPa·sYP/
PaYP/PV/
Pa/mPa·s空白 未老化 11.5 4 7.5 1.875 150 7.5 6 1.5 0.25 180 10.0 10 1.0 0.10 CWPU-1 未老化 21.5 18 3.5 0.19 150 9.0 8 1.0 0.12 180 12.5 9 3.5 0.38 CWPU-2 未老化 12.0 9 3.0 0.33 150 12.5 9 3.5 0.39 CWPU-3 未老化 14.5 9 5.5 0.61 150 13.5 8 5.5 0.69 180 7.5 1 6.5 6.50 CWPU-4 未老化 18.0 13 5.0 0.38 90 11.0 8 3.0 0.38 CWPU-5 未老化 5.0 5 1.0 0.20 90 11.5 9 2.5 0.28 150 12.0 8 4.0 0.50
下载: 导出CSV
表 3 某油藏地层水性质参数
主要离子/（mg·L−1） 总矿化度/
mg·L−1水型 Na++K+ Ca2+ Mg2+ Ba2+ Cl− SO42− CO32− HCO3− 3430.22 1919.59 31.75 0 8292.66 43.63 0 775.52 14 463.37 CaCl2
下载: 导出CSV
-
[1] 潘丽娟, 孔勇, 牛晓, 等. 环保钻井液处理剂研究进展[J]. 油田化学,2017,34(4):734-738.PAN Lijuan, KONG Yong, NIU Xiao, et al. Research advances of environmental drilling fluid additives[J]. Oilfield Chemistry, 2017, 34(4):734-738. [2] 王先兵, 李维, 杨欢, 等. 环保钻井液发展现状及展望[J]. 油气田环境保护,2019,29(1):9-13. doi: 10.3969/j.issn.1005-3158.2019.01.003WANG Xianbing, LI Wei, YANG Huan, et al. Development status and prospect of environmental protection drilling fluid[J]. Environmental Protection of Oil & Gas Fields, 2019, 29(1):9-13. doi: 10.3969/j.issn.1005-3158.2019.01.003 [3] 艾加伟, 向兴华, 陈俊斌, 等. 环保水基钻井液处理剂研究进展[J]. 精细石油化工,2023,40(2):67-70.AI Jiawei, XIANG Xinghua, CHEN Junbin, et al. Research progress of environmental friendly water-based drilling fluid treatment agents[J]. Speciality Petrochemicals, 2023, 40(2):67-70. [4] 于雷, 张敬辉, 刘宝锋, 等. 微裂缝发育泥页岩地层井壁稳定技术研究与应用[J]. 石油钻探技术,2017,45(3):27-31.YU Lei, ZHANG Jinghui, LIU Baofeng, et al. Study and application of borehole stabilization technology in shale strata containing Micro-Fractures[J]. Petroleum Drilling Techniques, 2017, 45(3):27-31. [5] 路保平, 丁士东, 何龙, 等. 低渗透油气藏高效开发钻完井技术研究主要进展[J]. 石油钻探技术,2019,47(1):1-7. doi: 10.11911/syztjs.2019027LU Baoping, DING Shidong, HE Long, et al. Key achievement of drilling & completion technologies for the efficient development of low permeability oil and gas reservoirs[J]. Petroleum Drilling Techniques, 2019, 47(1):1-7. doi: 10.11911/syztjs.2019027 [6] 侯杰. 硬脆性泥页岩微米-纳米级裂缝封堵评价新方法[J]. 石油钻探技术,2017,45(3):32-37.HOU Jie. A new method of plugging micro/Nano meter cracks in hard, brittle shale[J]. Petroleum Drilling Techniques, 2017, 45(3):32-37. [7] 朱杰, 熊汉桥, 吴若宁, 等. 裂缝性气藏成膜堵气钻井液体系室内评价研究[J]. 石油钻采工艺,2019,41(2):147-151.ZHU Jie, XIONG Hanqiao, WU Ruoning, et al. Laboratory research of sealing and gas-plugging drilling fluid system in fractured gas reservoir[J]. Oil Drilling & Production Technology, 2019, 41(2):147-151. [8] 林永学, 王伟吉, 金军斌. 顺北油气田鹰1井超深井段钻井液关键技术[J]. 石油钻探技术,2019,47(3):113-120. doi: 10.11911/syztjs.2019068LIN Yongxue, WANG Weiji, JIN Junbin. Key drilling fluid technology in the ultra deep section of well Ying-1 in the Shunbei oil and gas field[J]. Petroleum Drilling Techniques, 2019, 47(3):113-120. doi: 10.11911/syztjs.2019068 [9] QUINCHIA L A, DELGADO M A, REDDYHOFF T, et al. Tribological studies of potential vegetable oil-based lubricants containing environmentally friendly viscosity modifiers[J]. Tribology International, 2014, 69:110-117. doi: 10.1016/j.triboint.2013.08.016 [10] YEBOAH A, YING S, LU J, et al. Castor oil (Ricinus communis): a review on the chemical composition and physicochemical properties[J]. Food Science and Technology, 2020, 41:399-413. [11] 王海波, 孔勇, 徐江, 等. 一种钻井液用无荧光润滑剂的研究与应用[J]. 应用化工,2017,46(9):1863-1866. doi: 10.3969/j.issn.1671-3206.2017.09.050WANG Haibo, KONG Yong, XU Jiang, et al. Study and application of a non-fluorescent lubricant for drilling muds[J]. Applied Chemical Industry, 2017, 46(9):1863-1866. doi: 10.3969/j.issn.1671-3206.2017.09.050 [12] KUNDURU K R, BASU A, HAIM ZADA M, et al. Castor Oil-Based biodegradable polyesters[J]. Biomacromolecules, 2015, 16(9):2572-2587. doi: 10.1021/acs.biomac.5b00923 [13] FERREIRA P, PEREIRA R, COELHO J F J, et al. Modification of the biopolymer castor oil with free isocyanate groups to be applied as bioadhesive[J]. International Journal of Biological Macromolecules, 2007, 40(2):144-152. doi: 10.1016/j.ijbiomac.2006.06.023 [14] 杨尚科, 母艳潇, 卞军, 等. 生物基可降解聚氨酯材料的制备及改性研究进展[J]. 工程塑料应用,2024,52(2):187-192. doi: 10.3969/j.issn.1001-3539.2024.02.029YANG Shangke, MU Yanxiao, BIAN Jun, et al. Research progress on preparation and modification of bio-based degradable polyurethanes[J]. Engineering Plastics Application, 2024, 52(2):187-192. doi: 10.3969/j.issn.1001-3539.2024.02.029 [15] 许凯, 李振虎, 李超, 等. 生物基聚酰胺的制备与应用研究进展[J]. 合成树脂及塑料,2023,40(6):58-61,66.XU Kai, LI Zhenhu, LI Chao, et al. Preparation and application research progress of bio-based polyamides[J]. China Synthetic Resin and Plastics, 2023, 40(6):58-61,66. [16] 邱文珂. 水性聚氨酯/聚丙烯酸酯复合乳液制备及其性能研究[D]. 西安: 西安理工大学, 2023.QIU Wenke. Study on preparation and properties of waterborne polyurethane/polyacrylate composite emulsion[D]. Xi'an: Xi'an University of Technology, 2023. [17] FILMON R, RETAILLEAU-GABORIT N, BROSSARD G, et al. Microct and preparation of ß-TCP granular material by the polyurethane foam method[J]. Image Analysis and Stereology, 2011, 28(2):103-112. doi: 10.5566/ias.v28.p103-112 [18] LI X, LI W, WANG X L, et al. Underwater polyurethane adhesive with enhanced cohesion by postcrosslinking of glycerol monomethacrylate[J]. Journal of Applied Polymer Science, 2018, 135(32):46579. doi: 10.1002/app.46579 [19] LI X, CHEN J, LIU J, et al. Preparation and characterization of cellulose Nanofibril-Waterborne polyurethane composite films[J]. Paper and Biomaterials, 2023, 8(1):26-34. doi: 10.26599/PBM.2023.9260003 [20] 滕鑫, 唐颂超, 杨晓玲, 等. 水性聚氨酯聚合及超临界连续发泡虚拟仿真实验研究与实践[J]. 实验室研究与探索,2023,42(9):151-155,176.TENG Xin, TANG Songchao, YANG Xiaoling, et al. Experimental research and practice of waterborne polyurethane polymerization and supercritical continuous foaming[J]. Research and Exploration in Laboratory, 2023, 42(9):151-155,176. [21] XU C, JIA X, DU J, et al. Ultra-strong and solvent-free castor oil-based polyurethane thermally conductive structural adhesives for heat management[J]. Industrial Crops and Products, 2023, 194:116181. doi: 10.1016/j.indcrop.2022.116181 [22] 杨伟, 朱水汉, 陈志明, 等. 含叔胺基聚氮酯的结构与力学性能[J]. 高分子材料科学与工程,1997,13(5):63-67. doi: 10.3321/j.issn:1000-7555.1997.05.013YANG Wei, ZHU Shuihan, CHEN Zhiming, et al. Structure and mechanical properties of polyurethane containing a tertiary amine group[J]. Polymer Materials Science & Engineering, 1997, 13(5):63-67. doi: 10.3321/j.issn:1000-7555.1997.05.013 -
