Preparation and Evaluation of a Drilling Fluid Plugging Agent Used in Ultra-Low Temperature Environment in Antarctic Region
-

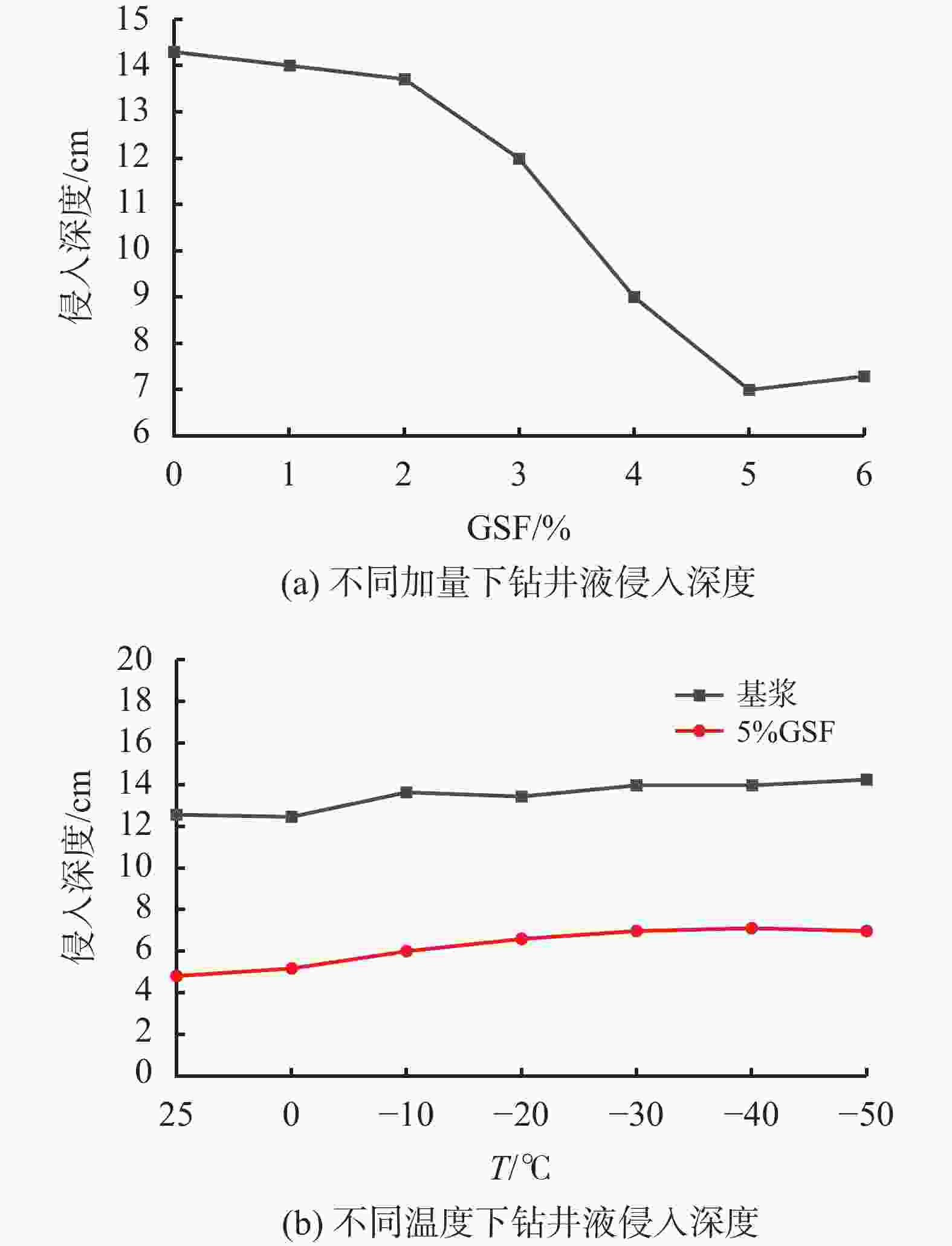

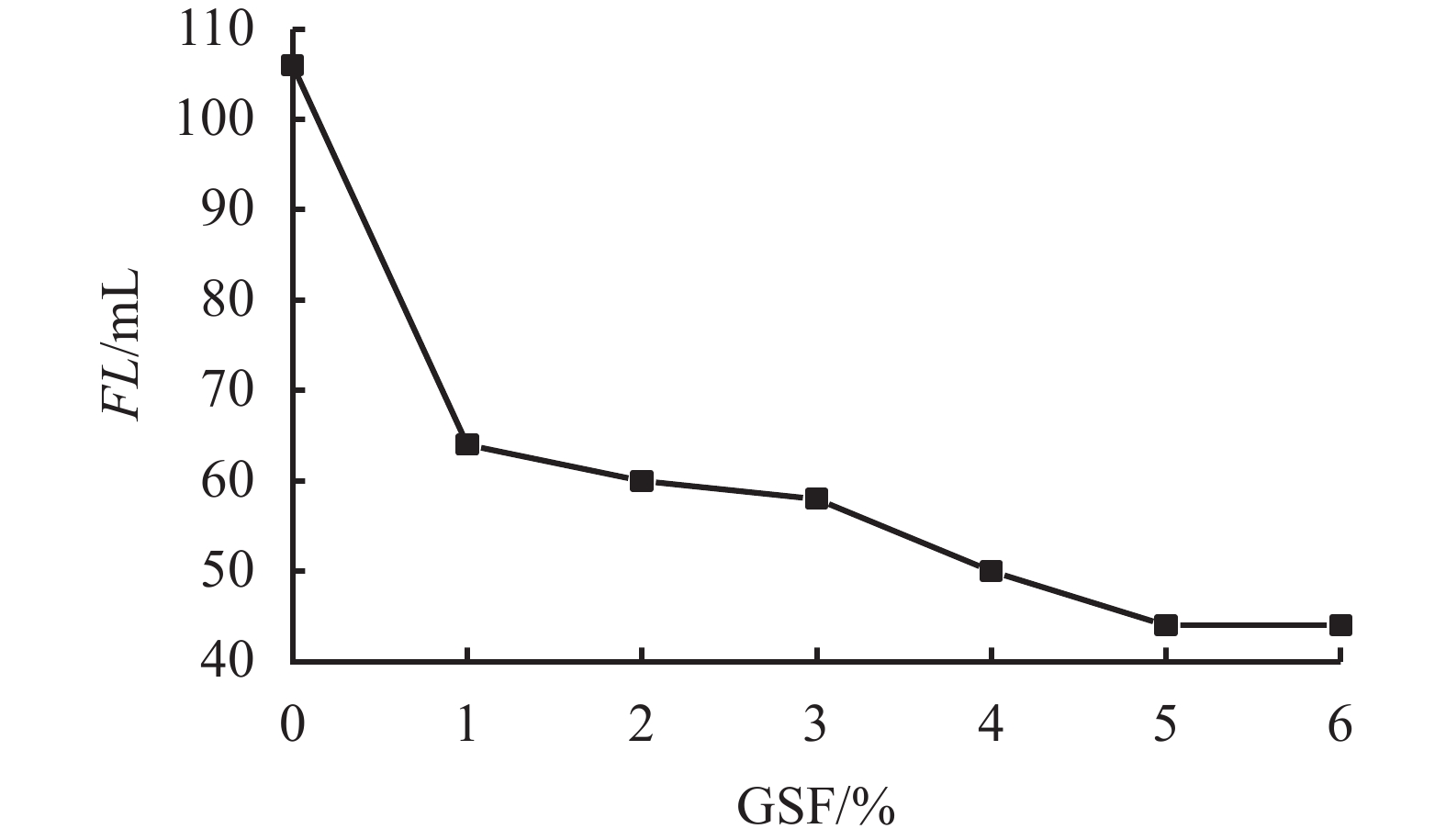

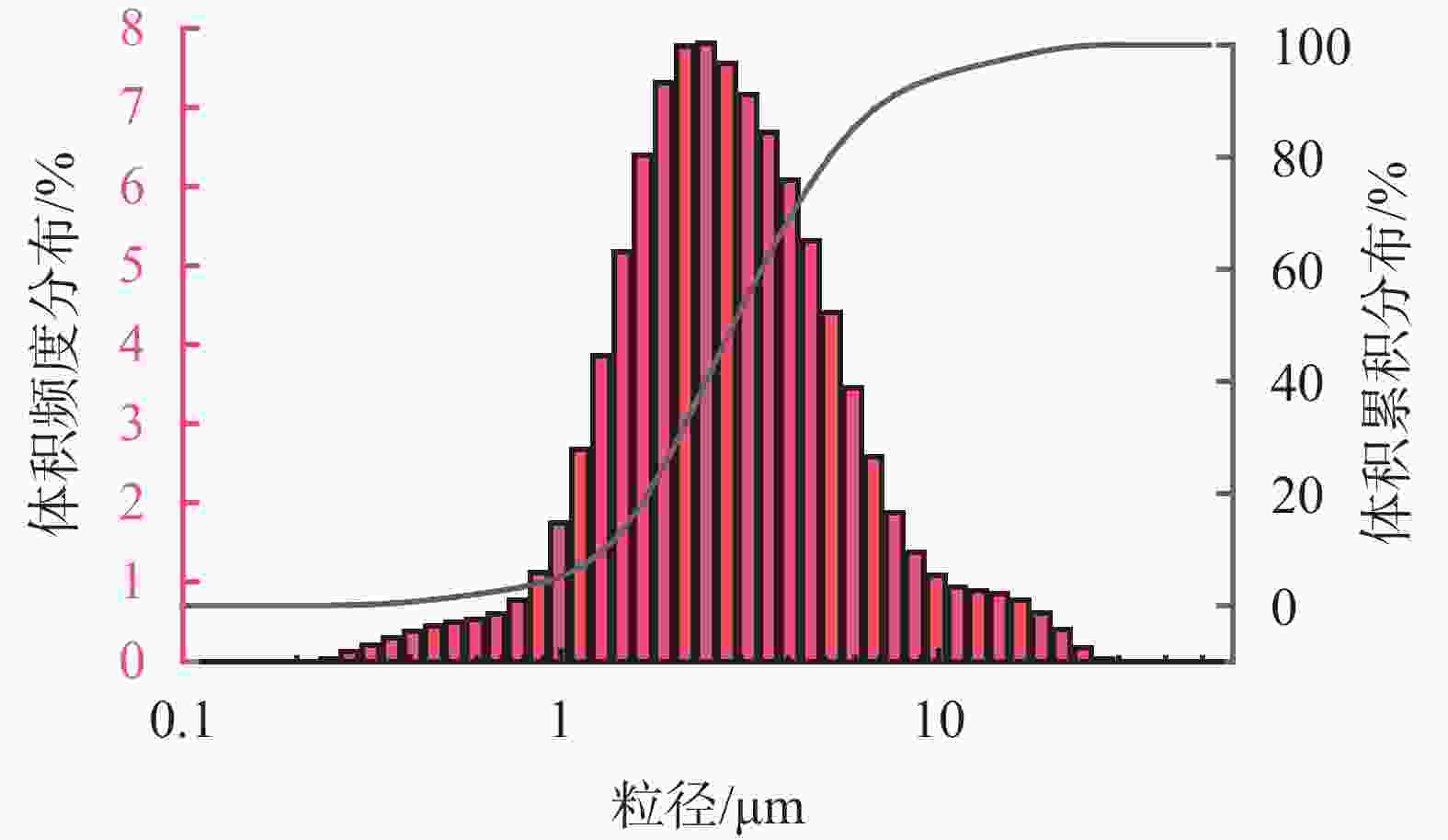

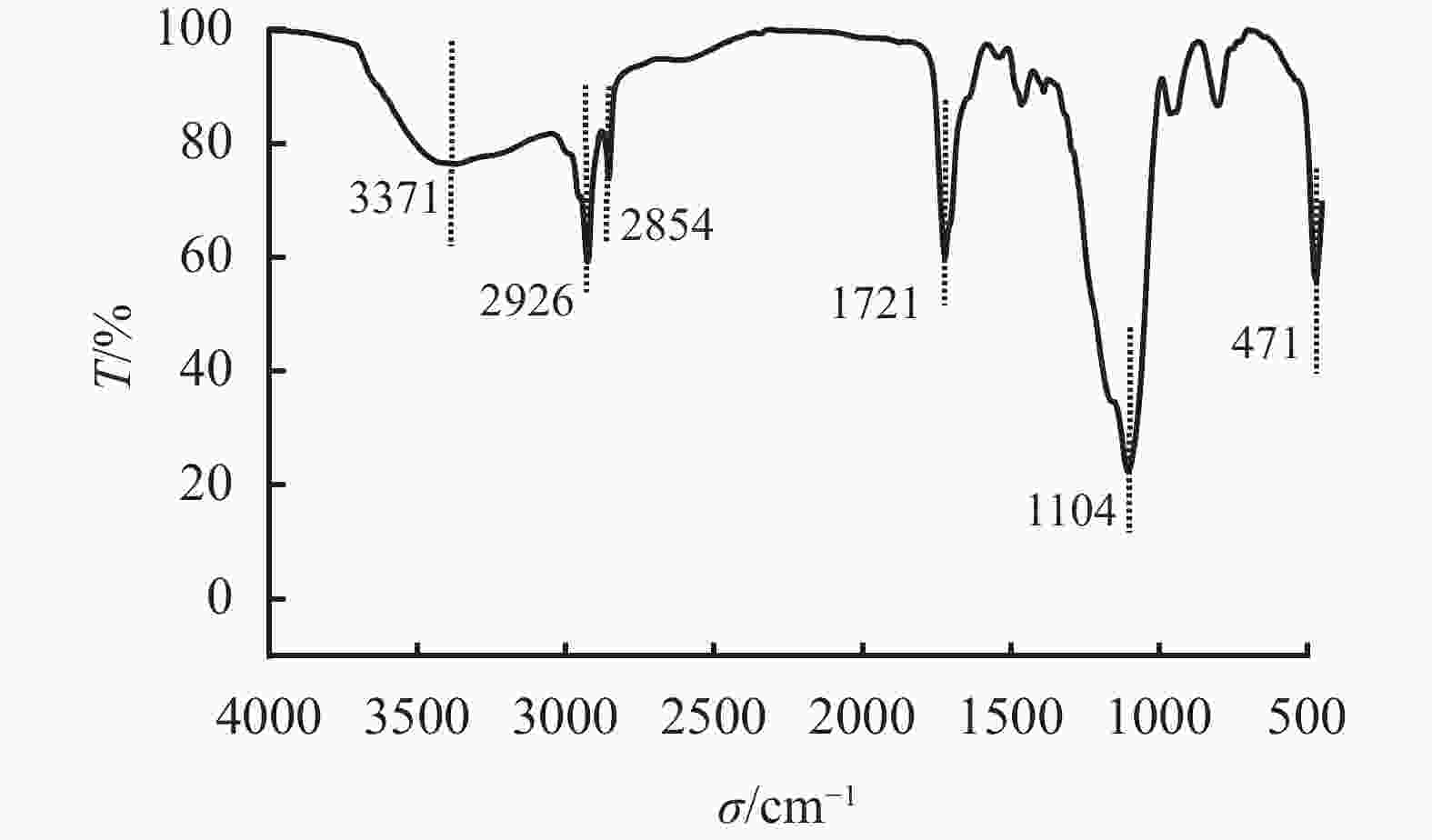

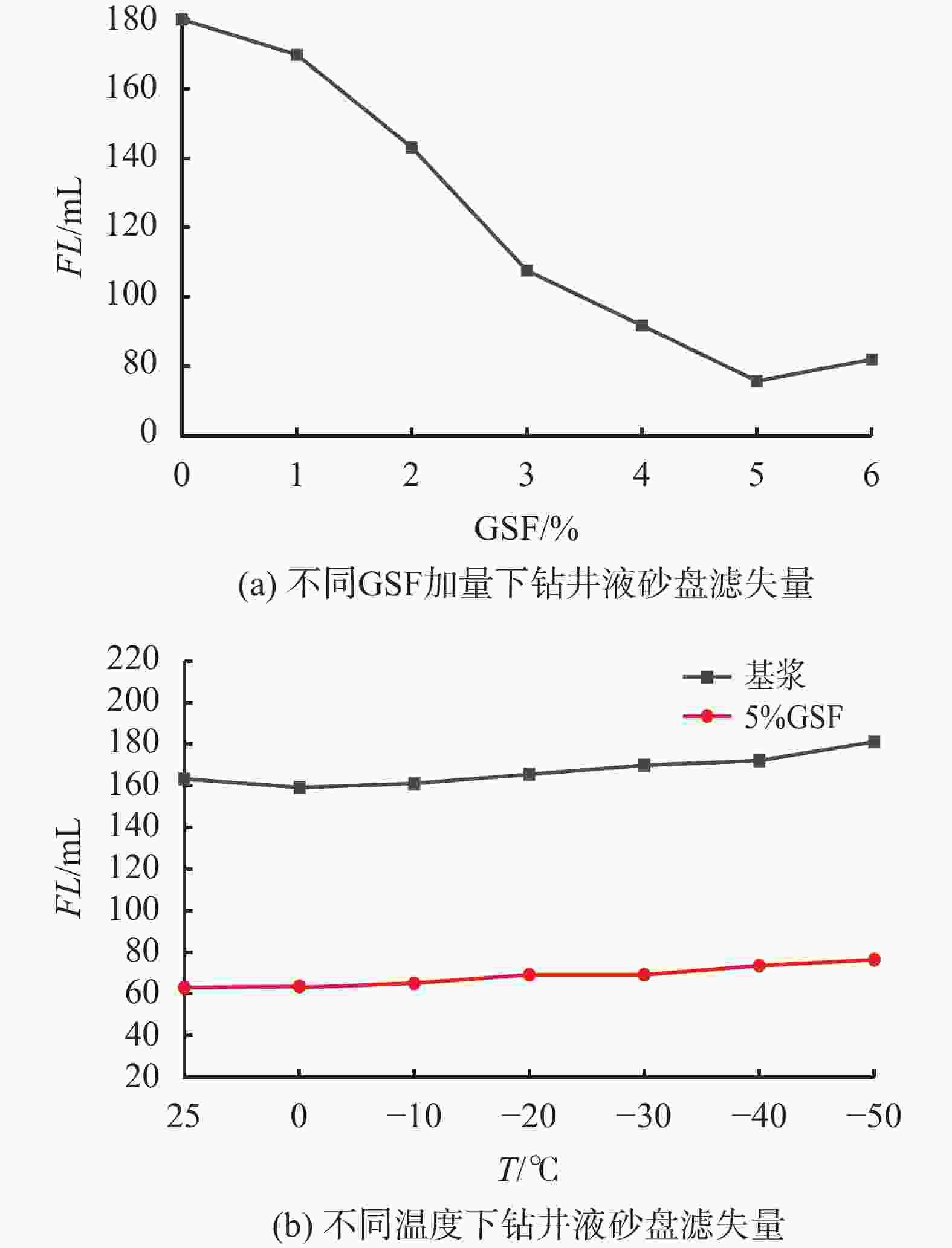

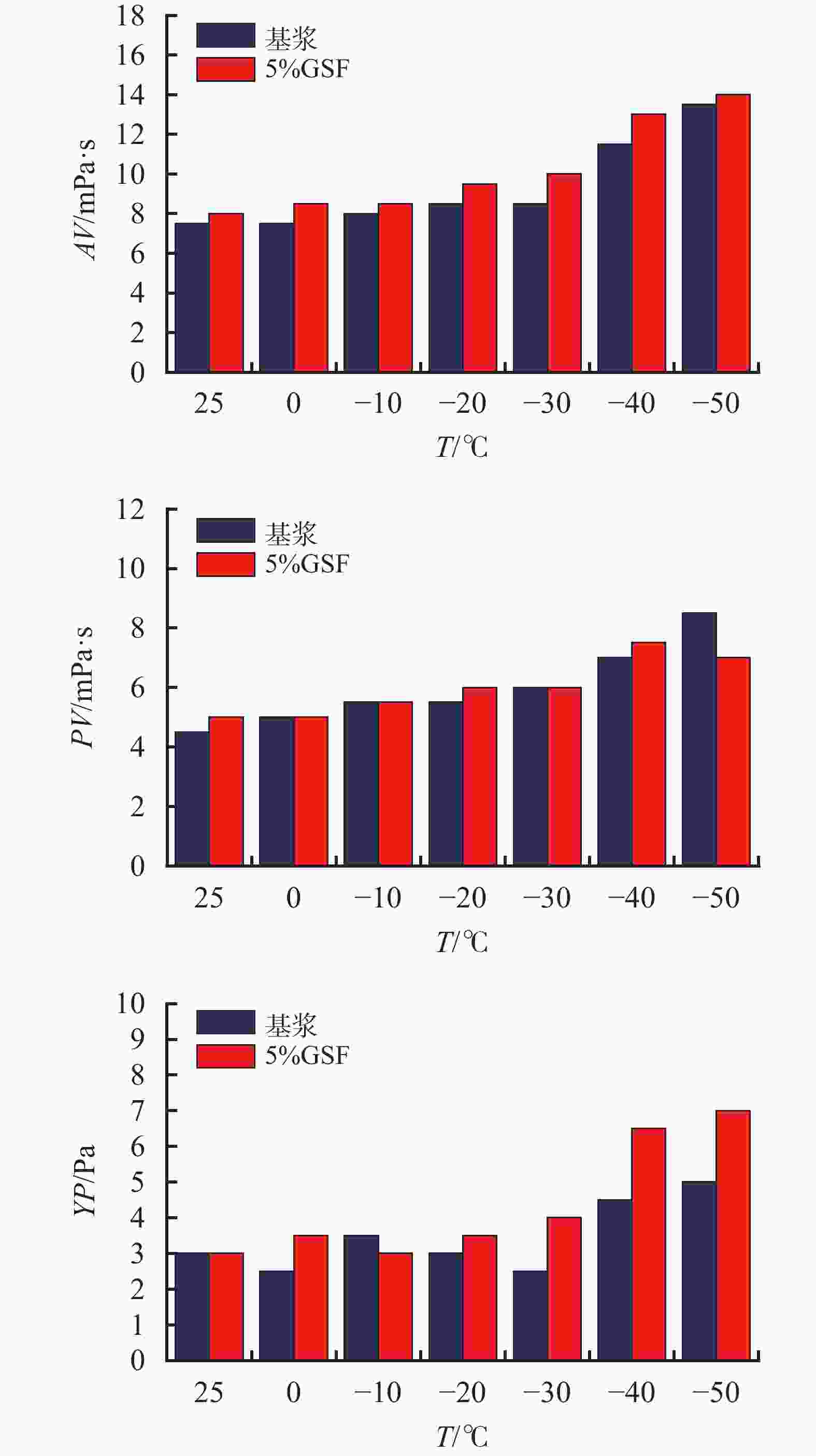

摘要: 针对南极地区冰岩夹层井壁稳定风险高的问题，以纳米二氧化硅、硅烷偶联剂、甲基丙烯酸和甲基丙烯酸月桂脂为原料，利用反相乳液聚合法，研制了一种适用于超低温环境的有机/无机杂化封堵剂（GSF），并通过红外光谱仪、激光粒度仪、金相显微镜对GSF的结构进行了表征。结果表明，封堵剂在−50℃低温钻井液中分散性及配伍性良好，随着封堵剂加量增加，钻井液对砂床的侵入深度越低，砂盘的滤失量减少；当加量为5%时，封堵效果最优，侵入深度为7.0 cm，滤失量为76 mL。Abstract: An organic/inorganic hybrid plugging agent GSF has been developed for dealing with the borehole wall destabilization problem encountered in drilling the ultra-low temperature rocks interbedded in the icesheets in Antarctic area. GSF was synthesized using inverse emulsification polymerization method with such raw materials as nano silica, silane coupling agent, methacrylic acid and lauryl methacrylate. Characterization of the molecular structure of GSF with IR spectrometer, laser particle size analyzer and metallurgical microscope showed that GSF has good dispersion performance and good compatibility with other additives in a drilling fluid in −50℃. Increasing the concentration of GSF, the invasion of the drilling fluid filtrate into the sand-bed tester becomes shallower, and the filtration rate of the drilling fluid decreases. At a concentration of 5%, GSF exhibits optimum plugging performance; the depth of invasion by the filtrate is 7.0 cm and the filter loss is 76 mL.
-
[1] 郭玉琨. 南极地区的油气地质及油气普查工作[J]. 海洋地质动态,1987(6):13-15.GUO Yukun. Oil and gas geology and prospecting work in the Antarctic region[J]. Marine Geology Development, 1987(6):13-15. [2] 杜民, 邓希光, 杨永, 等. 南极罗斯海盆地油气地质条件及资源潜力研究[J]. 极地研究,2016,28(1):113-122.DU Min, DENG Xiguang, YANG Yong, et al. Geological conditions and petroleum resource potential in the Ross Sea Basin, Antarctica[J]. Polar Research, 2016, 28(1):113-122. [3] 张凌, 蒋国盛, 蔡记华, 等. 低温地层钻进特点及其钻井液技术现状综述[J]. 钻井液与完井液,2006,23(4):69-72. doi: 10.3969/j.issn.1001-5620.2006.04.021ZHANG Ling, JIANG Guosheng, CAI Jihua, et al. Overview of low temperature formation characteristics while drilling and available drilling fluid technology[J]. Drilling Fluid & Completion Fluid, 2006, 23(4):69-72. doi: 10.3969/j.issn.1001-5620.2006.04.021 [4] 朱亮, 范西哲, 李军伟, 等. 寒带海域永冻层的力学特性对油气钻井的挑战[J]. 天然气工业,2020,40(11):110-119. doi: 10.3787/j.issn.1000-0976.2020.11.013ZHU Liang, FAN Xizhe, LI Junwei, et al. Challenges of the mechanical properties of permafrost in frigid sea areas to oil and gas drilling[J]. Natural Gas Industry, 2020, 40(11):110-119. doi: 10.3787/j.issn.1000-0976.2020.11.013 [5] SUN J S, WANG Z L, LIU J P, et al. Research progress and development direction of low-temperature drilling fluid for Antarctic region[J]. Petroleum Exploration and Development, 2022, 49(5):1161-1168. doi: 10.1016/S1876-3804(22)60340-9 [6] TALALAY P, HU Z, XU H, et al. Environmental considerations of low-temperature drilling fluids[J]. Annals of Glaciology, 2014, 55(65):31-40. doi: 10.3189/2014AoG65A226 [7] TALALAY P G. Dimethyl siloxane oils as an alternative borehole fluid[J]. Annals of Glaciology, 2007, 47:82-88. doi: 10.3189/172756407786857785 [8] 周小波, 彭洋, 刘瑶. 国内外页岩气油基钻井液纳米随钻封堵材料的调研[J]. 江汉石油职工大学学报,2023,36(1):33-35. doi: 10.3969/j.issn.1009-301X.2023.01.011ZHOU Xiaobo, PENG Yang, LIU Yao. Investigation of nano sealing materials while drilling in shale gas wells with oil-base drilling fluid[J]. Journal of Jianghan Petroleum University of Staff and Workers, 2023, 36(1):33-35. doi: 10.3969/j.issn.1009-301X.2023.01.011 [9] 程荣超, 王建华, 闫丽丽, 等. 油基钻井液用抗高温树脂类封堵剂的研制[J]. 当代化工研究,2021(5):160-162.CHENG Rongchao, WANG Jianhua, YAN Lili, et al. Development of high temperature resistant resin plugging agent for oil-based drilling fluid[J]. Modern Chemical Research, 2021(5):160-162. [10] 李茂森, 李俊材, 范劲, 等. 基于纳米复合材料的强封堵性油基钻井液技术[J]. 广东化工,2023,50(7):31-34. doi: 10.3969/j.issn.1007-1865.2023.07.011LI Maosen, LI Juncai, FAN Jin, et al. Strong plugging oil-based drilling fluid based on nanocomposites[J]. Guangdong Chemical Industry, 2023, 50(7):31-34. doi: 10.3969/j.issn.1007-1865.2023.07.011 [11] 赵艳, 张太亮, 刘杨康, 等. 一种油基钻井液封堵用油溶胀微凝胶的制备及性能评价[J]. 精细石油化工,2022,39(6):10-15. doi: 10.3969/j.issn.1003-9384.2022.06.003ZHAO Yan, ZHANG Tailiang, LIU Yangkang, et al. Preparation and performance evaluation of an oil swelling microgel for oil based plugging drilling fluid[J]. Speciality Petrochemicals, 2022, 39(6):10-15. doi: 10.3969/j.issn.1003-9384.2022.06.003 [12] ZHAO Z, SUN J S, WANG R, et al. Shape memory resin with high temperature resistance for plugging fracture formations drilled with oil-based drilling fluid[J]. Geoenergy Science and Engineering, 2024, 243:213355. doi: 10.1016/j.geoen.2024.213355 [13] BAI Y, LI D X, SU N, et al. Study on the preparation and mechanism of two-dimensional nanomaterials as plugging agents for oil-based drilling fluids[J]. Colloids and Surfaces A-Physicochemical and Engineering Aspects, 2024, 702, Part 1: 134676. [14] 刘锋报, 闫丽丽, 倪晓骁, 等. 一种两性离子聚合物凝胶微球的制备与封堵性能[J]. 钻井液与完井液,2021,38(4):435-441.LIU Fengbao, YAN Lili, NI Xiaoxiao, et al. Preparation and plugging performance of zwitterionic polymer gel micro spheres[J]. Drilling Fluid & Completion Fluid, 2021, 38(4):435-441. [15] 胡德高, 陈小龙. 油基钻井液用丙烯酸树脂类抗高温纳米封堵剂的研制[J]. 应用化工,2021,50(z1):32-36,42. doi: 10.3969/j.issn.1671-3206.2021.z1.008HU Degao, CHEN Xiaolong. Synthesis of an acrylic resin and its use as a high-temperature resistant nano-plugging agent for oil-based drilling fluid[J]. Applied Chemical Industry, 2021, 50(z1):32-36,42. doi: 10.3969/j.issn.1671-3206.2021.z1.008 [16] BAI Y Y, PU W F, JIN X, et al. Review of the micro and Macro mechanisms of gel-based plugging agents for enhancing oil recovery of unconventional water flooding oil reservoirs[J]. Journal of Molecular Liquids, 2024, 399:124318. doi: 10.1016/j.molliq.2024.124318 [17] 王伟, 赵春花, 罗健生, 等. 抗高温油基钻井液封堵剂PF-MOSHIELD的研制与应用[J]. 钻井液与完井液,2019,36(2):153-159. doi: 10.3969/j.issn.1001-5620.2019.02.004WANG Wei, ZHAO Chunhua, LUO Jiansheng, et al. Development and application of the high temperature plugging agent PF-MOSHIELD for oil base drilling fluids[J]. Drilling Fluid & Completion Fluid, 2019, 36(2):153-159. doi: 10.3969/j.issn.1001-5620.2019.02.004 [18] DAI B M, XU P, XU M B, et al. Synthesis and plugging effect of inverse emulsion polymerization microspheres (OPME) for oil-based drilling fluids[J]. Arabian Journal of Chemistry, 2023, 16(4):104577. doi: 10.1016/j.arabjc.2023.104577 [19] 古晗, 马丽华, 林凌, 等. 油基纳米封堵防塌剂的制备和评价[J]. 精细石油化工,2023,40(2):1-5.GU Han, MA Lihua, LIN Ling, et al. Preparation and evaluation of oil-based nano plugging and anti sloughing agent[J]. Speciality Petrochemicals, 2023, 40(2):1-5. [20] 聂凤敏, 张耀, 鱼鲲, 等. 分子结构和拓扑结构选择性调控PMA型添加剂的性能[J]. 石油炼制与化工,2024,55(4):139-150. doi: 10.3969/j.issn.1005-2399.2024.04.047NIE Fengmin, ZHANG Yao, YU Kun, et al. Selectively tailoring the performance of PMA additives by manipulating molecular and topological structures[J]. Petroleum Processing and Petrochemicals, 2024, 55(4):139-150. doi: 10.3969/j.issn.1005-2399.2024.04.047 [21] 杨太顺. 聚甲基丙烯酸酯类柴油低温流动改进剂的合成及性能研究[D]. 上海: 上海应用技术大学, 2021.YANG Taishun. Study on synthesis and properties of polyme-thacrylates as cold flow improvers for diesel fuels[D]. Shanghai: Shanghai University of Applied Technology, 2021. -
