An Oil-Based Drilling Fluid with Varied Particle Size Plugging Agents for Use in the Borehole Collapse and Mud Loss Coexisting Wells in Hongxing Block
-

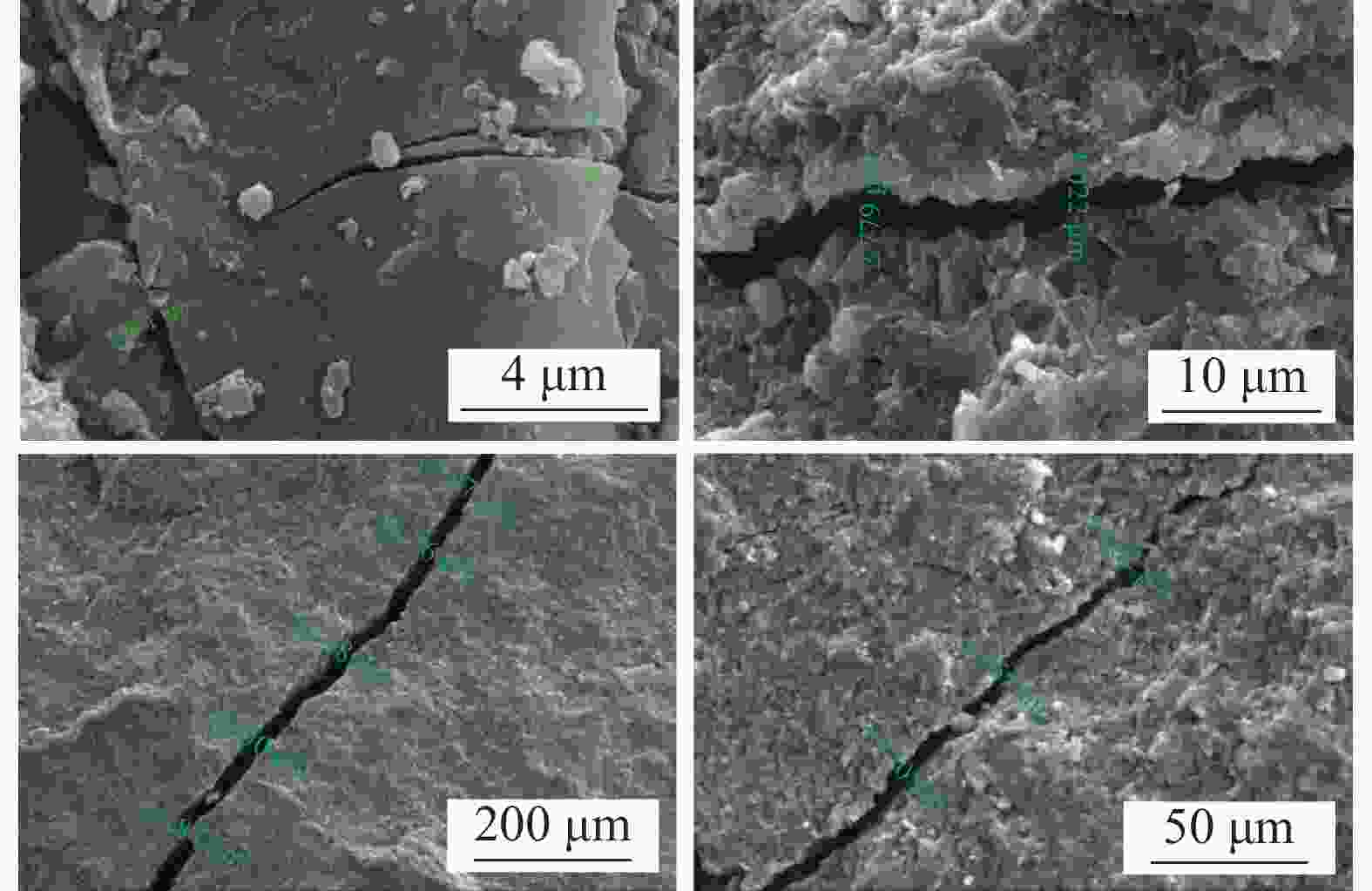

摘要: 红星区块是江汉油田部署在建南构造上主力产气区，中石化页岩气勘探开发的重点区块。该区块飞仙关组、长兴组经多年开采，地层骨架应力低；吴家坪组微纳米裂缝发育。油基钻井液在钻进过程中，井漏、井塌矛盾突出，处理难度大，为此研究形成一套“强封堵、低活度、低黏度高切力”多粒径致密封堵油基钻井液体系，该体系采用4%微纳米复合刚性颗粒、0.5%石墨烯片状材料、1.5%球状凝胶MPA、1%超细矿物纤维等多粒径微纳米材料，协同封堵致密封堵地层微纳米级裂缝，且在井壁上形成致密泥饼，控制钻井液高温高压滤失量低于3 mL；采用高浓度CaCl2水溶液（≥36%）为水相，活度低于该区块页岩岩心活度，提高钻井液的抑制性；采用提切型乳化剂提高钻井液切力，实现高效携带岩屑、掉块，净化井眼的目的。现场应用表明，多粒径致密封堵油基钻井液体系能有效地减缓井漏、井塌复杂，复杂时间降低了90.34%，应用效果显著。Abstract: The Hongxing block, a main gas production area of the Jianghan oilfield in the Jiannan structure, is an important shale gas development area of Sinopec. After many years of development, the matrix stresses of the Feixianguan formation and the Changxing formation become very low, and the Wujiaping formation is highly developed with nanometer-sized fractures and fissures. When drilling with oil-based drilling fluids, mud losses and borehole wall collapse take place frequently and are difficult to deal with. To solve these problems, an oil-based drilling fluid with particles of varied sizes to form dense plugging is developed. This oil-based drilling fluid is characterized with strong plugging capacity, low activity, low viscosity and high gel strengths. It is formulated with 4% nanometer- and micrometer-sized rigid particles, 0.5% graphene flake material, 1.5% spherical gelled MPA, 1% ultra-fine mineral fibers. These materials work together to plug and seal the micrometer-sized and nanometer-sized fractures in the formations and coat the borehole wall with dense mud cakes, thereby controlling the high temperature high pressure filter loss of the drilling fluid below 3 mL. High concentration CaCl2 solution (≥ 36%) as the water phase of the oil-based drilling fluid lowers the activity of the drilling fluid to below that of the formation waters and thus improves the inhibitive capacity of the drilling fluid. The emulsifier used has the ability to increase the gel strengths of the drilling fluid to the required level, hence effectively carrying the drilled cuttings and the sloughing out of hole. In field operation, this drilling fluid effectively mitigates the severity of mud losses and borehole wall collapse. An obvious application result is that the time spent in dealing with downhole troubles is reduced by 90.34%.
-
表 1 红星区块部分井例三开油基钻井液漏失情况
井号 井段/m 段长/m 漏失次数/次 漏失频率/（次/100 m） 漏失总量/m3 进尺消耗量/（m3·m−1） t复杂/d 红页13HF 3200～4410 1210 21 1.736 1032.55 0.113 104.42 红页5HF 4335～5000 665 5 0.752 216.02 0.118 13.68 红页35HF 3008～6435 3427 3 0.088 257.92 0.121 17.75 红页26HF 4049～4891 842 8 0.950 477.40 0.112 15.23
下载: 导出CSV
表 4 不同封堵钻井液配方的基础性能
配方 PV/
mPa·sYP/
PaES/
VFLHTHP/
mL40～60目
砂床封闭
滤失量/mL1# 30 7.5 0.25 660 10.0 1#+常用封堵配方 34 8.0 0.24 650 6.2 2# 32 8.5 0.27 750 1.5 注：密度均为1.30 g·cm−3 ；老化条件为120 ℃、16 h；测试温度为65 ℃/50 ℃；FLHTHP测试条件为120 ℃、3.5 MPa。常用封堵配方：3%天然沥青+5%超细碳酸钙（800目）+2%
竹纤维。
下载: 导出CSV
表 5 加入不同乳化剂后白油基钻井液的基础性能
配
方AV/
mPa·sPV/
mPa·sYP/
PaYP/PV/
Pa/mPa·sGel/
Pa/PaES/
V3# 26 22 4 0.18 2.5/5.0 458 4# 33 21 12 0.57 9.0/12.5 987 5# 32 22 10 0.45 8.0/11.0 998 注：密度均为1.36 g·cm−3；老化条件为120 ℃、16 h；60 ℃下测试流变、50 ℃下测试破乳电压 。
下载: 导出CSV
表 6 多粒径致密封堵钻井液在红星区块的应用
应用前后 漏失次
数/次漏失频率/
次/100 m漏失总
量/m3进尺消耗
量/（m3/m）t复杂/
d应用前 37.00 0.60 1983.89 0.116 151.08 应用后 14.00 0.27 410.00 0.088 14.60 降幅/% 62.16 54.46 79.33 21.14 90.34
下载: 导出CSV
表 7 红页5HF井应用井段情况对比
应用前后 井段/m 段长/m 漏失次数/次 漏失频率/（次/100 m） 漏失总量/m3 进尺消耗量/（m3/m） t复杂/d 应用前 4335～5000 665 5 0.752 216.02 0.118 13.68 应用后 5000～6218 1218 2 0.164 40.90 0.093 4.41
下载: 导出CSV
-
[1] 宋腾,李世臻,张焱林,等. 鄂西地区上二叠统海相页岩气富集条件差异与控制因素——以红星区块吴家坪组二段和恩施地区大隆组为例[J]. 天然气地球科学,2023,34(8):1425-1441.SONG Teng, LI Shizhen, ZHANG Yanlin, et al. Gas differential enrichment characteristics and controlling factors of upper permian marine shale in western Hubei area: case study of Wujiaping formation Ⅱ in Hongxing block and dalong formation in Enshi area[J]. Natural Gas Geoscience, 2023, 34(8):1425-1441. [2] 刘欠. 红星地区吴家坪组页岩气储层含气性测井评价[J]. 江汉石油职工大学学报,2023,36(2):35-38.LIU Qian. Logging evaluation of gas—bearing potential in wujiaping formation shale gas reservoir in Hongxing Area[J]. Journal of Jianghan Petroleum University of Staff and Workers, 2023, 36(2):35-38. [3] 李科,贾江鸿,于雷,等. 页岩油钻井漏失机理及防漏堵漏技术[J]. 钻井液与完井液,2022,39(4):446-450.LI Ke, JIA Jianghong, YU Lei, et al. Mechanisms of lost circulation and technologies for mud loss prevention and control in shale oil drilling[J]. Drilling Fluid & Completion Fluid, 2022, 39(4):446-450. [4] 向雄,陈缘博,张立权,等. D气田衰竭疏松石英砂岩浅气层漏失机理及防漏技术[J]. 钻井液与完井液,2020,37(5):613-619.XIANG Xiong, CHEN Yuanbo, ZHANG Liquan, et al. Mud losses into depleted loose quartz sandstone shallow gas zones in gas field D: mechanisms and preventing technology[J]. Drilling Fluid & Completion Fluid, 2020, 37(5):613-619. [5] 刘腾蛟,杨中锋,陈亚宁,等. 石墨烯在钻井液中的研究进展[J]. 石油化工应用,2022,41(1):16-20, 26.LIU Tengjiao, YANG Zhongfeng, CHEN Yaning, et al. Research progress of graphene in drilling fluids[J]. Petrochemical Industry Application, 2022, 41(1):16-20, 26. [6] 古晗,马丽华,林凌,等. 油基纳米封堵防塌剂的制备和评价[J]. 精细石油化工,2023,40(2):1-5.GU Han, MA Lihua, LIN Ling, et al. Preparation and evaluation of oil-based nano plugging and anti sloughing agent[J]. Speciality Petrochemicals, 2023, 40(2):1-5. [7] 罗平亚,李文哲,代锋,等. 四川盆地南部龙马溪组页岩气藏井壁强化钻井液技术[J]. 天然气工业,2023,43(4):1-10.LUO Pingya, LI Wenzhe, DAI Feng, et al. Strengthening drilling fluid technology for shale gas reservoirs in the Longmaxi Formation, southern Sichuan Basin[J]. Natural Gas Industry, 2023, 43(4):1-10. [8] 张世锋,秦栋辉,袁卓,等. 抗温改性氧化石墨烯基封堵防塌剂的研制及现场应用[J]. 油田化学,2022,39(4):577-583.ZHANG Shifeng, QIN Donghui, YUAN Zhuo, et al. Development and field application of temperature-resistant modified graphene oxide-based plugging and anti-collapse agent[J]. Oilfield Chemistry, 2022, 39(4):577-583. [9] 耿黎东,王敏生,蒋海军,等. 石墨烯在石油工程中的应用现状与发展建议[J]. 石油钻探技术,2019,47(5):80-85.GENG Lidong, WANG Minsheng, JIANG Haijun, et al. The status of the development of graphene applications in petroleum engineering[J]. Petroleum Drilling Techniques, 2019, 47(5):80-85. [10] 刘浩童,刘玉栋,段晓苗,等. 页岩稳定剂氧化石墨烯的研制与评价[J]. 断块油气田,2021,28(6):765-768,791.LIU Haotong, LIU Yudong, DUAN Xiaomiao, et al. Research and evaluation of graphene oxide as shale stabilizer[J]. Fault-Block Oil and Gas Field, 2021, 28(6):765-768,791. [11] 刘文堂,郭建华,李午辰,等. 球状凝胶复合封堵剂的研制与应用[J]. 石油钻探技术,2016,44(2):34-39.LIU Wentang, GUO Jianhua, LI Wuchen, et al. The development and application of a microsphere gel composite plugging agents[J]. Petroleum Drilling Techniques, 2016, 44(2):34-39. [12] 王中华. 油基钻井液技术[M]. 北京: 中国石化出版社, 2019.WANG Zhonghua. Oil based drilling fluid technology[M]. Beijing: China Petrochemical Press, 2019. -
