Experimental Study on Degradable PGA as Temporary Plugging Agent in Drill-in Fluids
-

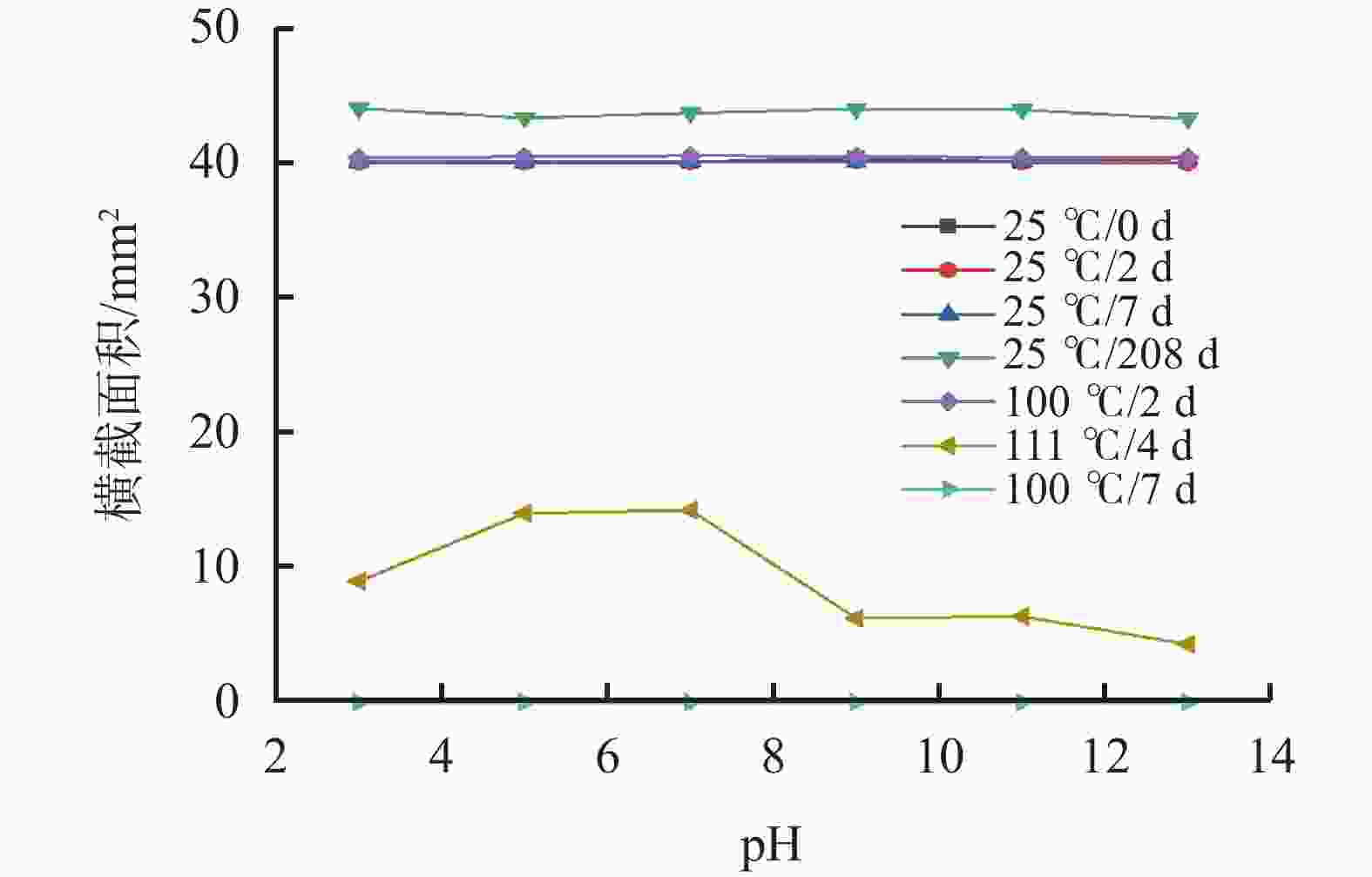

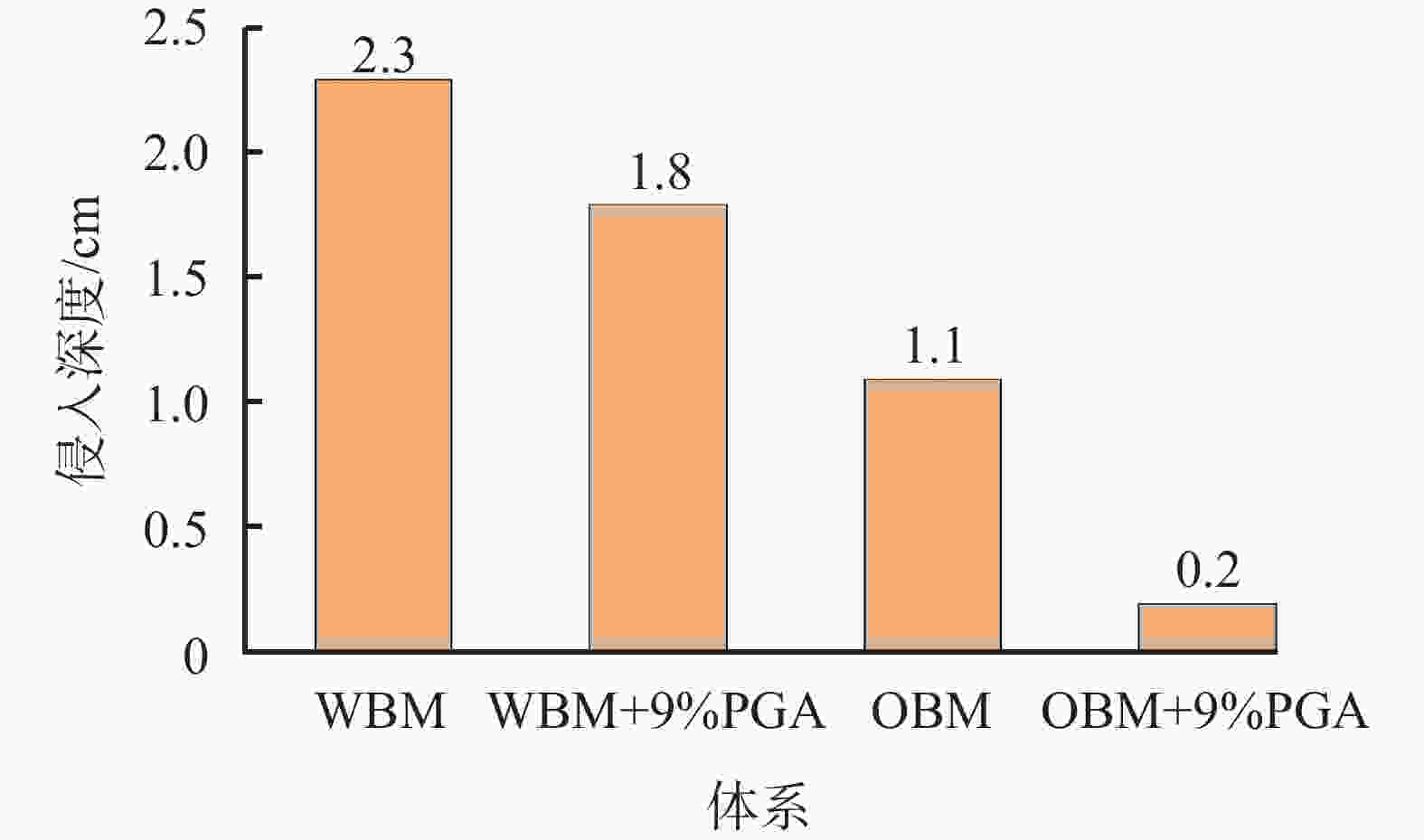

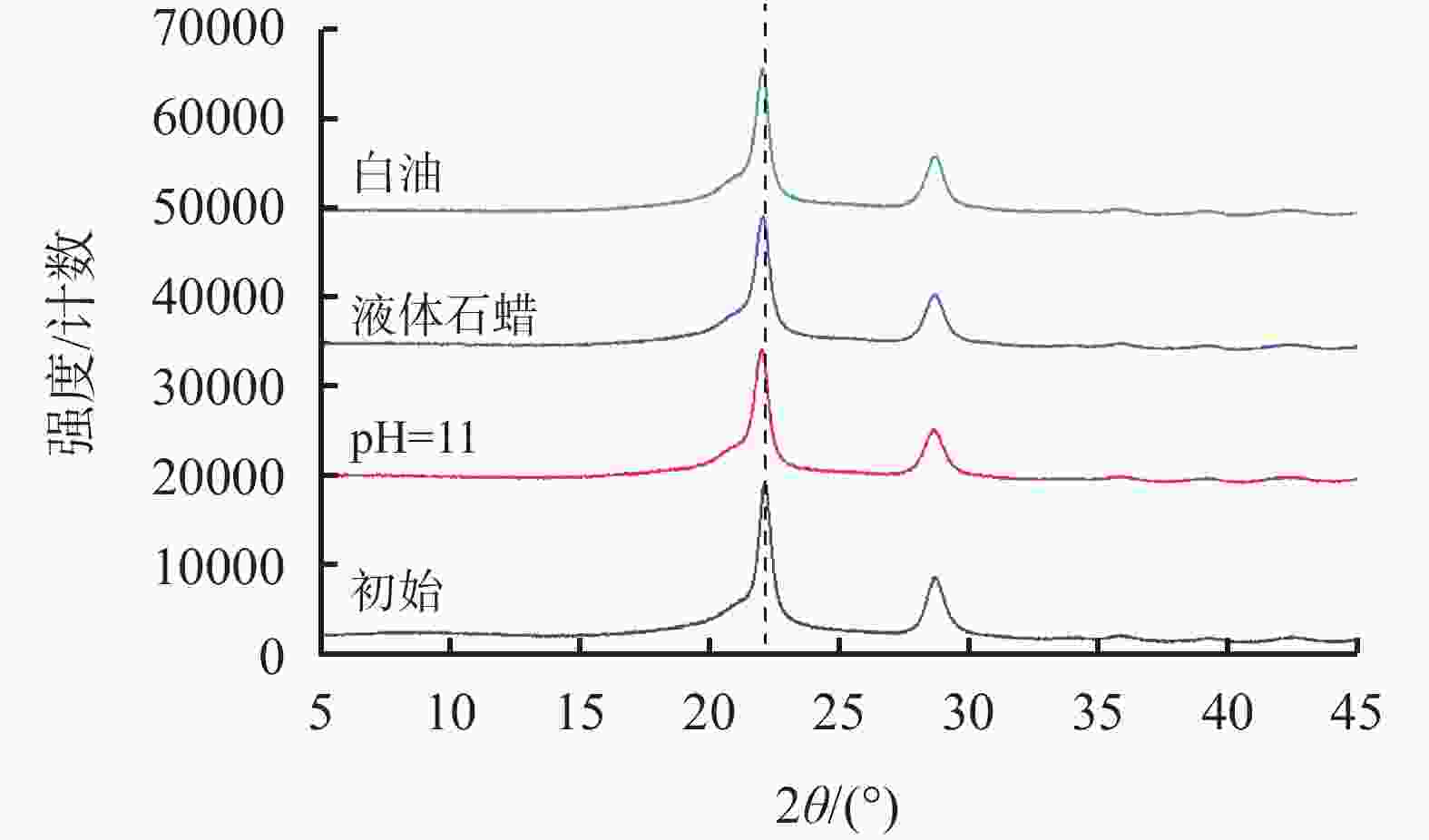

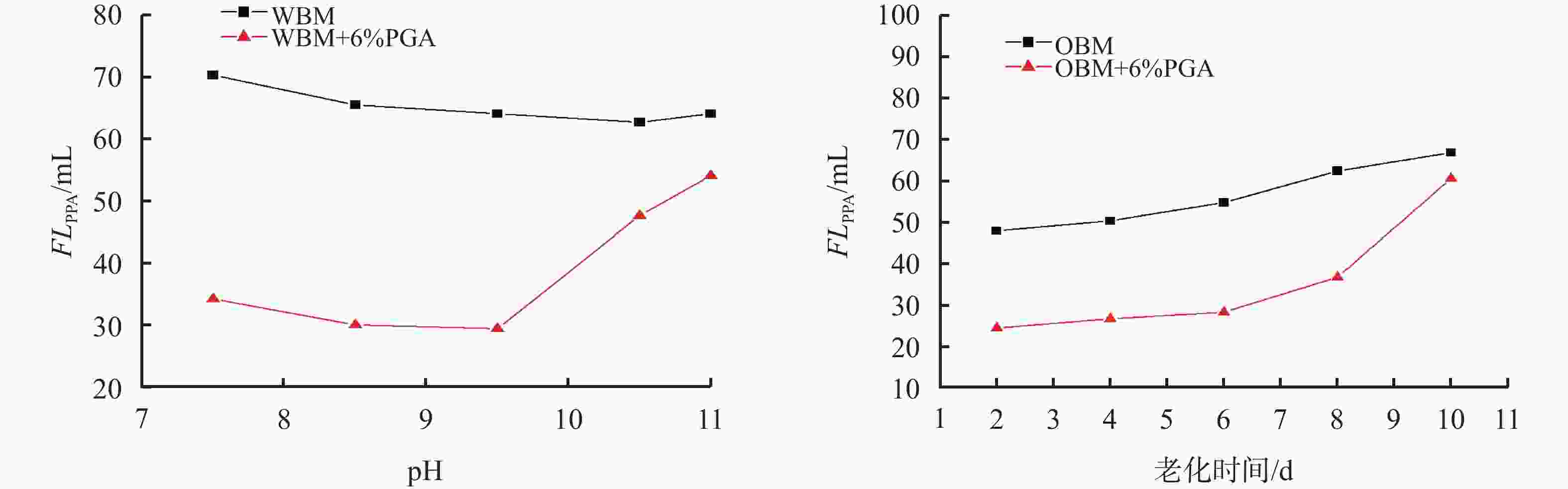

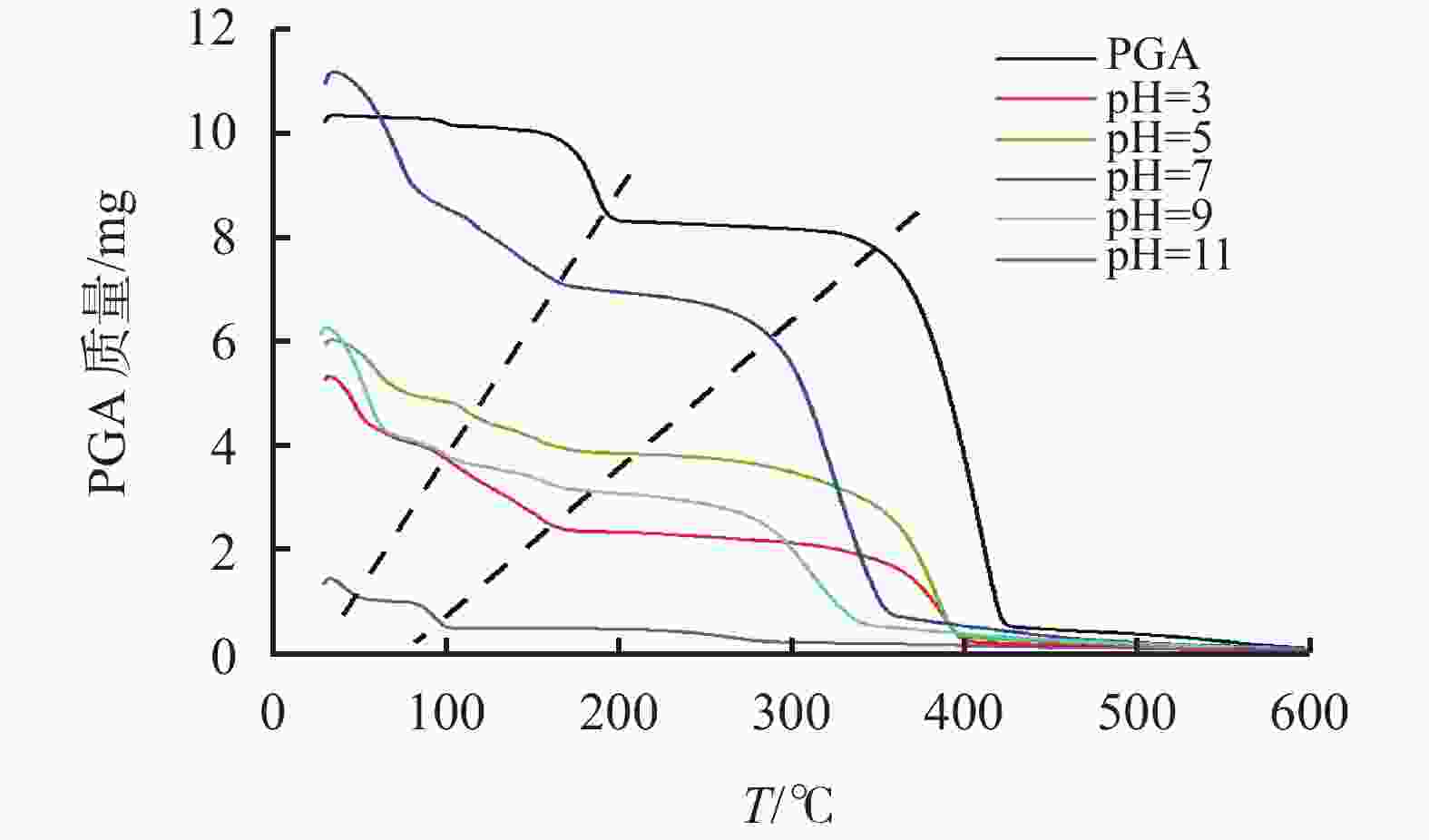

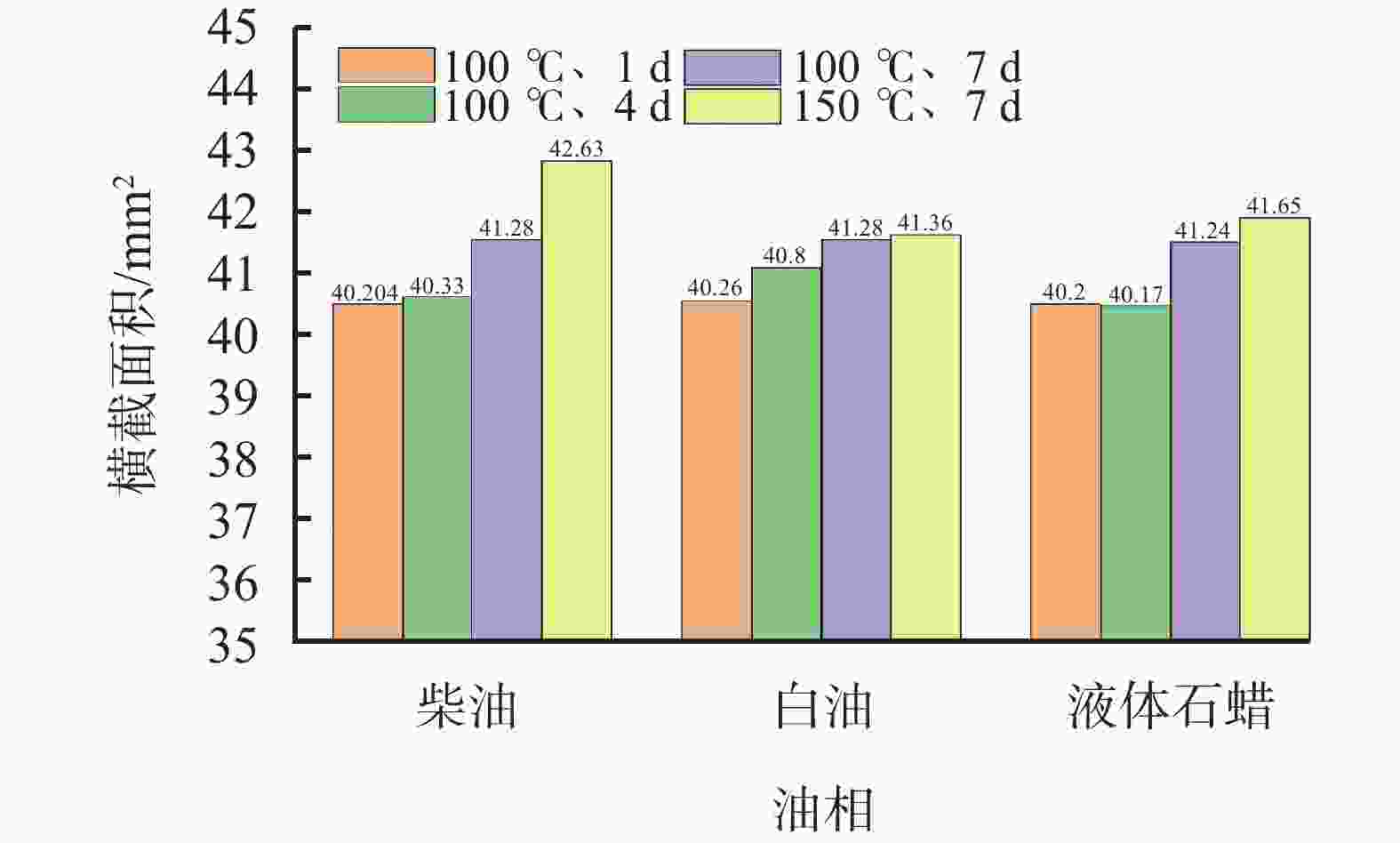

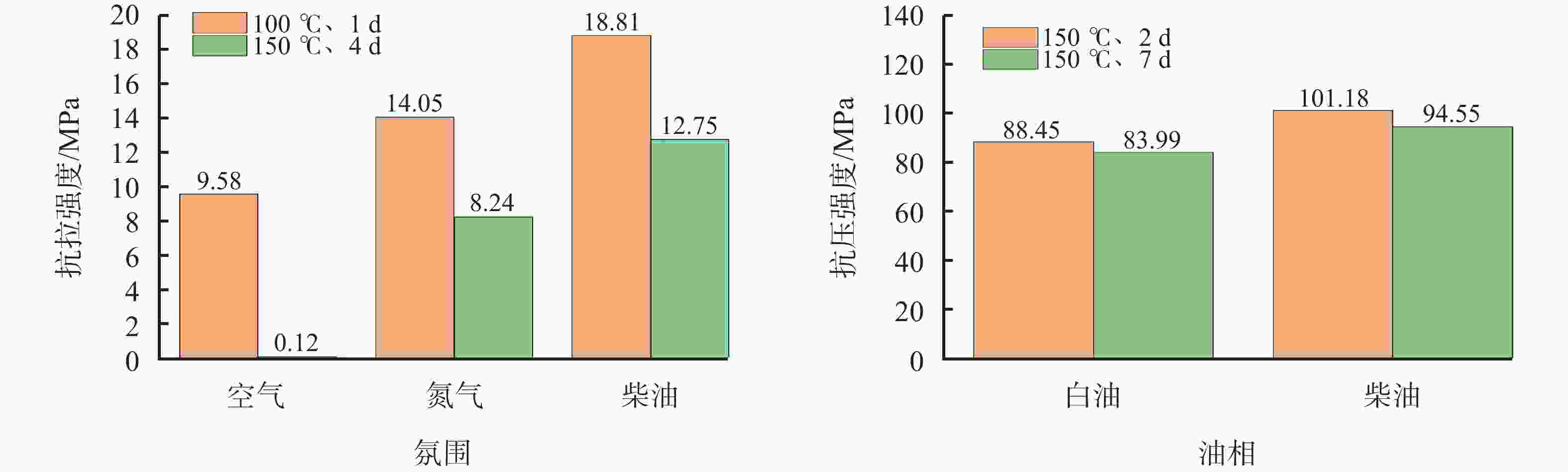

摘要: 聚乙醇酸（PGA）具有良好的环保特性，通过高温浸泡前后PGA力学性能、颗粒粒径、分子热稳定性和晶体致密度等参数分析，研究了PGA在水相及油相环境中的热稳定性，评价了PGA作钻完井液暂堵剂的应用潜力。结果表明PGA理化性质受钻井液液相环境和温度的影响较大。对水基钻井液而言，100 ℃高温水相环境下PGA分子受pH值影响降解生成低聚物，分子热稳定性降低、力学强度下降，表现为强酸（pH<5）及强碱（pH>9）环境加速降解，且强碱条件下降解快于强酸环境。高温油相环境导致PGA颗粒先溶胀后出现剥落、破碎现象，本体由塑性向脆性转变，抗拉及抗压强度出现一定程度下降，PPA封堵实验显示油相环境中8 d内具有良好的封堵效果。与水基钻井液相比，暂堵剂PGA更适合在油基钻井液中使用。Abstract: Polyglycolic acid (PGA) has good environment protection property. In laboratory study, the mechanical property, the particle sizes, the thermal stability of the PGA molecules and the crystal density of PGA before and after high temperature soaking are analyzed, the thermal stability of PGA in water and oil is studied, and the application potential of PGA as a temporary plugging agent for drill-in fluids is evaluated. It was found that the physiochemical properties of PGA are highly affected by the liquid environment of a drilling fluid and temperature. In water-based drilling fluids, PGA will degrade at 100 ℃ to oligomers because of the pH of the drilling fluid, and the thermal stability of the PGA molecules and the mechanical strength of PGA are all decreased as well. Strong acid (pH< 5) and strong base (pH< 9) both accelerate the degradation of PGA, and PGA degrades faster in strong base environment than in strong acid environment. In high temperature oil-based drilling fluids, the PGA particles first swell and then peel and break, and the main body of the PGA particles turns from plastic to brittle, resulting in a decrease in the tensional and compressive strengths of the particles to some extent. PPA plugging experiment shows that after 8 d of soaking in an oil environment, the PGA particles exhibit good plugging performance. These studies show that PGA is more suitable for use in oil-based drilling fluids than in water-based drilling fluids.
-
Key words:
- Drill-in fluid /
- Degradable /
- Temporary plugging agent /
- Polyglycolic acid
-
[1] 谭博雯,孙朝阳,计扬. 聚乙醇酸的合成、改性与性能研究综述[J]. 中国塑料,2021,35(10):137-146.TAN Bowen, SUN Chaoyang, JI Yang. A review in synthesis and modification of poly(glycolic acid)[J]. China Plastics, 2021, 35(10):137-146. [2] 伍李云,张美庭,张晓珊,等. 生物可降解材料及其在生物医学上的应用[J]. 轻工科技,2018,34(7):36-37,44.WU Liyun, ZHANG Meiting, ZHANG Xiaoshan, et al. Biodegradable materials and their applications in biomedical sciences[J]. Light Industry Science and Technolgy, 2018, 34(7):36-37,44. [3] 郭昊奇. 以白色化学污染为例浅析我国高分子可降解材料的应用现状及前景[J]. 化工管理,2017(32):59-60.GUO Haoqi. Taking white chemical pollution as an example to analyze the application status and prospects of polymer degradable materials in China[J]. Chemical Enterprise Management, 2017(32):59-60. [4] 张毅,刘晓林,王长恩,等. 可降解材料的性能表征及在压裂领域中的应用[J]. 新疆石油天然气,2019,15(3):94-97.ZHANG Yi, LIU Xiaolin, WANG Changen, et al. Performance characterization of degradable materials and its application in fracturing field[J]. Xinjiang Oil & Gas, 2019, 15(3):94-97. [5] 董明键,郭先敏,李子良. 可降解材料在完井工具中的应用及发展趋势[J]. 石油机械,2015,43(3):31-34.DONG Mingjian, GUO Xianmin, LI Ziliang. Application and future development of degradable materials in completion tools[J]. China Petroleum Machinery, 2015, 43(3):31-34. [6] 魏安超, 刘书杰, 蒋东雷, 等. 裂缝性储层环氧树脂自降解堵漏剂的制备与评价[J]. 钻井液与完井液, 2023, 40（2）: 163-168.WEI Anchao, LIU Shujie, JIANG Donglei, et al.Synthesis and evaluation of epoxy resin self-degradation plugging agent for fractured formation[J]. Drilling Fluid & Completion Fluid, 2023, 40（2）: 163-168 [7] 刘伟, 朱方辉, 于淑珍, 等. 温度增强型高弹性液体胶塞暂堵剂研发及应用[J]. 钻井液与完井液, 2019, 36(6): 782-788.ZHU Fanghui, YU Shuzhen, et al. Development and application of a temperature enhanced highly elastic liquid gel temporary plugging agent[J]. Drilling Fluid & Completion Fluid, 2019, 36(6): 782-788. [8] 田虎虎, 韩德全, 郭立影, 等.可降解聚乙醇酸结晶行为与性能的构效关系[J].塑料科技, 2023, 51(10): 107-111.TIAN Huhu, HAN Dequan, GUO Liying, et al. Structure-performance relationship between crystallization behavior and properties of degradable polyglycolic acid[J]. Plastics Science and Technology, 2023, 51(10):107-111. [9] 黄万龙, 刘瀚宇, 赵明芳, 等. 煤层气暂堵用超支化聚合物的研制与评价[J]. 钻井液与完井液, 2023, 40（4）: 487-494.HUANG Wanlong, LIU Hanyu, ZHAO Mingfang, et al.Development and evaluation of a hyperbranched polymer for temporary plugging coalbed methane[J]. Drilling Fluid & Completion Fluid, 2023, 40（4）: 487-494. [10] SHAWE S, BUCHANAN F, HARKIN-JONES E, et al. A study on the rate of degradation of the bioabsorbable polymer polyglycolic acid (PGA)[J]. Journal of Materials Science, 2006, 41(15):4832-4838. doi: 10.1007/s10853-006-0064-1 [11] HURRELL S, MILROY G E, CAMERON R E. The distribution of water in degrading polyglycolide. Part I: sample size and drug release[J]. Journal of Materials Science. Materials in Medicine, 2003, 14(5):457-464. doi: 10.1023/A:1023271003571 -
