Preparation and Affecting Effects of a Slow-Releasing Organic Microemulsified Acid Pipe-Freeing Agent
-
摘要: 针对当前钻井用解卡剂存在反应速度过快,容易发生漏失,从而导致解卡失败的问题,优选表面活性剂和酸液类型及其配比,制备出有机缓释微乳酸解卡剂最优配方:AQAS∶NP=2∶1,正丁醇∶正辛醇 =1∶1,水相∶油相=23∶77,助表面活性剂∶表面活性剂=1∶3,乙酸∶氢氟酸=3∶1,体系为W/O型微乳酸,该配方酸液的包埋率为23%。在地层影响因素中,温度对其性能的影响显著,在高温高压下,酸液释放速度迅速增加;在钻井液处理剂因素中,加重剂、黏土和超细碳酸钙对微乳酸影响最大,微乳酸完全破乳,形成悬浊液。通过现场5口井试验发现,该解卡剂可解除黏附卡钻、沉砂卡钻和掉块卡钻多种类型卡钻事故,一次解卡成功率为100%。Abstract: Drilling pipe-freeing agents presently in use have some problems that need to be solved, for example, the reaction rate of the pipe-freeing agents is too high which is easy to result in loss of the spotting fluids into formations and thus failures of the pipe-freeing operation. A slow-releasing organic microemulsified acid pipe-freeing agent has been developed to deal with this problem. Surfactants and acids were carefully selected to prepare the pipe-freeing agent. The optimized composition of the pipe-freeing agent is as follows: AQAS∶NP = 2∶1, n-butanol∶n-octanol = 1∶1, water phase ∶oil phase = 23∶77, secondary surfactant∶primary surfactant = 1∶3, and acetic acid∶hydrogen fluoric acid = 3∶1. The pipe-freeing agent is a water-in-oil (W/O) microemulsified acid, and the embedding rate of this pipe-freeing agent is 23%. Formation factors remarkably affecting the performance of the pipe-freeing agent is temperature. At high pressure high temperature, the release rate of the acid is increasing. Drilling fluid factors greatly affecting the performance of the pipe-freeing agent include weighting agent, clay and ultra-fine calcium carbonate. The microemulsified acid can completely lose its emulsion stability and turn into a suspension by the weighting agent, clay and ultra-fine calcium carbonate used in the drilling fluid. Field application of this pipe-freeing agent on five wells has shown that it can be used to free stuck pipes of many types such as pressure-differential pipe sticking, pipe sticking by settling drilled cuttings and bridging etc., and the success rate of first try in freeing the stuck pipes is 100%.
-
Key words:
- Slow-releasing organic /
- Microemulsified acid /
- Pipe-freeing agent /
- Performance /
- Affecting factor
-
表 1 压力对有机缓释微乳酸解卡剂电导率和岩屑溶蚀率(6 h)的影响
P/
MPa电导率/
µs·cm−1溶蚀率/
%P/
MPa电导率/
µs·cm−1溶蚀率/
%0.1 1101 24.9 5 1007 29.5 1 896 26.2 7 1056 30.8 3 928 27.8 9 975 31.6 表 2 不同溶液对有机缓释微乳酸解卡剂岩屑溶蚀率的影响

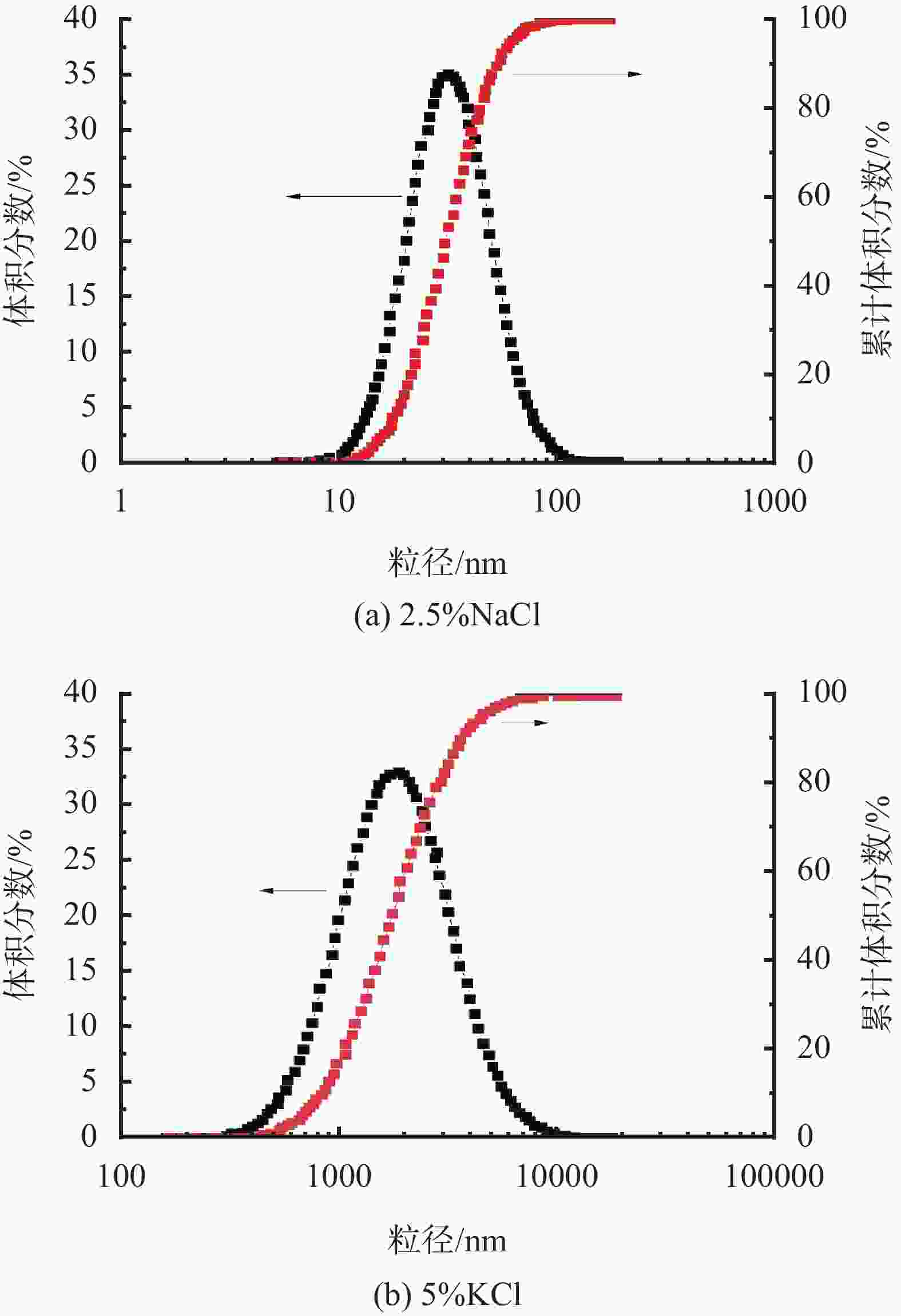

NaCl/% 不同时间下的溶蚀率/% 1 h 2 h 3 h 4 h 0 19.9 21.9 24.2 26.2 2.5 29.6 31.4 33.6 35.8 表 3 LV-PAC对有机缓释微乳酸解卡剂岩屑溶蚀率的影响
LV-PAC/
%不同时间下的溶蚀率/% 1 h 2 h 3 h 4 h 0 19.9 21.9 24.2 26.2 0.4 21.4 23.6 25.0 26.2 -
[1] 袁毅章,宋闯,刘鹏,等. 渤中C油田某大位移井卡钻复杂事故的处理与分析[J]. 石油工业技术监督,2022,38(6):53-58.YUAN Yizhang, SONG Chuang, LIU Peng, et al. Treatment and analysis of sticking accident in an extended reach well in Bozhong C oilfield[J]. Technology Supervision in Petroleum Industry, 2022, 38(6):53-58. [2] 李剑,何振奎,李军营,等. 河南油田卡钻原因及预防措施[J]. 河南油田,1996,10(4):45-47.LI Jian, HE Zhenkui, LI Junying, et al. Causes and preventive measures of drilling jam in Henan oilfield[J]. Henan Petroleum, 1996, 10(4):45-47. [3] 李建军,李镇海,李建成. 解卡工艺技术[J]. 内蒙古化工,2013,39(4):106-107.LI Jianjun, LI Zhenhai, LI Jiancheng. Pipe-free technology[J]. Inner Mongolia Petrochemical Industry, 2013, 39(4):106-107. [4] 王方超. 海上油田阻卡类型及解卡工艺技术分析[J]. 石油石化物资采购,2021(11):90-91.WANG Fangchao. Analysis on types of blockage and technology of unblocking in offshore oilfield[J]. Petroleum & Petrochemical Material Procurement, 2021(11):90-91. [5] 耿清雷,于景锋,王战卫,等. 新型酸液解卡剂在玛湖区块的应用[J]. 钻采工艺,2021,44(5):97-100. doi: 10.3969/J.ISSN.1006-768X.2021.05.21GENG Qinglei, YU Jingfeng, WANG Zhanwei, et al. Application of novel acid-based sticking-releasing solution in Mahu block of Xinjiang oilfield[J]. Drilling & Production Technology, 2021, 44(5):97-100. doi: 10.3969/J.ISSN.1006-768X.2021.05.21 [6] 乔东宇,陈若铭,郑义平,等. 高效解卡剂的研究与应用[J]. 钻井液与完井液,2013,30(6):24-26. doi: 10.3969/j.issn.1001-5620.2013.06.007QIAO Dongyu, CHEN Ruoming, ZHENG Yiping, et al. The studies and application of high performance pipe-freeing agents[J]. Drilling Fluid & Completion Fluid, 2013, 30(6):24-26. doi: 10.3969/j.issn.1001-5620.2013.06.007 [7] 何立成,蓝强,黄维安,等. 有机缓释微乳酸高效解堵剂的制备及性能研究[J]. 钻井液与完井液,2022,39(2):244-249.HE Licheng, LAN Qiang, HUANG Weian, et al. Preparation and properties of slow-release organic acid micro-emulsion with high efficient plugging removal[J]. Drilling Fluid & Completion Fluid, 2022, 39(2):244-249. [8] 陈馥,李茜璐,艾加伟,等. 一种微乳酸体系的实验室研究[J]. 应用化学,2011,28(9):1058-1062.CHEN Fu, LI Qianlu, AI Jiawei, et al. Laboratory research of one micro-emulsified acid system[J]. Chinese Journal of Applied Chemistry, 2011, 28(9):1058-1062. [9] 赵仁保,岳湘安,侯吉瑞,等. 微乳酸的缓蚀行为及其在岩心中的酸化效果[J]. 应用化学,2006,23(2):149-152. doi: 10.3969/j.issn.1000-0518.2006.02.008ZHAO Renbao, YUE Xiang’an, HOU Jirui, et al. The corrosion inhibition behavior of microemulsified acid and its acidizing effect in core[J]. Chinese Journal of Applied Chemistry, 2006, 23(2):149-152. doi: 10.3969/j.issn.1000-0518.2006.02.008 [10] 张赛玉,王芳,陈彦东,等. 煤油微乳酸的制备及其性能研究[J]. 石油与天然气化工,2007,36(4):315-319. doi: 10.3969/j.issn.1007-3426.2007.04.013ZHANG Saiyu, WANG Fang, CHEN Yandong, et al. Study on the preparation and properties of kerosene microemulsifiedacid[J]. Chemical Engineering of Oil and Gas, 2007, 36(4):315-319. doi: 10.3969/j.issn.1007-3426.2007.04.013 [11] 慎安娜,王芳,张赛玉,等. 含Gemini表面活性剂微乳酸的制备及其性能研究[J]. 石油与天然气化工,2008,37(4):328-332. doi: 10.3969/j.issn.1007-3426.2008.04.016SHEN Anna, WANG Fang, ZHANG Saiyu, et al. Preparation and properties of microemulsified acid with Gemini-type surfactant[J]. Chemical Engineering of Oil & Gas, 2008, 37(4):328-332. doi: 10.3969/j.issn.1007-3426.2008.04.016 [12] 乔立杰,方波,王芳,等. 煤油微乳土酸的制备及其性能的研究[J]. 石油与天然气化工,2009,38(1):54-57. doi: 10.3969/j.issn.1007-3426.2009.01.014QIAO Lijie, FANG Bo, WANG Fang, et al. Research on the preparation and properties of kerosene microemulsified mud acid[J]. Chemical Engineering of Oil and Gas, 2009, 38(1):54-57. doi: 10.3969/j.issn.1007-3426.2009.01.014 [13] 郝敏. 含阳离子Gemini表面活性剂耐高温微乳盐酸体系的研究[D]. 上海:华东理工大学,2012.HAO Min. Study on the high temperature resistance microemulsified hydrochloric acid systems containing cationic Gemini surfactant[D]. Shanghai: East China University of Science and Technology, 2012. [14] 彭亚寻. 耐高温微乳酸的制备及性能研究[D]. 上海:华东理工大学,2012.PENG Yaxun. Preparation and properties of high temperature tolerance microemulsifiedacid[D]. Shanghai: East China University of Science and Technology, 2012. [15] 赵根,赵仁保,李贻勇,等. 高温高盐油藏微乳酸体系酸化性能研究[J]. 内蒙古石油化工,2012,38(4):4-6.HAO Gen, ZHAO Renbao, LI Yiyong, et al. Study on application of micro-emulsion acid in high temperature and high salinity reservoirs[J]. Inner Mongolia Petrochemical Industry, 2012, 38(4):4-6. [16] 党娟华,郑强,宋志东,等. 微乳多氢酸体系的制备及性能研究[J]. 精细石油化工进展,2012,13(3):18-20,24. doi: 10.3969/j.issn.1009-8348.2012.03.005DANG Juanhua, ZHENG Qiang, SONG Zhidong, et al. Preparation and properties of microemulsifiedmultihydrogen acid system[J]. Advances in Fine Petrochemicals, 2012, 13(3):18-20,24. doi: 10.3969/j.issn.1009-8348.2012.03.005 [17] 陈彦东,方波,房鼎业,等. 耐高温阳离子Gemini柴油微乳盐酸体系研究[J]. 油田化学,2014,31(2):182-186. doi: 10.19346/j.cnki.1000-4092.2014.02.006CHEN Yandong, FANG Bo, FANG Dingye, et al. Study on high temperature microemulsified diesel hydrochloric acid emulsified by cationic Gemini surfactant[J]. Oilfield Chemistry, 2014, 31(2):182-186. doi: 10.19346/j.cnki.1000-4092.2014.02.006 [18] 赵辛. 高温碳酸盐岩储层微乳酸体系研究[D]. 成都:成都理工大学,2016.ZHAO Xin.An research of microemulsified acid apply to carbonatereservoir in the condition ofhigh temperature[D]. Chengdu: Chengdu University of Technology, 2016. [19] 赵英杰,郝建华,李芳芳,等. 微乳有机酸体系的研究与应用[J]. 油气田环境保护,2018,28(6):41-44,57. doi: 10.3969/j.issn.1005-3158.2018.06.011ZHAO Yingjie, HAO Jianhua, LI Fangfang, et al. Study and application of micro-emulsion organic acid system[J]. Environmental Protection of Oil & Gas Fields, 2018, 28(6):41-44,57. doi: 10.3969/j.issn.1005-3158.2018.06.011 [20] 张磊. 碳酸盐岩油藏微乳酸化体系研究[J]. 石油化工应用,2019,38(4):51-54,76. doi: 10.3969/j.issn.1673-5285.2019.04.012ZHANG Lei. The study of microemulsified acid system in carbonate reservoir[J]. Petrochemical Industry Application, 2019, 38(4):51-54,76. doi: 10.3969/j.issn.1673-5285.2019.04.012
