Research and Application of High-efficiency Bactericide for Guar Gum Fracturing Fluid
-

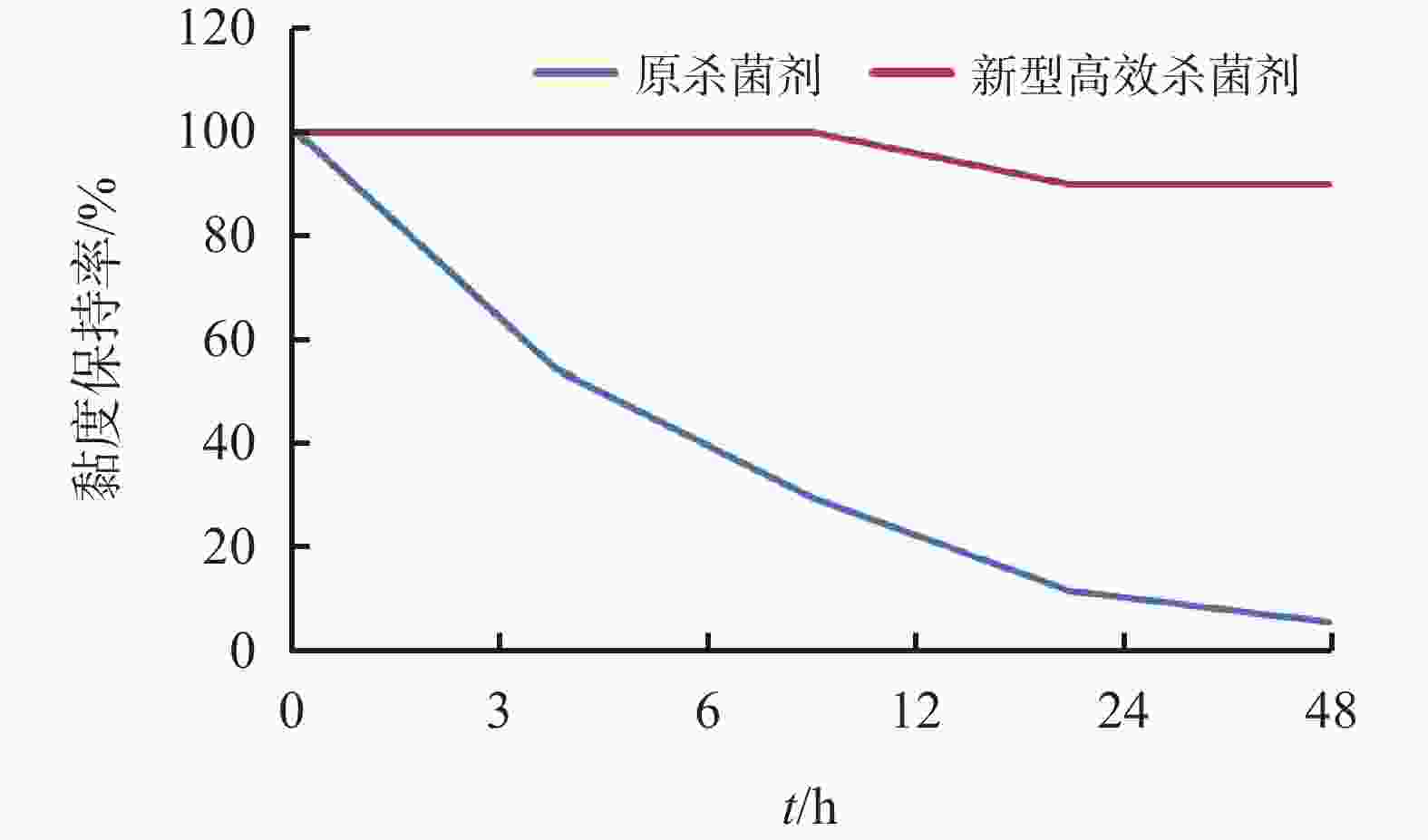

摘要: 夏季压裂施工过程中存在胍胶压裂液受细菌等微生物滋生影响而腐化变质的问题，利用微生物多样性测序技术对大庆、内蒙和四川区域储液罐中胍胶压裂液的细菌菌种进行了分析，针对微生物类型研制了季铵盐复合聚赖氨酸类高效杀菌剂，通过平板计数法评价了其对胍胶压裂液的杀菌效果。室内实验结果表明：新研制的复合型杀菌剂可在2 h内使得细菌的致死率达到100%。现场胍胶压裂液添加该杀菌剂后储存3 d后体系的黏度保持率仍达90%。现场应用8口井共计352段，胍胶类压裂液体系使用该杀菌剂后未再出现腐败变质，证实了该新型杀菌剂具有高效杀菌效果。Abstract: In response to the problem of guar gum fracturing fluid being affected by bacteria and other microorganisms during the summer in Daqing area, which leads to deterioration, and hydration, and affects the success rate of construction, the microbial diversity sequencing technology was used to analyze the bacterial species of guar gum fracturing fluid in three reservoir tanks constructed at the same time in different blocks, and the Quaternary ammonium cation composite polylysine high-efficiency bactericide was developed. The bactericidal effect of the new compound bactericide on fracturing fluid in Daqing area was evaluated by plate counting method. The experimental results showed that the newly developed compound bactericide could make the sterilizing rate reach 100% in 2h. A total of 352 sections were applied in 8 wells on site, and the viscosity retention rate of guar gum fracturing fluid was still 90% after 72 hours. This bactericide effectively solves the technical problem of rapid deterioration of on-site guar gum fracturing fluids, providing important performance guarantee for smooth fracturing construction, and has important application prospects in plant gum fracturing fluids.
-
Key words:
- Strain analysis /
- Amplicon sequencing /
- Quaternary ammonium /
- Polylysine /
- Compound bactericide
-
表 1 不同样品细菌多样性指数变化
Sample Chao1指数 Shannon指数 A1 230.270 2.672 70 A2 338.845 4.399 82 A3 677.817 5.258 42 A4 1131.270 7.342 81 B1 2576.970 6.357 80 B2 1807.470 6.492 33 B3 2384.970 6.796 00 B4 2214.910 6.744 95 B5 2260.700 6.650 47 TAR 5937.180 9.157 16
下载: 导出CSV
表 3 不同浓度ε-聚赖氨酸的杀菌率
ε-聚赖氨酸有效浓度/% 0 0.5 1.0 1.5 2.0 2.5 3.0 杀菌率/% 57.4 94.3 99.31 100 100 100 100 注：季铵盐浓度为10%。
下载: 导出CSV
表 4 使用新型杀菌剂压裂液其他主要性能测试结果
结果
对比AV基液/
mPa·s交联
时间/
s破胶液性能 破胶液表
面张力/
mN·m−1破胶液界
面张力/
mN·m−1破乳率/
%防膨率/
%检验结果 30 64 25.2 0.80 100 89.47
下载: 导出CSV
-
[1] 王锦堂. 我国工业用水新杀菌剂的结构特点与合成方法[J]. 现代化工,2001,21(10):9-12.WANG Jintang. Structural characteristics and synthetic methods of new bactericide for industrial water treatment in China[J]. Modern Chemical Industry, 2001, 21(10):9-12. [2] OBLAK E, PIECUCH A, GUZ-REGNER K, et al. Antibacterial activity of gemini quaternary ammonium salts[J]. FEMS Microbiology Letters, 2014, 350(2):190-198. doi: 10.1111/1574-6968.12331 [3] MIKLÁŠ R, MIKLÁŠOVÁ N, BUKOVSKÝ M, et al. Synthesis, surface and antimicrobial properties of some quaternary ammonium homochiral camphor sulfonamides[J]. European Journal of Pharmaceutical Sciences, 2014, 65:29-37. doi: 10.1016/j.ejps.2014.08.013 [4] NEGM N A, SABAGH A M A, MIGAHED M A, et al. Effectiveness of some diquaternary ammonium surfactants as corrosion inhibitors for carbon steel in 0.5M HCl solution[J]. Corrosion Science, 2010, 52(6):2122-2132. doi: 10.1016/j.corsci.2010.02.044 [5] 林飞,欧阳传湘,李春颖,等. 压裂返排液重复利用新型杀菌剂研制[J]. 天然气与石油,2016,34(2):64-67,77.LIN Fei, OUYANG Chuanxiang, LI Chunying, et al. Development of a new type of bactericide for the reuse of fracturing flow-back fluid[J]. Natural Gas and Oil, 2016, 34(2):64-67,77. [6] 陈福欣,杨志远,管保山,等. 压裂液中芽孢杆菌的生长及杀菌剂研究[J]. 钻井液与完井液,2013,30(6):74-76.CHEN Fuxin, YANG Zhiyuan, GUAN Baoshan, et al. Research on Bacillus growth and bactericide in fracturing fluid[J]. Drilling Fluid & Completion Fluid, 2013, 30(6):74-76. [7] 廖启丰. 新型亚烷基双季鏻盐杀菌剂的合成及应用研究[D]. 广州: 广东工业大学, 2012.LIAO Qifeng. The study of the synthesis and application of a novel Alkylene Bi (quaternary phosphonium salts) antiseptic[D]. Guangzhou: Guangdong University of Technology, 2012. [8] 曾静,魏海燕,马丹,等. 革兰氏阴性菌耐药机制初探[J]. 中国口岸科学技术,2022,4(z2):4-10.ZENG Jing, WEI Haiyan, MA Dan, et al. Study on drug resistance of gram-negative bacteria[J]. China Port Science and Technology, 2022, 4(z2):4-10. [9] 谭凤霞,柴毅. 季铵盐碘对气单胞菌的抑菌杀菌效果[J]. 江苏农业科学,2013,41(10):208-210.TAN Fengxia, CHAI Yi. Bacteriostatic and hactericidal effect of quaternary ammonium salt iodine on Aeromonas[J]. Jiangsu Agricultural Sciences, 2013, 41(10):208-210. [10] 马俊义,李尽哲,叶兆伟. 生物农药的应用现状及前景展望[J]. 江苏农业科学,2011,39(4):15-17.MA Junyi, LI Jinzhe, YE Zhaowei. Current situation and prospects of applicaton of biological pesticides[J]. Jiangsu Agricultural Sciences, 2011, 39(4):15-17. [11] SHIMA S, SAKAI H. Polylysine produced by Streptomyces[J]. Agricultural and Biological Chemistry, 1977, 41(9):1807-1809. [12] OSTUNI E, YAN L, WHITESIDES G M. The interaction of proteins and cells with self-assembled monolayers of alkanethiolates on gold and silver[J]. Colloids and Surfaces B:Biointerfaces, 1999, 15(1):3-30. doi: 10.1016/S0927-7765(99)00004-1 [13] 齐子琦,秦子晋,黄永震,等. 生物防腐剂ε-聚赖氨酸的研究进展[J]. 食品工业,2019,40(10):289-293.QI Ziqi, QIN Zijin, HUANG Yongzhen, et al. Research progress of ε-polylysine as a biological preservative[J]. The Food Industry, 2019, 40(10):289-293. [14] 刘慧. 支化聚赖氨酸共聚物的合成及抗菌性能研究[D]. 合肥: 中国科学技术大学, 2022.LIU Hui. Synthesis and antibacterial activities of branched lysine-based copolymers[D]. Hefei: University of Science and Technology of China, 2022. [15] 吴丽蓉,罗兆,王群立,等. 胍胶压裂液用杀菌剂评价指标有效性的影响因素[J]. 钻井液与完井液,2017,34(5):91-95.WU Lirong, LUO Zhao, WANG Qunli, et al. Key factors affecting the effectiveness of evaluating indicators for bactericides used in HPGG fracturing fluids[J]. Drilling Fluid & Completion Fluid, 2017, 34(5):91-95. -
