一种环保型无泡防水锁剂

褚奇

褚奇. 一种环保型无泡防水锁剂[J]. 钻井液与完井液,2023,40(4):475-480 doi: 10.12358/j.issn.1001-5620.2023.04.009
引用本文: 褚奇. 一种环保型无泡防水锁剂[J]. 钻井液与完井液,2023,40(4):475-480 doi: 10.12358/j.issn.1001-5620.2023.04.009
CHU Qi.An environmentally friendly non-foaming anti-water blocking agent[J]. Drilling Fluid & Completion Fluid,2023, 40(4):475-480 doi: 10.12358/j.issn.1001-5620.2023.04.009
Citation: CHU Qi.An environmentally friendly non-foaming anti-water blocking agent[J]. Drilling Fluid & Completion Fluid,2023, 40(4):475-480 doi: 10.12358/j.issn.1001-5620.2023.04.009

一种环保型无泡防水锁剂

doi: 10.12358/j.issn.1001-5620.2023.04.009
基金项目: 中国石化科技部科研攻关项目“苏北页岩油藏高效钻井与压裂关键技术研究”(P22096)。
详细信息
    作者简介:

    褚奇,博士,副研究员,1982年生,2012年毕业于西南石油大学应用化学专业,现在从事钻井液技术研究工作。电话(010)56606191;E-mail:chuqi.sripe@sinopec.com。

  • 中图分类号: TE254.4

An Environmentally Friendly Non-foaming Anti-water Blocking Agent

  • 摘要: 为提高钻井液用防水锁剂的抑泡和环保性能,以海藻酸、羟乙基乙二胺(AEEA)、环氧氯丙烷(ECH)和季戊四醇(PETP)为原料,合成了一种天然改性产物作为防水锁剂SMFS-1。借助傅里叶红外光谱(FT-IR)仪进行了分子结构表征。防水锁性能测试结果显示,加入SMFS-1后水溶液的表面张力能够降低至25 mN/m以内,减小岩心自吸水体积,可促使岩石表面由亲水向中性转变,提高岩心渗透率恢复值至80%以上。SMFS-1抗温可达120 ℃,吸附性能优异,无起泡效应,对钻井液的流变性和滤失性能影响小。环保性能测试结果显示,SMFS-1的半致死浓度(EC50)为32 250 mg/L,生物降解性评价指标(Y)为17.36,达到排放标准,易被生物降解。

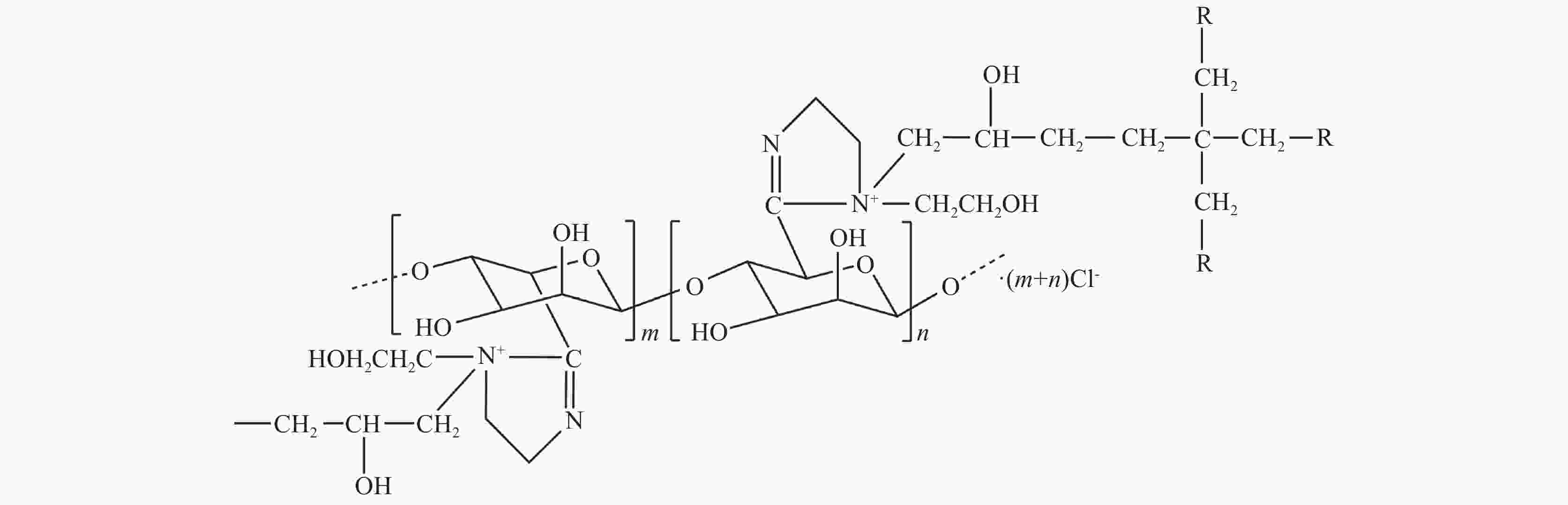

  • 图  1  SMFS-1分子结构示意图

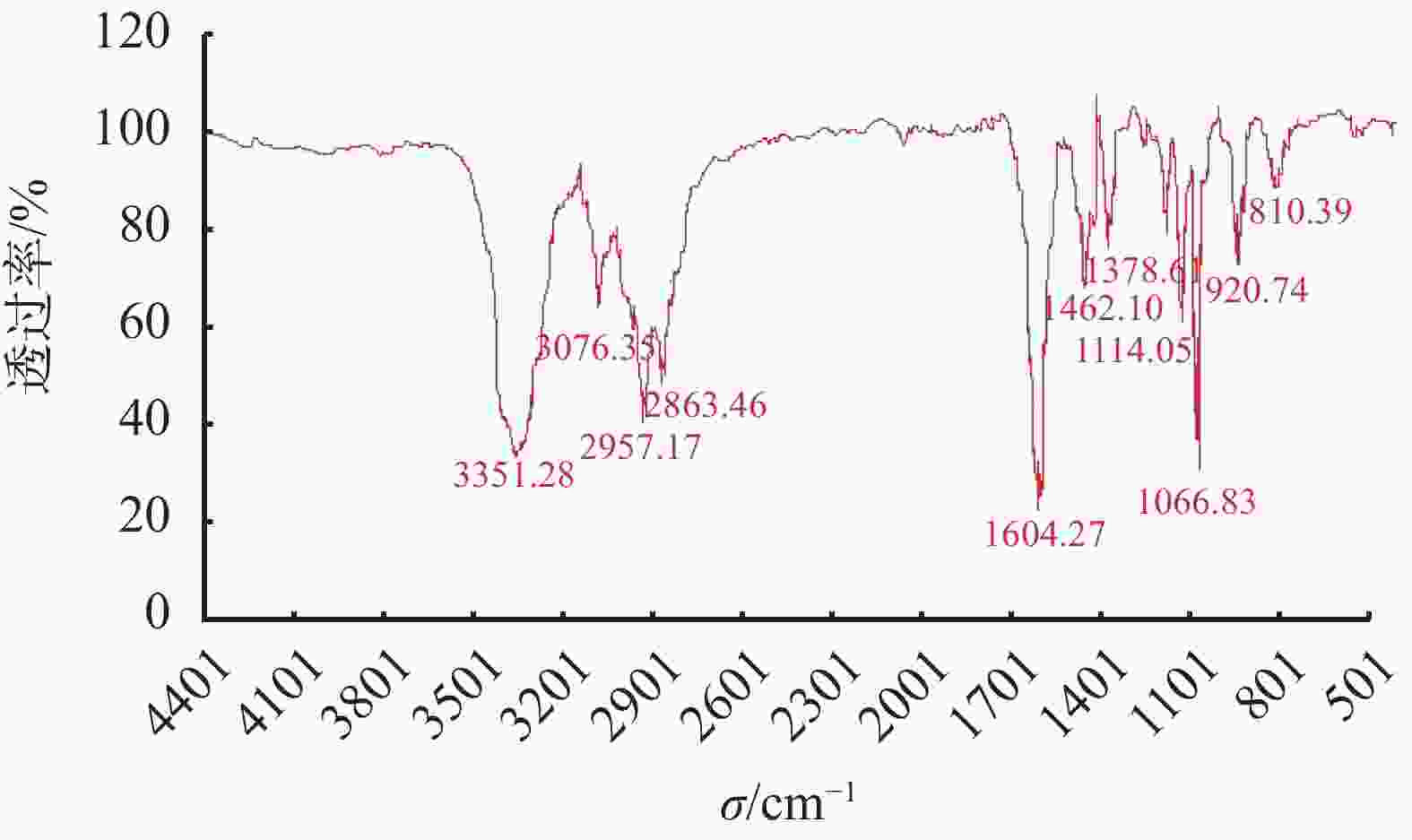

    图  2  SMFS-1的FT-IR谱图

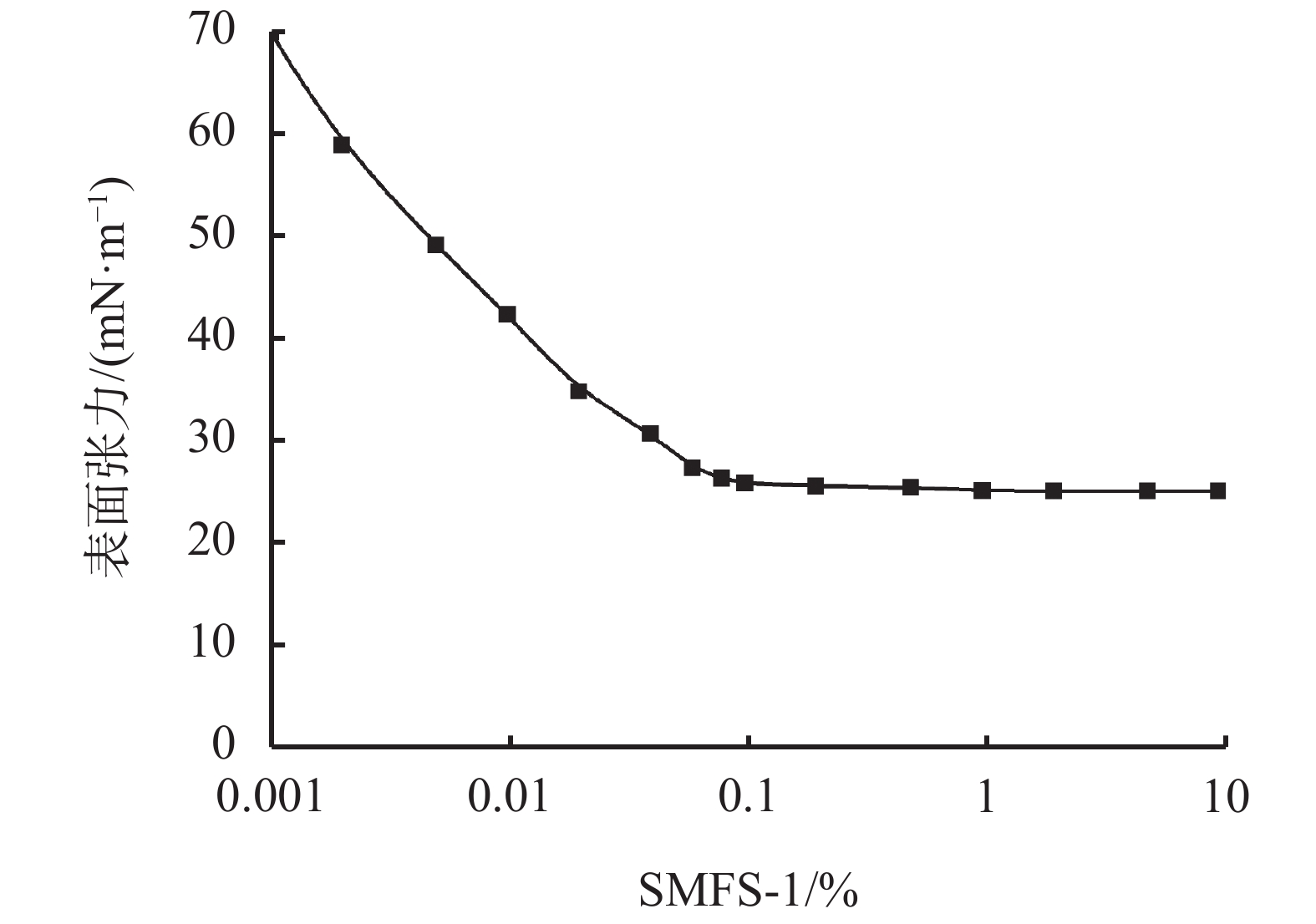

    图  3  不同浓度SMFS-1溶液的表面张力变化曲线

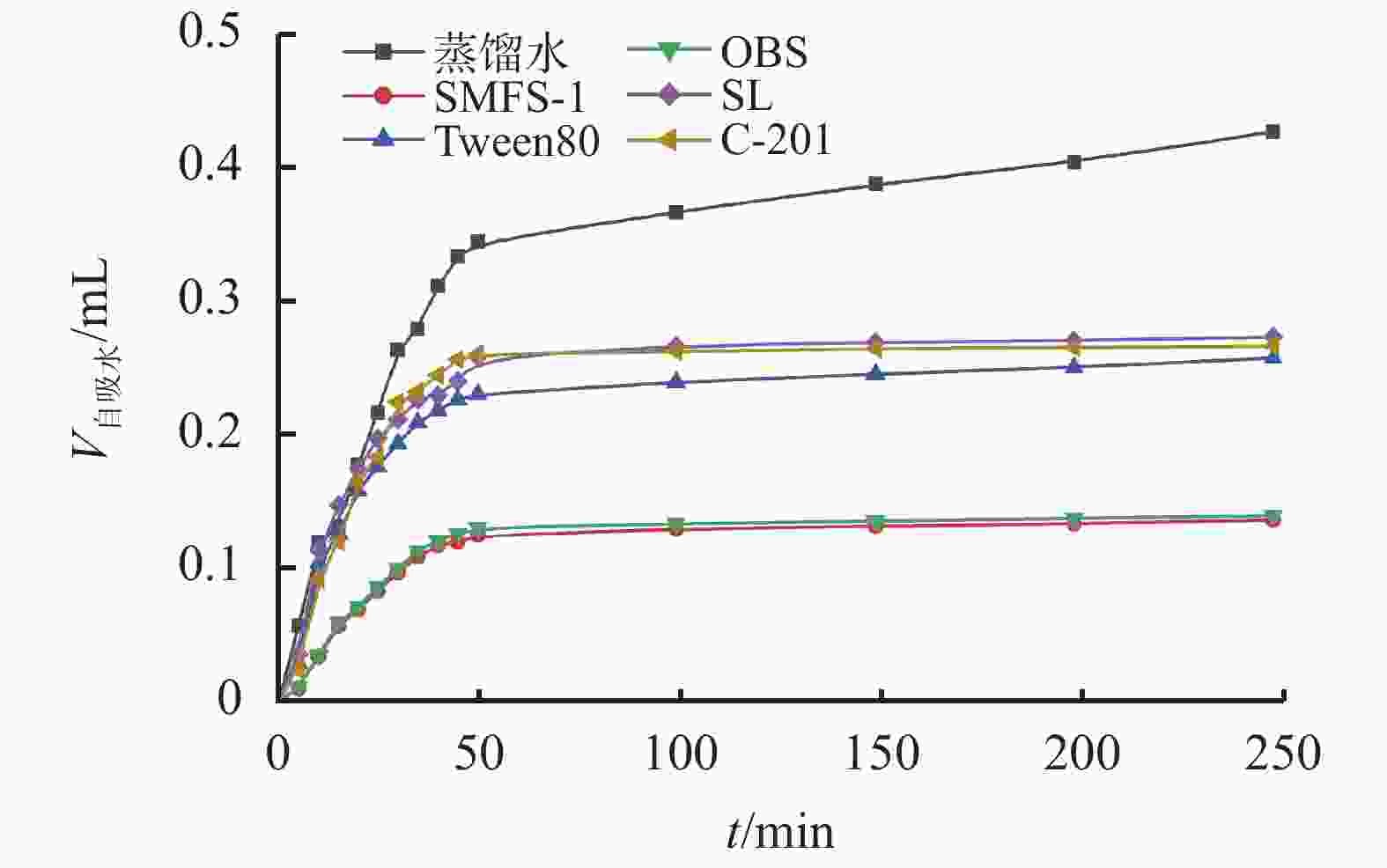

    图  4  岩心自吸水体积随浸泡时间的变化曲线

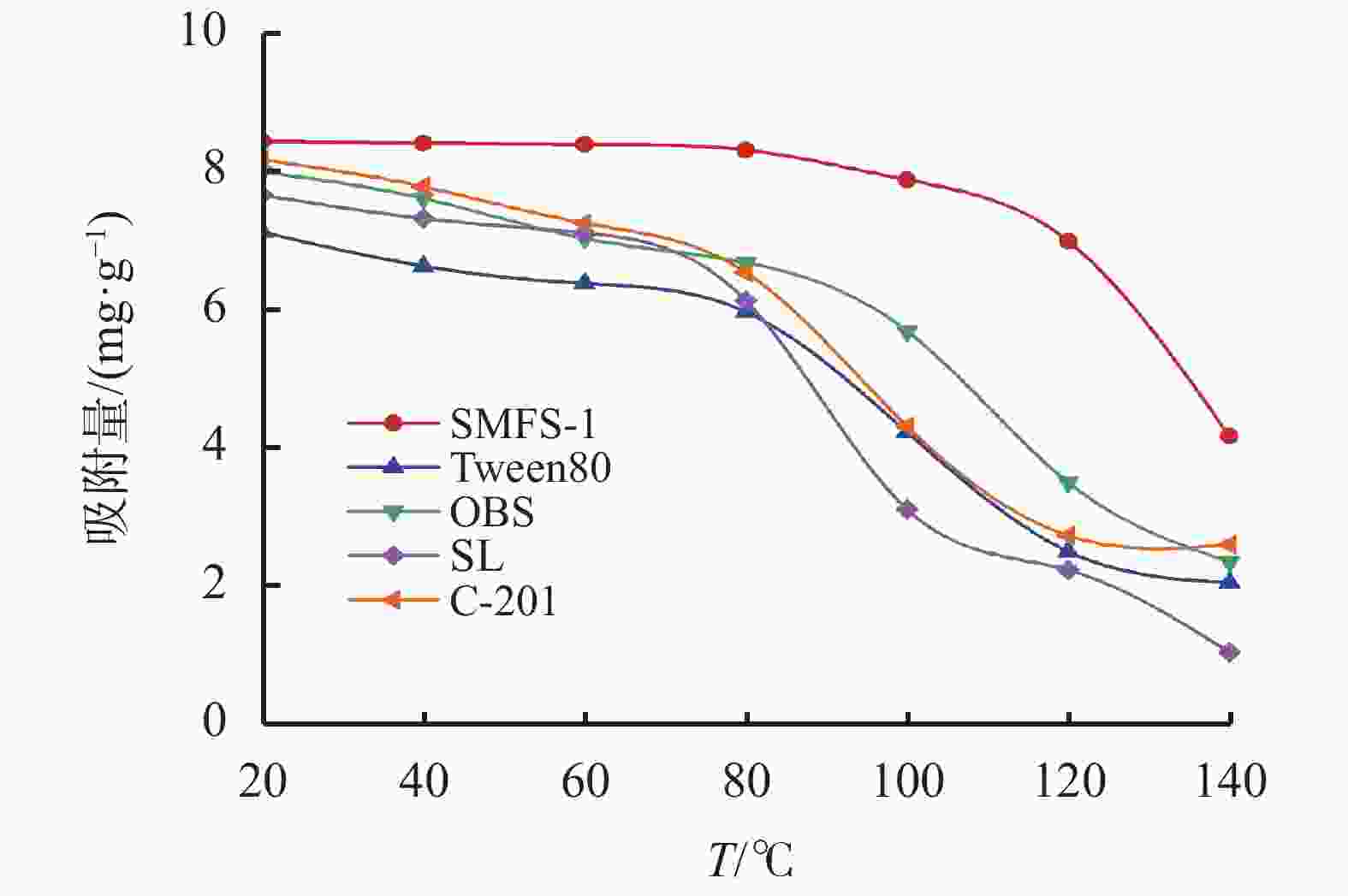

    图  5  防水锁剂的吸附量随温度变化曲线

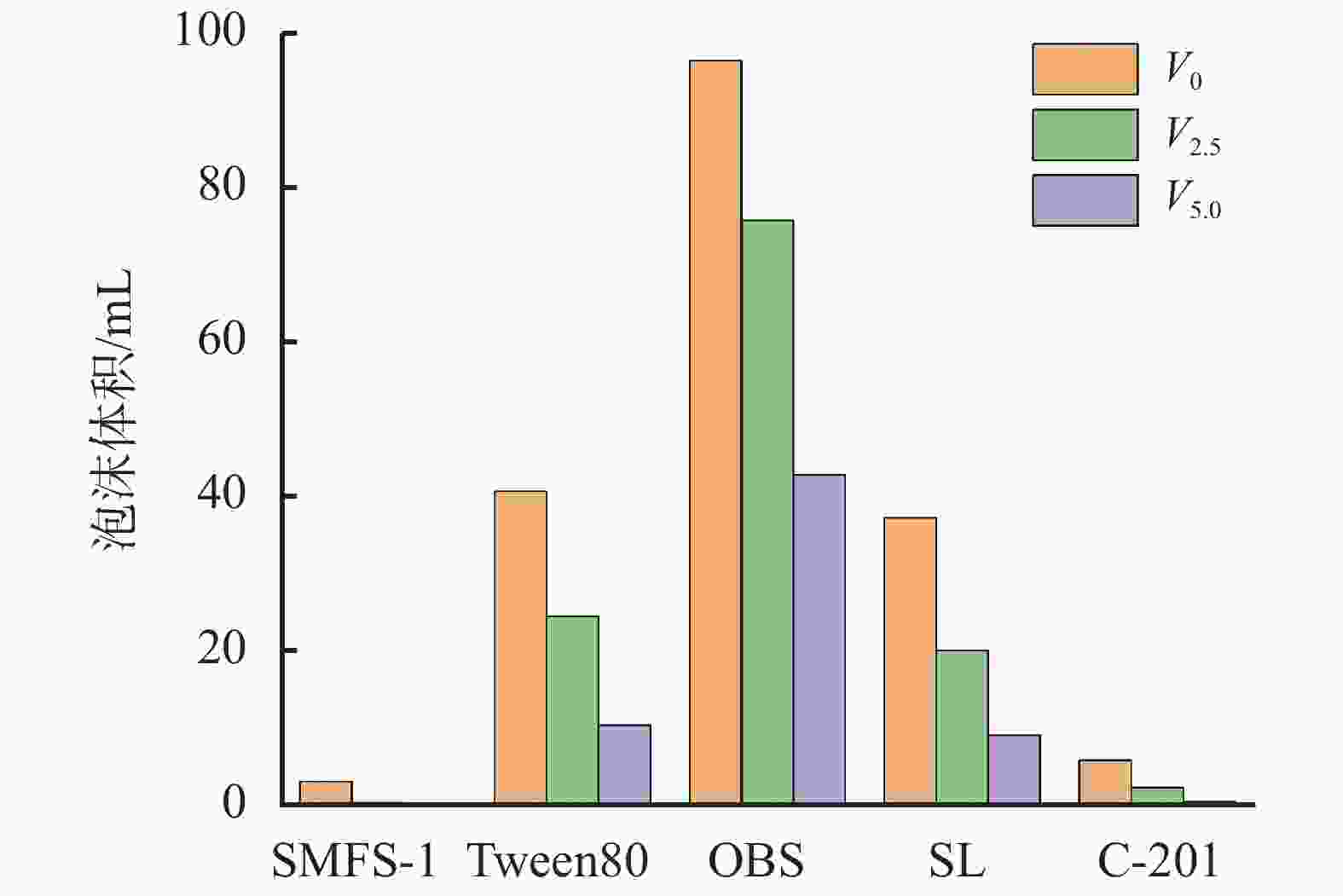

    图  6  不同防水锁剂的发泡体积

    表  1  不同温度下防水锁剂的表面张力

    防水锁剂表面张力/(mN·m−1
    25 ℃50 ℃75 ℃
    SMFS-125.0025.1426.75
    Tween8025.1332.6340.28
    OBS20.0427.4033.58
    SL36.7939.9043.24
    C-20130.0835.3741.08
    下载: 导出CSV

    表  2  不同温度下防水锁剂的接触角

    防水锁剂接触角/(°)
    25 ℃50 ℃75 ℃
    蒸馏水38.9738.9838.97
    SMFS-181.6281.1480.00
    Tween8064.2161.7057.17
    OBS86.2277.0072.47
    SL50.5047.3945.20
    C-20172.1967.2664.18
    下载: 导出CSV

    表  3  不同温度下岩心渗透率恢复率

    试剂渗透率恢复率/%
    25 ℃50 ℃75 ℃
    蒸馏水31.1933.7035.80
    SMFS-181.2583.2085.03
    Tween8060.2561.3863.91
    OBS73.2874.6375.21
    SL53.4455.8156.75
    C-20159.4660.1260.31
    下载: 导出CSV

    表  4  SMFS-1抗温能力测试

    T老化/℃表面张力/(mN·m−1V自吸水/mL接触角/(°)S/%
    常温25.000.13081.6281.25
    8025.040.13281.2781.20
    10025.200.13480.8480.37
    12026.170.14178.9077.84
    14035.580.25058.4754.63
    下载: 导出CSV

    表  5  SMFS-1加入对聚磺钻井液流变与失水性能的影响

    SMFS-1/
    %
    实验
    条件
    AV/
    mPa·s
    YP/
    Pa
    Gel/
    Pa/Pa
    FLAPI/
    mL
    FLHTHP/
    mL
    0常温22.06.52.0/7.5
    100 ℃、16 h21.06.02.0/7.02.812.0
    120 ℃、16 h19.55.01.5/6.03.213.2
    0.3常温22.06.52.0/7.5
    100 ℃、16 h21.56.02.0/7.02.611.8
    120 ℃、16 h20.05.51.5/6.03.213.2
    0.6常温22.06.52.0/7.0
    100 ℃、16 h21.06.02.0/7.02.611.8
    120 ℃、16 h20.05.01.5/6.03.413.4
    下载: 导出CSV

    表  6  SMFS-1和常规处理剂的生物毒性和生物降解性

    试剂EC50/(mg·L−1Y
    SMFS-132 25017.36
    Tween8016 50028.90
    OBS918031.96
    SL39 77017.24
    C-20121 14019.20
    下载: 导出CSV
  • [1] WANG C W, SU Y L, WANG W D, et al. Water blocking damage evaluation and mitigation in tight gas reservoirs[J]. Energy Fuels, 2022, 36(18):10934-10944. doi: 10.1021/acs.energyfuels.2c02261
    [2] LI X J, ZHANG Q J, LIU P, et al. Investigation on the microscopic damage mechanism of fracturing fluids to low-permeability sandstone oil reservoir by nuclear magnetic resonance[J]. Journal of Petroleum Science and Engineering, 2022, 209:109821. doi: 10.1016/j.petrol.2021.109821
    [3] 李恒. 页岩气储层保护钻井液研究[D]. 青岛: 中国石油大学(华东), 2018.

    LI Heng. Research of shale gas research protection fluid [D]. Qingdao: China University of Petroleum(East China), 2018.
    [4] 胡友林,乌效鸣. 煤层气储层水锁损害机理及防水锁剂的研究[J]. 煤炭学报,2014,39(6):1107-1111. doi: 10.13225/j.cnki.jccs.2013.1024

    HU Youlin, WU Xiaoming. Research on coalbed methane reservoir blocking damage mechanism and anti-water blocking[J]. Journal of China Coal Society, 2014, 39(6):1107-1111. doi: 10.13225/j.cnki.jccs.2013.1024
    [5] FAN H M, LYU J, ZHAO J B, et al. Evaluation method and treatment effectiveness analysis of anti-water blocking agent[J]. Journal of Natural Gas Science and Engineering, 2016, 33:1374-1380. doi: 10.1016/j.jngse.2016.06.052
    [6] 安一梅,李丽华,赵凯强,等. 低渗透油气藏用防水锁剂体系的制备与性能评价[J]. 油田化学,2021,38(1):19-23.

    AN Yimei, LI Lihua, ZHAO Kaiqiang, et al. Preparation and performance evaluation of waterproof lock agent system for low permeability oil and gas reservoir[J]. Oilfield Chemistry, 2021, 38(1):19-23.
    [7] 李昕潼,郑文武,刘福,等. 一种致密油气层保护剂的研制与应用[J]. 钻井液与完井液,2022,39(5):565-572.

    LI Xintong, ZHENG Wenwu, LIU Fu, et al. Development and application of a protective agent for tight oil and gas reservoirs[J]. Drilling Fluid & Completion Fluid, 2022, 39(5):565-572.
    [8] 郭璇,孙金声,吕开河,等. 低渗透气藏有机硅防水锁剂的制备与性能评价[J]. 钻井液与完井液,2023,40(2):156-162. doi: 10.12358/j.issn.1001-5620.2023.02.002

    GUO Xuan, SUN Jinsheng, LYU Kaihe, et al. Preparation and evaluation of an organosilicon water block inhibitor for low permeability gas reservoirs[J]. Drilling Fluid & Completion Fluid, 2023, 40(2):156-162. doi: 10.12358/j.issn.1001-5620.2023.02.002
    [9] 张洁, 姚旭洋, 王双威, 等. 一种钻井液用环保型有机硅防水锁剂及其制备方法和应用: 中国, 108485616[P]. 2019-09-04.

    ZHANG Jie, YAO Xuyang, WANG Shuangwei, et al. An environmentally friendly silicone waterproof locking agent for drilling fluid and its preparation method and application: 108485616[P]. 2019-09-04.
    [10] 凡帆,刘伟,贾俊. 长北区块无土相防水锁低伤害钻井液技术[J]. 石油钻探技术,2019,47(5):34-39.

    FAN Fan, LIU Wei, JIA Jun. Clay-Free Drilling Fluid with Anti-Water Locking and Low Damage Performance Used in the Changbei Block[J]. Petroleum Drilling Techniques, 2019, 47(5):34-39.
    [11] 褚奇, 李涛, 刘匡晓, 等. 钻井液用有机处理剂吸附性能的测定方法: 中国, 105277657[P]. 2018-02-09.

    CHU Qi, LI Tao, LIU Kuangxiao, et al. Determination of adsorption properties of organic additives for drilling fluids: China, 105277657[P]. 2018-02-09.
    [12] 邢希金,王荐,何松,等. 关于我国环保钻井液标准的探讨[J]. 石油工业技术监督,2018,34(5):18-22. doi: 10.3969/j.issn.1004-1346.2018.05.007

    XING Xijin, WANG Jian, HE Song, et al. Discussion on the standard of environmental drilling fluid[J]. Technology Supervision in Petroleum Industry, 2018, 34(5):18-22. doi: 10.3969/j.issn.1004-1346.2018.05.007
