磺化腐植酸/胍胶压裂液的制备及其性能研究

安娜 罗攀登 李永寿 方裕燕 王晨

安娜,罗攀登,李永寿,等. 磺化腐植酸/胍胶压裂液的制备及其性能研究[J]. 钻井液与完井液,2021,38(5):657-662 doi: 10.12358/j.issn.1001-5620.2021.05.018
引用本文: 安娜,罗攀登,李永寿,等. 磺化腐植酸/胍胶压裂液的制备及其性能研究[J]. 钻井液与完井液,2021,38(5):657-662 doi: 10.12358/j.issn.1001-5620.2021.05.018
AN Na, LUO Pandeng, LI Yongshou, et al.Preparation of and study on sulfonated humic acid/guar gum fracturing fluid[J]. Drilling Fluid & Completion Fluid,2021, 38(5):657-662 doi: 10.12358/j.issn.1001-5620.2021.05.018
Citation: AN Na, LUO Pandeng, LI Yongshou, et al.Preparation of and study on sulfonated humic acid/guar gum fracturing fluid[J]. Drilling Fluid & Completion Fluid,2021, 38(5):657-662 doi: 10.12358/j.issn.1001-5620.2021.05.018

磺化腐植酸/胍胶压裂液的制备及其性能研究

doi: 10.12358/j.issn.1001-5620.2021.05.018
基金项目: 中国石化股份公司科技攻关项目“顺北超深断溶体油藏高效酸压技术研究”(P20064-3)
详细信息
    作者简介:

    安娜,助理研究员,硕士,1985年生,主要从事油田化学品的研究与开发。电话(0991)3161148;E-mail:ann.xbsj@sinopec.com

    通讯作者:

    王晨,副教授,博士,研究方向为油田化学品。E-mail:sustwangchen@163.com

  • 中图分类号: TE357.12

Preparation of and Study on Sulfonated Humic Acid/Guar Gum Fracturing Fluid

  • 摘要: 采用亚硫酸钠对腐植酸进行磺化改性,磺化腐植酸(SHA)与羧甲基胍胶(CMGG)混合后,加入有机锆交联形成新型耐温耐盐型压裂液凝胶(SHA/CMGG),并研究了压裂液的应用性能。结果表明,SHA/CMGG凝胶比CMGG凝胶具有更好的黏弹性和悬砂能力,其中添加量0.3%SHA/CMGG压裂液性能最好,平均沉降速度为0.32 mm/min。由于磺酸根的引入,SHA/CMGG表现了优异的耐盐性,1%外加盐浓度下表观黏度下降率为50%。同时0.3%SHA/CMGG压裂液表现出良好的耐温耐剪切性能,在140 ℃和170 s−1剪切下,黏度为120 mPa·s,可保持60 min基本不变。破胶后,SHA/CMGG破胶液的黏度和岩心伤害性均变大,但增加量并不显著。通过SEM观察了压裂液作用过程的微观结构变化,SHA/CMGG凝胶具有致密的网状结构,对支撑剂的悬浮起着重要作用。

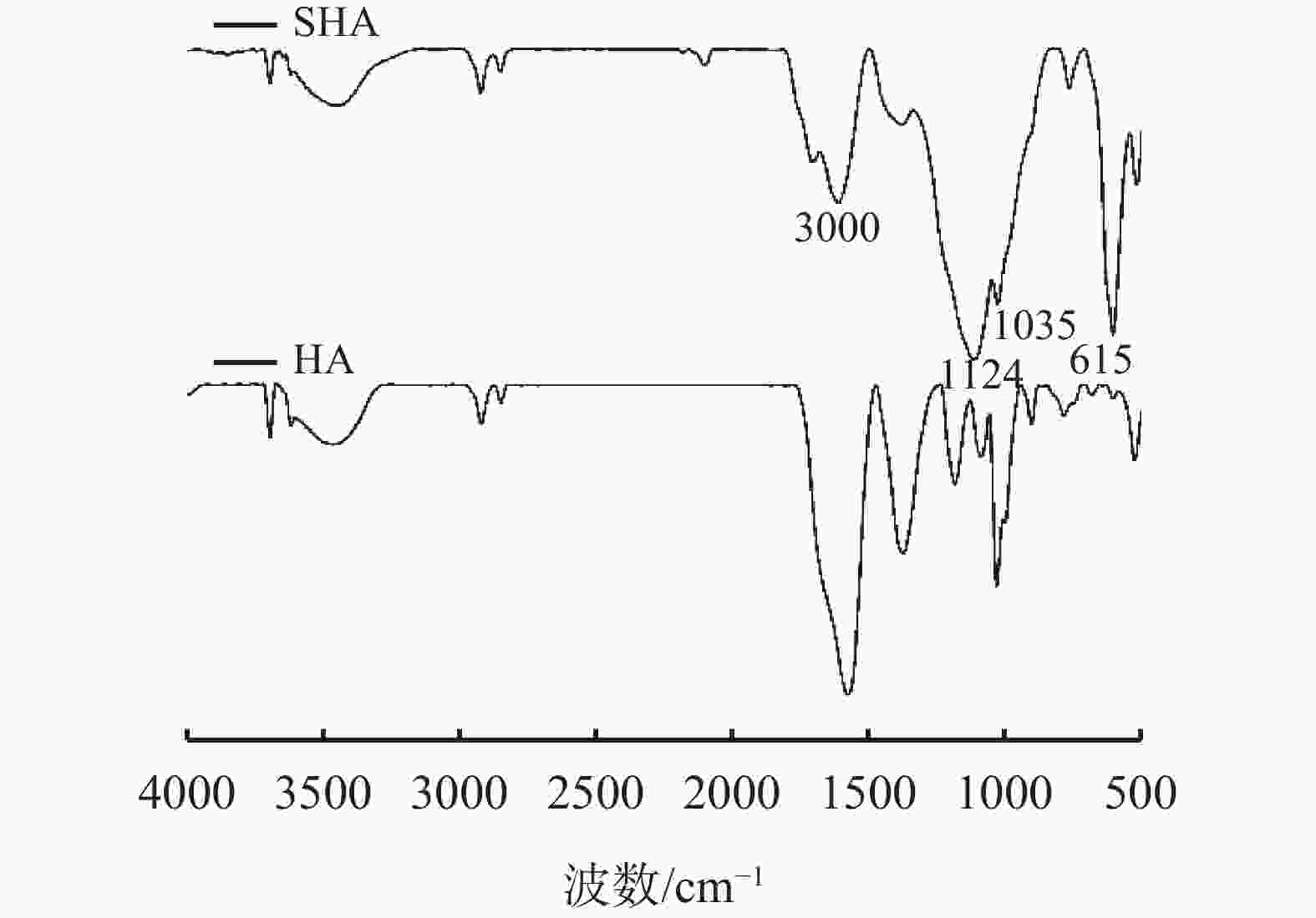

  • 图  1  磺化腐植酸的红外谱图

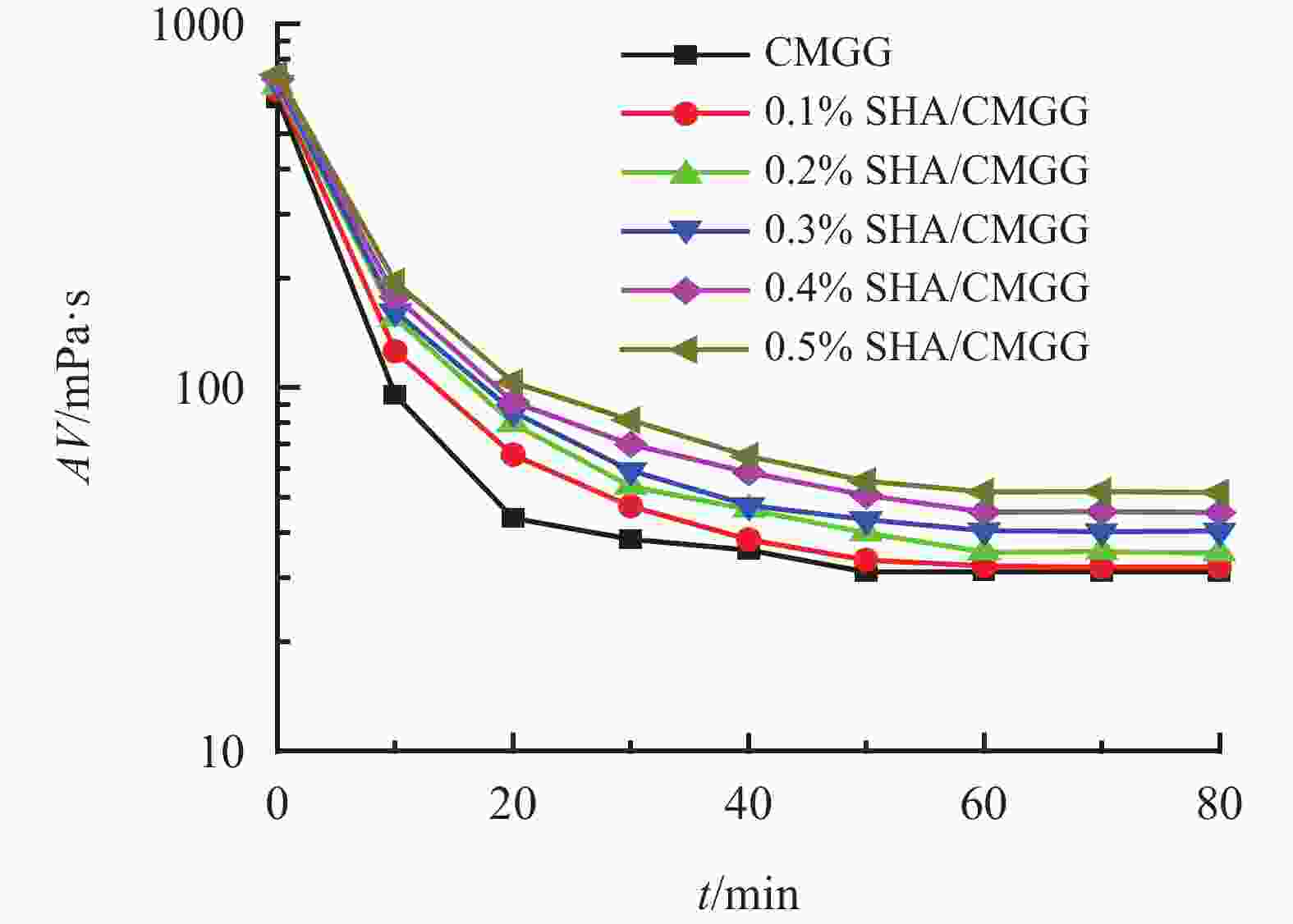

    图  2  SHA/CMGG压裂液基液的表观黏度

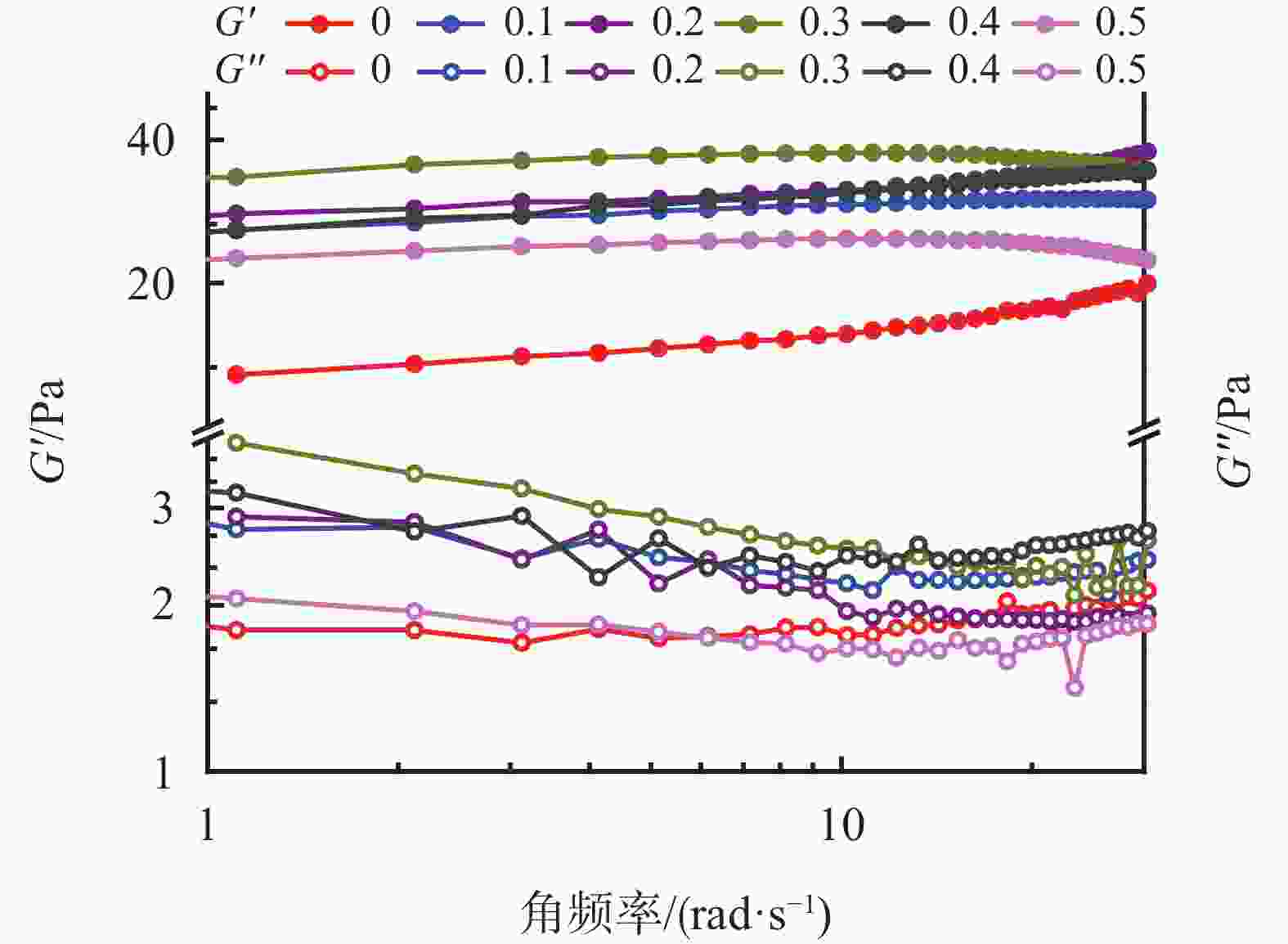

    图  3  SHA/CMGG凝胶的储能模量和损耗模量

    图  4  0.3%SHA/CMGG压裂液的耐温耐剪切曲线

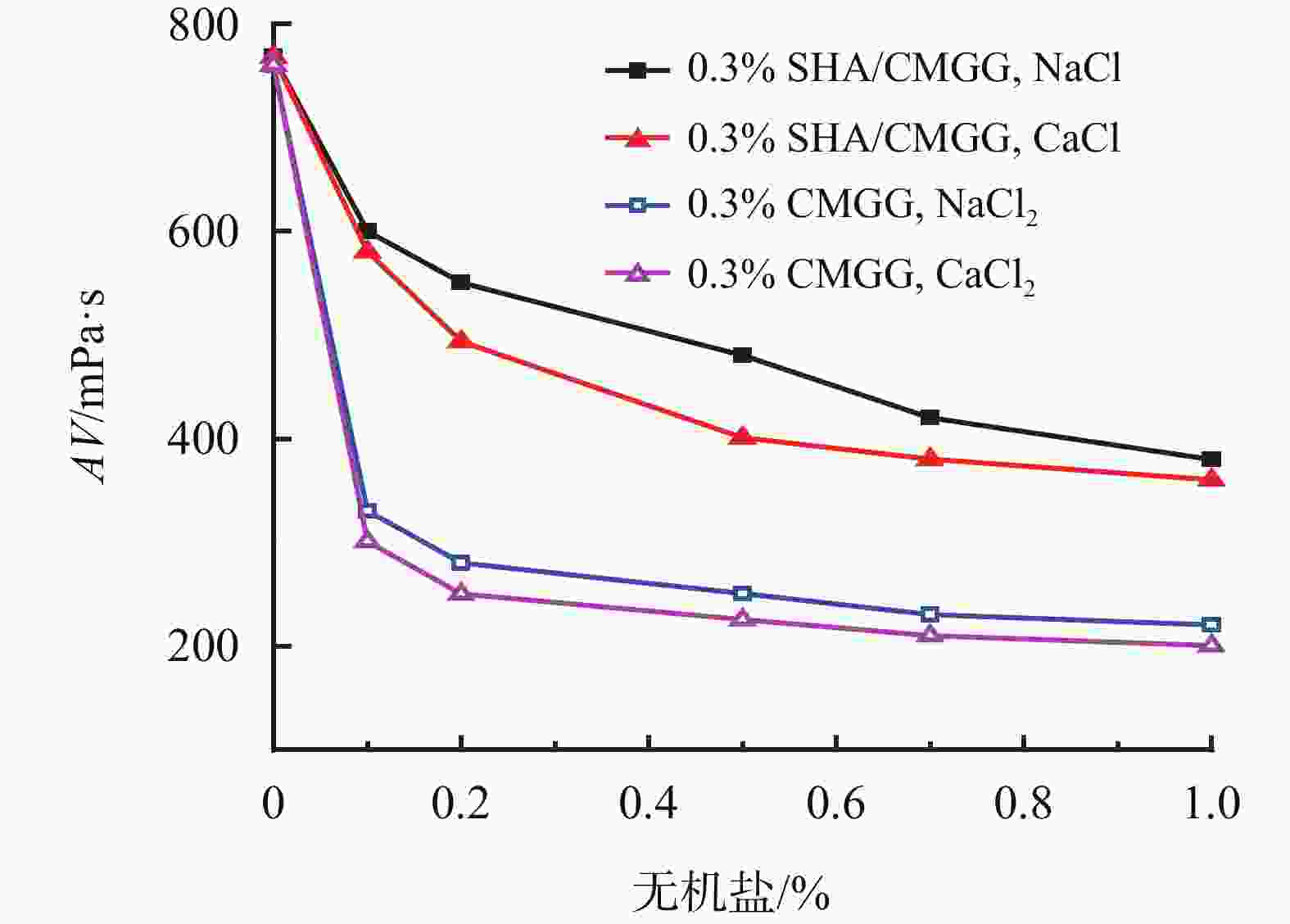

    图  5  不同外加盐浓度下0.3%SHA/CMGG压裂液的表观黏度

    图  6  0.3%SHA/CMGG压裂液的SEM变化

    表  1  压裂液悬砂性能测试结果

    压裂液沉降速度/mm·min−1
    CMGG1.12
    0.1%SHA/CMGG0.96
    0.2%SHA/CMGG0.57
    0.3%SHA/CMGG0.32
    0.4%SHA/CMGG0.53
    0.5%SHA/CMGG0.79
    下载: 导出CSV

    表  2  破胶液黏度和岩心伤害实验结果

    样品η /
    mPa·s
    K0/
    mD
    Kd/
    mD
    Kd/K0 /
    %
    CMGG4.253.1922.80212.23
    0.1%SHA/CMGG4.313.1922.76713.31
    0.2%SHA/CMGG4.593.1922.74913.89
    0.3%SHA/CMGG4.783.1922.73114.43
    0.4%SHA/CMGG5.223.1922.72714.56
    0.5%SHA/CMGG6.073.1922.71914.83
    下载: 导出CSV
  • [1] 董景锋,汪志臣,怡宝安,等. 低浓度胍胶压裂液体系的研究与应用[J]. 油田化学,2017,34(1):43-47.

    DONG Jingfeng, WANG Zhichen, YI Baoan, et al. Development and application of guar gum fracturing fluid with low concentration[J]. Oilfield Chemistry, 2017, 34(1):43-47.
    [2] 赖小娟,宫米娜,崔争攀,等. 低渗透油气储层压裂液的研究进展[J]. 精细石油化工,2015,32(4):77-80. doi: 10.3969/j.issn.1003-9384.2015.04.018

    LAI Xiaojuan, GONG Mina, CUI Zhengpan, et al. Research progress of fracturing fluid for low permeability reservoir[J]. Speciality Petrochemicals, 2015, 32(4):77-80. doi: 10.3969/j.issn.1003-9384.2015.04.018
    [3] 王宝峰,陈作,吴春方,等. 深层致密砂岩气藏中高温压裂液开发及应用[J]. 精细石油化工,2019,36(1):10-14. doi: 10.3969/j.issn.1003-9384.2019.01.003

    WANG Baofeng, CHEN Zuo, WU Chunfang, et al. The development and application of high temperature fracturing fluid in deep tight sandstone gas reservoir[J]. Speciality Petrochemicals, 2019, 36(1):10-14. doi: 10.3969/j.issn.1003-9384.2019.01.003
    [4] 王牧群,邬国栋,姚旭洋,等. 快速水合瓜胶压裂液的研究与应用[J]. 钻井液与完井液,2020,37(6):789-793.

    WANG Muqun, WU Guodong, YAO Xuyang, et al. Research and application of FHG fracturing fluid[J]. Drilling Fluid & Completion Fluid, 2020, 37(6):789-793.
    [5] 刘银仓,谢娟,孙春佳,等. 羧甲基羟丙基胍胶酸性压裂液体系的制备及性能[J]. 油田化学,2019,36(1):43-47,37.

    LIU Yincang, XIE Juan, SUN Chunjia, et al. Preparation and properties of CMHPG acid fracturing fluid system[J]. Oilfield Chemistry, 2019, 36(1):43-47,37.
    [6] 吴江. 腐植酸的化学改性及其对煤粒的分散性能研究[D]. 西安: 陕西科技大学, 2019.

    WU Jiang. Chemical modification of humic ccid and its dispersion property to coal particles[D]. Xi'an: Shaanxi University of Science and Technology, 2019.
    [7] 张乔良,张贵才,葛际江. 腐植酸在油田中的应用[J]. 钻井液与完井液,2004(3):55-57,67-68.

    ZHANG Qiaoliang, ZHANG Guicai, GE Jijiang. Humic acid and its application in oilfield[J]. Drilling Fluid & Completion Fluid, 2004(3):55-57,67-68.
    [8] 郑易安,王文波,王爱勤. 腐植酸高吸水性树脂研究进展[J]. 高分子通报,2011(8):38-47.

    ZHENG Yian, WANG Wenbo, WANG Aiqin. Progress in superabsorbent with humic acid[J]. Chinese Polymer Bulletin, 2011(8):38-47.
    [9] 吴红运,高丽娟,杨小莹,等. 褐煤腐植酸磺化改性工艺及表征[J]. 洁净煤技术,2014,20(6):42-45.

    WU Hongyun, GAO Lijuan, YANG Xiaoying, et al. Sulfonation and characterization of lignite humic acid[J]. Clean Coal Technology, 2014, 20(6):42-45.
    [10] ZHANG K, ZHANG G, LI Z, et al. Laboratory evaluation of a low pH and low polymer concentration zirconium-CMHPG gel system for hydraulic fracturing[J]. Energy & Fuels, 2019, 33(10):9720-9735.
    [11] 宋洁,齐钟昱,杨通,等. 磺化腐植酸有机保水剂的制备及应用[J]. 现代化工,2020,40(5):128-132.

    SONG Jie, QI Zhongyu, YANG Tong, et al. Preparation and application of sulfonated humic acid-based organic water retaining agent[J]. Modern Chemical Industry, 2020, 40(5):128-132.
    [12] 张光华,贾宇荣,李俊国,等. 磺化腐植酸-甲醛-磺化丙酮聚合物合成及性能研究[J]. 陕西科技大学学报,2014,32(5):63-67. doi: 10.3969/j.issn.1000-5811.2014.05.013

    ZHANG Guanghua, JIA Yurong, LI Junguo, et al. Synthesis and properties of sulfonated humic acid-formaldehyde-sulfonated acetone polymer[J]. Journal of Shaanxi University of Science and Technology, 2014, 32(5):63-67. doi: 10.3969/j.issn.1000-5811.2014.05.013
    [13] 马国艳,沈一丁,王小荣,等. 压裂用疏水缔合聚合物溶液性质及减阻性能[J]. 精细化工,2016,33(10):1159-1164.

    MA Guoyan, SHEN Yiding, WANG Xiaorong, et al. Solution properties and drag reduction of hydrophobically associating polymer for fracturing fluids[J]. Fine Chemicals, 2016, 33(10):1159-1164.
    [14] 何春明,才博,卢拥军,等. 瓜胶压裂液携砂微观机理研究[J]. 油田化学,2015,32(1):34-38.

    HE Chunming, CAI Bo, LU Yongjun, et al. Microscopic mechanism of proppant carrying capacity of fracturing fluid[J]. Oilfield Chemistry, 2015, 32(1):34-38.
    [15] 张艺耀. 瓜胶压裂液结构及黏弹性与携砂性能的关系研究[D]. 成都: 西南石油大学, 2014.

    ZHANG Yiyao. Study on the relationship between structure viscoelasticity and sand-carrying performance of cucurbit gum fracturing fluid[D]. Chengdu: Southwest Petroleum University, 2014.
