Mechanisms of Borehole Wall Instability of Terrestrial Tight Oil Wells in Songliao Basin and Drilling Fluid Countermeasures
-

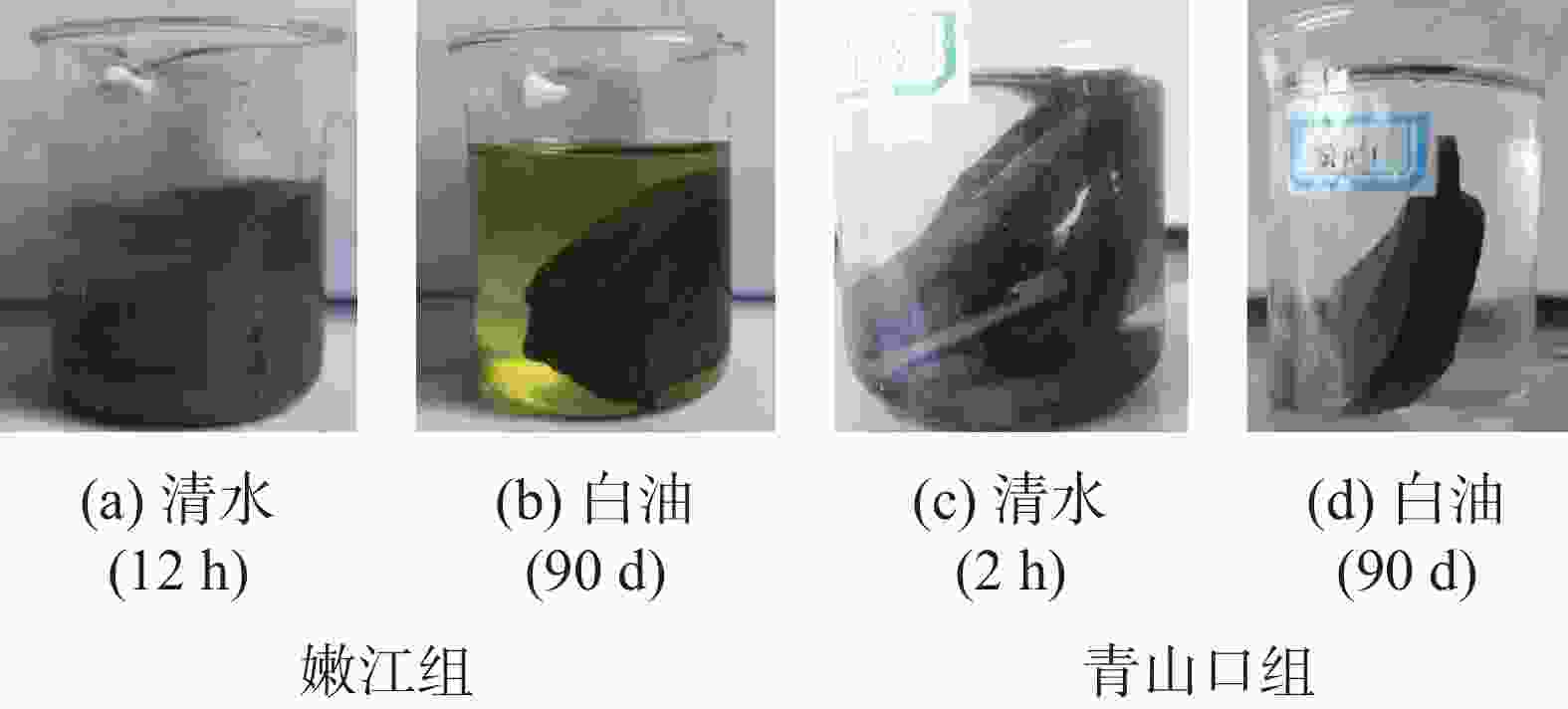

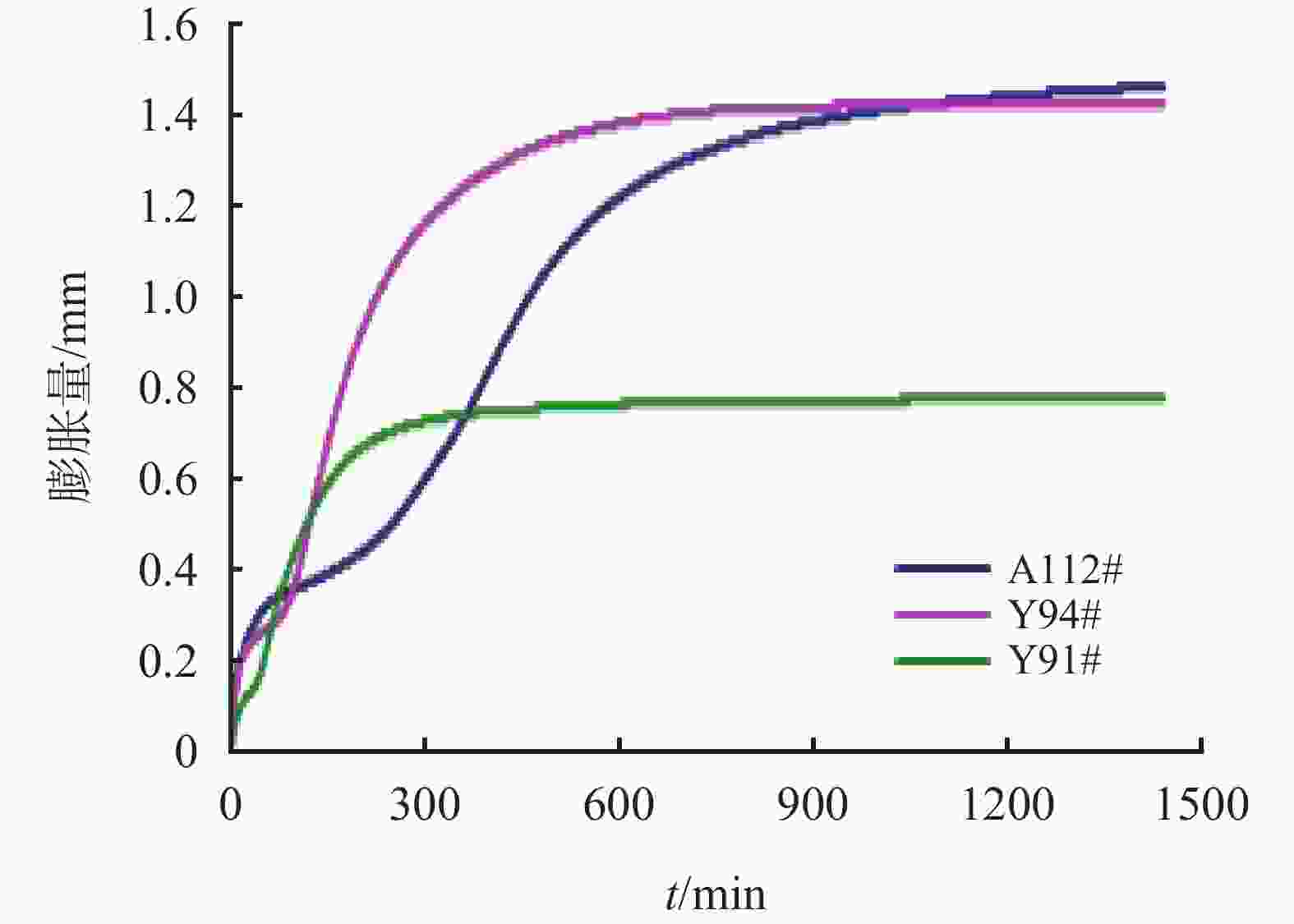

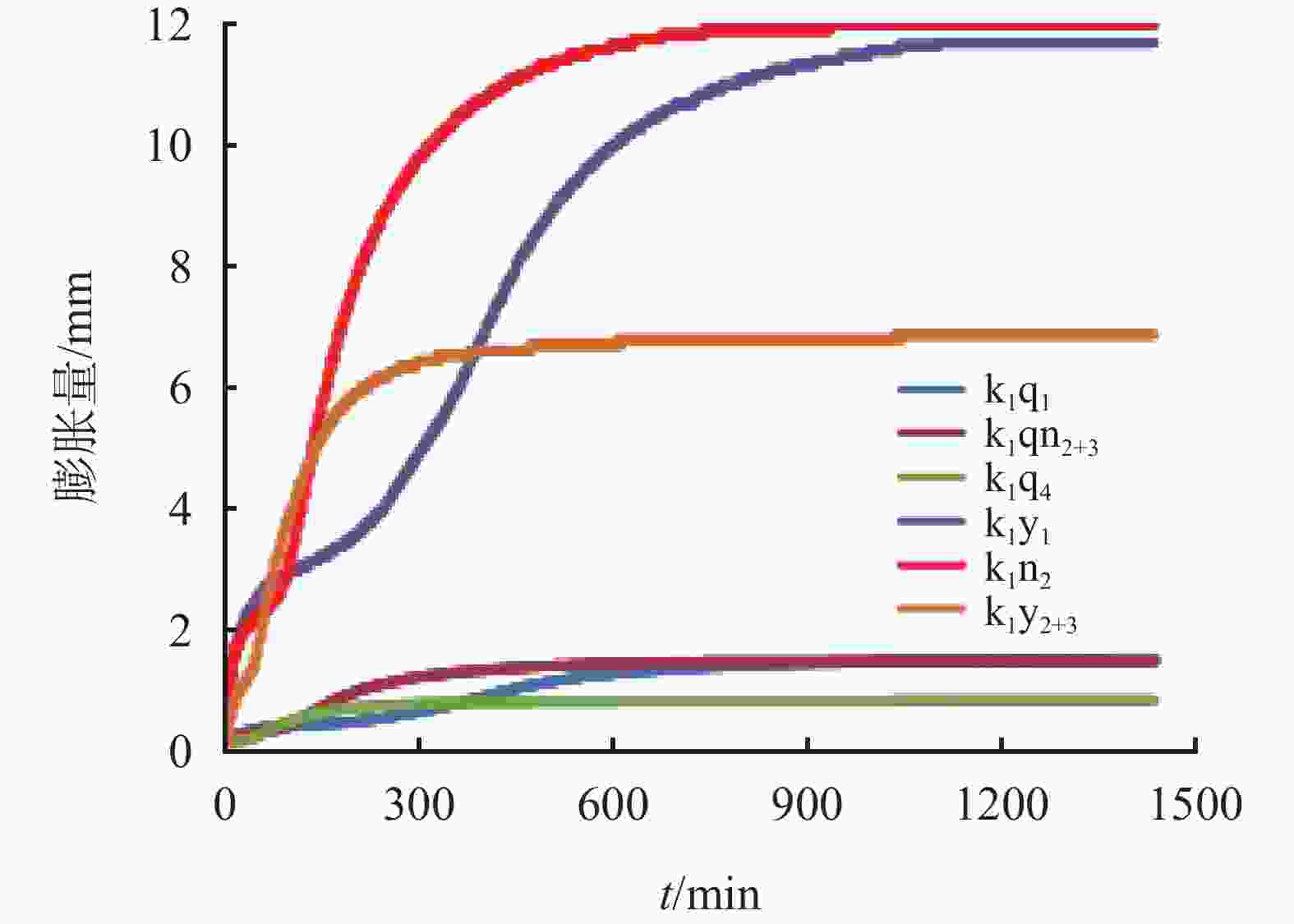

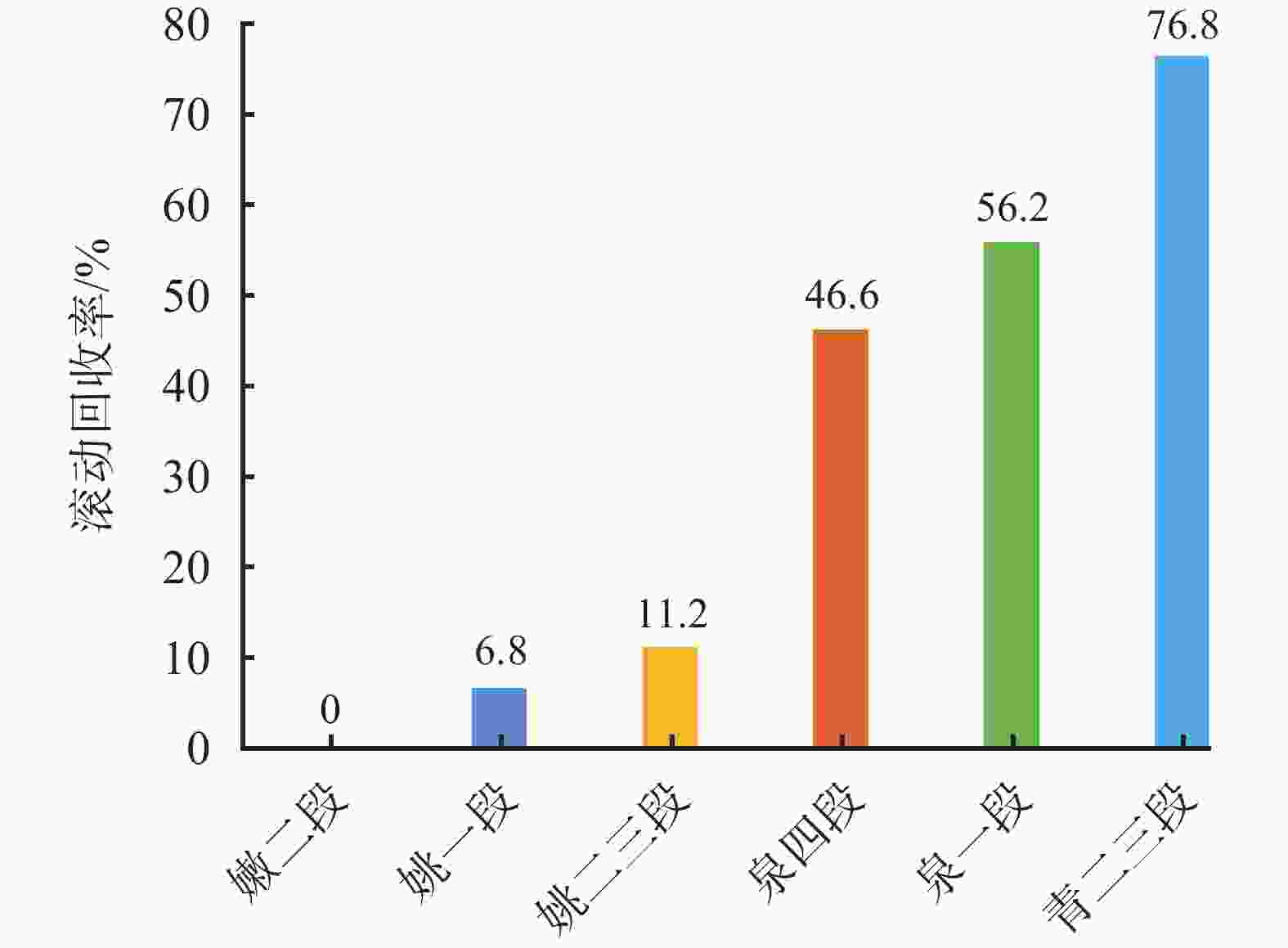

摘要: 大庆油田松辽盆地北部为陆相致密油资源，在勘探开发中存在井壁失稳难题，制约着致密油的高效开发。因此，采用扫描电镜和X-衍射分析对地层岩心的微观结构和黏土矿物成分进行分析，并对其水化特性进行研究，从而分析了大庆油田致密泥岩油地层井壁失稳机理。通过研究钻井液抑制性、封堵能力、理化参数和泥饼质量对井壁稳定性的影响，最终研发了一套氯化钾低聚胺基钻井液体系。室内实验表明，该钻井液体系的抗温达120 ℃，极压润滑性系数小于0.12，滚动回收率大于96%，能抗10%膨润土侵，在大庆油田致密油区块现场应用20口井，井壁稳定效果良好，水平段平均井径扩大率小于6%，固井优质率大于90%，起下钻、下套管作业顺利。研究成果表明，氯化钾低聚胺基钻井液体系能够有效提高松辽盆地陆相致密油地层井壁稳定性，为提高大庆油田致密油开发效率、降低井下复杂事故提供了技术支撑。Abstract: Borehole wall instability has long been a problem in the development of the terrestrial tight oil in the Songliao Basin (Daqing Oilfield). To understand the mechanisms of the borehole wall instability, SEM and X-ray diffraction were used to analyze the microstructure of the core samples and the mineral composition of clays taken from the wells drilled in the basin. Laboratory studies were conducted on several aspects that are related to the stability of borehole walls, such as the hydration capacity of the core and clay samples, the impact of the mud cake quality, the physical-chemical parameters, the plugging capacity and inhibitive capacity of the drilling fluids used on the stability of the borehole walls etc. Based on these studies, a KCl oligomer polyamine drilling fluid was developed. Study on this drilling fluid showed that it functions normally at temperatures as high as 120 ℃, the extreme pressure friction coefficient of the drilling fluid is 0.12, percent recovery of shale cuttings in roller oven test with this drilling fluid is greater than 96%, and it is resistant to contamination by invasion of 10% bentonite. This drilling fluid has been used on 20 tight oil wells in Daqing, no borehole wall instability was encountered. The average percent hole enlargement of these wells was less than 6%, and 90% of the wells were cemented with excellent job quality. Tripping of drill string during drilling and casing running were all conducted smoothly. Field application has proved that this KCl oligomer polyamine drilling fluid is able to improve the borehole wall stability of the tight oil wells drilled in the Songliao Basin, and its use has provided technical support to the efficient development of the tight oil in Daqing Oilfield and to the mitigation of downhole troubles.
-
表 1 氯化钾低聚胺钻井液流变性能
T/
℃t/
hφ600/
φ300φ200/
φ100φ6/
φ3Gel/
Pa/PaFLAPI/
mLFLHTHP/
mL常温 92/65 50/34 9/7 3.5/5.0 2.5 120 16 93/63 51/34 10/7 3.5/5.0 2.8 9.2 注：钻井液密度为1.65 g/cm3
下载: 导出CSV
表 2 PF140-PX井现场施工钻井液性能
井深
mρ/
g/cm3FV/
sPV/
mPa·sYP/
PaYP /PV/
Pa/mPa·sFL/
mLpH Cs/
%Kf 280 1.10 39 14 2.0 0.14 3.8 9.0 0.1 630 1.15 51 22 12.0 0.55 4.0 10.0 1.5 0.0437 812 1.22 40 20 7.5 0.38 4.0 10.0 1.8 0.0437 960 1.25 76 35 21.0 0.60 4.8 9.0 1.8 0.0612 1242 1.24 63 39 12.0 0.31 4.4 9.0 1.8 0.0612 1464 1.26 106 49 20.5 0.42 5.6 9.0 1.8 0.0612 1597 1.29 76 39 11.0 0.28 4.0 9.0 1.8 0.0349 1798 1.29 100 38 13.0 0.34 5.6 9.0 2.0 0.0437 1998 1.30 120 25 13.5 0.54 6.0 8.5 2.0 0.0524 2008 1.28 76 40 14.0 0.35 4.8 8.0 1.8 0.0524 2694 1.25 78 35 21.0 0.60 5.2 9.0 0.8 0.0612
下载: 导出CSV
-
[1] 张抗,谭云冬. 世界页岩气资源潜力和开发现状及中国页岩气发展前景[J]. 当代石油石化,2009,17(3):9-12. doi: 10.3969/j.issn.1009-6809.2009.03.002ZHANG Kang, TAN Yundong. The status of world shale gas resources potential and production status as well as development prospect of China’s shale gas[J]. Petroleum Petrochemical Today, 2009, 17(3):9-12. doi: 10.3969/j.issn.1009-6809.2009.03.002 [2] 张文哲,孙金声,白英睿,等. 抗高温纤维强化凝胶颗粒堵漏剂研究[J]. 钻井液与完井液,2020,37(3):269-274.ZHANG Wenzhe, SUN Jinsheng, BAI Yingrui, et al. Study on anti-high temperature fiber-reinforced gel particles[J]. Drilling Fluid & Completion Fluid, 2020, 37(3):269-274. [3] HUTTON ALISTAIR, VICKERS STEPHEN, DAVIDSON MARCUS, et al. Design and application of invert emulsion drilling and aqueous completion fluids for long horizontal multilateral wells[R]. SPE 121905, 2009. [4] 张凤英,鄢捷年,周劲辉,等. 苏丹六区低伤害防塌钻井液技术[J]. 石油钻探技术,2010,38(2):43-46. doi: 10.3969/j.issn.1001-0890.2010.02.010ZHANG Fengying, YAN Jienian, ZHOU Jinhui, et al. An anti sloughing and low-damage drilling fluid used in Block 6, Sudan[J]. Petroleum Drilling Techniques, 2010, 38(2):43-46. doi: 10.3969/j.issn.1001-0890.2010.02.010 [5] 万鑫,吴金桥,杨超,等. 延长油田页岩气水平井安全钻井液密度窗口探讨[J]. 非常规油气,2016,3(5):121-126.WAN Xin, WU Jinqiao, YANG Chao, et al. Study of safe drilling mud weight window for shale gas horizontal well in Yangchang oilfield[J]. Unconventonal Oil & Gas, 2016, 3(5):121-126. [6] 侯杰. 新型抗高温聚胺抑制剂在大庆致密油水平井中的应用[J]. 钻采工艺,2017,40(5):84-87. doi: 10.3969/J.ISSN.1006-768X.2017.05.26HOU Jie. Application of a new high-temperature polyamine inhibitor in horizontal wells in tight oil reservoirs in Daqing[J]. Drilling Production Technology, 2017, 40(5):84-87. doi: 10.3969/J.ISSN.1006-768X.2017.05.26 [7] 史配铭,薛让平,王学枫,等. 苏里格气田致密气藏水平井优快钻井技术[J]. 石油钻探技术,2020,48(5):27-33. doi: 10.11911/syztjs.2020083SHI Peiming, XUE Rangping, WANG Xuefeng, et al. Optimizedfast drilling technology for horizontal wells in the tight gas reser-voirs in Sulige Gas Field[J]. Petroleum Drilling Techniques, 2020, 48(5):27-33. doi: 10.11911/syztjs.2020083 [8] 邱正松,王伟吉,董兵强,等. 微纳米封堵技术研究及应用[J]. 钻井液与完井液,2015,32(2):6-9. doi: 10.3969/j.issn.1001-5620.2015.02.002QIU Zhengsong, WANG Weiji, DONG Bingqiang, et al. Investigation and application micro-nano sealing technology[J]. Drilling Fluid & Completion Fluid, 2015, 32(2):6-9. doi: 10.3969/j.issn.1001-5620.2015.02.002 [9] 石秉忠,解超,李胜,等. 杭锦旗区块锦58井区钻井液技术实践与认识[J]. 石油钻探技术,2017,45(6):37-41.SHI Bingzhong, XIE Chao, LI Sheng, et al. Development andapplication of drilling fluid in the Jin-58 Well block of the Hangjinqi block[J]. Petroleum Drilling Techniques, 2017, 45(6):37-41. [10] 冷朝君. 强抑制性聚合醇钻井液体系在水平井钻井中的应用[J]. 西部探矿工程,2019,31(10):77-79.LENG Chaojun. Application of strong inhibitory polyalcohol drilling fluid system in horizontal well drilling[J]. Western Exploration Engineering, 2019, 31(10):77-79. [11] 侯杰. 硬脆性泥页岩微米-纳米级裂缝封堵评价新方法[J]. 石油钻探技术,2017,45(3):34-37.HOU Jie. A new method of plugging micro/nano meter cracks in hard brittle shale[J]. Petroleum Drilling Techniques, 2017, 45(3):34-37. [12] 邱正松,张世锋,黄维安,等. 新型铝基防塌剂的研制及防塌作用机理[J]. 石油学报,2014,35(4):754-758. doi: 10.7623/syxb201404018QIU Zhengsong, ZHANG Shifeng, HUANG Weian, et al. A novelaluminum-based shale/mudstone stabilizer and analysis of itsmechanism for wellbore stability[J]. Acta Petrolei Sinica, 2014, 35(4):754-758. doi: 10.7623/syxb201404018 [13] 马成云,宋碧涛,徐同台,等. 钻井液用纳米封堵剂研究进展[J]. 钻井液与完井液,2017,34(1):1-8. doi: 10.3969/j.issn.1001-5620.2017.01.001MA Chengyun, SONG Bitao, XU Tongtai, et al. Progresses instudying drilling fluid nano material plugging agents[J]. Drilling Fluid & Completion Fluid, 2017, 34(1):1-8. doi: 10.3969/j.issn.1001-5620.2017.01.001 [14] 吴雄军,林永学,宋碧涛,等. 顺北油气田奥陶系破碎性地层油基钻井液技术[J]. 钻井液与完井液,2020,37(6):701-708.WU Xiongjun, LIN Yongxue, SONG Bitao, et al. Oil base drilling fluid technology for drilling broken ordovician formation in Shunbei block[J]. Drilling Fluid & Completion Fluid, 2020, 37(6):701-708. [15] 孙俊,艾加伟,舒义勇,等. FDM-1成膜封堵剂的实验评价及应用[J]. 钻井液与完井液,2020,37(1):54-58.SUN Jun, AI Jiawei, SHU Yiyong,et al. Experimental evaluation and application of FDM-1 film-forming plugging agent[J]. Drilling Fluid & Completion Fluid, 2020, 37(1):54-58. -
