Simulation Analysis of Fiber-optic Monitoring of Mechanical Behavior of Cement Sheath in Gas Storage Wells with Defects
-

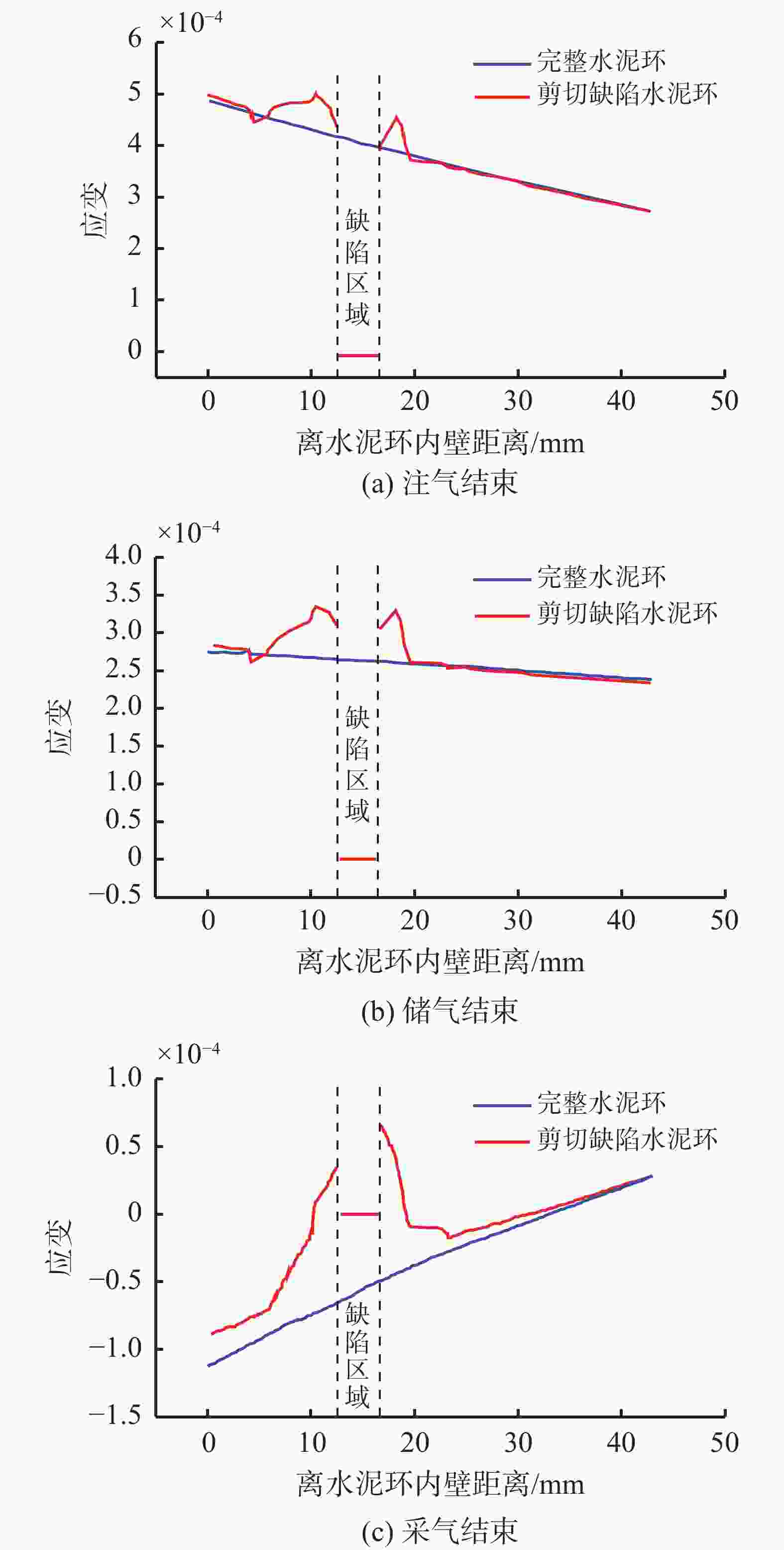

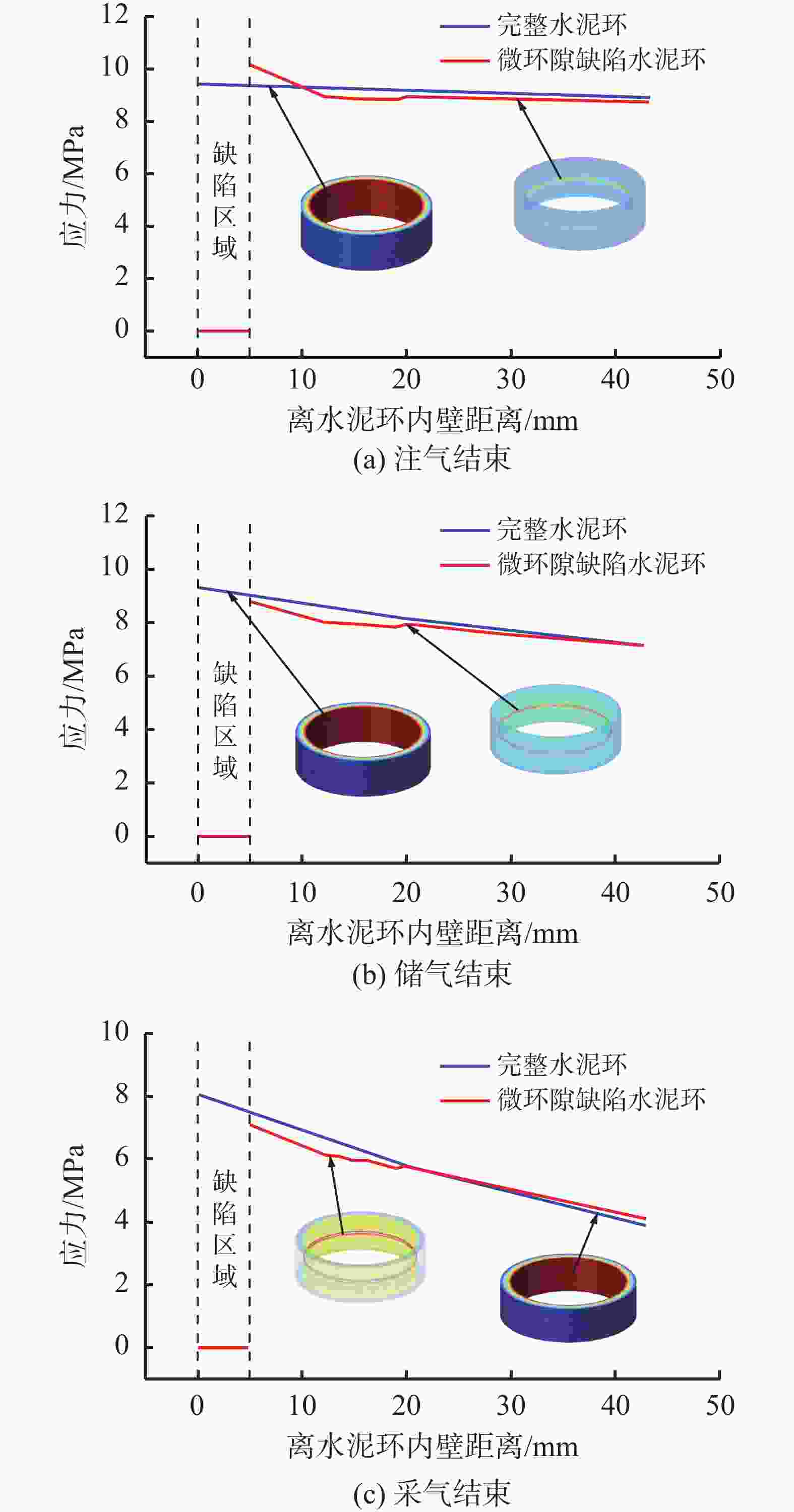

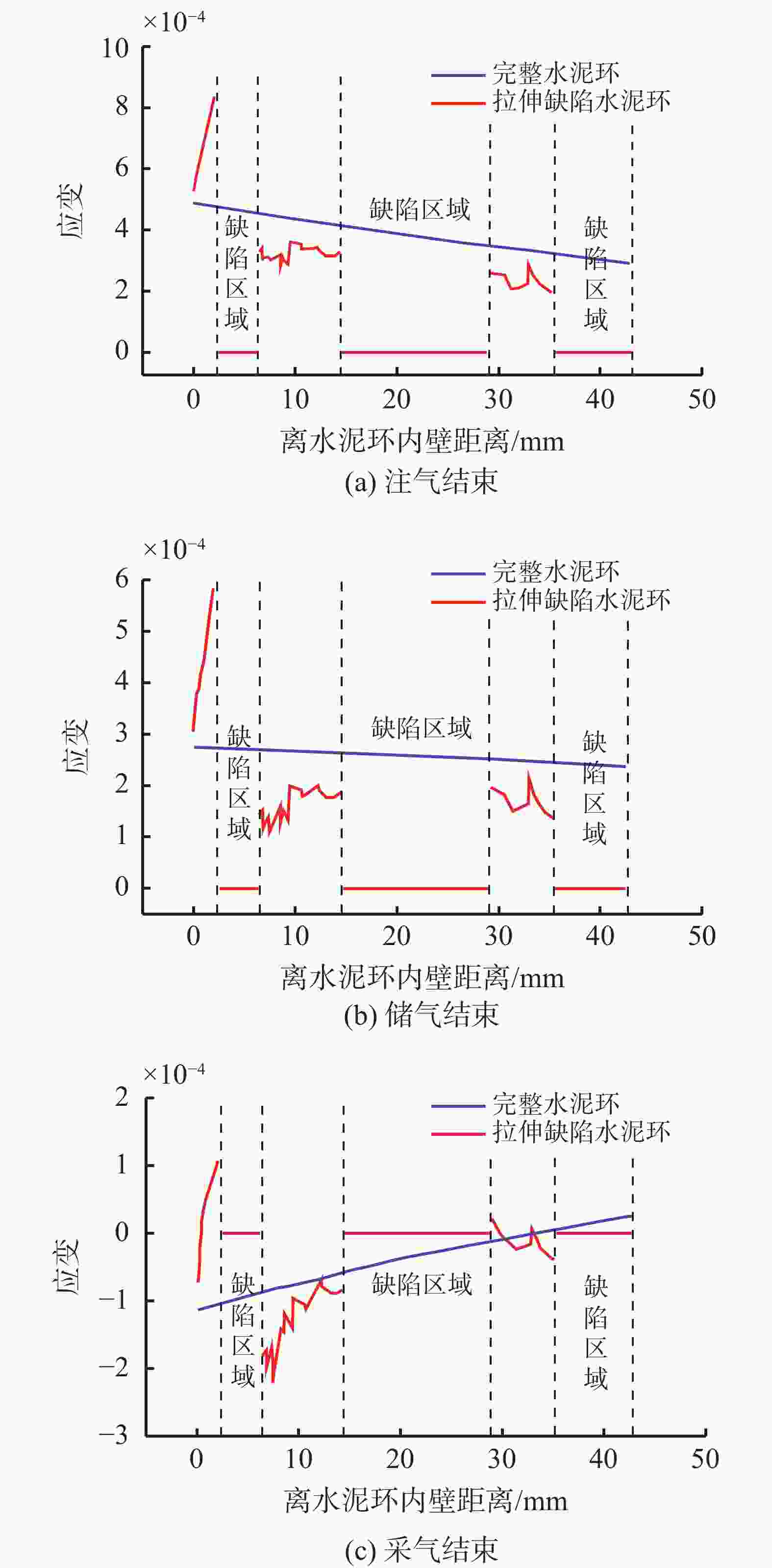

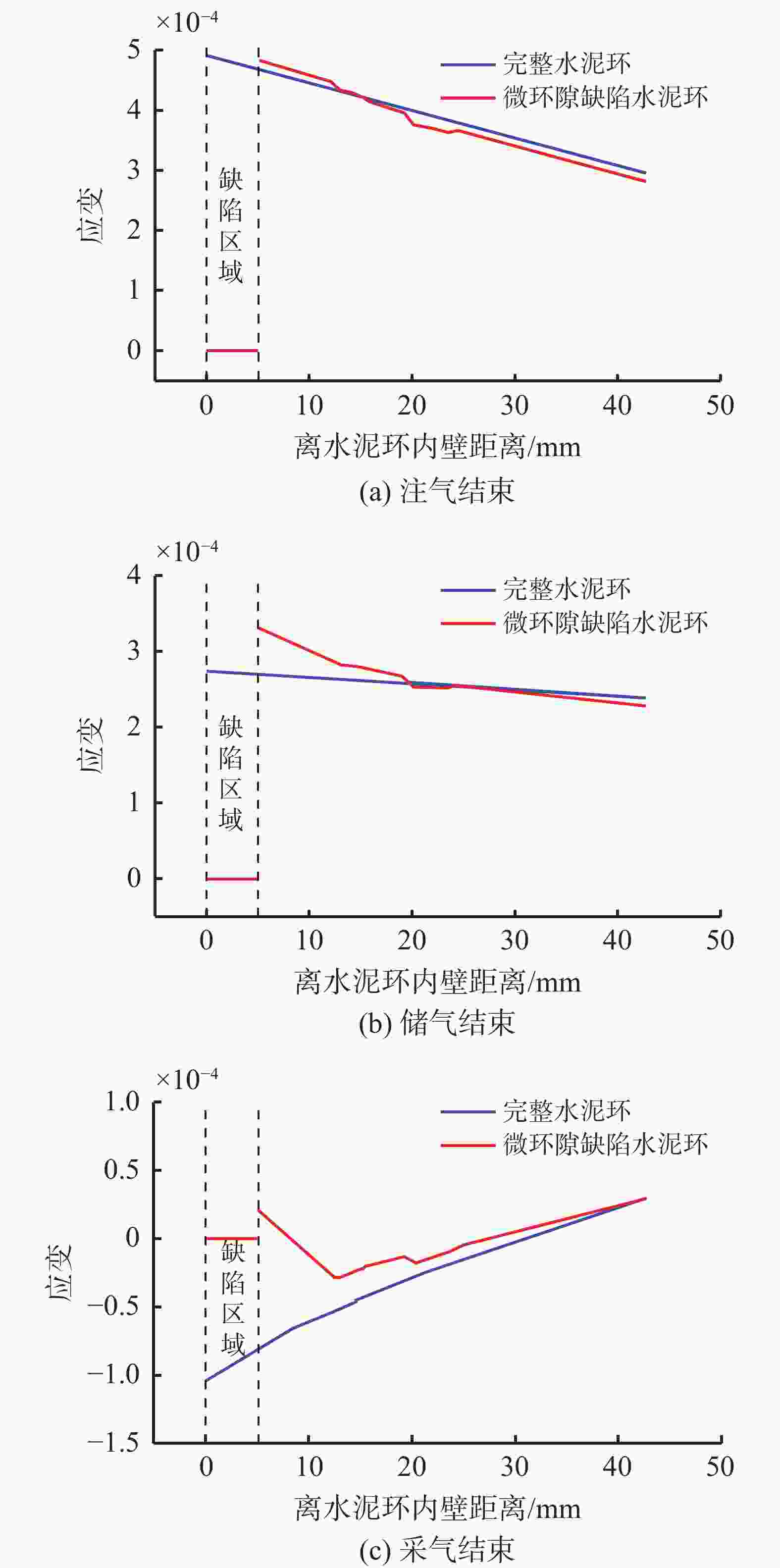

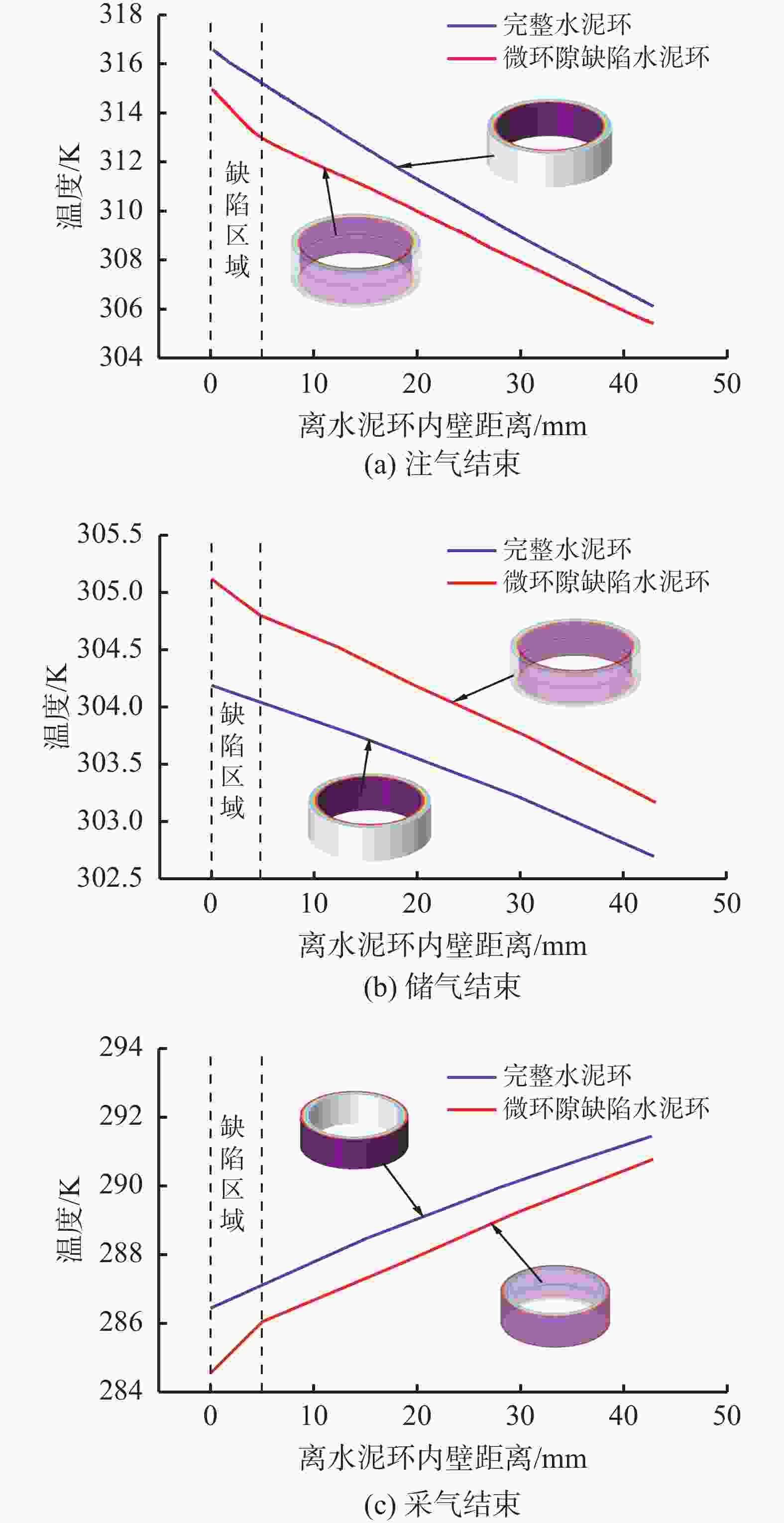

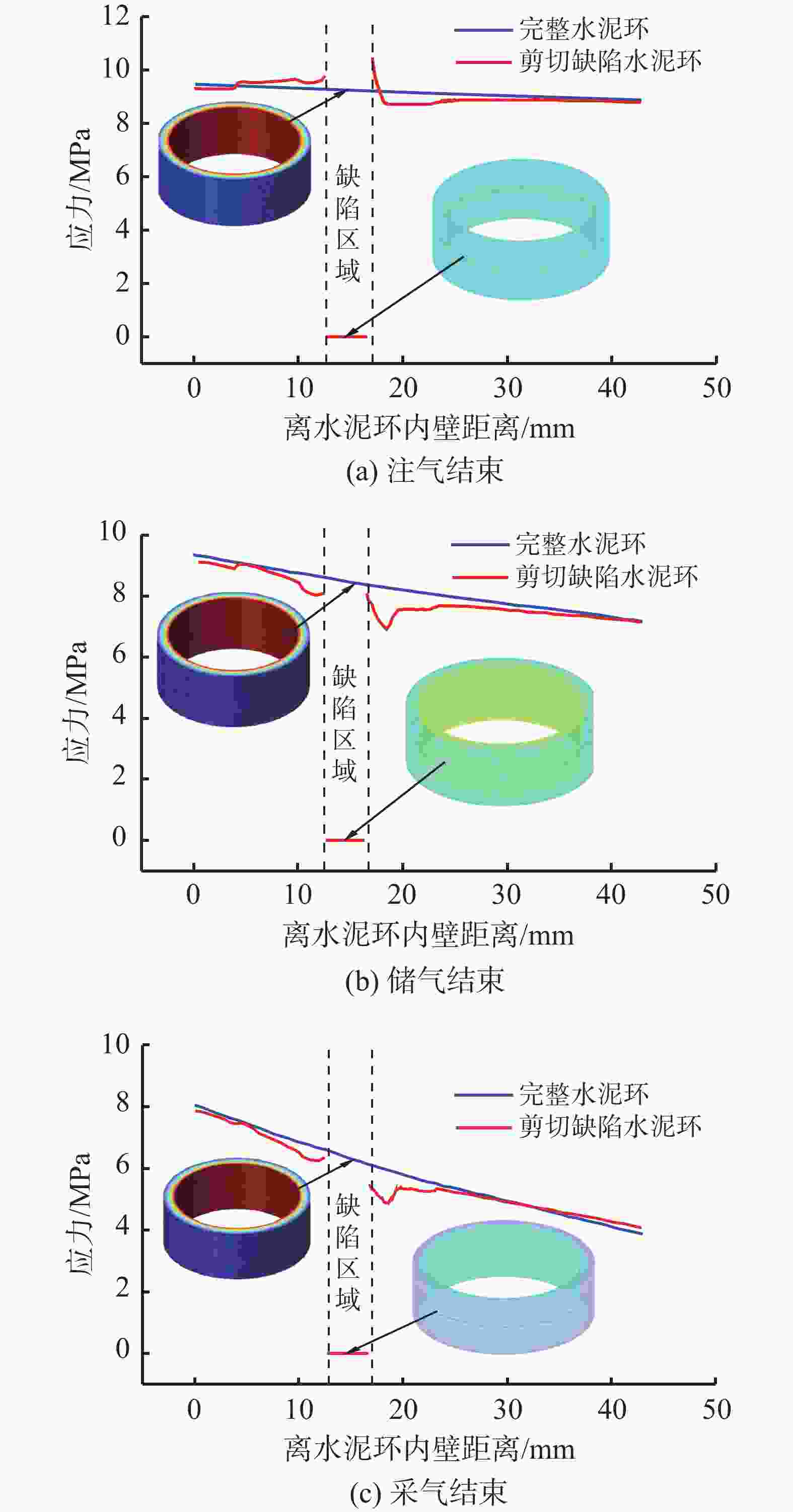

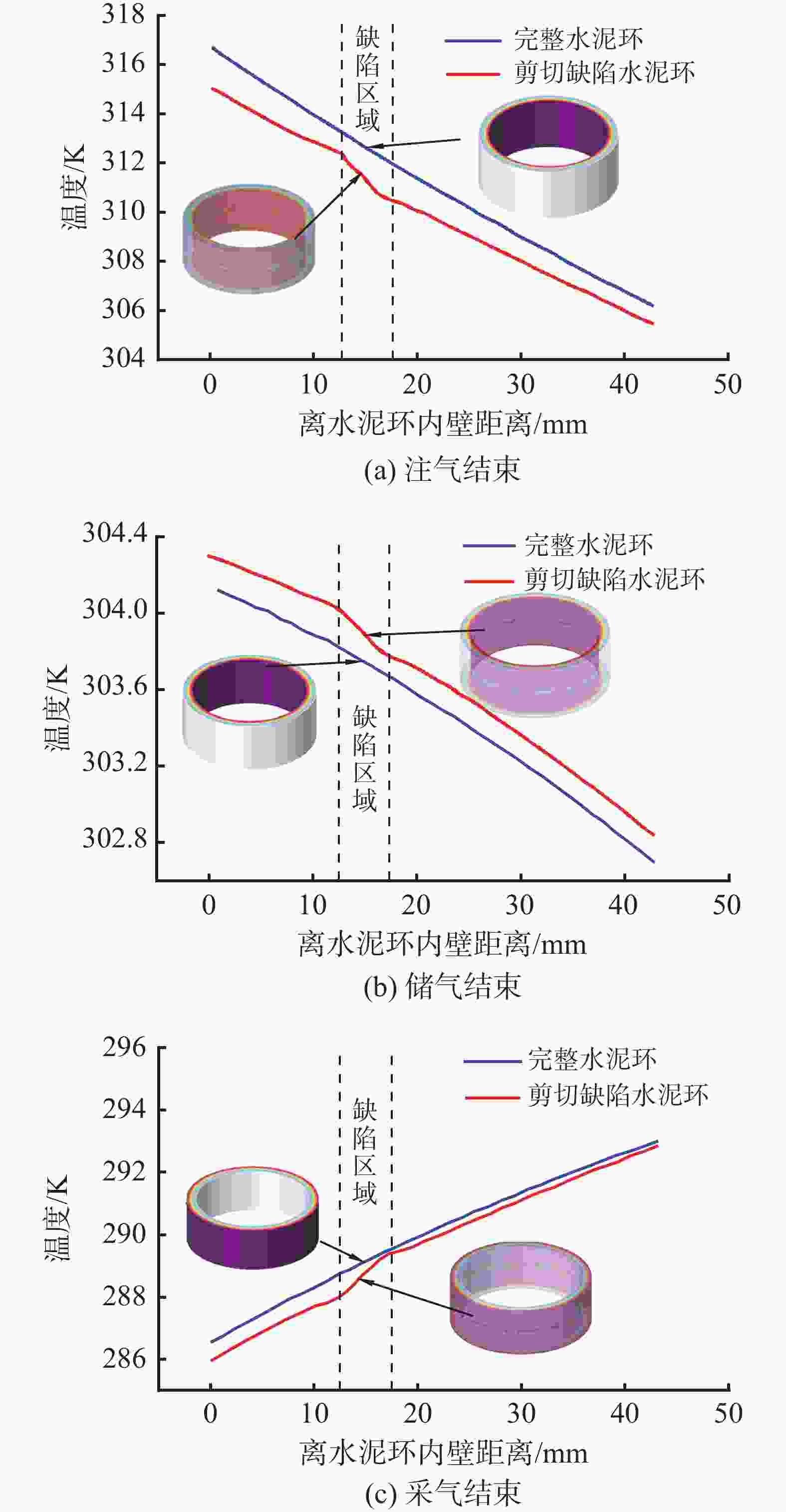

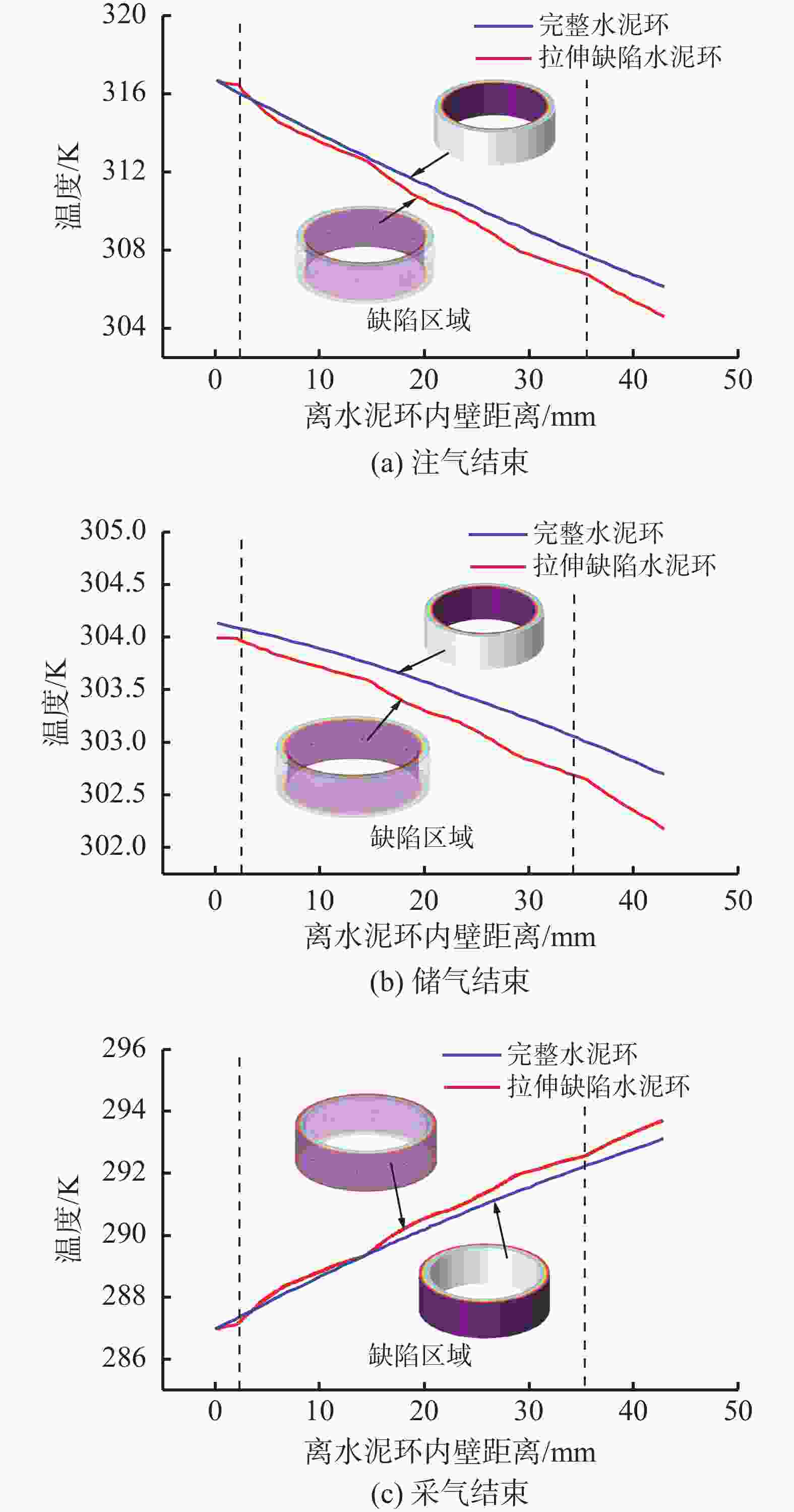

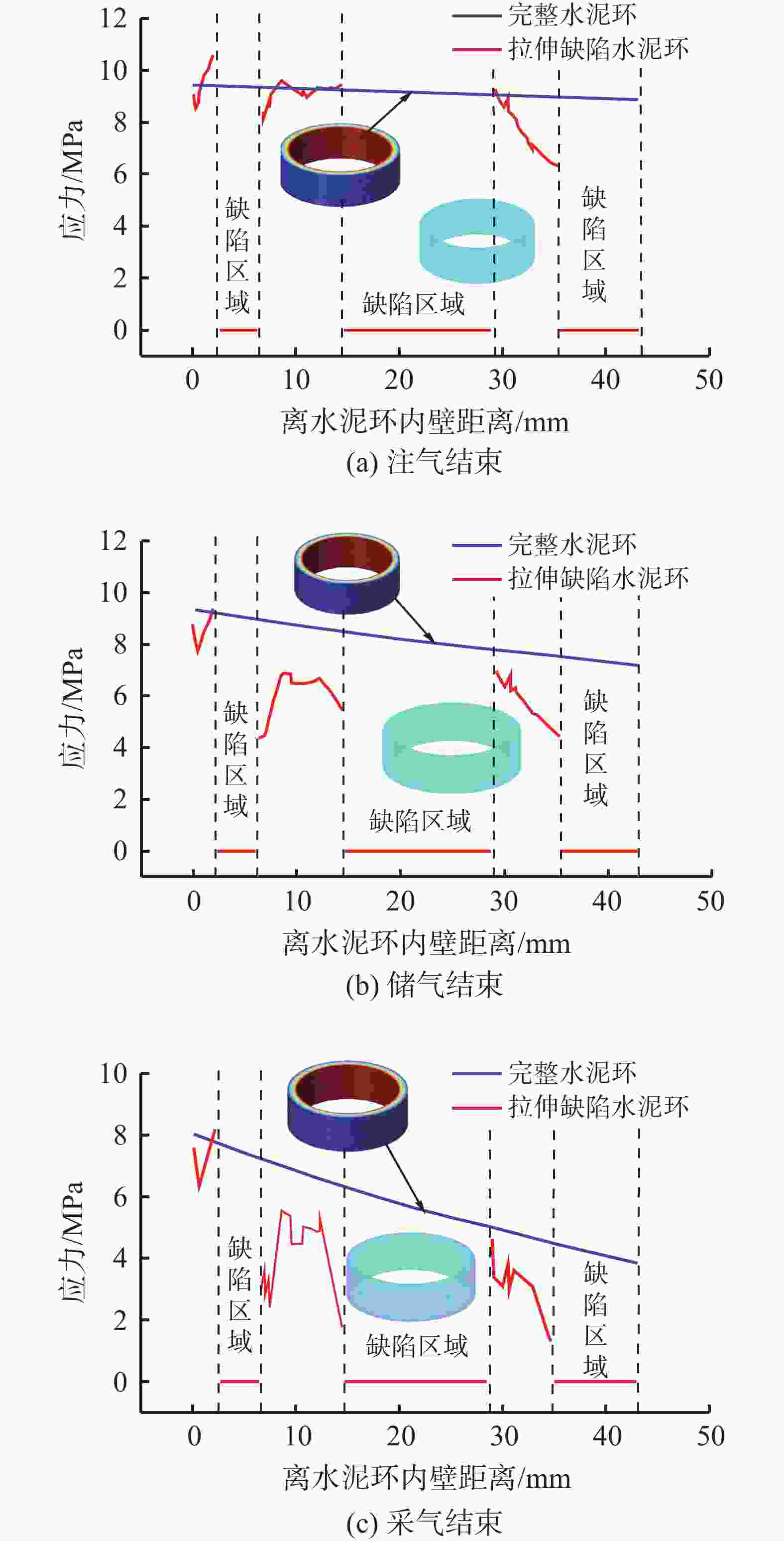

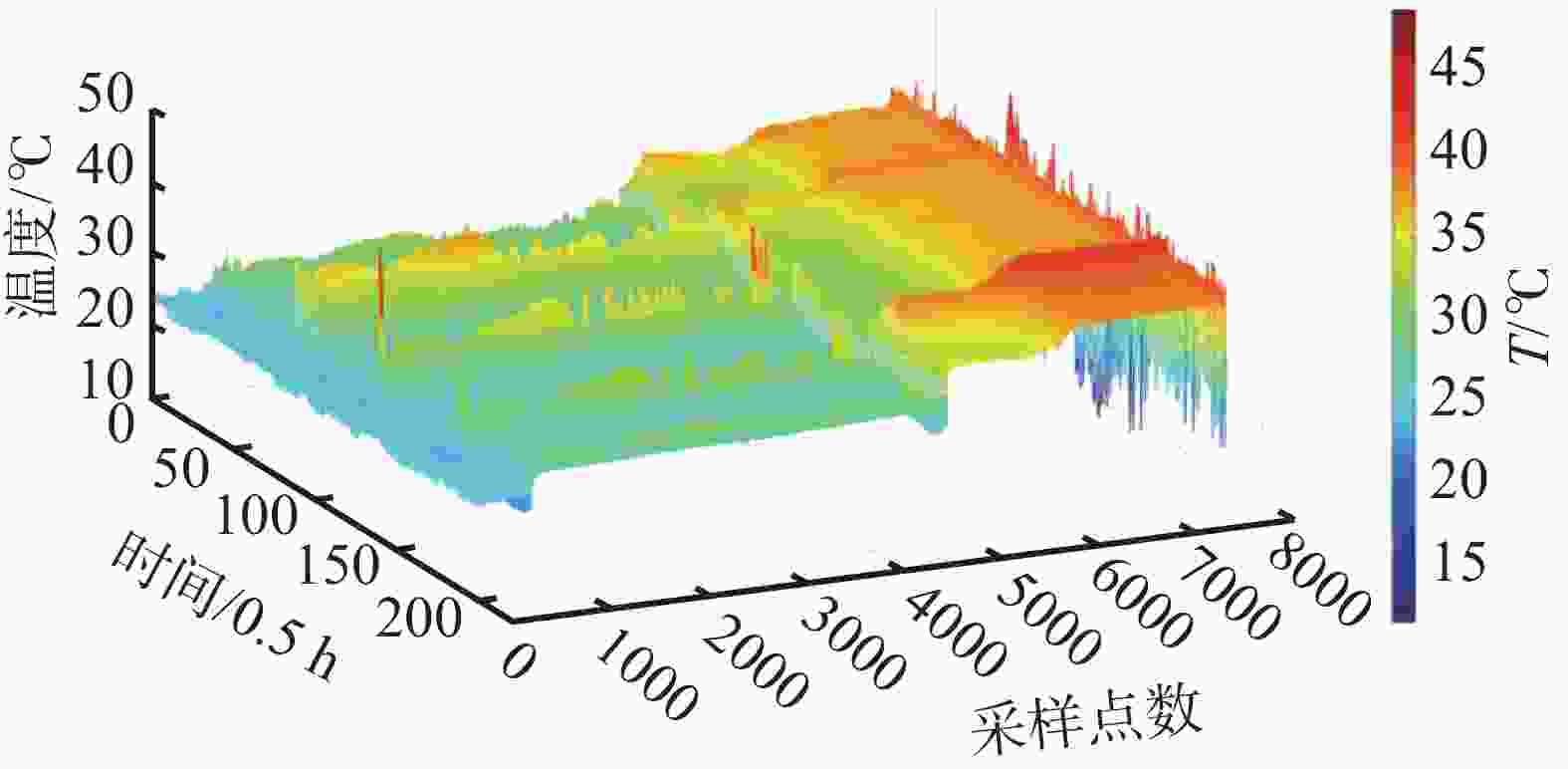

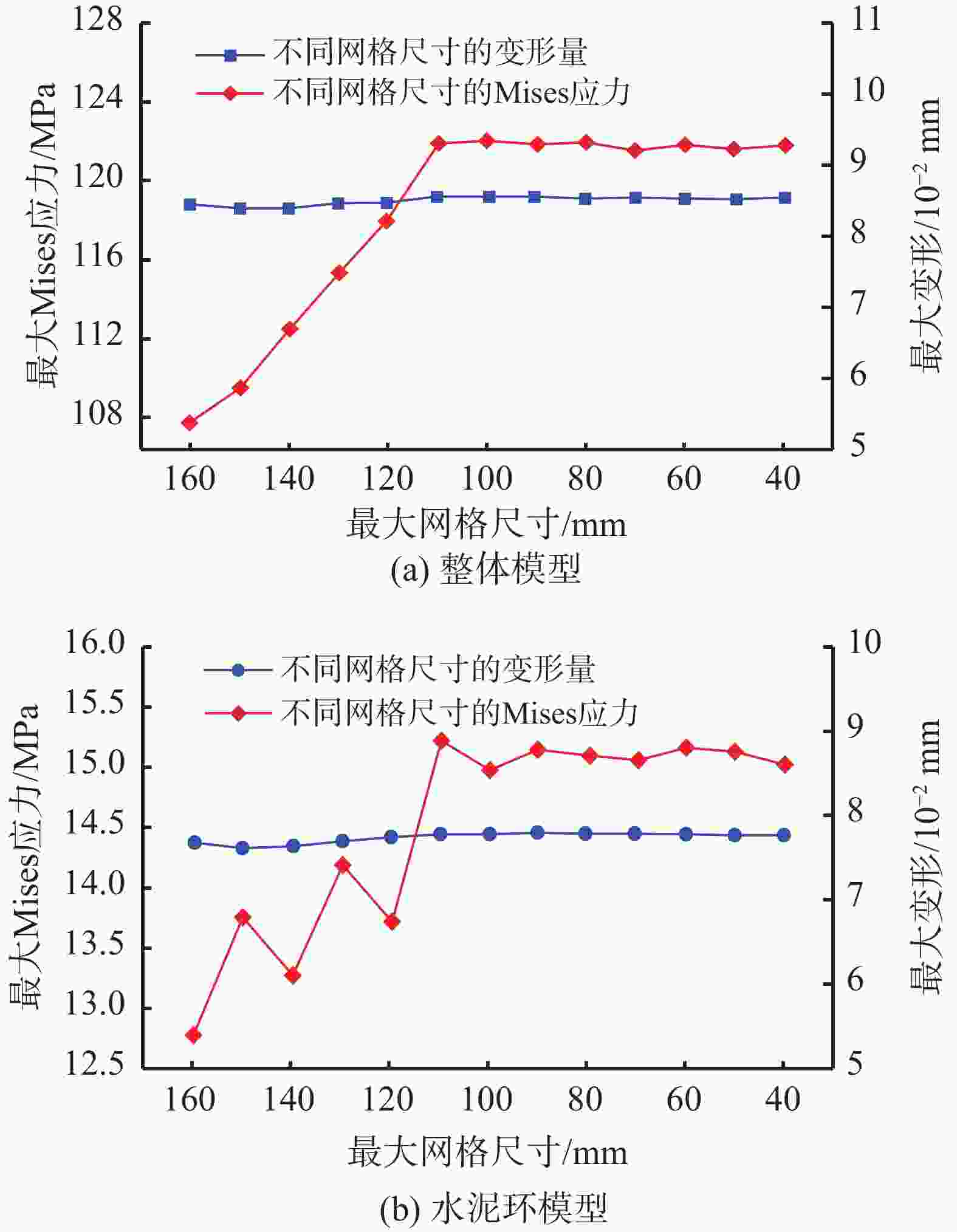

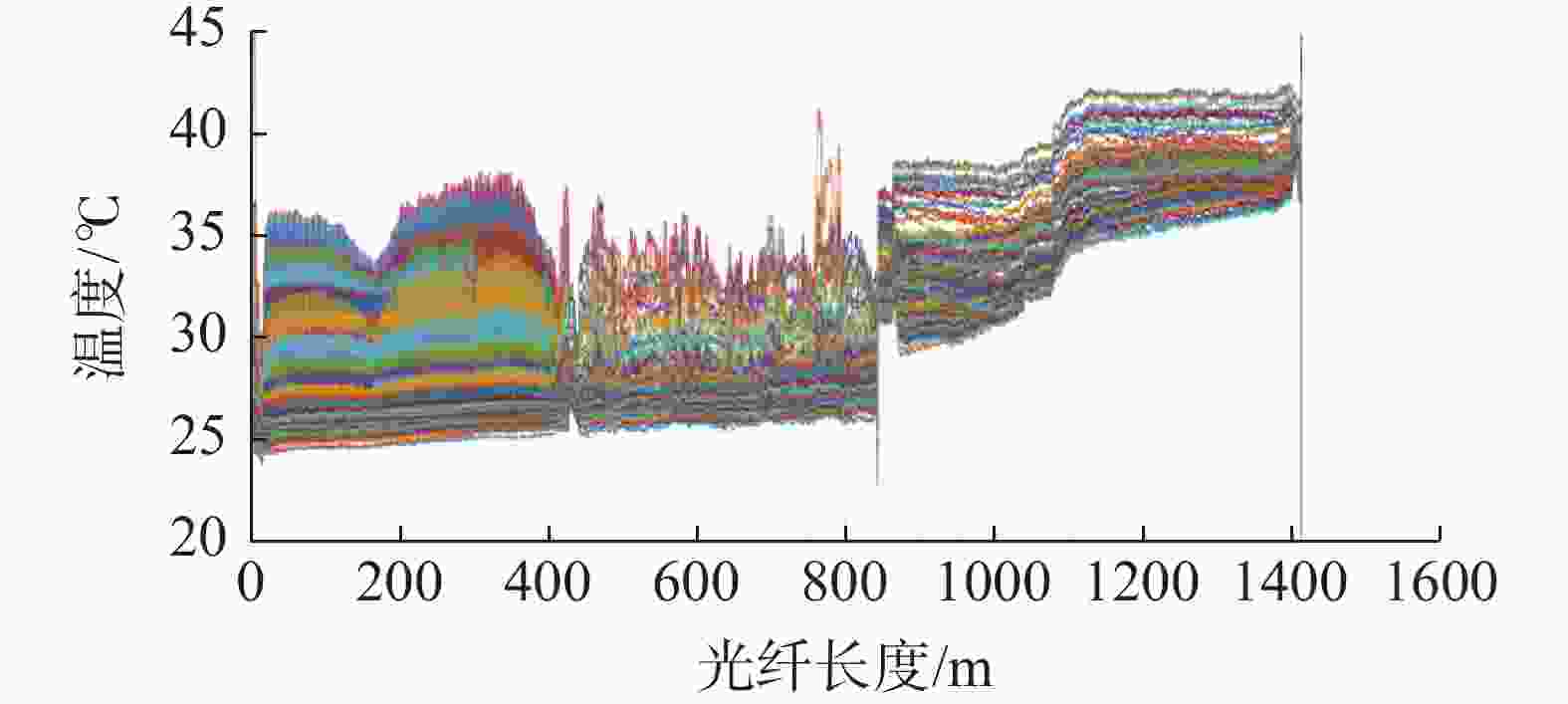

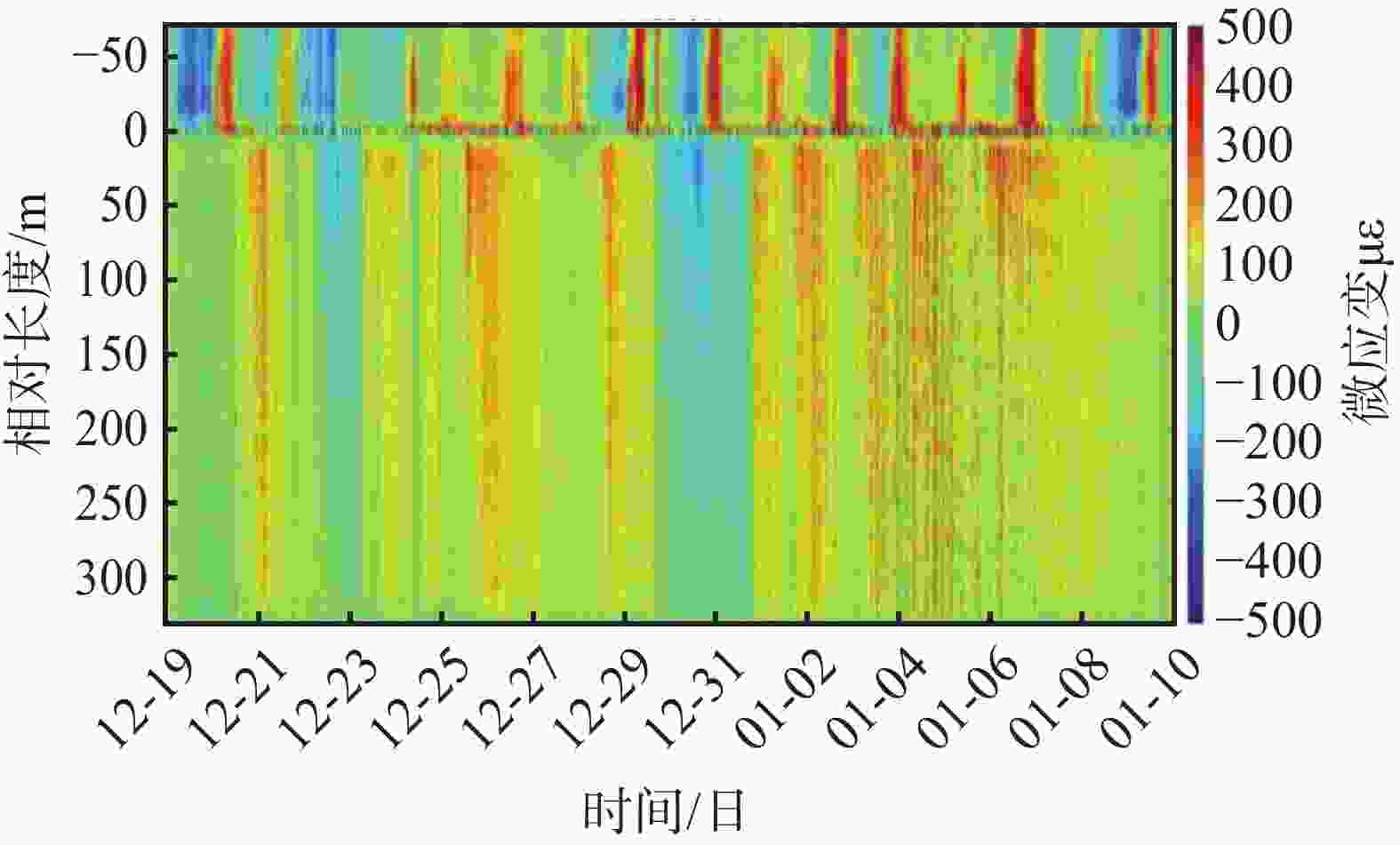

摘要: 当前固井水泥环在线监测仍是难题，永置式光纤监测视为最有效的监测途径，但水泥环力学行为缺乏动态表征。针对此问题采用COMSOL有限元软件建立了交变载荷下的套管-水泥环-地层组合体热-力耦合模型，定量表征了典型缺陷与监测特征参数间的映射关系。结果表明，缺陷导致水泥环径向温度场出现梯度跳跃。剪切和界面微环隙缺陷在注、采气末期的整体温度比完整水泥环低0.5～3 K，储气末期则升高0.05～1 K，温差峰值集中缺陷边界处。拉伸缺陷在注、储气末期降温0～3.6 K，采气末期则升温0.8 K，且最大温差向外壁转移。力学响应方面，缺陷区域因承载能力丧失处于完全卸载状态，径向应力和应变同步降至0 MPa。非缺陷区域的力学场从线性分布演变为分段不规则梯度分布。其中，拉伸缺陷引起的非线性扰动最剧烈，其非缺陷区应力变幅达7.2 MPa，与完整水泥环的最大应力偏差达5 MPa。剪切缺陷在边界处诱发载荷重分布，注气末期应力比正常值高1.1 MPa，储、采气末期则低1.4 MPa。界面微环隙的力学响应最弱，应力变化仅为1 MPa。通过应力应变卸载状态、异常温度场与非均匀应力场耦合特性可定位水泥环缺陷，研究结果可为储气库固井水泥环健康在线监测与损伤识别提供量化基础模型支撑。Abstract: Online monitoring of cement sheath integrity remains a challenge, and permanent fiber-optic monitoring is regarded as the most effective monitoring approach; however, dynamic characterization of the mechanical behavior of the cement sheath is lacking. To address this issue, a thermo-mechanical coupling model of the casing–cement sheath–formation assembly under alternating loads was established using COMSOL finite element software, and the mapping relationships between typical defects and monitoring characteristic parameters were quantitatively characterized. The results show that defects cause gradient jumps in the radial temperature field of the cement sheath. For shear defects and interfacial micro-annulus defects, the overall temperature at the end of gas injection and gas production is 0.5–3 K lower than that of an intact cement sheath, while at the end of gas storage it increases by 0.05–1 K, with the peak temperature difference concentrated at the defect boundaries. For tensile defects, the temperature decreases by 0–3.6 K at the end of gas injection and gas storage, and increases by 0.8 K at the end of gas production, with the maximum temperature difference shifting toward the outer wall. In terms of mechanical response, the defect regions are in a fully unloaded state due to loss of load-bearing capacity, and the radial stress and strain simultaneously drop to 0 MPa. The mechanical field in non-defect regions evolves from a linear distribution to a piecewise irregular gradient distribution. Among them, the nonlinear disturbance caused by tensile defects is the most severe, with the stress variation amplitude in non-defect regions reaching 7.2 MPa and a maximum stress deviation of 5 MPa from the intact cement sheath. Shear defects induce load redistribution at the boundaries, with the stress at the end of gas injection being 1.1 MPa higher than the normal value and 1.4 MPa lower at the end of gas storage and gas production. The mechanical response of interfacial micro-annulus defects is the weakest, with a stress variation of only 1 MPa. Cement sheath defects can be located through the coupling characteristics of stress–strain unloading states, anomalous temperature fields, and non-uniform stress fields. The research results provide a quantitative foundational model for health online monitoring and damage identification of cement sheaths in gas storage wells.
-
表 1 材料性能参数
介质 外径/
mm壁厚/
mm杨氏模量/
GPa泊松比μ 密度/
kg·m−3屈服强度/
MPa套管 474.03 11.03 206 0.3 8020 810 水泥环 558.6 42.84 21 0.23 2200 40 地层 18 0.28 2210 30 光纤 73.1 0.17 2203 6×103
下载: 导出CSV
表 2 材料热力学参数
材料 热膨胀系数/
10−5/℃导热系数/
W/m·K恒压热容/
J/kg·K套管 1.36 50.00 500 水泥环 1.10 1.20 1000 地层 1.03 3.50 950 光纤 5.50 1.38 703
下载: 导出CSV
-
[1] 袁光杰, 夏焱, 金根泰, 等. 国内外地下储库现状及工程技术发展趋势[J]. 石油钻探技术, 2017, 45(4): 8-14. doi: 10.11911/syztjs.201704002Yuan Guangjie, Xia Yan, Jin Gentai, et al. Present state of underground storage and development trends in engineering technologies at home and abroad[J]. Petroleum Drilling Techniques, 2017, 45(4): 8-14. doi: 10.11911/syztjs.201704002 [2] 马新华, 郑得文, 魏国齐, 等. 中国天然气地下储气库重大科学理论技术发展方向[J]. 天然气工业, 2022, 42(5): 93-99. doi: 10.3787/j.issn.1000-0976.2022.05.010Ma Xinhua, Zheng Dewen, Wei Guoqi, et al. Development directions of major scientific theories and technologies for underground gas storage[J]. Natural Gas Industry, 2022, 42(5): 93-99. doi: 10.3787/j.issn.1000-0976.2022.05.010 [3] 王汉, 丁亮亮, 李玉飞, 等. 储气库注采管柱横向振动动力学机理研究[J]. 石油机械, 2020, 48(9): 128-133. doi: 10.16082/j.cnki.issn.1001-4578.2020.09.020Wang Han, Ding Liangliang, Li Yufei, et al. Dynamic mechanism of lateral vibration of injection/production string in underground gas storage[J]. China Petroleum Machinery, 2020, 48(9): 128-133. doi: 10.16082/j.cnki.issn.1001-4578.2020.09.020 [4] 李娟, 郭辛阳. 储气库井注采工况对水泥环密封压力的影响[J]. 当代化工, 2024, 53(11): 2560-2563. doi: 10.3969/j.issn.1671-0460.2024.11.009Li Juan, Guo Xinyang. Effect of injection and production conditions of gas storage well on seal-gas pressure of cement sheath[J]. Contemporary Chemical Industry, 2024, 53(11): 2560-2563. doi: 10.3969/j.issn.1671-0460.2024.11.009 [5] 刘奎, 丁士东. 套管内压周期变化水泥环应力计算与失效分析[J]. 石油机械, 2021, 49(5): 1-8. doi: 10.16082/j.cnki.issn.1001-4578.2021.05.001Liu Kui, Ding Shidong. Stress calculation and failure analysis of cement sheath experiencing periodic variation of casing internal pressure[J]. China Petroleum Machinery, 2021, 49(5): 1-8. doi: 10.16082/j.cnki.issn.1001-4578.2021.05.001 [6] 武治强, 武广瑷, 幸雪松. CO2腐蚀-应力耦合下固井水泥环密封完整性[J]. 钻井液与完井液, 2024, 41(2): 220-230. doi: 10.12358/j.issn.1001-5620.2024.02.012Wu Zhiqiang, Wu Guangai, Xing Xuesong. Sealing integrity of cement sheath under the condition of CO2 Corrosion-Stress coupling[J]. Drilling Fluid & Completion Fluid, 2024, 41(2): 220-230. doi: 10.12358/j.issn.1001-5620.2024.02.012 [7] 陈毅, 张彬奇, 刘鹏, 等. 超高温热循环作用下水泥环完整性及界面力学性能衰退规律[J]. 钻井液与完井液, 2024, 41(1): 105-111. doi: 10.12358/j.issn.1001-5620.2024.01.012Chen Yi, Zhang Binqi, Liu Peng, et al. Cement sheath integrity and decay law of interface mechanical properties under ultra-high temperature thermal cycling[J]. Drilling Fluid & Completion Fluid, 2024, 41(1): 105-111. doi: 10.12358/j.issn.1001-5620.2024.01.012 [8] 李建中, 李奇, 胥洪成. 盐穴地下储气库气密封检测技术[J]. 天然气工业, 2011, 31(5): 90-92,95. doi: 10.3787/j.issn.1000-0976.2011.05.024Li Jianzhong, Li Qi, Xu Hongcheng. Sealing testing techniques of underground gas storage based on salt caverns[J]. Natural Gas Industry, 2011, 31(5): 90-92,95. doi: 10.3787/j.issn.1000-0976.2011.05.024 [9] 周仕明, 陆沛青. 井筒密封完整性监测与智能感知技术进展与展望[J]. 石油钻探技术, 2024, 52(5): 35-41. doi: 10.11911/syztjs.2024097Zhou Shiming, Lu Peiqing. Advancements and prospects of monitoring and intelligent perception technology for wellbore sealing integrity[J]. Petroleum Drilling Techniques, 2024, 52(5): 35-41. doi: 10.11911/syztjs.2024097 [10] Li Juan, Su Donghua, Tang Shizhong, et al. Deformation and damage of cement sheath in gas storage wells under cyclic loading[J]. Energy Science & Engineering, 2021, 9(4): 483-501. doi: 10.1002/ese3.869 [11] Arjomand E, Bennett T, Nguyen G D. Evaluation of cement sheath integrity subject to enhanced pressure[J]. Journal of Petroleum Science and Engineering, 2018, 170: 1-13. doi: 10.1016/j.petrol.2018.06.013 [12] 赵彦淇, 周元华, 万继方, 等. 固井水泥环内部缺陷超声波检测仿真研究[J]. 石油机械, 2024, 52(10): 28-36. doi: 10.16082/j.cnki.issn.1001-4578.2024.10.004Zhao Yanqi, Zhou Yuanhua, Wan Jifang, et al. Simulation study on ultrasonic testing of defects in cement sheath[J]. China Petroleum Machinery, 2024, 52(10): 28-36. doi: 10.16082/j.cnki.issn.1001-4578.2024.10.004 [13] 罗金恒, 李丽锋, 赵新伟, 等. 盐穴地下储气库风险评估方法及应用研究[J]. 天然气工业, 2011, 31(8): 106-111. doi: 10.3787/j.issn.1000-0976.2011.08.025Luo Jinheng, Li Lifeng, Zhao Xinwei, et al. Risk assessment method and its application for salt cavern underground gas storage[J]. Natural Gas Industry, 2011, 31(8): 106-111. doi: 10.3787/j.issn.1000-0976.2011.08.025 [14] 陈宝, 白松涛, 刘文强, 等. 光纤测井技术应用现状与发展展望[J]. 世界石油工业, 2025, 32(6): 11-23. doi: 10.20114/j.issn.1006-0030.20250321001Chen Bao, Bai Songtao, Liu Wenqiang, et al. Application status and development prospects of fiber optic logging technology[J]. World Petroleum Industry, 2025, 32(6): 11-23. doi: 10.20114/j.issn.1006-0030.20250321001 [15] 马欢. 分布式光纤传感技术在石油测井中的应用[J]. 中国石油和化工标准与质量, 2025, 45(16): 155-157. doi: 10.3969/j.issn.1673-4076.2025.16.052Ma Huan. Application of distributed optical fiber sensing technology in petroleum logging[J]. China Petroleum and Chemical Standard and Quality, 2025, 45(16): 155-157. doi: 10.3969/j.issn.1673-4076.2025.16.052 [16] 徐芝纶. 弹性力学[M]. 北京: 人民教育出版社, 1979: 32-38.Xu Zhiguan. Elastic mechanics[M]. Beijing: The People's Education Press, 1979: 32-38. [17] 孙彦辉. 储气库井循环注采条件下水泥环结构完整性力学分析[D]. 大庆: 东北石油大学, 2024.Sun Yanhui. Mechanical analysis on structural integrity of cement sheath under cyclic injection-production conditions of gas storage wells[D]. Daqing: Northeast Petroleum University, 2024. [18] 舒刚, 刘健, 冯逢, 等. 储气库注采井水泥环破坏机理实验研究[J]. 钻井液与完井液, 2020, 37(4): 507-511,520. doi: 10.3969/j.issn.1001-5620.2020.04.017Shu Gang, Liu Jian, Feng Feng, et al. Experimental study on failure mechanism of cement sheath in gas storage injection-production wells[J]. Drilling Fluid & Completion Fluid, 2020, 37(4): 507-511,520. doi: 10.3969/j.issn.1001-5620.2020.04.017 [19] 赵彦淇. 基于分布式光纤的储气库固井水泥环力学行为在线监测研究[D]. 荆州: 长江大学, 2025.Zhao Yanqi. Online monitoring research on mechanical behavior of cement sheath in gas storage well based on distributed optical fiber[D]. Jingzhou: Yangtze University, 2025. [20] 郭佳奇, 杨浩楠, 王建业, 等. 基于厚壁圆筒理论的袖阀管注浆开环压力计算方法及影响因素分析[J]. 河南理工大学学报(自然科学版), 2024, 43(5): 173-182. doi: 10.16186/j.cnki.1673-9787.2023050019Guo Jiaqi, Yang Haonan, Wang Jianye, et al. Calculation method and influencing factors analysis of open-loop pressure of sleeve valve pipe grouting based on thick-walled cylinder theory[J]. Journal of Henan Polytechnic University (Natural Science), 2024, 43(5): 173-182. doi: 10.16186/j.cnki.1673-9787.2023050019 [21] 舒同林, 李凤斌. 弹性力学中拉梅问题的讨论[J]. 力学与实践, 1991(4): 58-59.Shu Tonglin, Li Fengbin. Discussion on lame problem in elastic mechanics[J]. Mechanics in Engineering, 1991(4): 58-59. -
